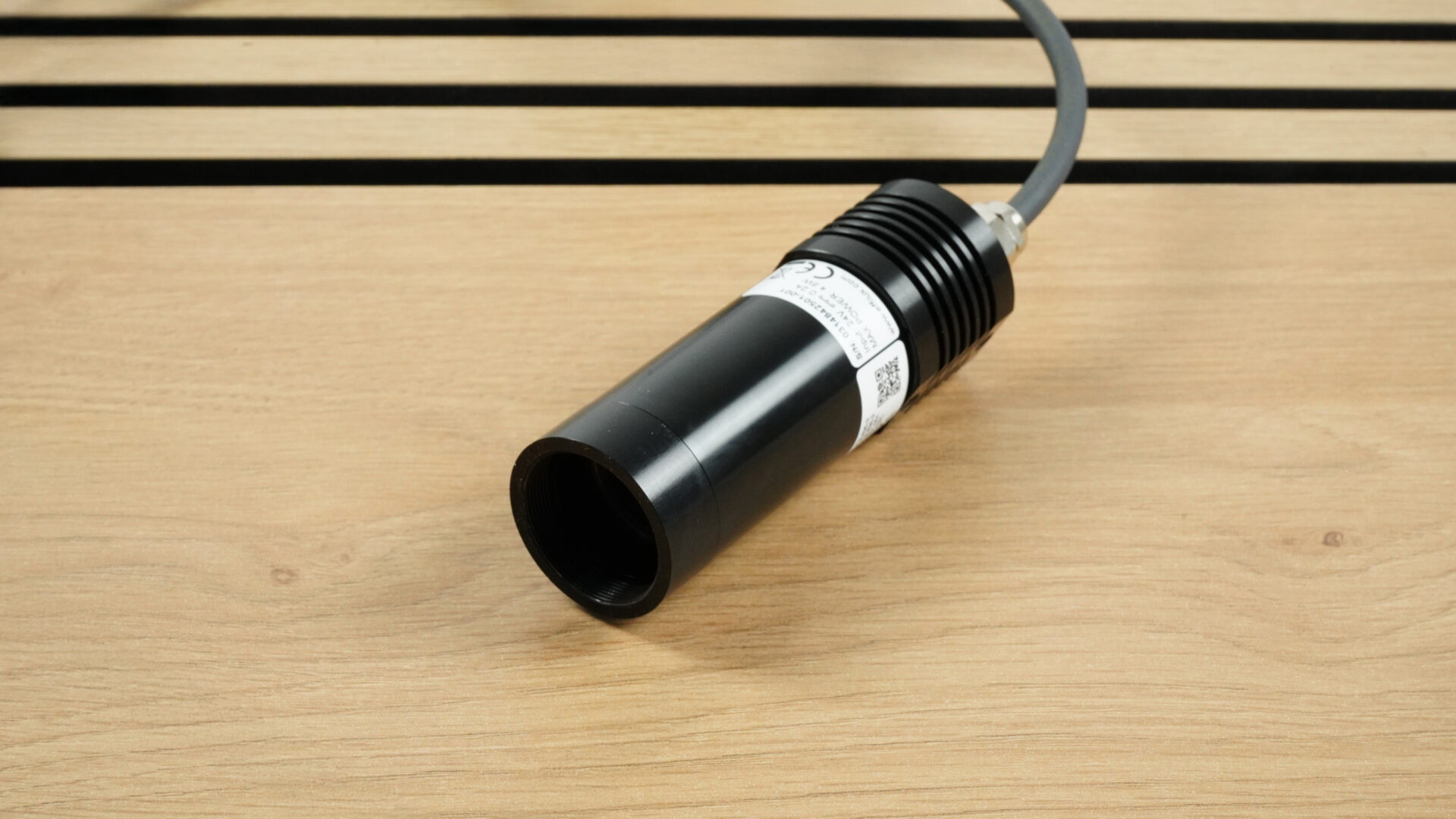

EFFI-SHARP V2 LED Projector is the next-generation high-power lighting solution from EFFILUX, designed for precision illumination across industrial and vision applications. It projects discs, squares, or custom shapes with exceptional clarity at working distances from 20mm to 2 meters. Offering up to 10x the power of its predecessor, EFFI-SHARP V2 also features easy mask interchangeability for flexible use. Available in two configurations—EFFI-SHARP-PSV (dissipated version) and EFFI-SHARP-CPT (compact version)—it adapts to your specific mechanical and electronic requirements.
 |  | |
| LED board type | MX1 | MX2 |
| Number of driver(s) | 1 Driver | 2 Drivers |
| Operating mode | Continuous or Strobe | Strobe |
PART NUMBERS:
Passive dissipation version : EFFI-SHARP-PSV-VVV...
Compact version : EFFI-SHARP-CPT-VVV-...
| XX : Lens | Working distances (Typical) | Illuminance |

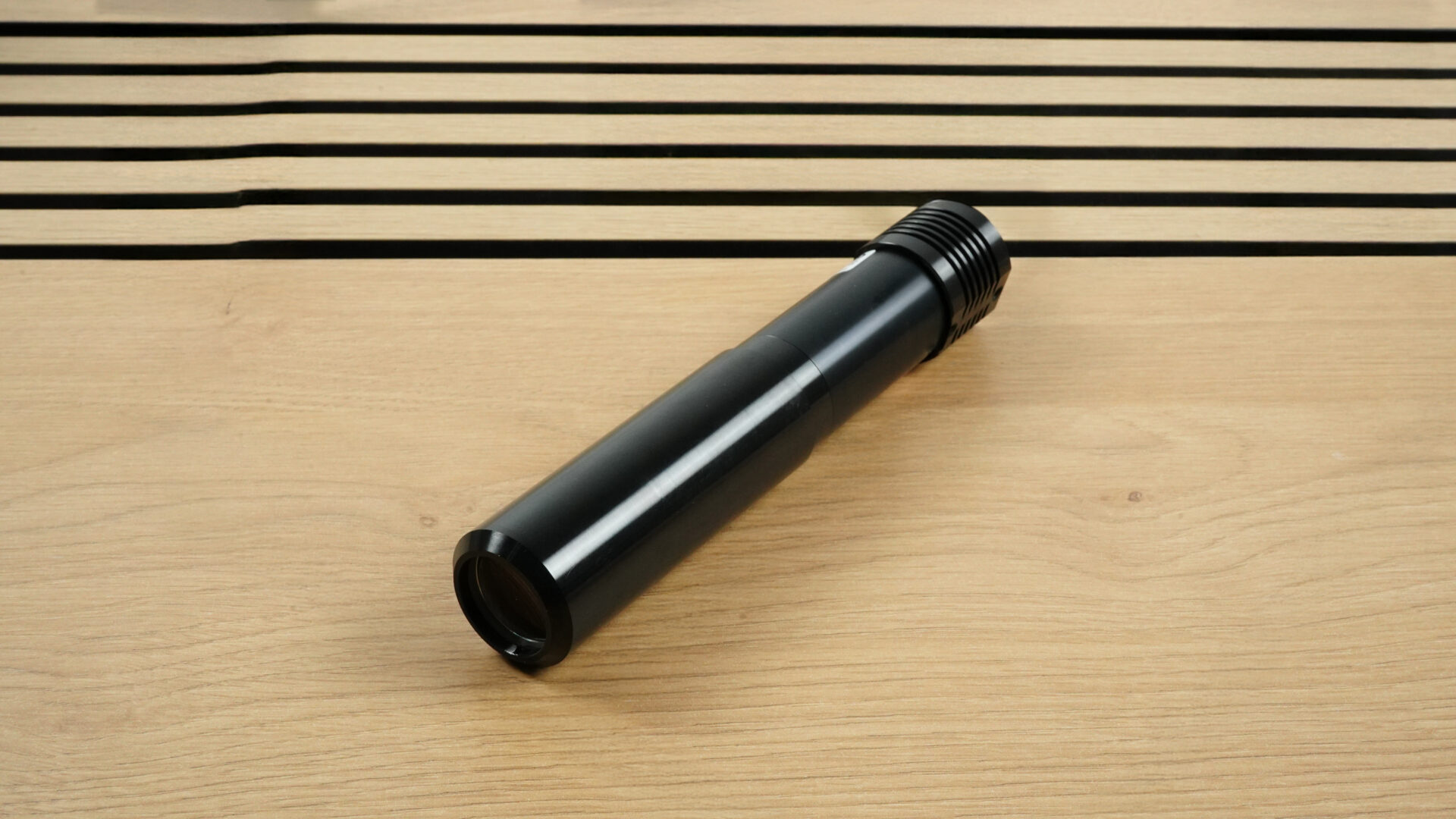

| NF (Near Field) | 80 to 400mm | 2 000 000 lux at 100mm |
| MF (Middle Field) | 400 to 3000mm | 100 000 lux at 500mm |
| FF (Far Field) | 400 to 3000mm | 200 000 lux at 1000mm |
| CM | To adjust a C-mount lens. | |
PART NUMBERS:
Passive dissipation version : EFFI-SHARP-PSV-VVV-XX...
Compact version : EFFI-SHARP-CPT-VVV-XX...
XX : NF (Near Field), MF (Middle Field) or FF (Far Field)
If not mentioned, default NF lens.

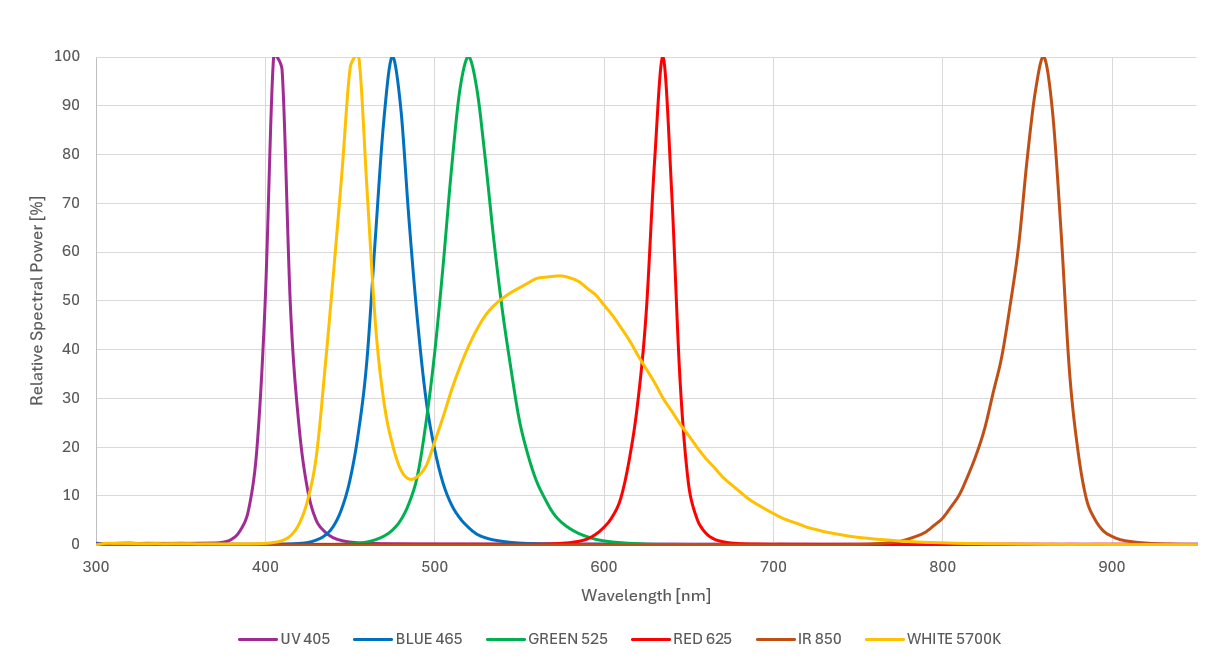

| Wavelength (nm) | ● 365 (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBERS:
Passive dissipation version : EFFI-SHARP-PSV-VVV-XX-ZZZ...
Compact version : EFFI-SHARP-CPT-VVV-XX-ZZZ...
The mask is mounted directly inside the product. It will be the shape projected by the EFFI-SHARP-V2.
 |  |  | |
| M : Shape number | 1 | 2 | 3 |
| Masks dimensions | 9x9mm | Ø15.1mm | R = 9.5mm |
PART NUMBERS:
Passive dissipation version : EFFI-SHARP-PSV-WWW-XX-ZZZ-M
Compact version : EFFI-SHARP-CPT-WWW-XX-ZZZ-M
M : 1, 2 or 3
For custom shape, please contact us.
The EFFI-SHARP-VVV-CM accepts only C-Mount projection lens (M25.4). Those lenses are not supplied with the light. EFFILUX offers a wide range of lenses, for more information please refer to our page lenses. Refer to the documentation to identify the size of the projected pattern depending on the chosen lens.
To avoid any distortion effect, EFFILUX recommends using a 1″ sensor lens for masks with rectangular patterns, such as point clouds.
| EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1 »-HR-CM | |
| Focal distance | 6mm | 8mm | 12,5mm | 16mm | 25mm | 35mm | 50mm | 75mm |
| Aperture of the diaphragm | F1.8 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (HxV) | 96.8°x79.4° | 79.4°x63° | 55.5° | 44.3°x33.6° | 16.1° x 19.0° | 20.9°x15.8° | 14.4° | 9.7° x 7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |

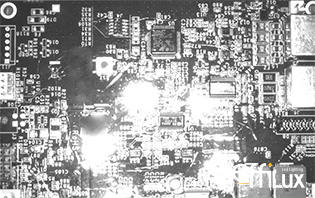

Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
PART NUMBERS:
Passive dissipation version : EFFI-SHARP-PSV-WWW-XX-ZZZ-M-POL2
Compact version : EFFI-SHARP-CPT-WWW-XX-ZZZ-M-POL2

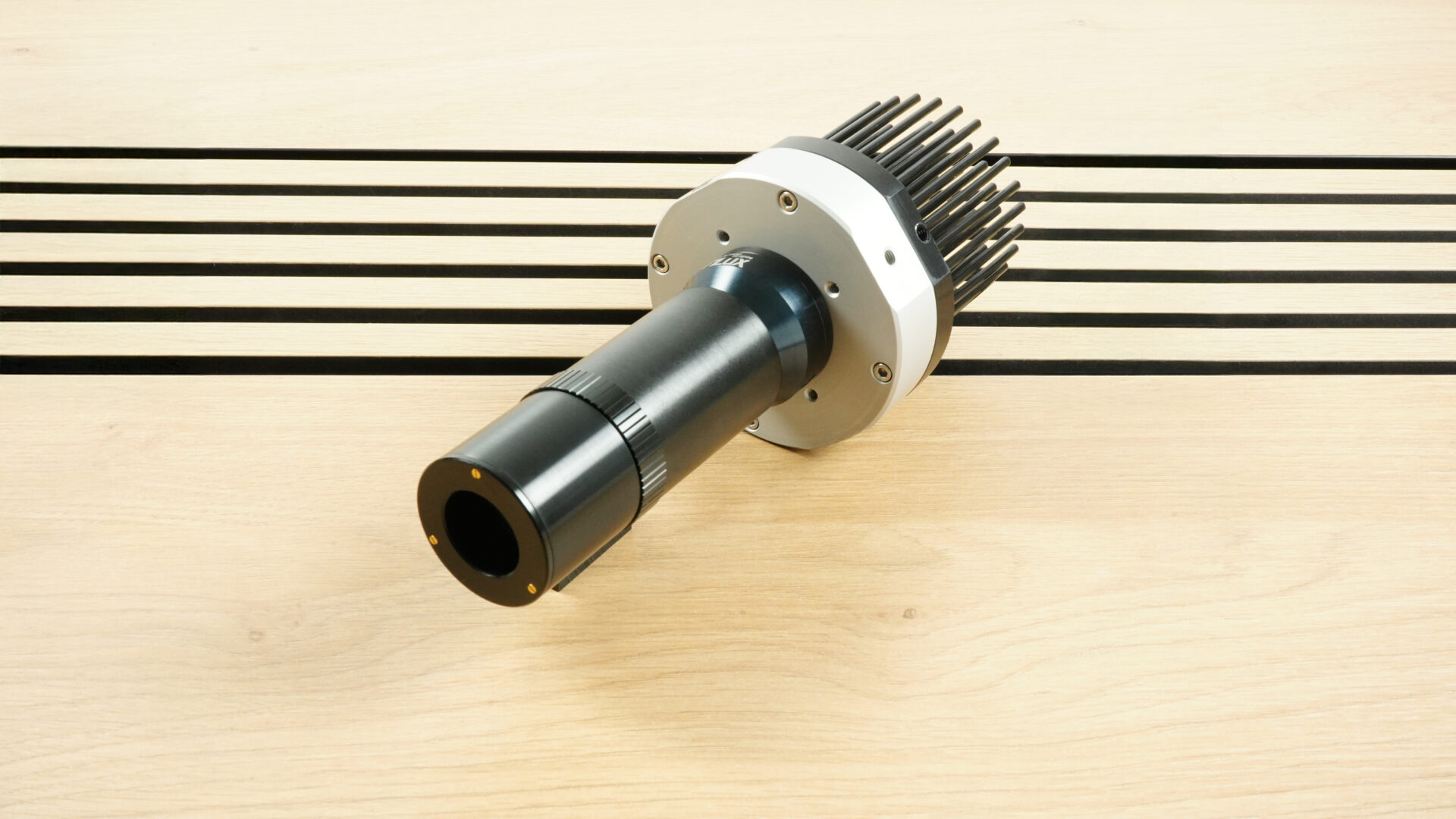

There are two versions of the EFFI-Sharp V2:

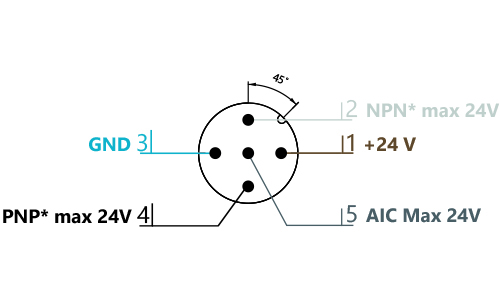

The EFFI-Sharp-PSV is directly supplied with 24V DC via an M12 – 5 pins.
The EFFI-SHARP-PSV works in an autostrobe mode with several LED current steps from 2A (300%) to reach continuous level 0.7A (100%) after 2s.
The product can work on strobe mode choosing the right period under 2s and with a maximum duty cycle of 30%
It can also be used continuously passing by all those steps and light intensity can be adjusted between 10% and 100% with the AIC pin.

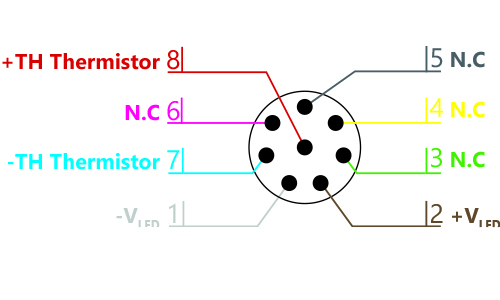

The compact version of the EFFI-Sharp V2 allows:
The LEDs are powered directly, the maximum current defined in the data sheet for a frequency and a given pulse time cannot be exceeded.

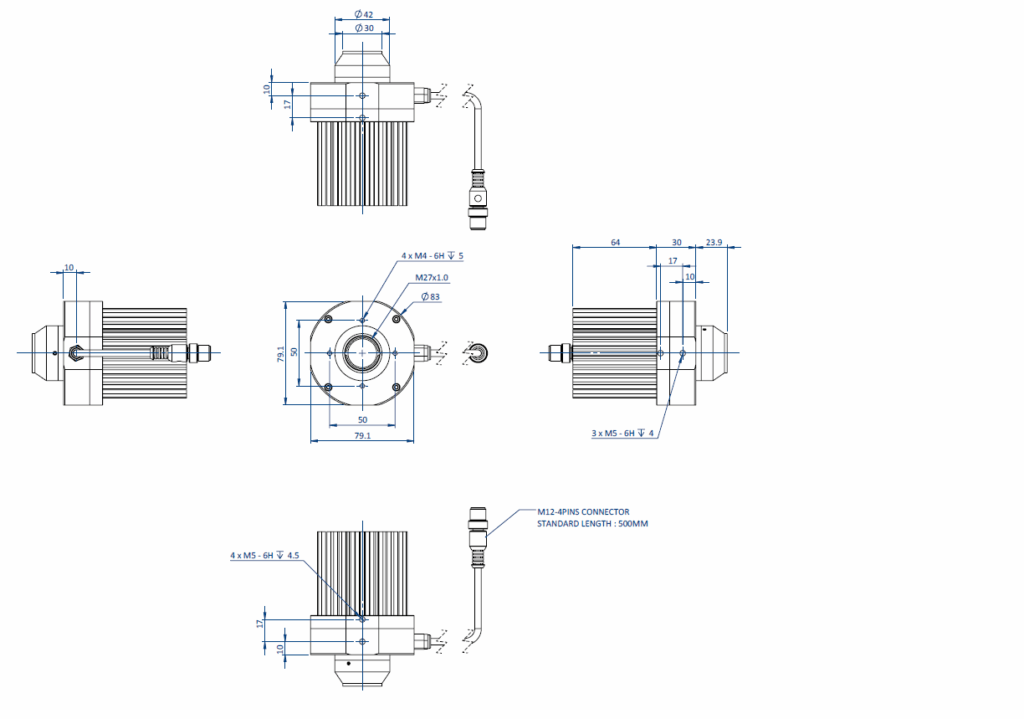

EFFI-SHARP-PSV: Four standard M5x0.8 holes can be used to fix the device

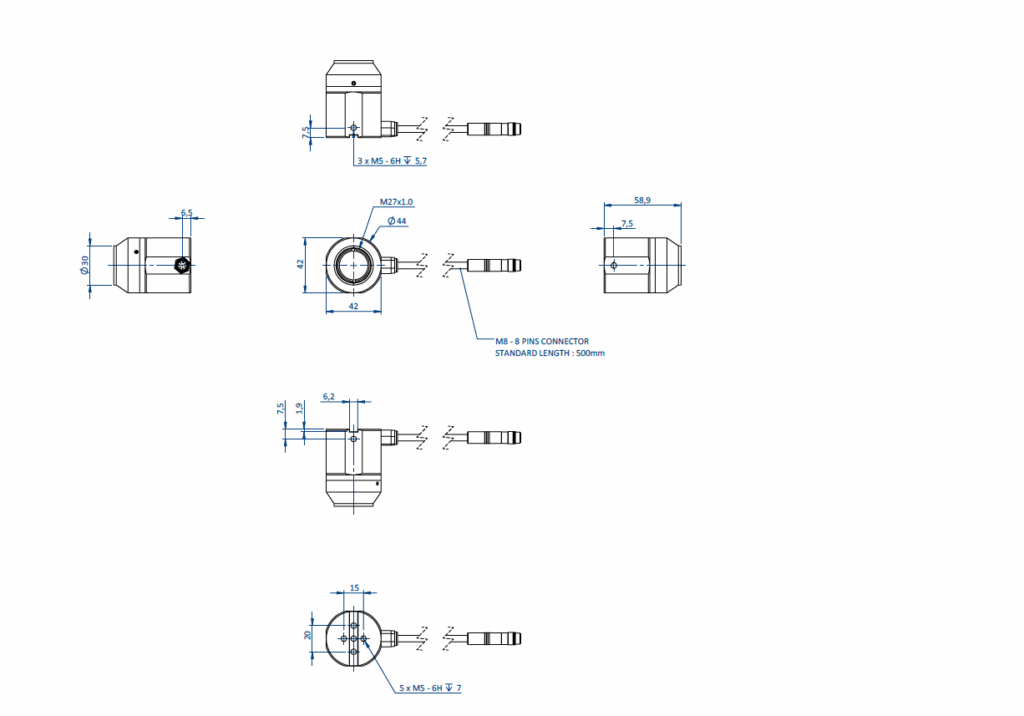

EFFI-SHARP-CPT: Five M4x0.8 holes can be used to fix the device.
To fix them, the Elcom mounting solution (EFFM-1-0009) is the most suitable.
| Mechanical versions | IP grade | Passive cooling | Integrated driver | Compact | Direct current supply (no protection) |
| EFFI-SHARP-PSV |  |  | |  | |
| EFFI-SHARP-CPT | | | | | |
For all other inquiries, please contact EFFILUX.
