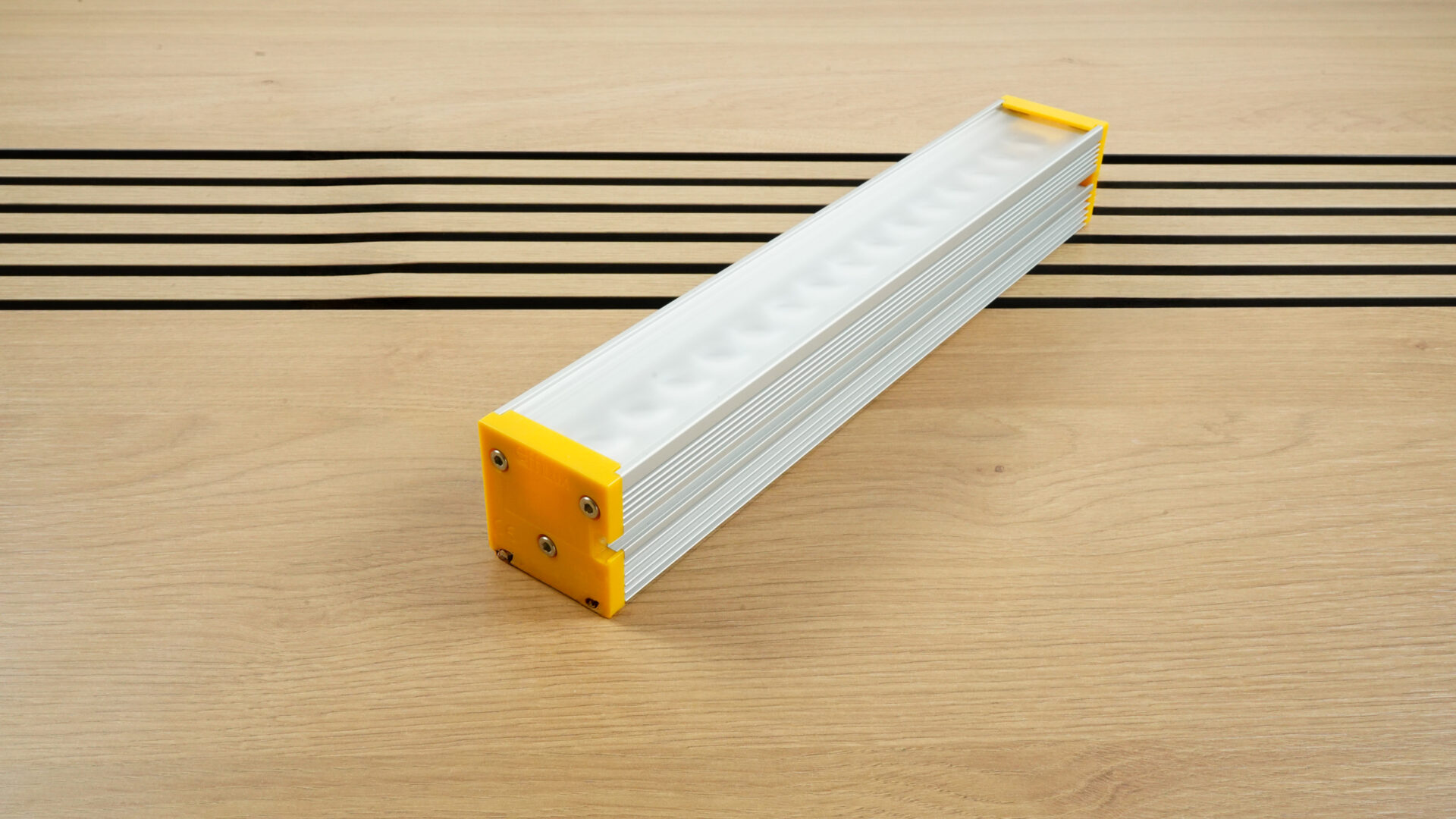

The EFFI-FLEX-BL is a specialized LED bar designed for linear backlighting applications, ideal for highlighting the contours and edges of parts during inspection. It is particularly well-suited for use with line scan cameras and the inspection of transparent materials such as paper, glass, and films.
While primarily used as a backlight, the EFFI-FLEX-BL can also serve as a highly diffused directional light source. It is available in a wide range of wavelengths—from blue to infrared—and features a compact, easy-to-mount design for seamless integration into industrial vision systems.
Equipped with an integrated driver and AIC (Auto Intensity Control) function, it allows precise control of light output. A cylindrical high-power version is also available for applications requiring maximum brightness. The EFFI-FLEX-BL is built for durability and is available in both IP67 and IP69K versions, making it suitable for complex and harsh environments.
| Optical length (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 |
| Length of the product (mm) | 135 | 235 | 335 | 435 | 535 | 635 | 735 | 835 | 935 | 1035 | 1135 | 1235 | 1335 | 1435 | 1535 | 1635 | 1735 | 1835 | 1935 | 2035 | 2135 | 2235 | 2335 | 2435 | 2535 | 2635 | 2735 | 2835 | 2935 |
PART NUMBER:
EFFI-FLEX-BL-XXX…

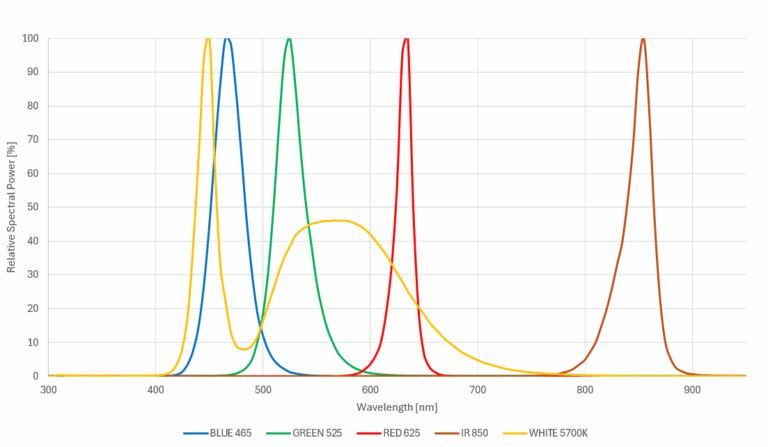

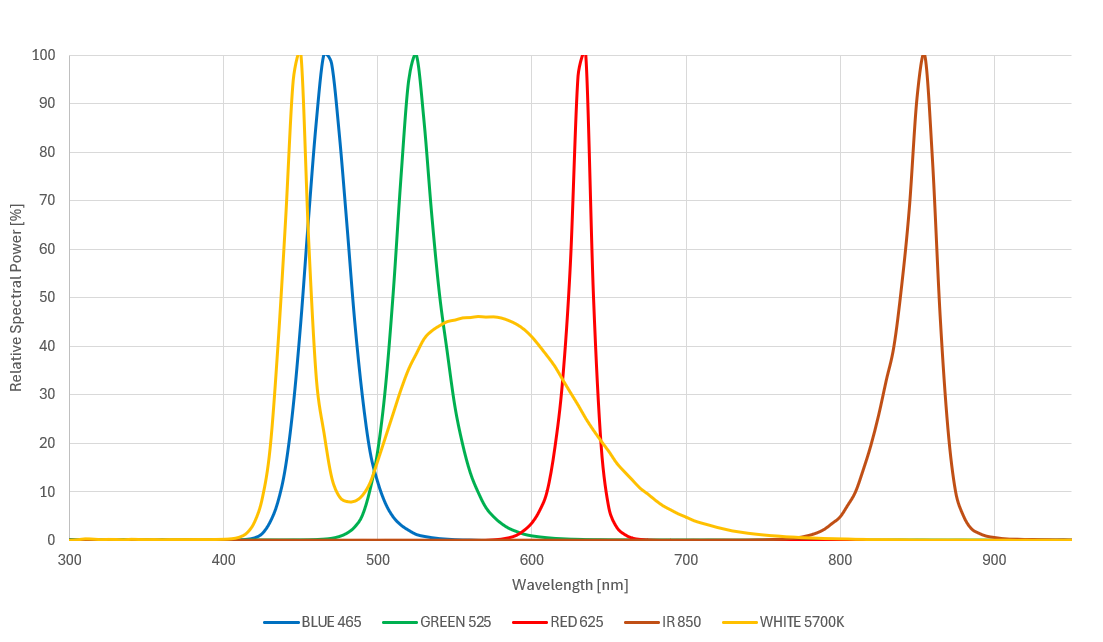

| Wavelength (nm) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-FLEX-BL-XXX-ZZZ…
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. Must be used on top of the opaline window.
PART NUMBER:
EFFI-FLEX-BL-XXX-ZZZ-POL

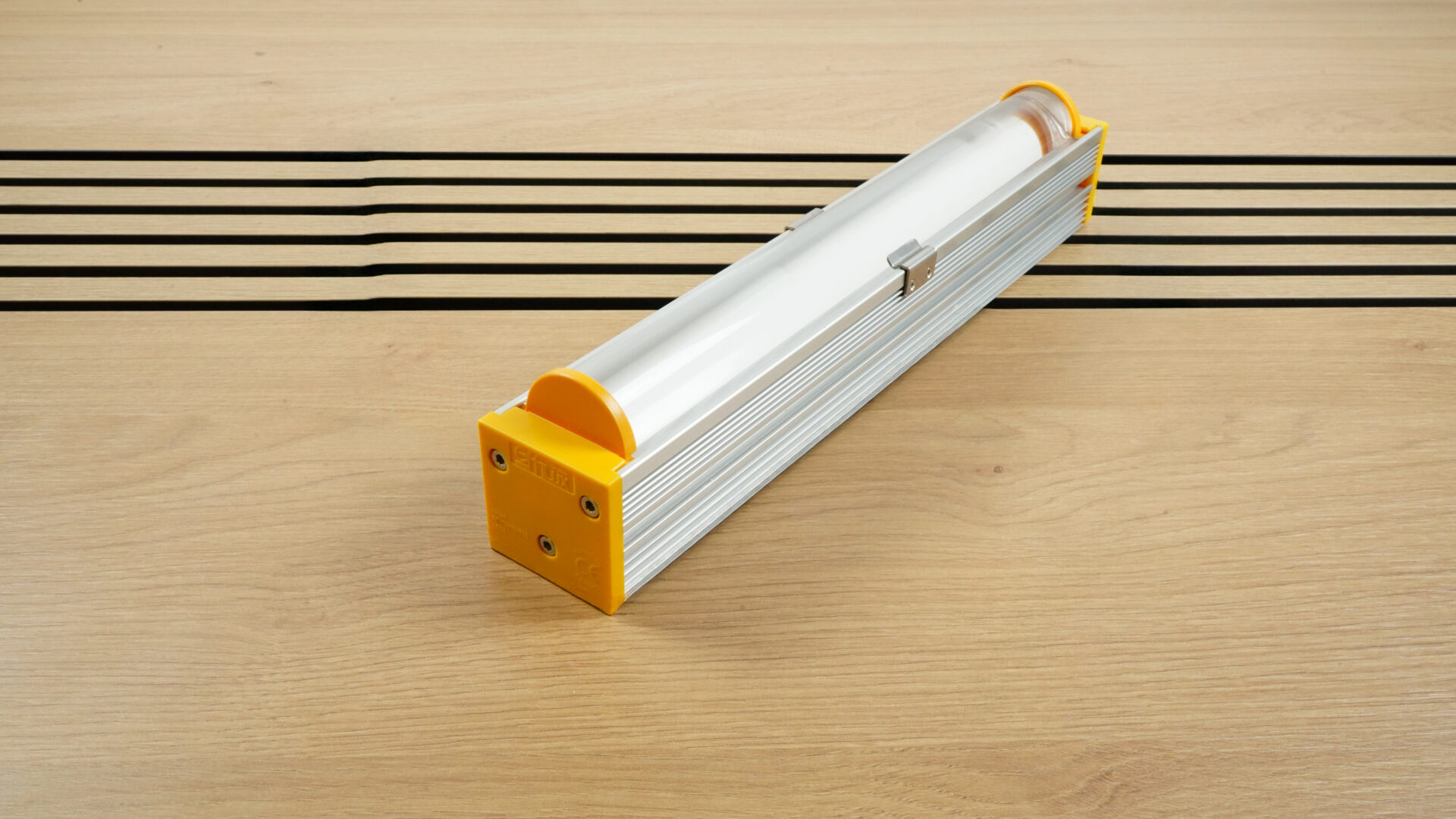

The cylindrical lens option improves collimation (concentration of the luminous flux), making it possible to increase the luminance on the exit glass by a factor of 20: the illuminated area becomes then finer.
PART NUMBER:
EFFI-FLEX-BL-XXX-ZZZ-CYL

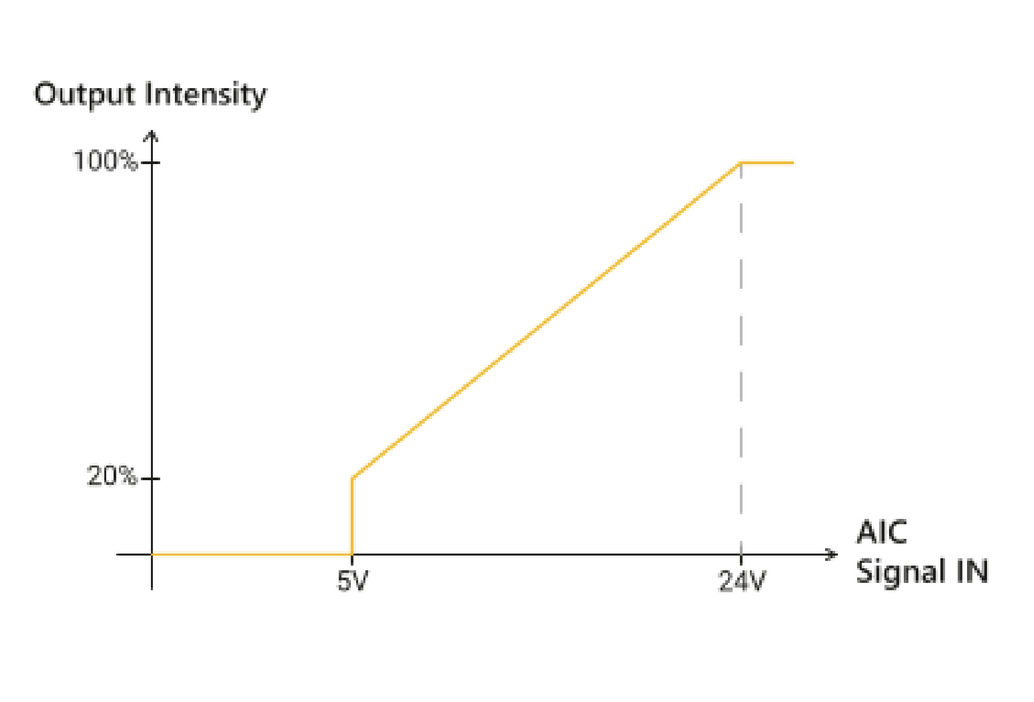

EFFI-Flex-BL is powered by a 24V DC source. By using the AIC pin, the light intensity can be increased linearly:
• 0V – OFF
• 24V – Full ON
Depending on the size, the light comes with different connectors.
The power version includes a power boost of x1.5 with the same homogeneity than the standard reference.
PART NUMBER:
EFFI-FLEX-BL-XXXX-ZZZ-PWR
| MECHANICAL VERSIONS | IP grade | “Openable” body | Water cooling (for high power) | Smooth section (anti-dust) | Food compliant |
| EFFI-FLEX-BL |  |  |  | | |
| EFFI-FLEX-BL-CPT |  | | | | |
| EFFI-FLEX-BL-IP69K |  | | | | |

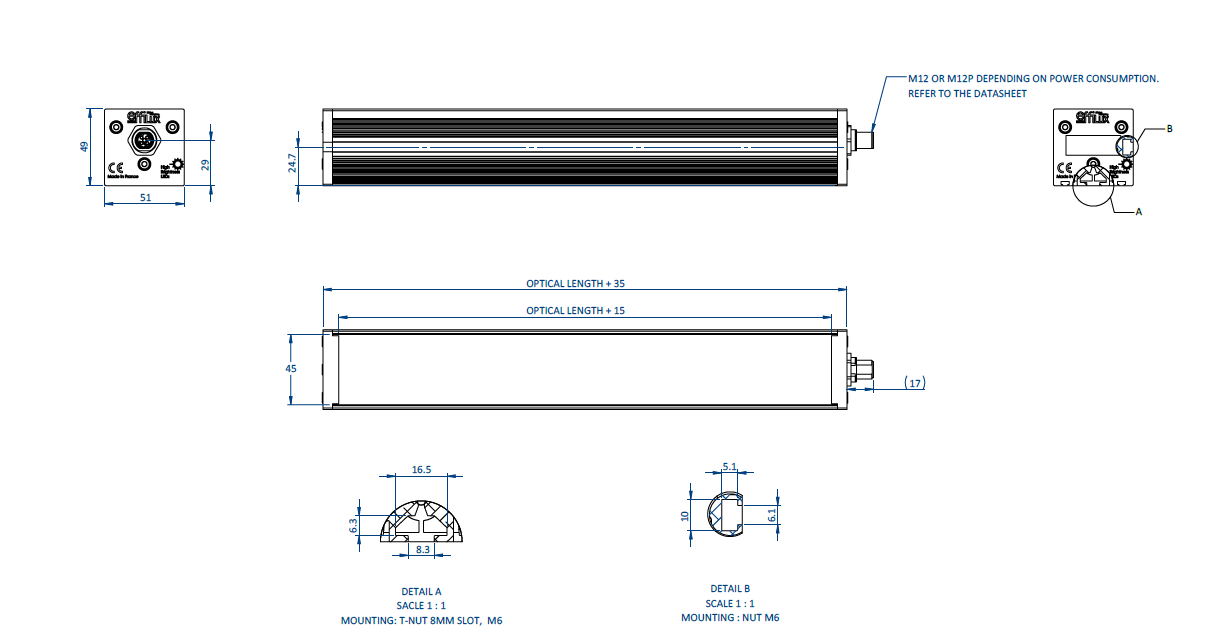

The EFFI-FLEX has one T-slot on the back for 8mm T-nut (M6 recommended), and one slot on the side for M6 hex nut. Effilux offers compatible mounting solutions.
