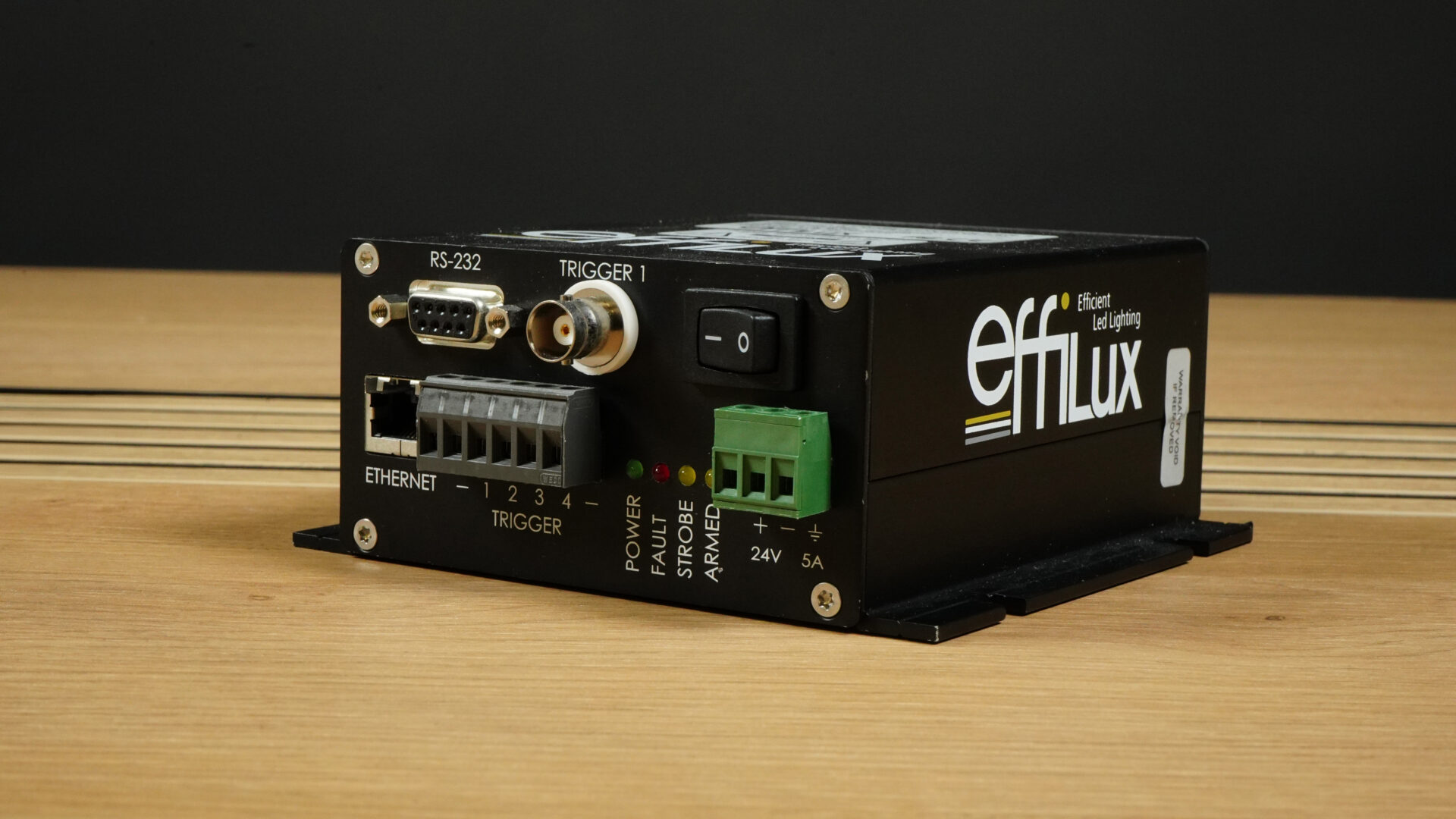

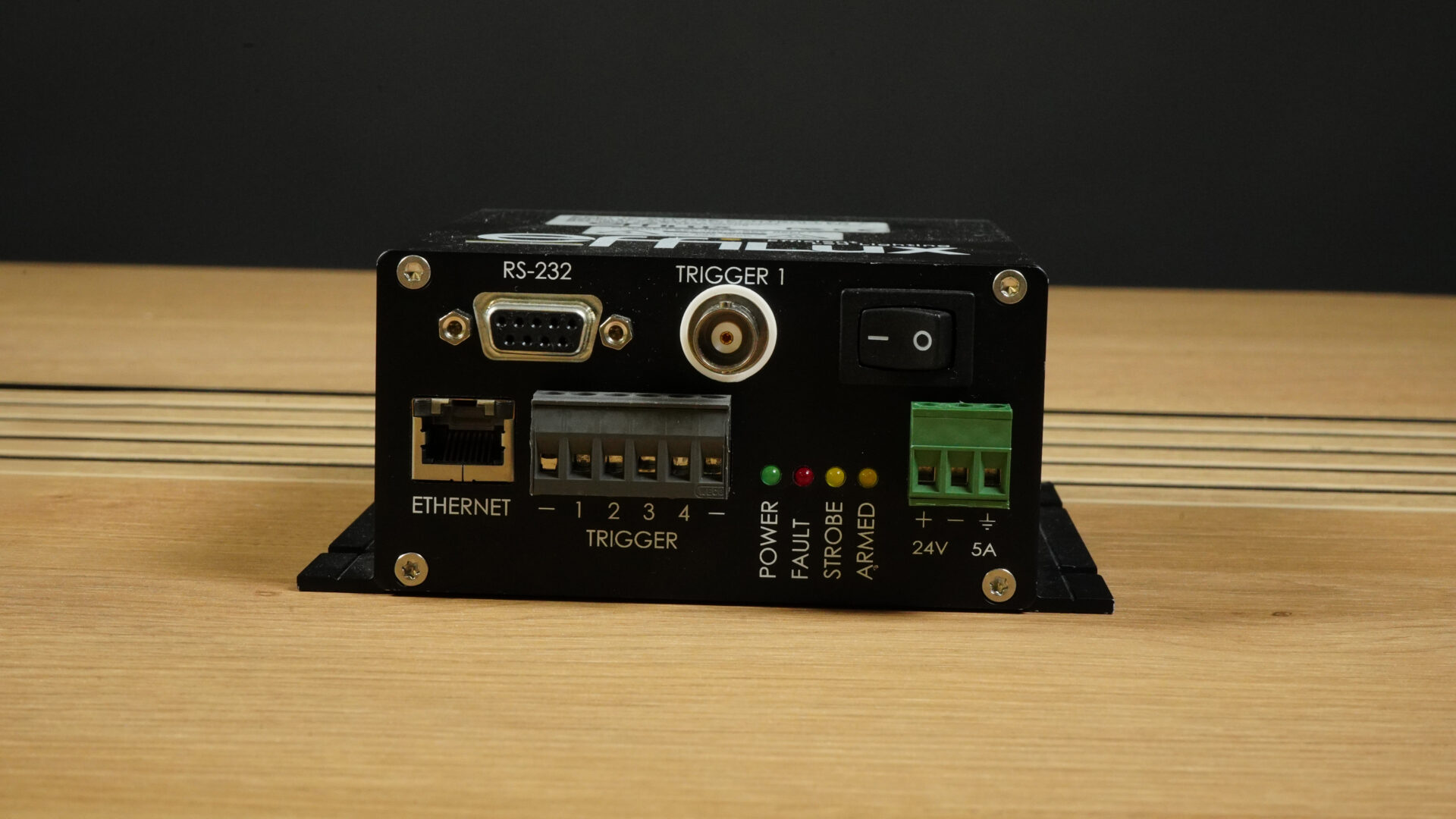

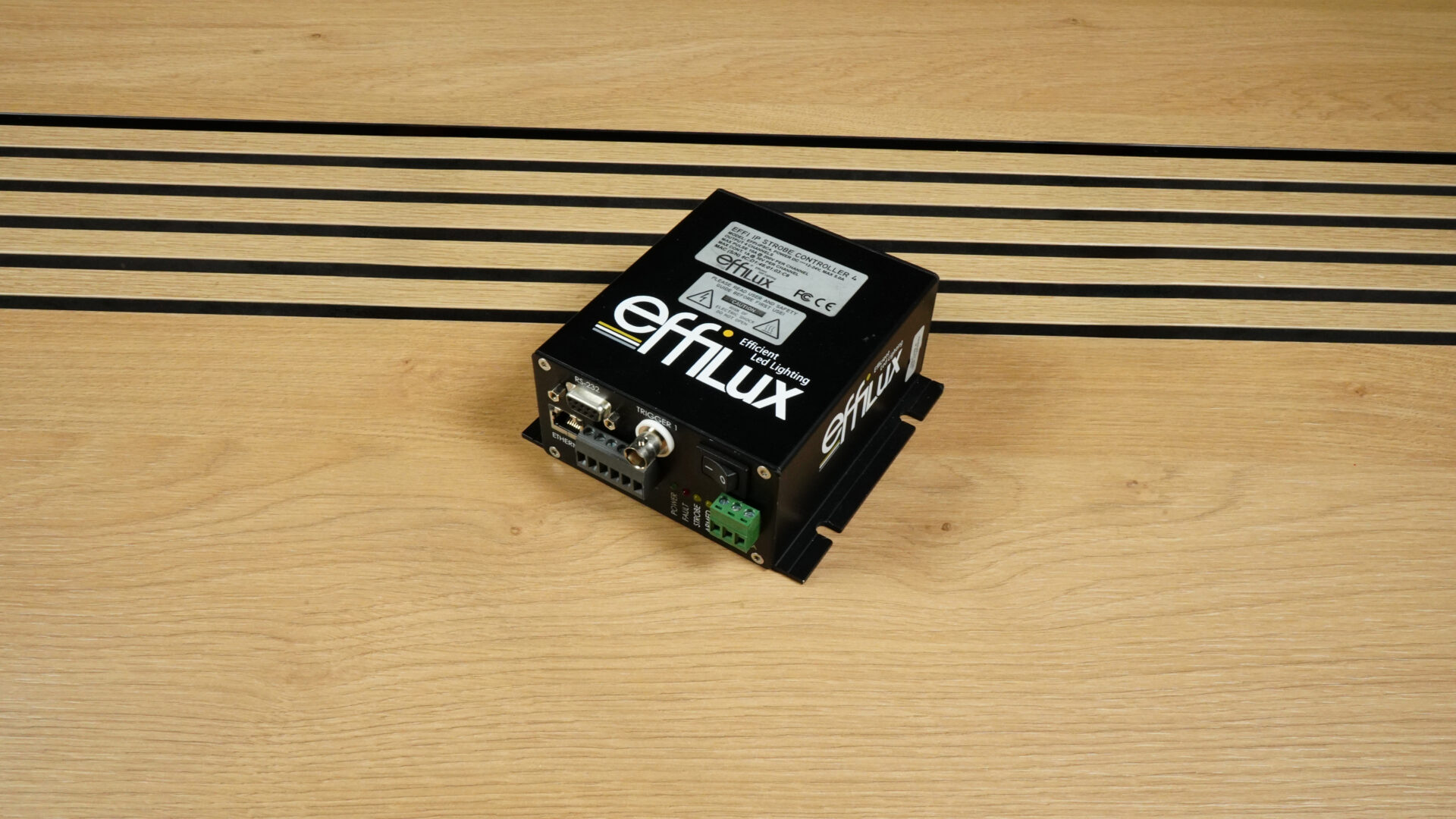

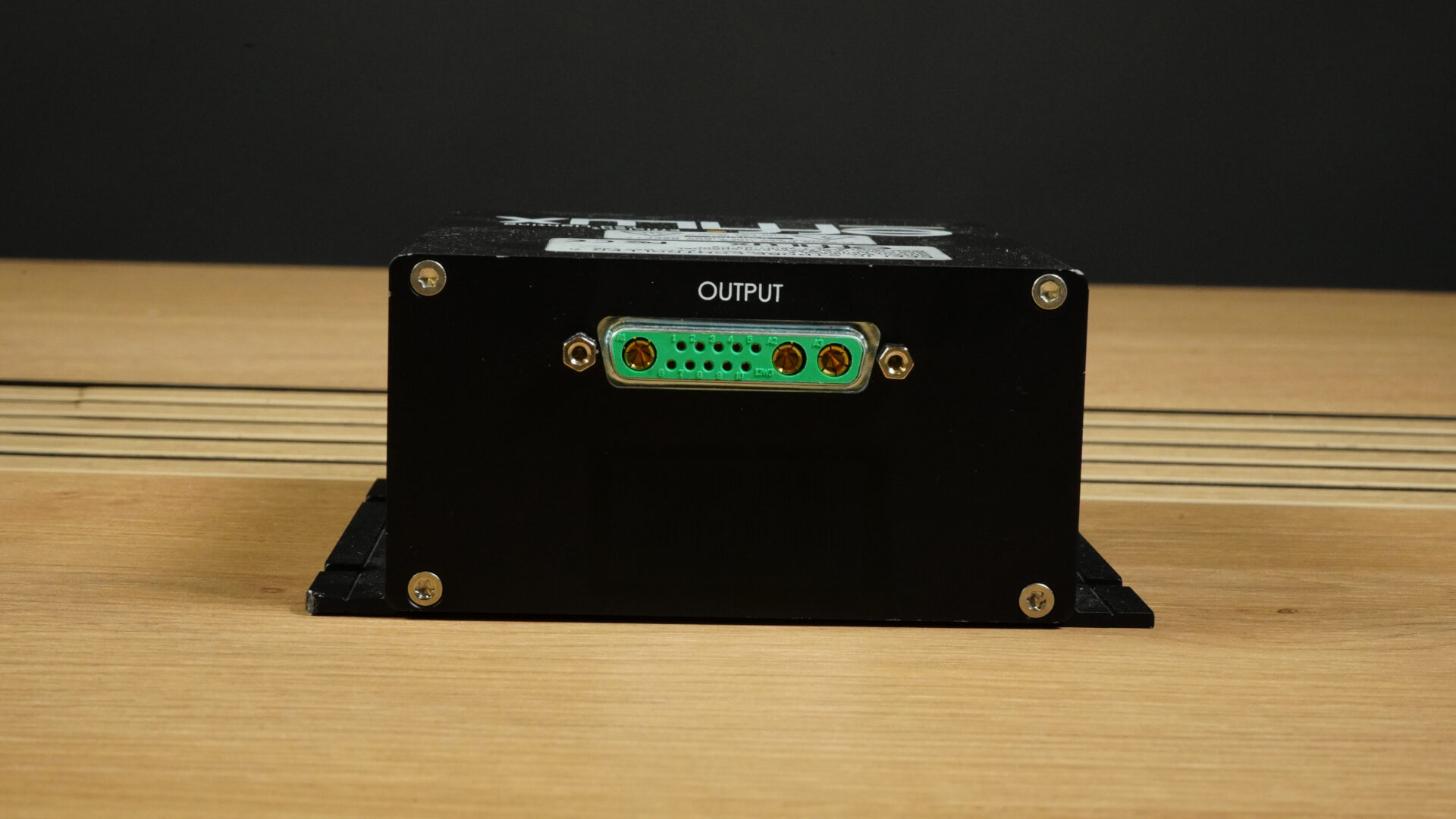

EFFI-IPSC4 Pulse Controller is engineered for high-throughput machine vision applications requiring precise synchronization between lighting and camera acquisition. It delivers intense, flicker-free light bursts by powering high-performance LED systems for very short durations, maximizing brightness during image capture. With up to 4 independent channels, it can control multiple lights from a single unit. The controller supports output currents up to 1A @ 30V in continuous mode and 10A @ 200V in strobe mode, ensuring flexibility across setups. Featuring Ethernet and RS232 connectivity, and compatible with EFFILUX cables, EFFI-IPSC4 is a robust and scalable solution for demanding inspection environments.
| Connectivity | Orientation | Length | Part number | Compatibility |
|---|---|---|---|---|
| M8 – Female Male – 3 pins | Straight Straight | 2 m | EFFC-CAB-M8-SUBD-FM-3-DD-L2 | EFFI-Sharp, EFFI-Lase, EFFI-Tele |
| 5 m | EFFC-CAB-M8-SUBD-FM-3-DD-L5 | EFFI-Sharp, EFFI-Lase, EFFI-Tele | ||
| 10 m | EFFC-CAB-M8-SUBD-FM-3-DD-L10 | EFFI-Sharp, EFFI-Lase, EFFI-Tele | ||
| M8 – Female Male- 4 pins | Straight Straight | 2 m | EFFC-CAB-M8-SUBD-FM-4-DD-L2 | EFFI-Ring |
| 5 m | EFFC-CAB-M8-SUBD-FM-4-DD-L5 | EFFI-Ring | ||
| 10 m | EFFC-CAB-M8-SUBD-FM-4-DD-L10 | EFFI-Ring | ||
| M8 – Female Male- 8 pins | Straight Straight | 2 m | EFFC-CAB-M8-SUBD-FM-8-DD-L2 | EFFI-Sharp V2, EFFI-Lase V2, EFFI-SBL STR |
| 5 m | EFFC-CAB-M8-SUBD-FM-8-DD-L5 | EFFI-Sharp V2, EFFI-Lase V2, EFFI-SBL STR | ||
| 10 m | EFFC-CAB-M8-SUBD-FM-8-DD-L10 | EFFI-Sharp V2, EFFI-Lase V2, EFFI-SBL STR | ||
| Flying Leads (order with screw connector) | Straight | 2 m | EFFC-CAB-SUBD-M-5-D-L2 | Custom |
| 5 m | EFFC-CAB-SUBD-M-5-D-L5 | Custom | ||
| 10 m | EFFC-CAB-SUBD-M-5-D-L10 | Custom |
