Zebras

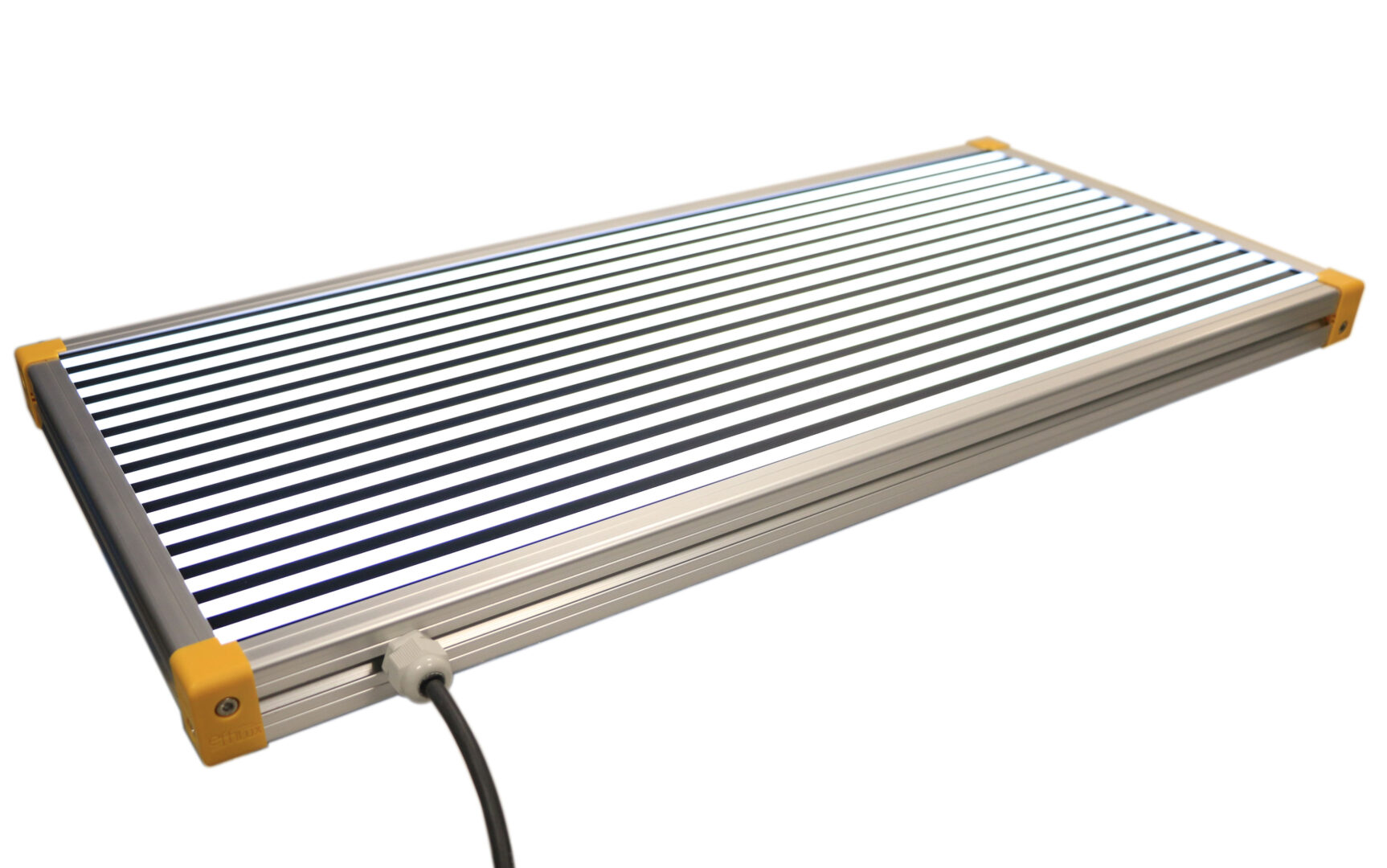

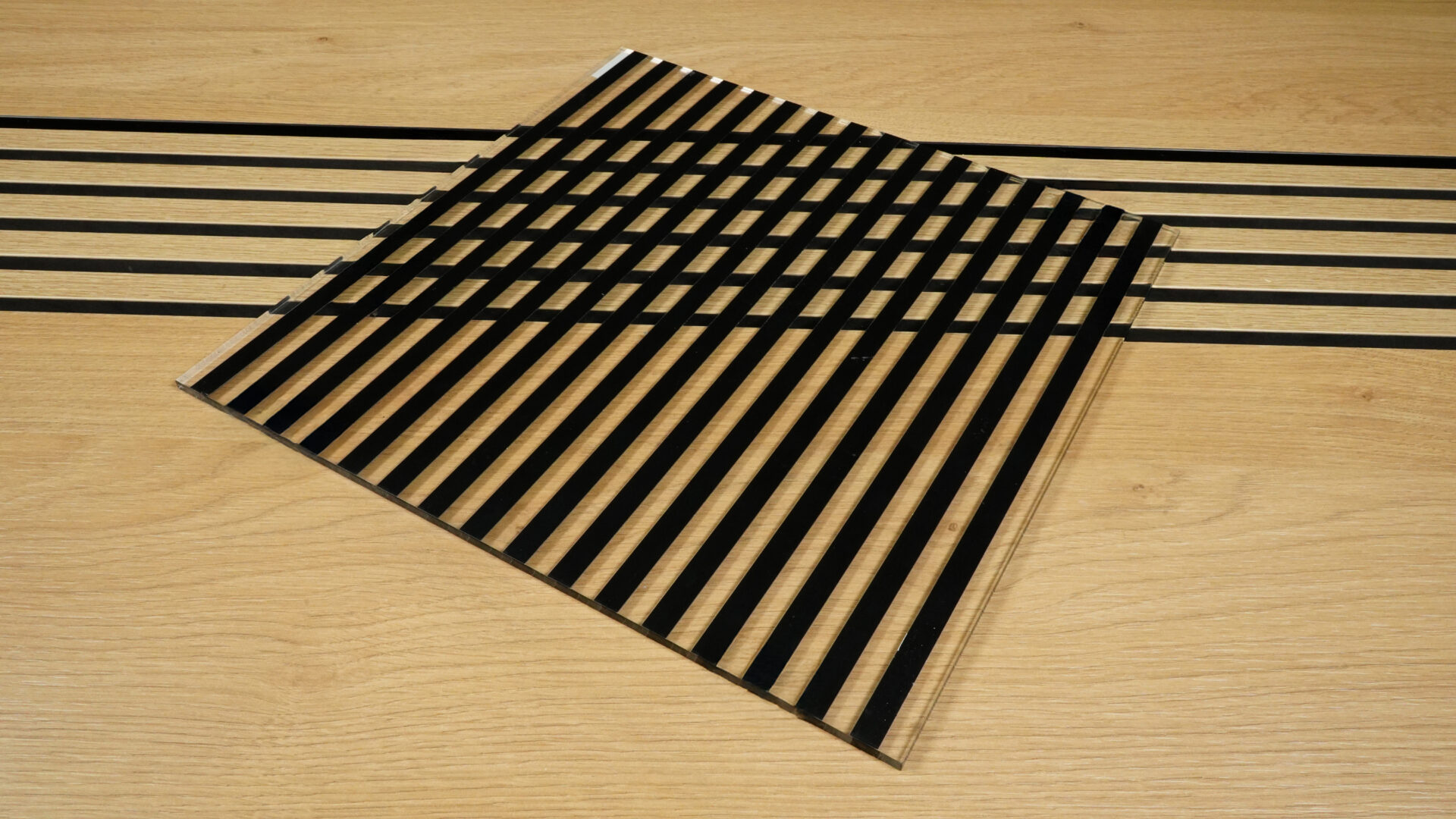

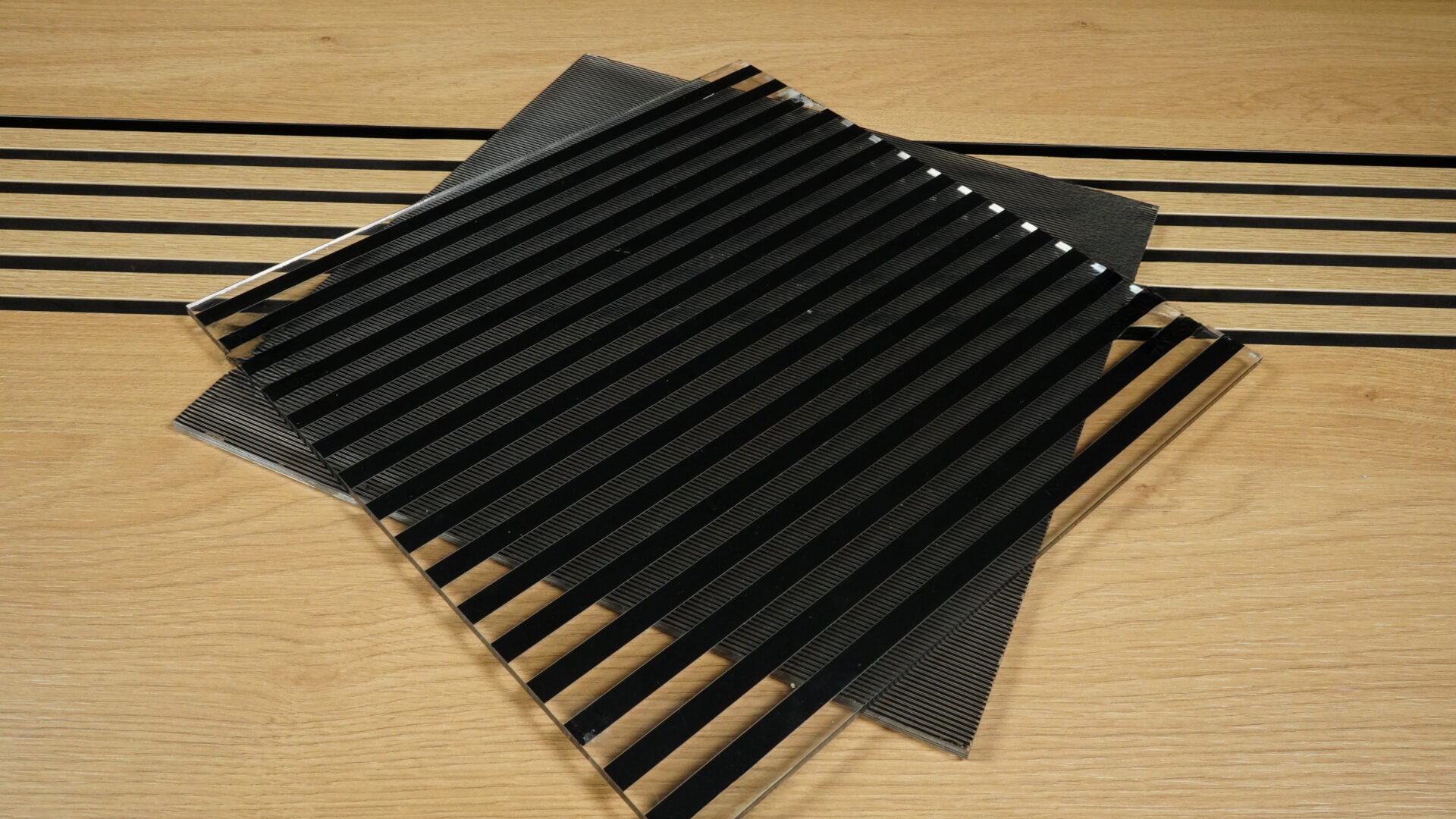

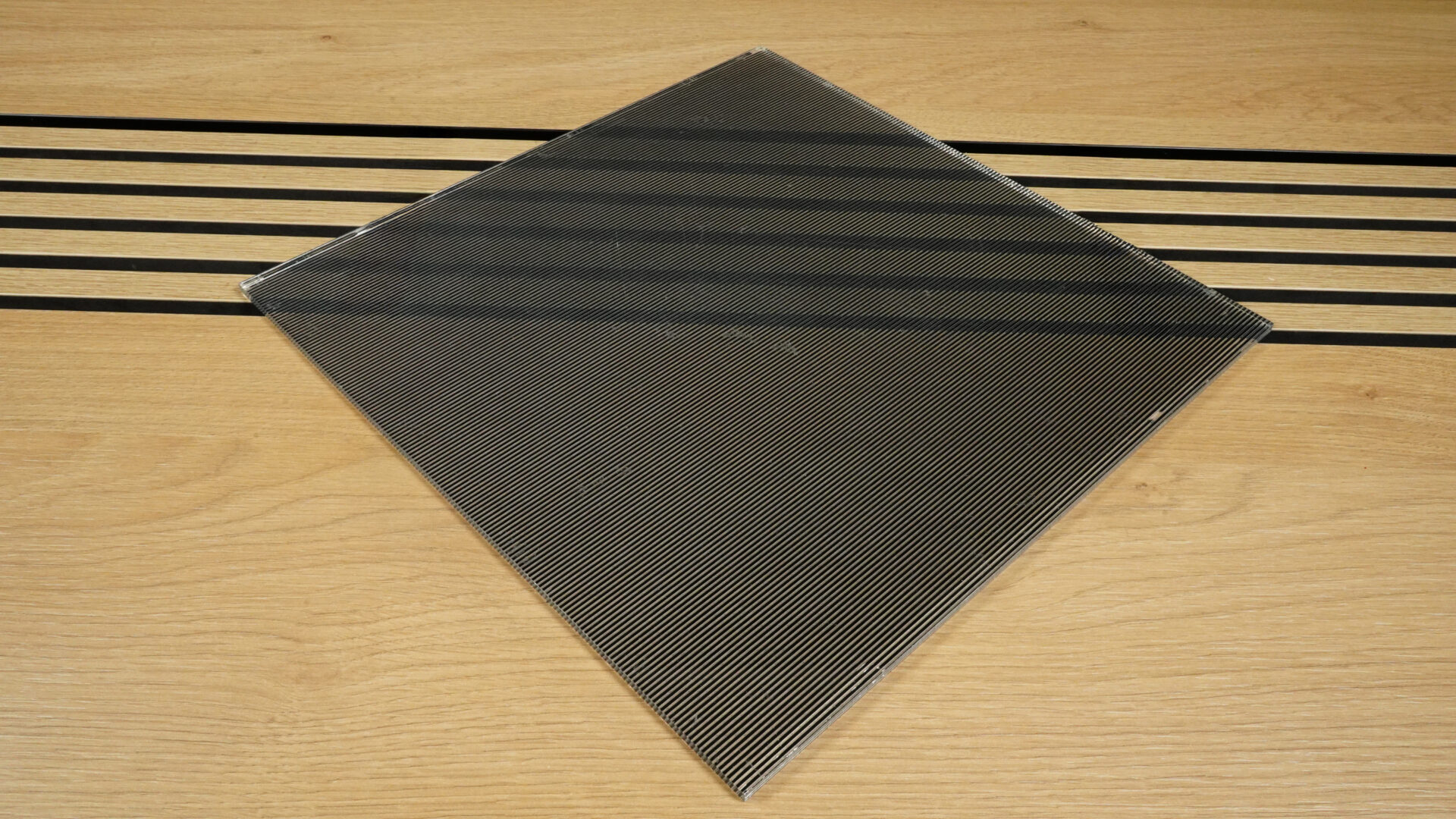

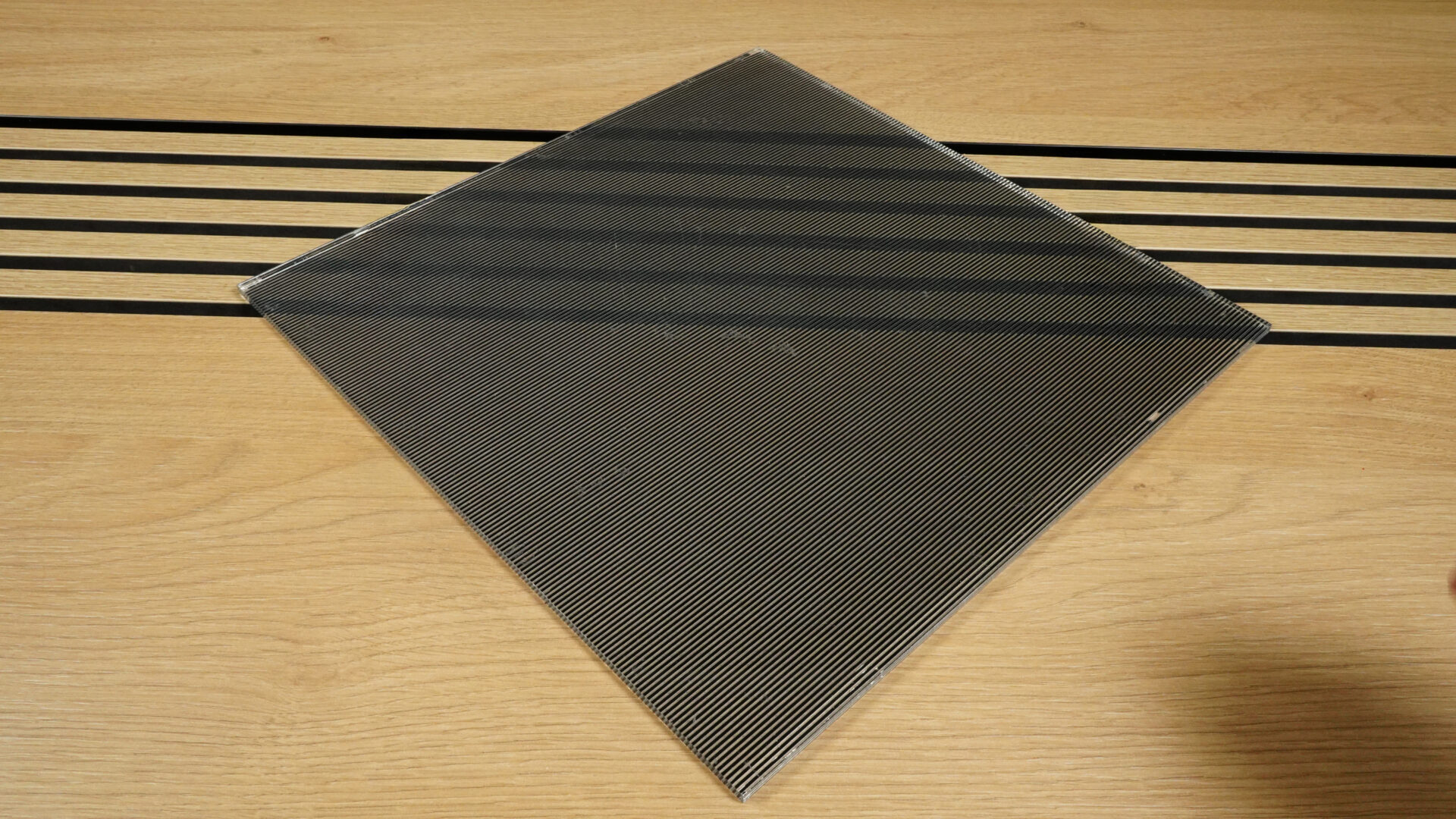

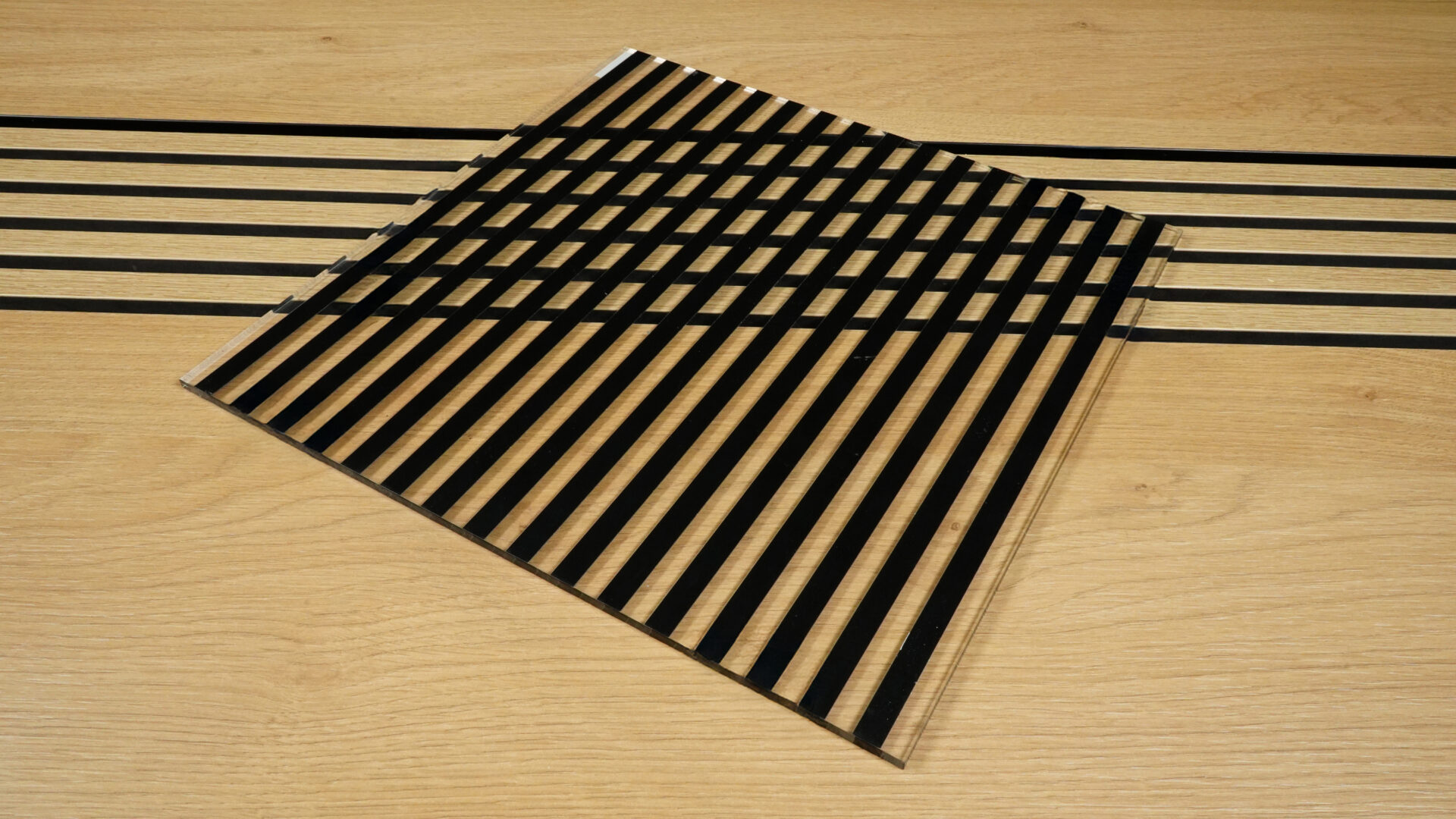

EFFILUX Zebra Mask (ZB) is a specialized optical accessory designed for metrology and deflectometry applications. Ideal for inspecting reflective, transparent, or semi-transparent surfaces, the zebra mask creates high-contrast stripe patterns that reveal surface defects such as scratches, dents, impacts, or misalignments. When illuminated, the pattern deforms in response to surface irregularities, enabling machine vision systems to detect and analyze flaws with precision.

This accessory is particularly effective for:

• Controlling reflections on polished or metallic surfaces, which often hinder defect detection.
• Enhancing transmission control during glass or plastic inspection, improving image clarity for automated analysis.
• EFFILUX offers customizable zebra patterns tailored to specific inspection needs, and the mask is compatible with various lighting configurations including linear, matrix, and EFFI-FLEX setups 1.
