EFFI-Lase V2 is a structured LED lighting from EFFILUX. It is designed for 3D reconstruction, stereovision, and alignment applications. It projects powerful and very fine patterns such as: line, cross, clouds of points, etc. In comparison to its predecessor EFFI-Lase, it offers up to 15 times more power and the possibility for the customer to easily interchange masks.

EFFI-Lase V2 is available in 2 versions, each offering different electronic and mechanical characteristics to suit different application needs: Passive dissipation version: EFFI-Lase-PSV & Compact version: EFFI-Lase-CPT

EFFI-Lase-V2 new generation LED lighting structured pattern projector or pattern for alignment, 3D profilometry and stereovision.

- Build your part number -

EFFI-LASE

- - - -
Version LED pattern Available wavelengths (nm) Type of mask
Available Options Refer to the detailed information below for any specific reference (with options, customized, ...).

- Product Information -

- LED pattern -

XXX : part number of LED board LX1 MX1 MX2
Board EFFI-Lase-V2 Carte LED 1 ligne Line LED EFFI-Lase-V2 Carte LED matrice 1 driver Square LED EFFI-Lase-V2 Carte LED matrice 2 drivers Square LED
Number of driver(s) 1 driver 1 driver 2 drivers
Adapted masks 3D profilometry Stereovision & Alignment Stereovision & Alignment
Operating mode Continuous or Strobe Continuous or Strobe Strobe

Part number :
Passive dissipation version : EFFI-LASE-PSV-XXX...
Compact version : EFFI-LASE-CPT-XXX...


- Wavelengths -

Color
UV
Blue Green Red IR White
(T°= 5500K ± 500K)
ZZZ : wavelength (nm) 385 395 405 465 525 625 850 000


Part number :
Passive dissipation version : EFFI-LASE-PSV-XXX-ZZZ...
Compact version : EFFI-LASE-CPT-XXX-ZZZ...


- Masks -

> 3D Profilometry

Mask Representation of a 3D profilometry mask of 1 line at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 20µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 10µm for the EFFI-Lase Representation of a 3D profilometry mask of 3 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 3 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 5 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 100 lines at 45µm for the EFFI-Lase Representation of a 3D profilometry mask of 22 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 5µm for the EFFI-Lase Representation of a 3D profilometry mask of 2 lines at 50µm for the EFFI-Lase
Representation of a 3D profilometry mask of 1 line at 50µm & 1 line at 250µm for the EFFI-Lase
Representation of a 3D profilometry mask of 1 line at 75µm & 40 lines at 45µm for the EFFI-Lase
MMM : Part number L01 L02 L03 L04 L05 L06 L07 L08 L09 L12 L13 L41
Number of lines 1 1 1 3 3 5 100 22 1 2 1 1 40
Line(s) thickness (µm) 50 20 10 50 50 50 45 50 5 50 50 250 75 45
Line(s) length (mm) 13 13 13 13 13 13 13 13 13 13 13 13
Pitch between each line (µm) / / / 500 200 750 112,5 350 / 500 1150 200

> Stereovision

Mask Representation of a Round Stereovision mask on a 10x10mm² surface for the EFFI-Lase Representation of a Round Stereovision mask on a 13x13mm² surface for the EFFI-Lase Representation of a Stereovision mask of a grid of 40x40 lines of 50µm on a surface of 10x10mm² for the EFFI-Lase Representation of a Stereovision mask of a grid of 50x50 lines of 50µm on a surface of 13x13mm² for the EFFI-Lase Representation of a Stereovision mask of 50x50µm² squares on a 10x10mm² surface for the EFFI-Lase Representation of a Stereovision mask of a point cloud with a density of 50% on a surface of 12.8x9.6mm² for the EFFI-Lase Representation of a Stereovision mask of a point cloud with a density of 17% on a surface of 12.8x9.6mm² for the EFFI-Lase
MMM : Part number G01 G02 G03 G04 G05 C02 C03
Pattern type Round Round Grid Grid Square Cloud of dots Cloud of dots
Single pattern dimensions Ø 50µm Ø 50µm Line thickness: 50µm Line thickness: 50µm 50x50µm² Density 50% Density 17%
Step between each pattern 100µm 100µm 255µm 255µm 100µm / /
Effective mask surface 10x10mm² 13x13mm² 10x10mm² 12,5x12,5mm² 10x10mm² 12,8x9,6mm² 12,8x9,6mm²

> Alignment

Mask Representation of an alignment mask of a 50µm cross for EFFI-Lase Representation of an alignment mask of 50µm concentric circles for the EFFI-Lase Representation of an alignment mask of a 50µm square for the EFFI-Lase
MMM : Part number A01 A02 A03
Pattern type Cross Concentric circles Square
Lines thickness (µm) 50 26 white circles 50µm
26 black circles 200µm
50
Lines length (mm) 13 / 10
Other dimensions / Step between each circle = 250µm
Central spot = Ø 30µm
/

Part number :
Passive dissipation version : EFFI-LASE-PSV-XXX-ZZZ-MMM
Compact version : EFFI-LASE-CPT-XXX-ZZZ-MMM

- C-mount Lenses -

The EFFI-Lase is designed to use with a C-Mount (M25.4) projection lens. The projector does not include a lens. EFFILUX offers a wide range of suitable lenses, for more information please refer to our page Lenses. Please refer to the data sheet to determine the optimal size of the projected pattern according to your chosen lens.

logo infoIn order to avoid any distortion effect, EFFILUX recommends using a 1" sensor lens for masks with rectangular patterns, such as point clouds. For other types of applications, lenses for sensor 2/3" may be sufficient. Please find below example of the main references adapted to the EFFI-Lase V2 offered by Effilux:

> Part numbers 1"

EFFO-KW-6-F1.8-1"-HR-CM EFFO-KW-8-F1.4-1"-HR-CM EFFO-RC-12.5-F1.8-1"-LR-CM EFFO-KW-16-F1.4-1"-HR-CM EFFO-VS-25-F1.4-1"-LR-CM EFFO-KW-35-F1.4-1"-HR-CM EFFO-RC-50-F1.4-1"-LR-CM EFFO-KW-75-F1.8-1''-HR-CM
Focal length (mm) 6 8 12.5 16 25 35 50 75
Aperture of the diaphragm F1.8 F1.4 F1.8 F1.4 F1.4 F1.4 F1.4 F1.8
Viewing angle (HxV) 96.8°x79.4° 79.4°x63° 55.5° 44.3°x33.6° 16.1° x 19.0° 20.9°x15.8° 14.4° 9.7° x 7.3°
Filter mount x M55 P=0.75 M40.5 P=0.5 M35.5 P=0.5 M27 P=0.5 M35.5 P=0.5 M46 P=0.75 M46 P=0.75

> Part numbers 2/3"

EFFO-TM-6.5-F1.8-2/3"-HR-CM EFFO-VS-8-F1.3-2/3"-LR-CM EFFO-KW-12-F1.4-2/3''-HR-CM EFFO-VS-16-F1.4-2/3"-LR-CM EFFO-VS-25-F1.4-1"-LR-CM* EFFO-VS-35-F1.8-2/3"-LR-CM EFFO-VS-50-F1.8-2/3"-LR-CM EFFO-KW-75-F2.5-2/3"-HR-CM EFFO-KW-100-F2.8-2/3"-HR-CM
Focal length (mm) 6.5 8 12 16 25 35 50 75 100
Aperture of the diaphragm F1.8 F1.3 F1.4 F1.4 F1.4 F1.8 F1.8 F2.5 F2.8
Viewing angle (HxV) 71.6° x 55.5° 49.0° x 57.2° 30.0° x 22.7° 24.6° x 28.9° 16.1° x 19.0° 11.7° x 13.8° 8.5° x 10.0° 6.7°×5.0° 5.0°× 3.8°
Filter mount M35.5 P=0.5 M25.5 P=0.5 M25.5 P=0.5 M27 P=0.5 M27 P=0.5 M27 P=0.5 M30.5 P=0.5 M34 P=0.5 M40.5 P=0.5

* For the 25mm focal length lens, Effilux recommends using the Part numbers 1".

You can find the drawing and the weight of the products in the technical doc page.

> EFFI-LASE-V2 Version

Sealing Passive cooling Integrated driver Compact body Direct current supply
(no protection)
Passive dissipation version
EFFI-LASE-PSV
Compact version
EFFI-LASE-CPT

logo infoMounting:
EFFI-LASE-PSV: Four standard M5x0.8 holes can be used to fix the device. To fix the EFFI-Lase-PSV, the Ball joint type "Elcom" (EFFM-1-0009) is the most suitable.
EFFI-LASE-CPT: Five M4x0.8 holes can be used to fix the device. To fix the EFFI-Lase-CPT, the Ball joint type "Elcom" (EFFM-1-0002) is the most suitable.

- EFFI-Lase v2 version -

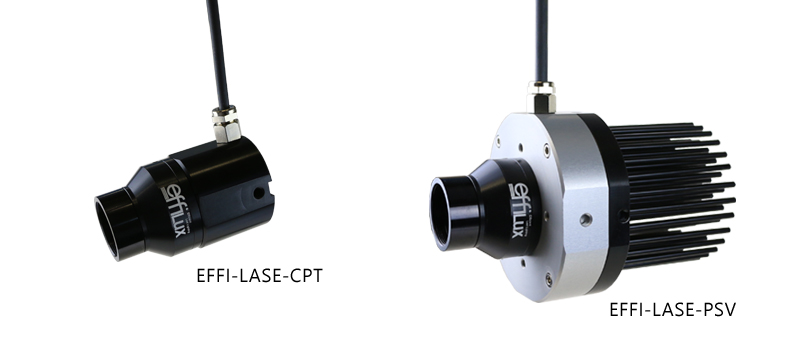

There are two versions of the EFFI-Lase V2:
- EFFI-Lase-PSV: Version with passive dissipation - M12 - 5 pins: With integrated driver
- EFFI-Lase-CPT: Compact version - M8 - 8 pins: Without driver. Current is applied directly to the LEDs via an external controller.

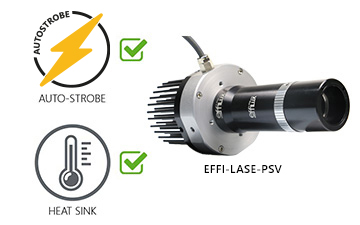

Representation of the advantages and strengths of EFFI-Lase-V2-PSV and EFFI-Lase-V2-FAN

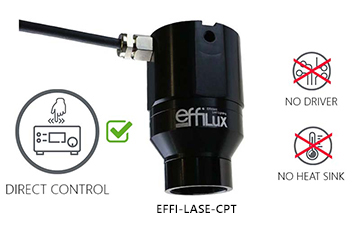

Representation of the advantages and disadvantages of using an EFFI-Lase-V2-CPT.

- EFFI-LASE-PSV version (M12) -

> Connectivity

The EFFI-Lase-PSV is directly supplied with 24V DC via an M12 - 5 pins.

Characteristics of the 5-pin M12 connector used to power the Effi-BL for machine vision and quality control
Pin number Designation Cable color
1 +24V Brown
2 TRIGGER NPN White
3 GND Blue
4 TRIGGER PNP Black
5 AIC Analog Intensity Control Grey

logo infoAttention, unlike EFFI-Smart, the EFFI-Lase-PSV only has 2 modes of operation: Autostrobe PNP as well as Autostrobe NPN.
The AIC pin is used to adjust the high value of the Autostrobe.

> AutoStrobe Operation


Trigger
mode
Contact arrangement
Pin 1:
Brown
Pin 2:
White
Pin 3:
Blue
Pin 4:
Black
Pin 5:
Grey
PNP
+24V
Not connected (≠0V)
GND
PNP (>3V DC)
AIC signal or Not connected (≠0V)*
NPN
+24V
NPN (<1.5V DC)
GND
Not connected (≠0V)
AIC signal or Not connected (≠0V)*

N.B: For the strobe mode please keep a duty cycle (DC) lower than 0,30.


logo info* The "AIC" value can be set via the signal on pin 5.
If it is not connected, the EFFI-Lase-PSV will work as if it is connected to 24V:

- EFFI-LASE-CPT version (M8) -

The compact version of the EFFI-Lase V2 allows:

- Very high power strobe possible
- Direct control via your own power supply
- Pulse Controller: EFFI-IPSC4 LED Controller is able to manage the intensity and duration of the strobes of your EFFI-Lase-CPT, according to your needs.

The LEDs are powered directly, the maximum current defined in the data sheet for a frequency and a given pulse time cannot be exceeded.

- Optical Accessories -

- Light and Camera mounting solutions -

- Electronic Accessories -

- Available upon request -

Tailor-made mask


For all other inquiries, please contact EFFILUX.
