Masks

Pattern projector or pattern masks for 3D profilometry, stereovision and alignment.

All dimensions refer to the mask specifications. Projection dimensions depends on the lens used (see datasheet for more details).

EFFILUX provides a full range of mask which are compatible with our structured LED lighting EFFI-Lase V2. Custom masks can be made available upon request.

- Applications -

  • 3D profilometry
  • Stereovision
  • Alignement

User manual
Mask drawing

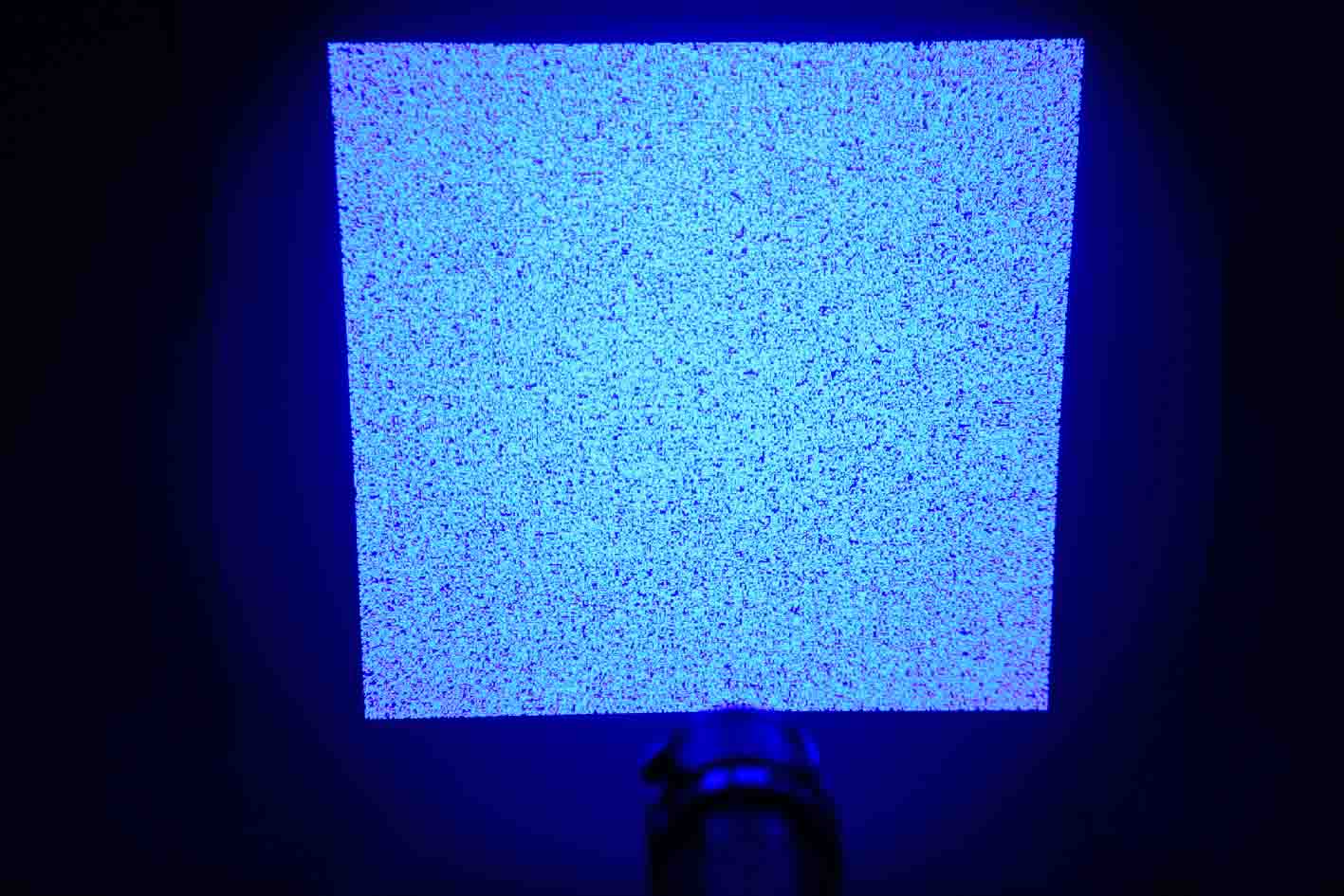

Demonstration of the use of masks - Point cloud projection with a density of 17%.

> 3D Profilometry

Mask Representation of a 3D profilometry mask of 1 line at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 20µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 10µm for the EFFI-Lase Representation of a 3D profilometry mask of 3 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 3 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 5 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 100 lines at 45µm for the EFFI-Lase Representation of a 3D profilometry mask of 22 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 5µm for the EFFI-Lase Representation of a 3D profilometry mask of 2 lines at 50µm for the EFFI-Lase
Representation of a 3D profilometry mask of 1 line at 50µm & 1 line at 250µm for the EFFI-Lase
Representation of a 3D profilometry mask of 1 line at 75µm & 40 lines at 45µm for the EFFI-Lase
ZZZ : Part number L01 L02 L03 L04 L05 L06 L07 L08 L09 L12 L13 L41
Number of lines 1 1 1 3 3 5 100 22 1 2 1 1 40
Line(s) thickness (µm) 50 20 10 50 50 50 45 50 5 50 50 250 75 45
Line(s) length (mm) 13 13 13 13 13 13 13 13 13 13 13 13
Pitch between each line (µm) / / / 500 200 750 112,5 350 / 500 1150 200

> Stereovision

Mask Representation of a Round Stereovision mask on a 10x10mm² surface for the EFFI-Lase Representation of a Round Stereovision mask on a 13x13mm² surface for the EFFI-Lase Representation of a Stereovision mask of a grid of 40x40 lines of 50µm on a surface of 10x10mm² for the EFFI-Lase Representation of a Stereovision mask of a grid of 50x50 lines of 50µm on a surface of 13x13mm² for the EFFI-Lase Representation of a Stereovision mask of 50x50µm² squares on a 10x10mm² surface for the EFFI-Lase Representation of a Stereovision mask of a point cloud with a density of 50% on a surface of 12.8x9.6mm² for the EFFI-Lase Representation of a Stereovision mask of a point cloud with a density of 17% on a surface of 12.8x9.6mm² for the EFFI-Lase
ZZZ : Part number G01 G02 G03 G04 G05 C02 C03
Pattern type Round Round Grid Grid Square Cloud of dots Cloud of dots
Single pattern dimensions Ø 50µm Ø 50µm Line thickness: 50µm Line thickness: 50µm 50x50µm² Density 50% Density 17%
Step between each pattern 100µm 100µm 255µm 255µm 100µm / /
Effective mask surface 10x10mm² 13x13mm² 10x10mm² 12,5x12,5mm² 10x10mm² 12,8x9,6mm² 12,8x9,6mm²

> Alignment

Mask Representation of an alignment mask of a 50µm cross for EFFI-Lase Representation of an alignment mask of 50µm concentric circles for the EFFI-Lase Representation of an alignment mask of a 50µm square for the EFFI-Lase
ZZZ : Part number A01 A02 A03
Pattern type Cross Concentric circles Square
Lines thickness (µm) 50 26 white circles 50µm
26 black circles 200µm		 50
Lines length (mm) 13 / 10
Other dimensions / Step between each circle = 250µm
Central spot = Ø 30µm		 /

Part number : EFFO-MSK-ZZZ
