Structured LED lighting  Structured LED lighting

EFFI-Lase is a structured LED light. It projects powerful and very fine patterns such as: line, cross, clouds of dots, etc.

Specially designed for 3D reconstruction, stereovision and alignment applications, EFFI-Lase is a real alternative to laser without its drawbacks.

EFFI-Lase is also available in a Power version for applications requiring more power.


Datasheet
User manual
Drawing
Step CAD
EFFI-lase structured LED lighting pattern projector or pattern for alignment, 3D profilometry and stereovision.

- Build your part number -

EFFI-LASE

 - - CM - -
Electrical version C-mount Wavelengths (nm) Type of mask
Available Options Refer to the detailed information below for any specific reference (with options, customized, ...).

- Product Information -

Optics Mechanics Electronics Accessories Custom Similar products

- Available wavelengths -

Color ● UV ● Blue ● Green ● Red ●IR ○ White
(T°= 5500K ± 500K)
ZZZ : wavelength (nm) 365 405 465 525 625 850 000

Part numbers :
Standard : EFFI-LASE-CM-ZZZ...
Power : EFFI-LASE-PWR-CM-ZZZ... (POWER Version: See part electronic )

- Masks -

> 3D Profilometry

Mask Representation of a 3D profilometry mask of 1 line at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 20µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 10µm for the EFFI-Lase Representation of a 3D profilometry mask of 3 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 3 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 5 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 100 lines at 45µm for the EFFI-Lase Representation of a 3D profilometry mask of 22 lines at 50µm for the EFFI-Lase Representation of a 3D profilometry mask of 1 line at 5µm for the EFFI-Lase Representation of a 3D profilometry mask of 2 lines at 50µm for the EFFI-Lase
Representation of a 3D profilometry mask of 1 line at 50µm & 1 line at 250µm for the EFFI-Lase
Representation of a 3D profilometry mask of 1 line at 75µm & 40 lines at 45µm for the EFFI-Lase
MMM : Part number L01 L02 L03 L04 L05 L06 L07 L08 L09 L12 L13 L41
Number of lines 1 1 1 3 3 5 100 22 1 2 1 1 40
Line(s) thickness (µm) 50 20 10 50 50 50 45 50 5 50 50 250 75 45
Line(s) length (mm) 13 13 13 13 13 13 13 13 13 13 13 13
Step between each line (µm) / / / 500 200 750 112,5 350 / 500 1150 200

> Stereovision

Mask Representation of a Round Stereovision mask on a 10x10mm² surface for the EFFI-Lase Representation of a Round Stereovision mask on a 13x13mm² surface for the EFFI-Lase Representation of a Stereovision mask of a grid of 40x40 lines of 50µm on a surface of 10x10mm² for the EFFI-Lase Representation of a Stereovision mask of a grid of 50x50 lines of 50µm on a surface of 13x13mm² for the EFFI-Lase Representation of a Stereovision mask of 50x50µm² squares on a 10x10mm² surface for the EFFI-Lase Representation of a Stereovision mask of a point cloud with a density of 50% on a surface of 12.8x9.6mm² for the EFFI-Lase Representation of a Stereovision mask of a point cloud with a density of 17% on a surface of 12.8x9.6mm² for the EFFI-Lase
MMM : Part number G01 G02 G03 G04 G05 C02 C03
Pattern type Round Round Grid Grid Square Cloud of dots Cloud of dots
Single pattern dimensions Ø 50µm Ø 50µm Line thickness: 50µm Line thickness: 50µm 50x50µm² Density 50% Density 17%
Step between each pattern 100µm 100µm 255µm 255µm 100µm / /
Effective mask surface 10x10mm² 13x13mm² 10x10mm² 12,5x12,5mm² 10x10mm² 12,8x9,6mm² 12,8x9,6mm²

> Alignment

Mask Representation of an alignment mask of a 50µm cross for EFFI-Lase Representation of an alignment mask of 50µm concentric circles for the EFFI-Lase Representation of an alignment mask of a 50µm square for the EFFI-Lase
MMM : Part number A01 A02 A03
Pattern type Cross Concentric circles Square
Lines thickness (µm) 50 26 white circles 50µm
26 black circles 200µm		 50
Lines length (mm) 13 / 10
Other dimensions / Step between each circle = 250µm
Central spot = Ø 30µm		 /

Part numbers :
Standard : EFFI-LASE-CM-ZZZ-MMM
Power : EFFI-LASE-PWR-CM-ZZZ-MMM

logo infoThe EFFI-Lase and EFFI-Lase POWER Versions do not allow mask changes. The new version, EFFI-Lase V2 now allows this.

- C-mount Lenses -

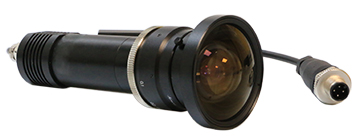

The EFFI-Lase is for use with a C-Mount projection lens (M25.4). This lens is not supplied with the projector. EFFILUX offers a wide range of lenses, for more information please refer to our page Lenses. Refer to the documentation to identify the size of the projected pattern depending on the chosen lens.

logo infoTo avoid any distortion effect, EFFILUX recommends using a 1" sensor lens for masks with rectangular patterns, such as point clouds. Sensor lenses 2/3" is recommended for other types of applications. Example of the main references adapted to EFFI-LASE:

> Part numbers 1"

EFFO-KW-6-F1.8-1"-HR-CM EFFO-KW-8-F1.4-1"-HR-CM EFFO-RC-12.5-F1.8-1"-LR-CM EFFO-KW-16-F1.4-1"-HR-CM EFFO-VS-25-F1.4-1"-LR-CM EFFO-KW-35-F1.4-1"-HR-CM EFFO-RC-50-F1.4-1"-LR-CM EFFO-KW-75-F1.8-1''-HR-CM
Focal distance (mm) 6 8 12.5 16 25 35 50 75
Aperture of the diaphragm F1.8 F1.4 F1.8 F1.4 F1.4 F1.4 F1.4 F1.8
Viewing angle (HxV) 96.8°x79.4° 79.4°x63° 55.5° 44.3°x33.6° 16.1° x 19.0° 20.9°x15.8° 14.4° 9.7° x 7.3°
Filter mount x M55 P=0.75 M40.5 P=0.5 M35.5 P=0.5 M27 P=0.5 M35.5 P=0.5 M46 P=0.75 M46 P=0.75

> Part Numbers 2/3"

EFFO-TM-6.5-F1.8-2/3"-HR-CM EFFO-VS-8-F1.3-2/3"-LR-CM EFFO-KW-12-F1.4-2/3''-HR-CM EFFO-VS-16-F1.4-2/3"-LR-CM EFFO-VS-25-F1.4-1"-LR-CM* EFFO-VS-35-F1.8-2/3"-LR-CM EFFO-VS-50-F1.8-2/3"-LR-CM EFFO-KW-75-F2.5-2/3"-HR-CM EFFO-KW-100-F2.8-2/3"-HR-CM
Focal distance (mm) 6.5 8 12 16 25 35 50 75 100
Aperture of the diaphragm F1.8 F1.3 F1.4 F1.4 F1.4 F1.8 F1.8 F2.5 F2.8
Viewing angle (HxV) 71.6° x 55.5° 49.0° x 57.2° 30.0° x 22.7° 24.6° x 28.9° 16.1° x 19.0° 11.7° x 13.8° 8.5° x 10.0° 6.7°×5.0° 5.0°× 3.8°
Filter mount M35.5 P=0.5 M25.5 P=0.5 M25.5 P=0.5 M27 P=0.5 M27 P=0.5 M27 P=0.5 M30.5 P=0.5 M34 P=0.5 M40.5 P=0.5

* For the 25mm focal length lens, Effilux recommends always using the Part numbers 1".

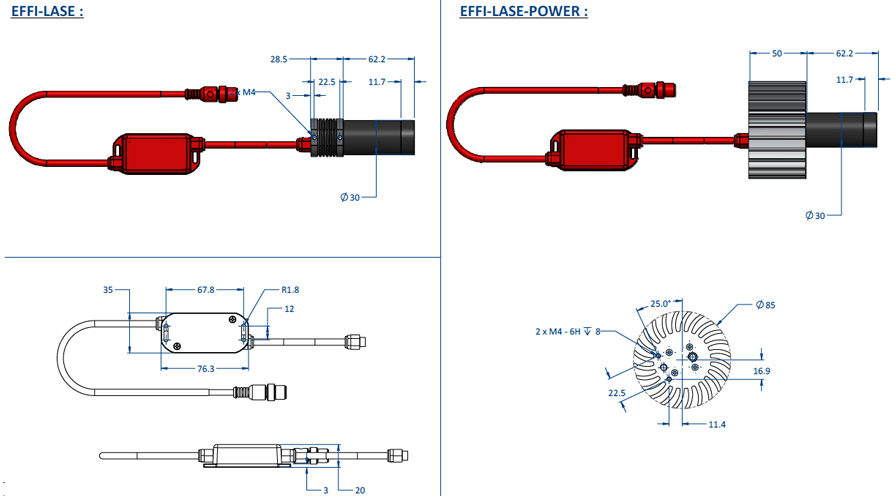

You can find the drawing and the weight of the products in the technical doc page.


logo infoOn the standard version: Four M4x0.7 holes can be used to fix the product.
On the POWER Version: Two M4x0.7 holes and one M6x1 hole can be used to fix the product.

EFFI-Lase is easy to mount thanks to Effilux mounting accessories.

- Standard version and POWER Version -



Standard version


POWER Version


logo infoIf POWER Version, add -PWR in the reference.

Part numbers : EFFI-LASE-PWR-CM-ZZZ-MMM

Please note, the mechanical dimensions of the standard and POWER Versions are not the same.

- Connectivity (Standard Version) -

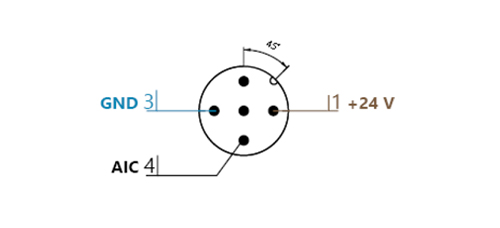

The EFFI-Lase and EFFI-Lase Power are supplied directly with 24V DC via an M12 - 5 pins. Attention, the AIC pin must be connected.

Characteristics of the 5 pin M12 connector used to power the Effi-Lase for machine vision and quality control.

- AIC control -

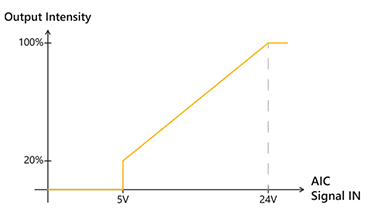

Graph representing the light produced by an Effi-BL as a function of the current received by thanks to a DIM pin - Used for machine vision and quality control.

EFFI-Lase is powered by a 24V DC source.
Using the AIC pin, the light intensity can be adjusted linearly:
• 0V – Full ON
• 5V-24V - OFF


- Option: Version -STR -

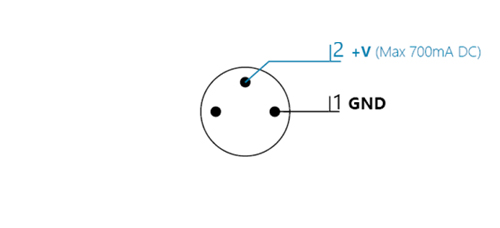

Characteristics of the 3-pin M18 connector used to power the Effi-Lase for machine vision and quality control.

Standard version: M12 connector - AIC (see previous part)
-STR expert version: M8 connector - direct control

Please refer to the datasheet for this specific mode of operation.

danger logo In expert mode, the LEDs are powered live, there is no protection. The maximum current defined in the documentation for a given frequency and pulse time cannot be exceeded.

Part numbers :
Standard : EFFI-LASE-CM-ZZZ-MMM-STR
Power : EFFI-LASE-PWR-CM-ZZZ-MMM-STR

logo info A pulse controller can be used to power the EFFI-Lase version -STR. See pulse controller accessory EFFI-IPSC4.

- Optical accessories -

Different optical accessories for the EFFI-flex

Camera lenses

- Light and Camera mounting solutions -

Accessories to fix the LED lights.

Light mounting solutions
Optomechanical tools | The EFFILUX wrench is used to install and adjust the retaining ring when changing masks.

Optomechanical tools

- Electronic accessories -

Range of cables that can be adapted to all uses of our products

Cables
Allows you to control the lighting in order to create intense flashes of light that will be synchronized with the camera.

Pulse controller

- Available upon request -

Tailor-made mask


For all other inquiries, please contact EFFILUX.
