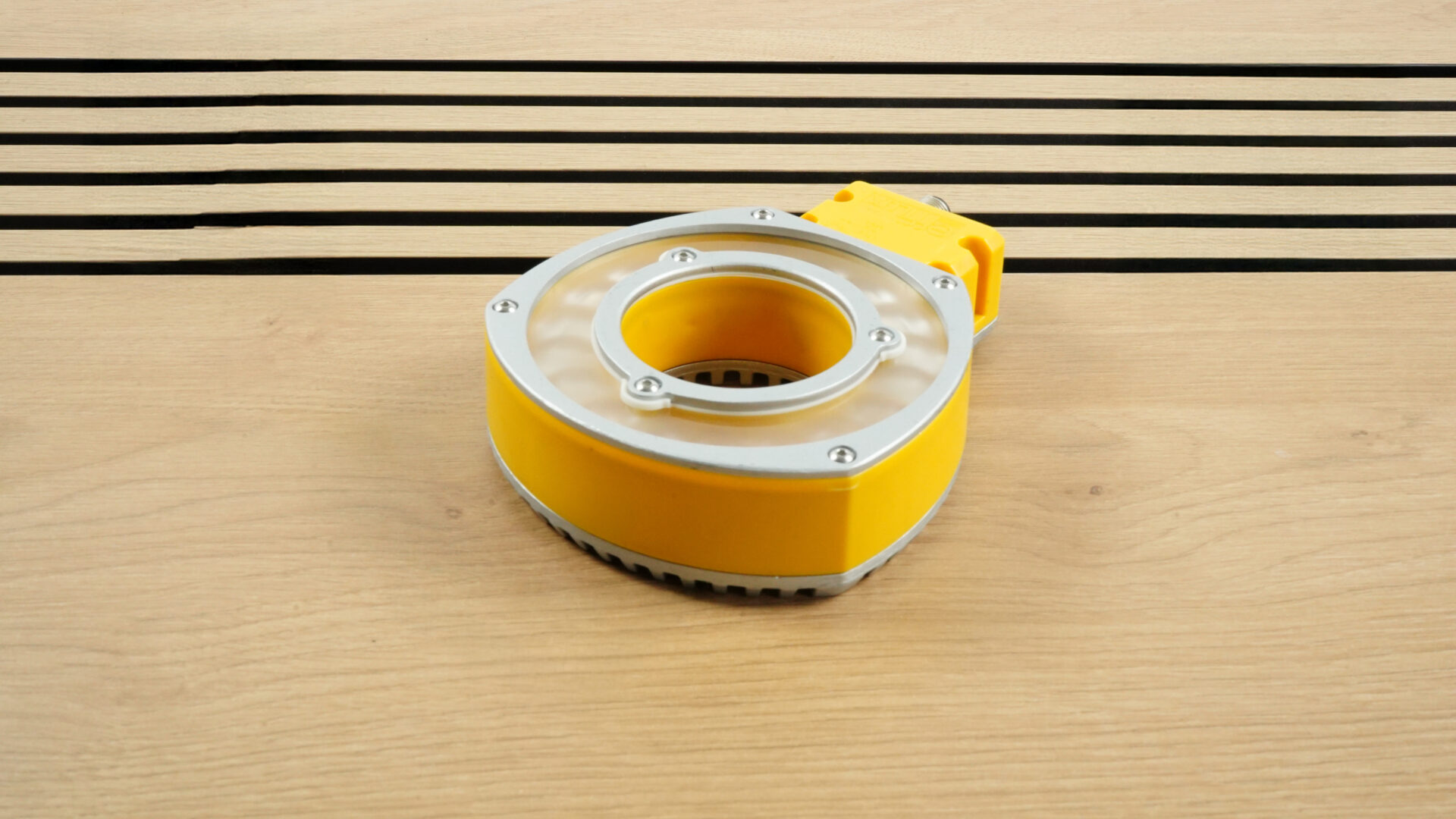

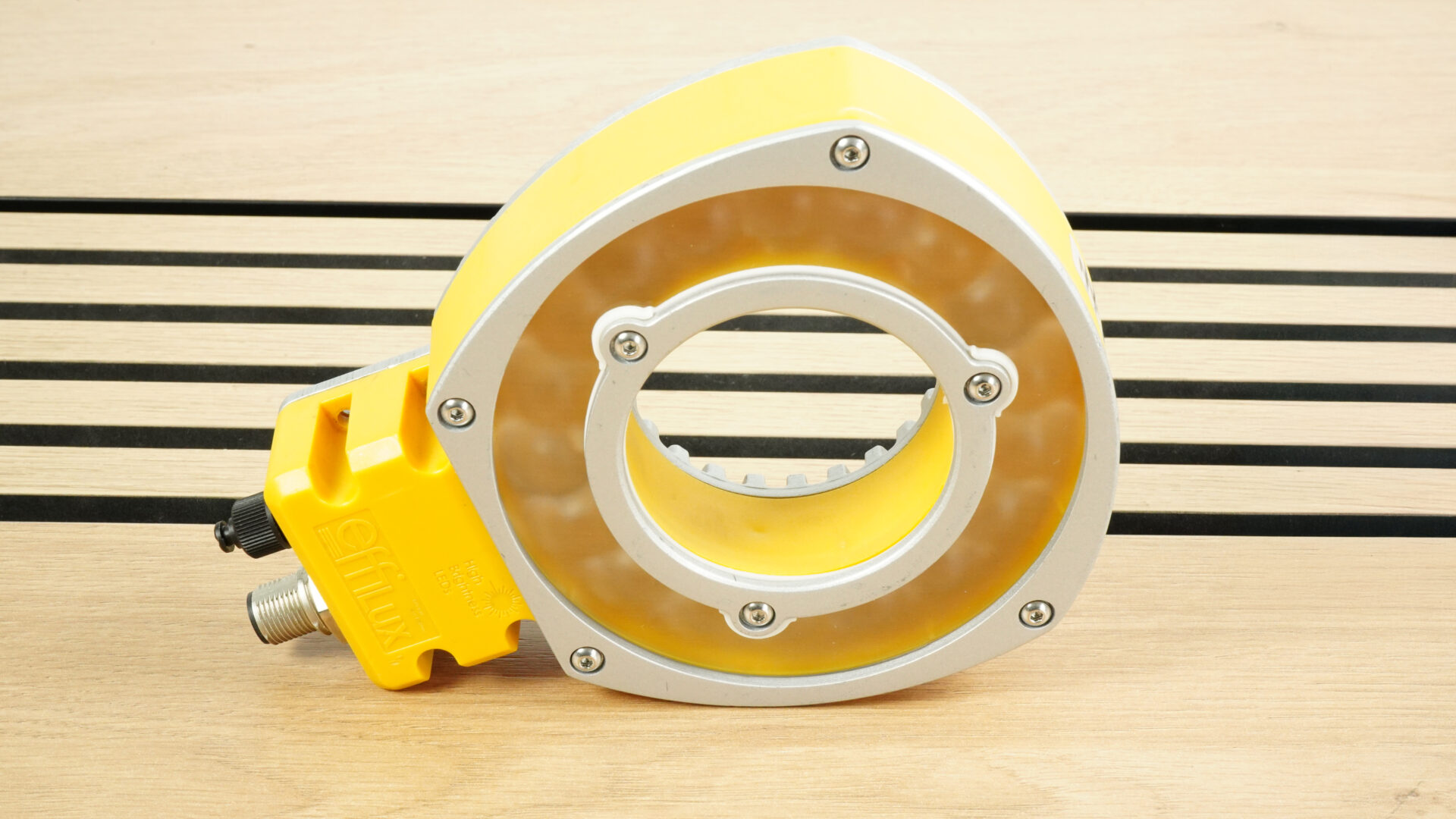

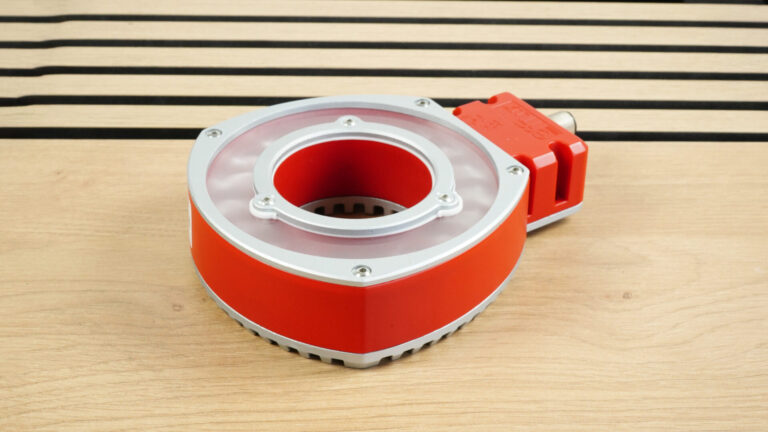

EFFI-RING is a high-performance ring light designed for demanding industrial environments. With interchangeable diffusers, adjustable emission angles, and a robust IP65-rated housing, it offers maximum flexibility for machine vision applications. Its integrated driver with AutoStrobe function boosts light output by up to 700% in overdrive mode, ensuring powerful and uniform illumination even in complex conditions.

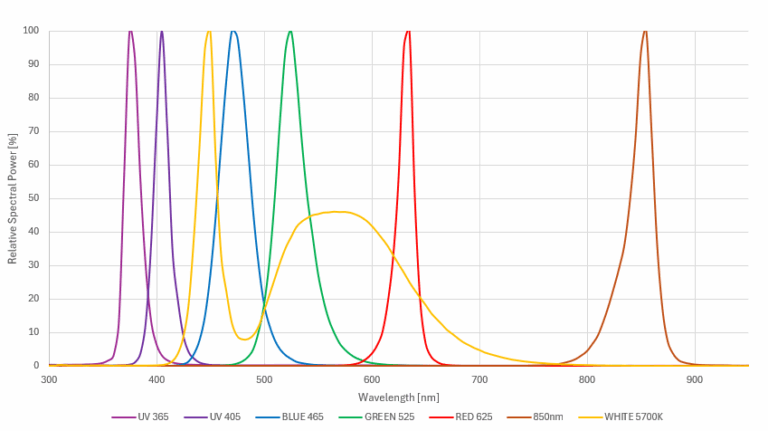

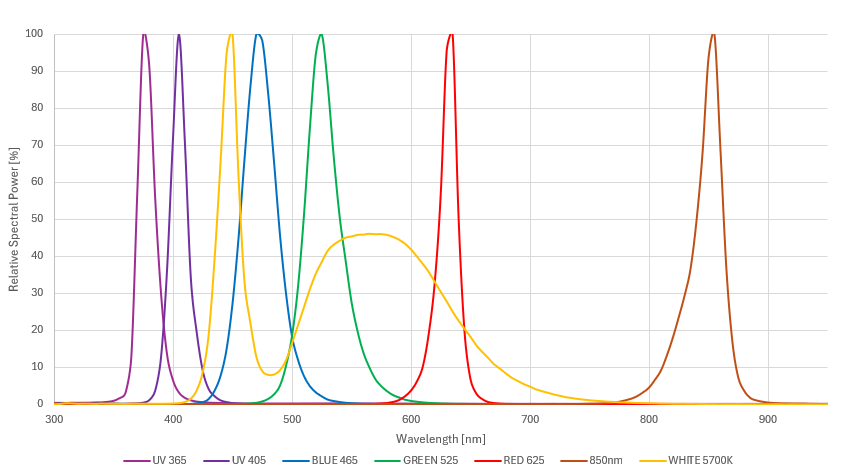

| Wavelength (nm) | ● 365* (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-RING-ZZZ...
EFFI-Ring is also available in Effilux’s SWIR range.
| SWIR (nm) | 980 | 1050 | 1150 | 1200 | 1300 | 1450 | 1550 | 1650 |

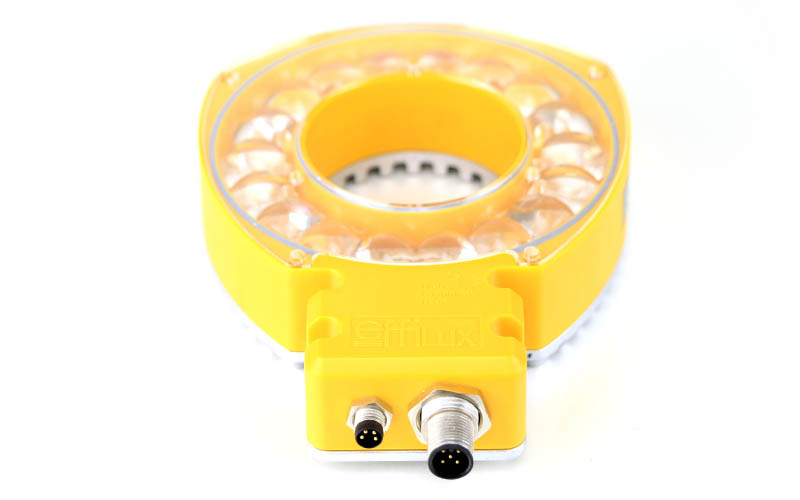

TR (Transparent)

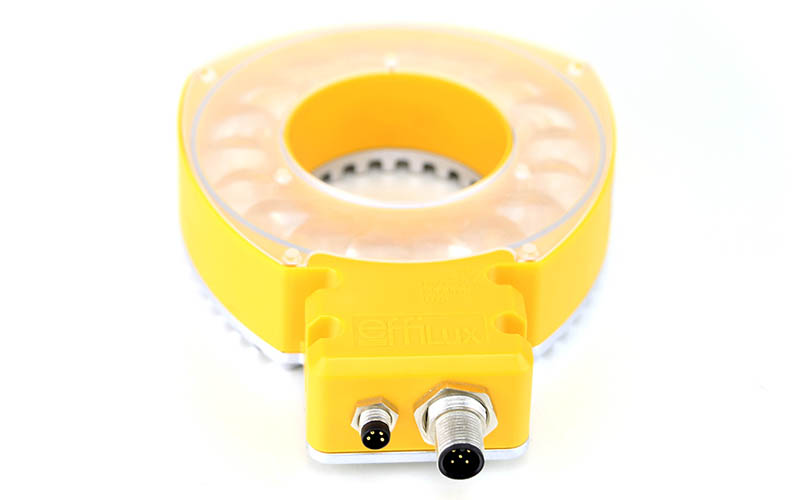

SD (Semi-diffuse)

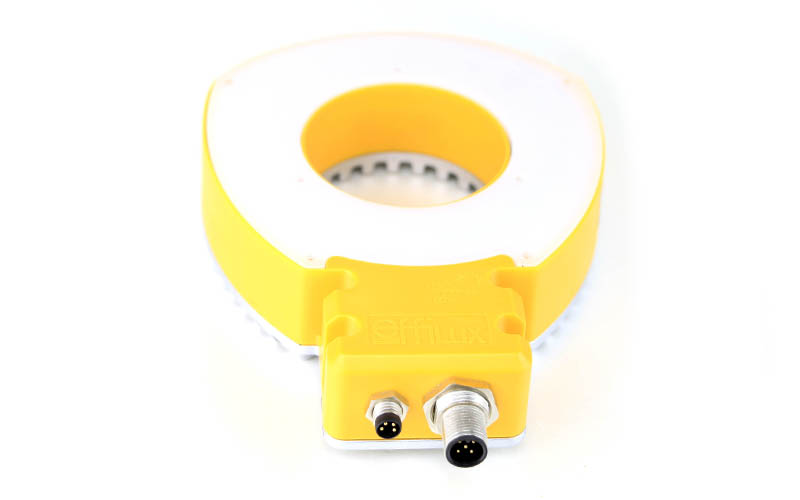

OP (Opaline)
Kit (All diffusers)
PART NUMBER:
EFFI-RING-ZZZ-WW…
P0 : 90° (without lens)
P1 : 45°
P2 : 25°
P3 : 10°
PART NUMBER:
EFFI-RING-ZZZ-WW-PP
PP : P0, P1, P2 ou P3. If not specified, default position P2.
The position of the lens can be changed by the customer for more flexibility.

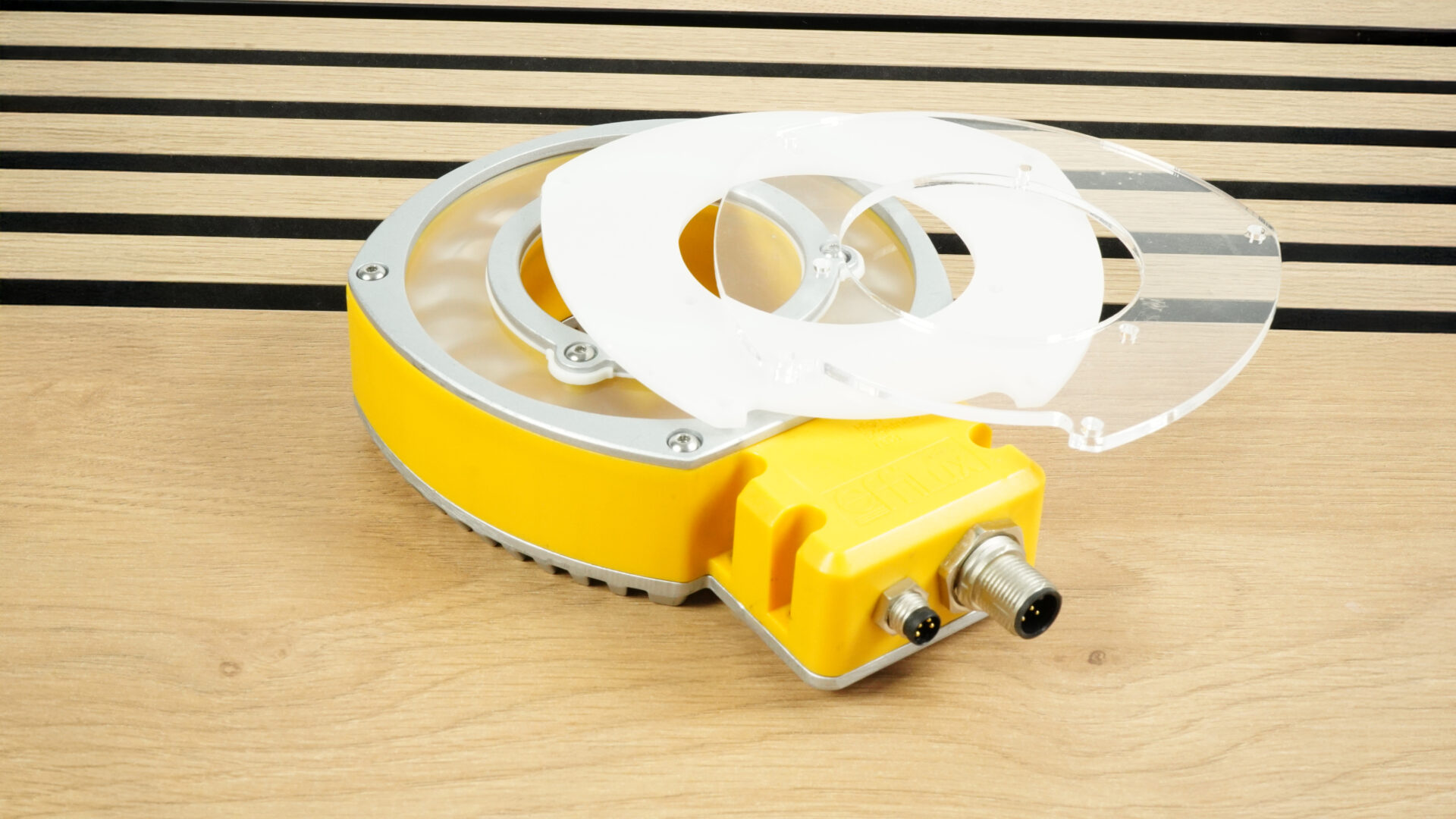

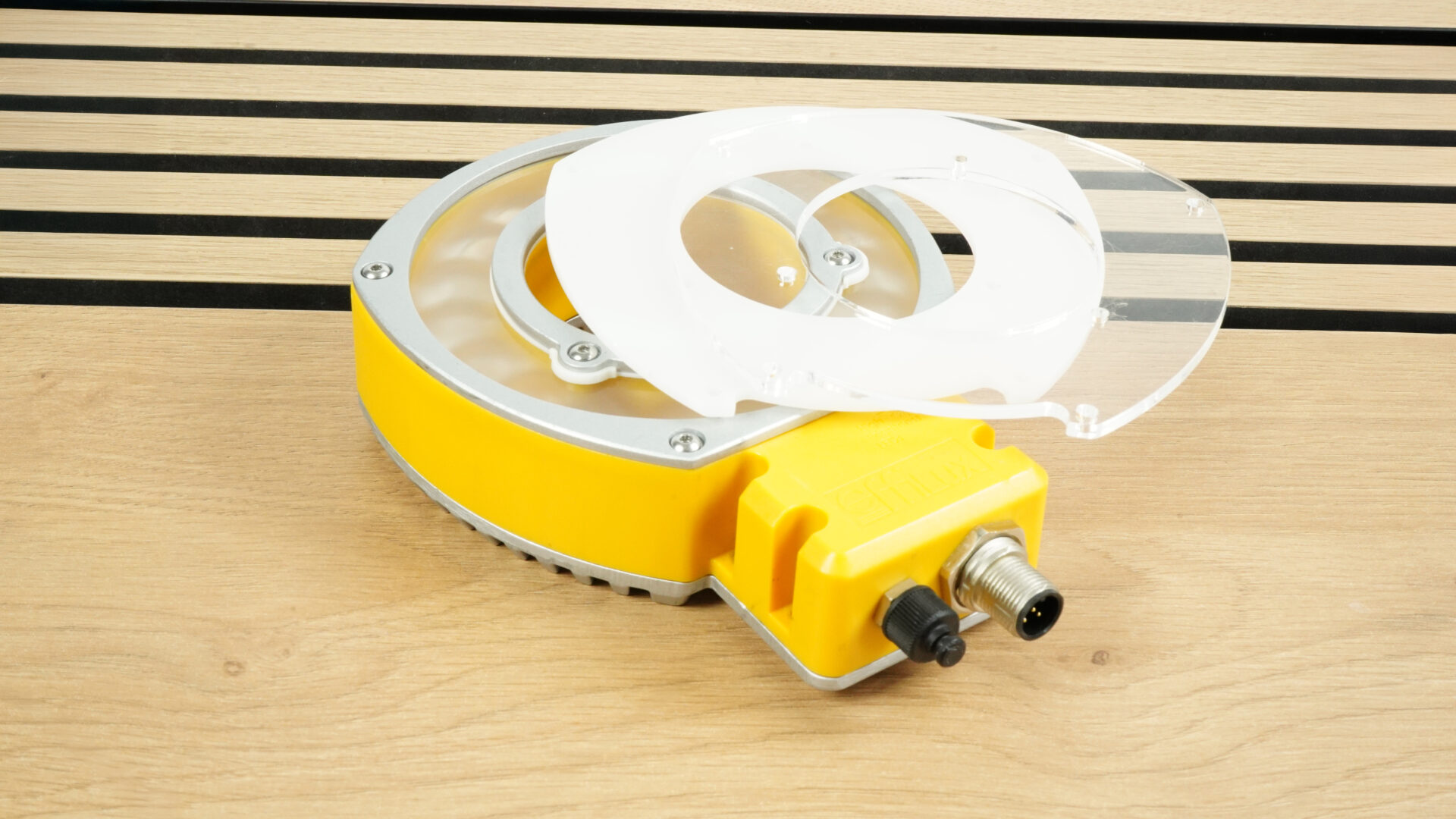

An EFFI-Ring with KIT option comes with lens in P2 position and the Semi-diffuse window. A transparent and an opaline window are added in the package. It allows a better flexibility.
KIT option is free of charge for EFFI-Ring.
PART NUMBER:
EFFI-RING-ZZZ-KIT
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-RING-ZZZ-WW-PP-POL2
PART NUMBER:
EFFI-RING-XXX-ZZZZ-WW-PP (ZZZZ: SWIR wavelength)
RGB: Red, Green, Blue LED alternated
PART NUMBER:
EFFI-RING-XXX-RGB-WW-PP
PART NUMBER:
EFFI-RING-XXX-WUI-WW-PP
The EFFI-RING works in an autostrobe mode with a first overdrive level (700% output power) and reach a continuous level (100%) after 1.4s.
The product can work on strobe mode with a maximum duty cycle of 15%.
EFFI-Ring is powered by a 24V DC source.

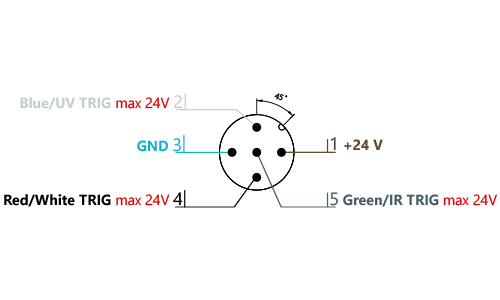

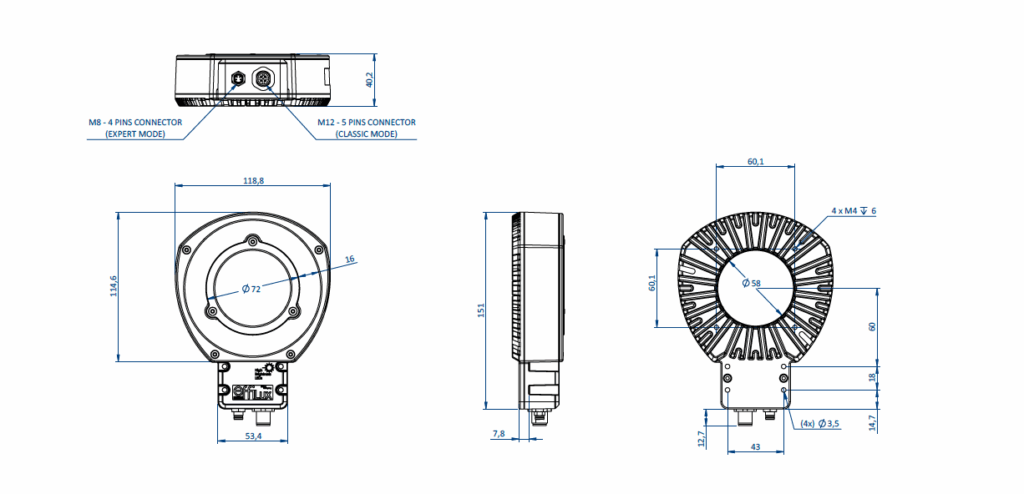

Standard version: M12 connector – AIC (see previous part)

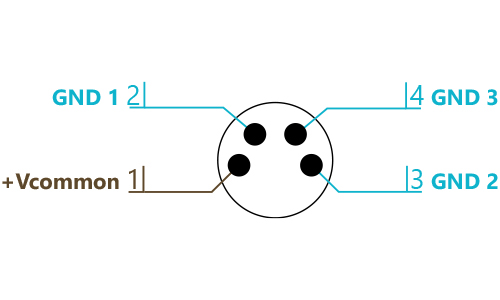

STR expert version: M8 connector – direct control.
In expert mode, the LEDs are powered live, there is no protection. The maximum current defined in the documentation for a given frequency and pulse time cannot be exceeded.
Four tapped holes for M4 screws and four non-tapped holes for M3 screws can be used to secure the device.
EFFI-Ring is compatible with the majority of standard cameras thanks to its fixing accessory.
EFFI-Ring is a waterproof product IP65. To keep the product watertight after dismantling, replace the gaskets as they were originally when reassembling them.
For all other inquiries, please contact EFFILUX.
