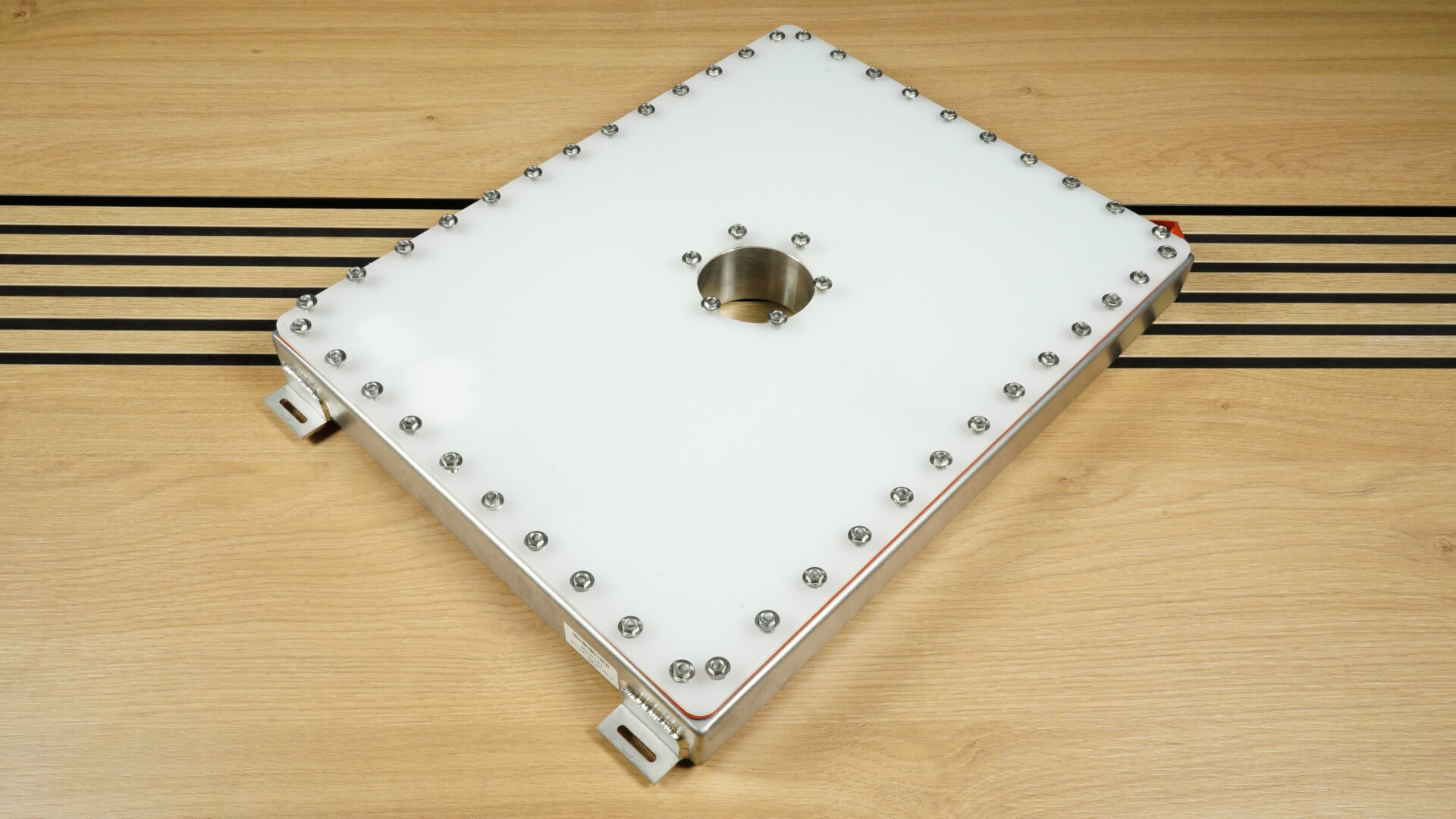

The EFFI-FD-IP69K is a flat dome LED light designed for reflective surface inspection in hygiene-critical environments. Built with a 100% waterproof stainless steel housing, it complies with the IP69K standard, making it ideal for food processing, pharmaceutical, and washdown applications.
This lighting solution delivers both direct and diffuse illumination, ensuring optimal visibility on curved or shiny surfaces. Its compact and robust design allows for easy integration into production lines, and it is frequently used as the mechanical foundation of the vision system itself. The EFFI-FD-IP69K combines the optical performance of the standard EFFI-FD with the durability and cleanability required in environments subject to high-pressure cleaning and chemical exposure.
| Optical length (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 |
| Length of the product (mm) | 96 | 146 | 196 | 246 | 296 | 346 | 396 | 446 | 496 | 546 | 596 | 646 |
PART NUMBER:
EFFI-FD-IP69K-XXX-YYY…

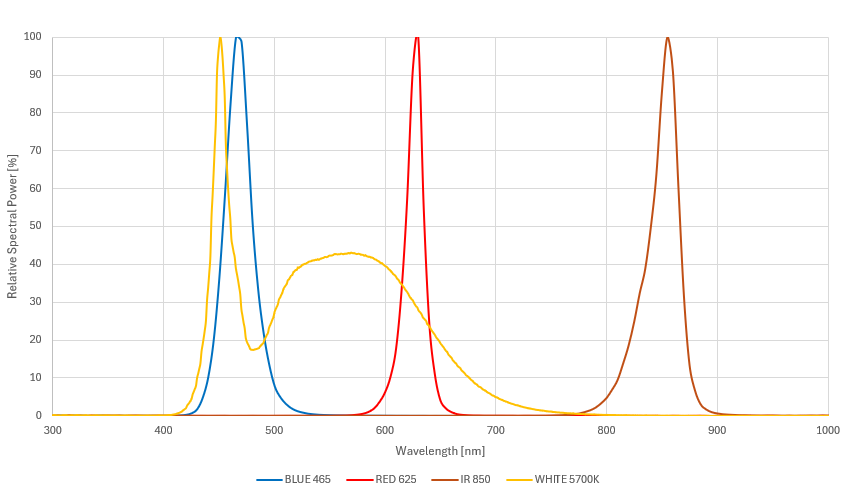

| Wavelength (nm) | ● 465 (Blue) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-FD-IP69K-XXX-YYY-ZZZ…
EFFI-FD-IP69K is powered by a 24V DC source. By using the AIC pin, the light intensity can be increased linearly:
Standard version
Food version
| Mechanical versions | IP grade | Food compliant | Small footprint | Venting |
| Standard IP69K Version EFFI-FD-IP69K |  |
 |
|
 |
| FOOD IP69K Version EFFI-FD-IP69K-FOOD |  |
|
|
|

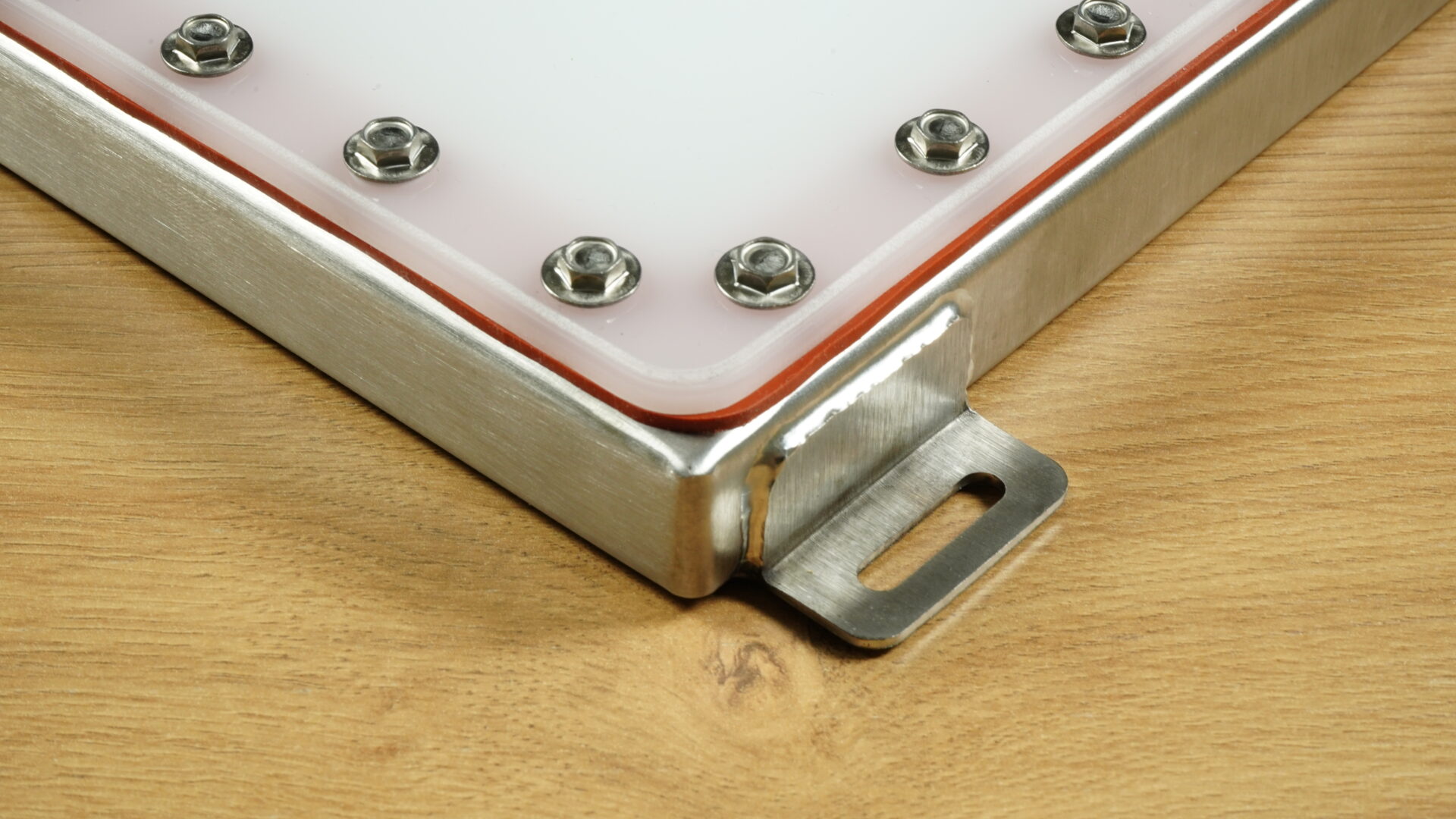

The EFFI-FD-IP69K is equipped with a M5 groove along its 4 sides. Compatible fixing accessories are available.
PART NUMBER:
EFFI-FD-IP69K-FOOD-XXX-YYY-ZZZ…
