EFFI-FLEX-IP69K

EFFI-FLEX-IP69K

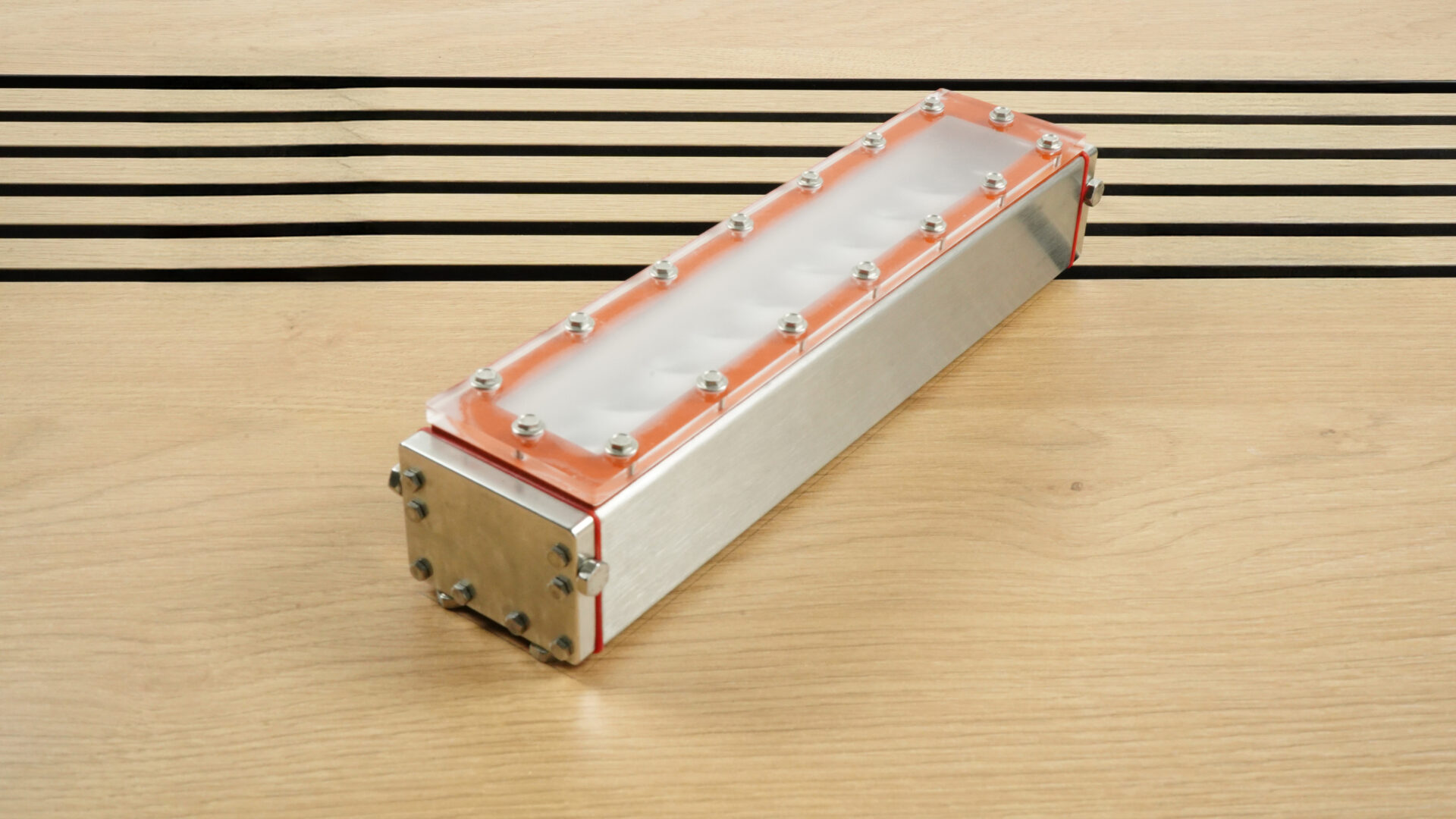

Water and chemical-resistant LED bar

The EFFI-FLEX-IP69K is a high-power LED bar designed for the most demanding industrial environments, featuring a 100% waterproof stainless steel housing compliant with the IP69K standard. It is the ideal lighting solution for food processing, pharmaceutical, and washdown applications where hygiene and durability are essential.

Combining robustness, compactness, and full waterproofing, the EFFI-FLEX-IP69K retains the optical versatility of the original EFFI-FLEX. It supports a wide range of beam angles and diffuser options, making it adaptable to a variety of machine vision and automation challenges.

Equipped with a built-in driver, it offers two operating modes: AutoStrobe (standard) for high-intensity pulsed lighting and Intensity Control (optional) for continuous dimmable operation. Its sealed design ensures reliable performance in environments exposed to high-pressure cleaning, steam, and aggressive detergents.

Datasheet
User Manual

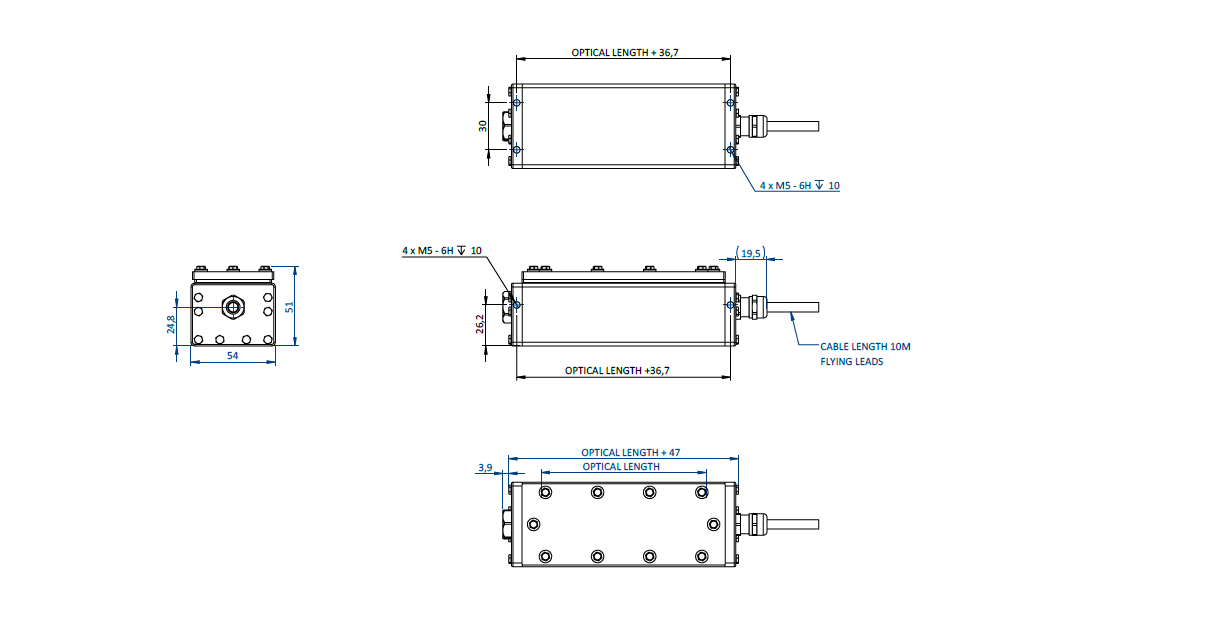

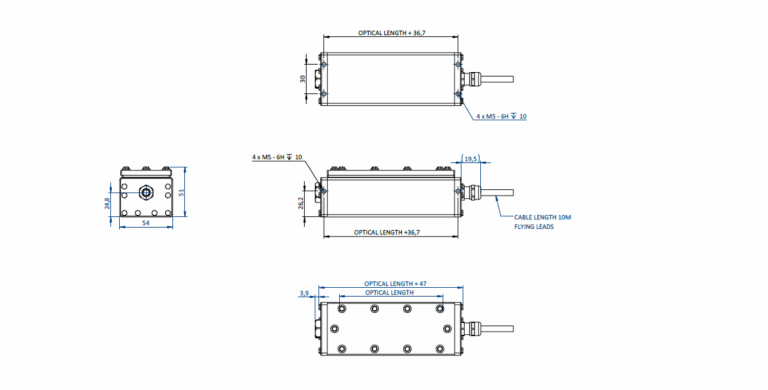

Drawing
Step CAD
Number of LED 3 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145
Length of the product (mm) 107 147 247 347 447 547 647 747 847 947 1047 1147 1247 1347 1447 1547 1647 1747 1847 1947 2047 2147 2247 2347 2447 2547 2647 2747 2847 2947

PART NUMBER:

EFFI-FLEX-IP69K-XXX…

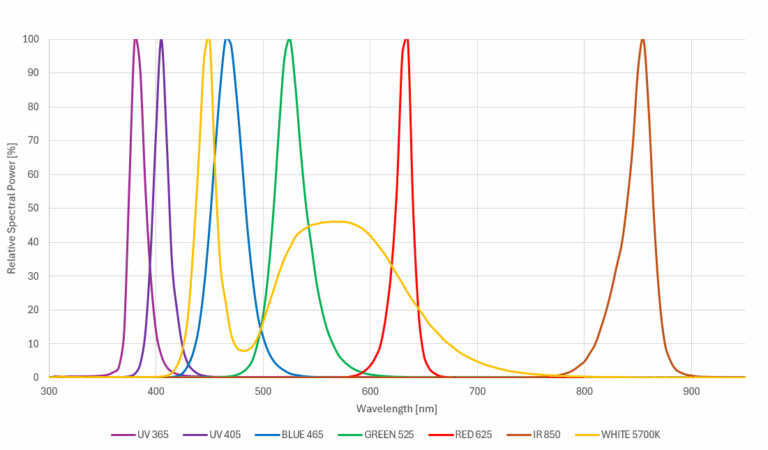

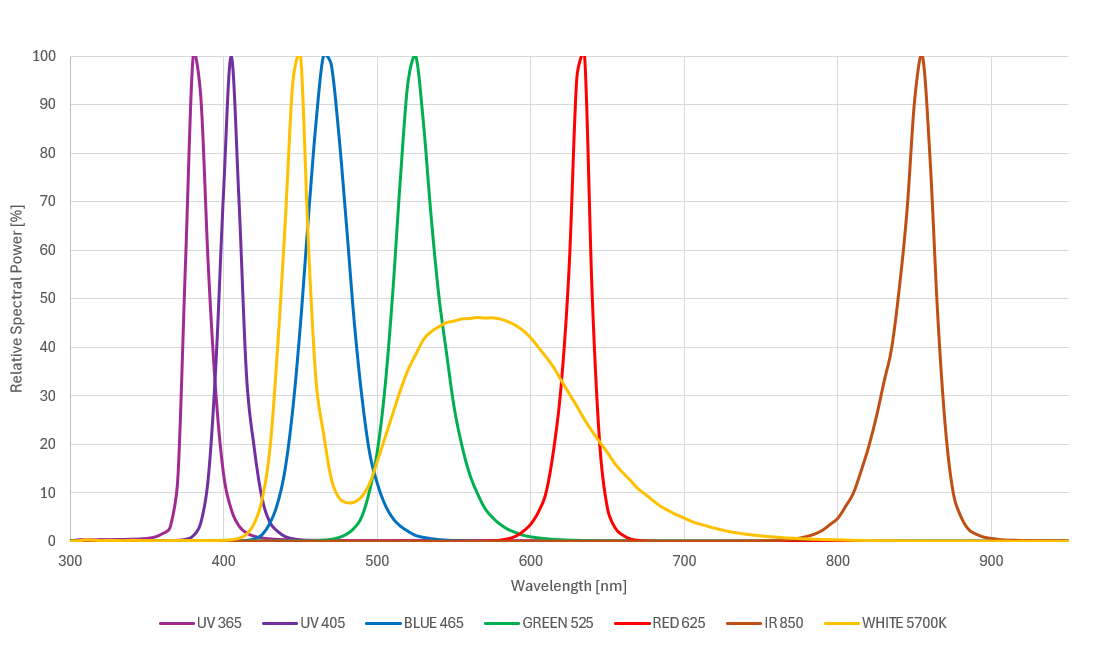

Wavelength (nm) ● 365 (UV) ● 405 (UV) ● 465 (Blue) ● 525 (Green) ● 625 (Red) ● 850 (Infrared) ○ 000 (White)

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ…

SWIR (nm)105012001300145015501650

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZZ…

EFFILUX offers different types of interchangeable windows to supply a good compromise between power and uniformity according to the requirements and material of the inspection.

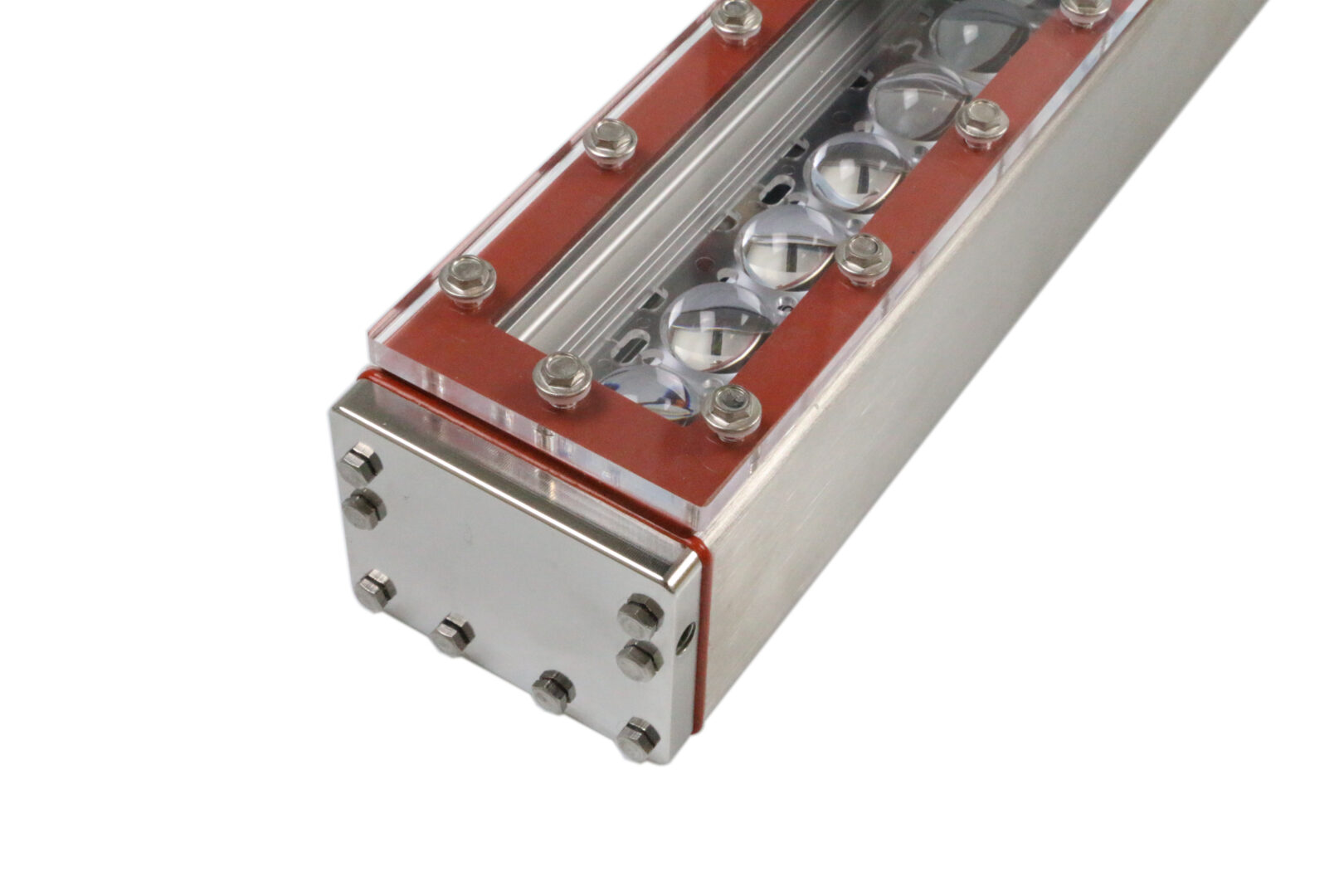

TR (Transparent)

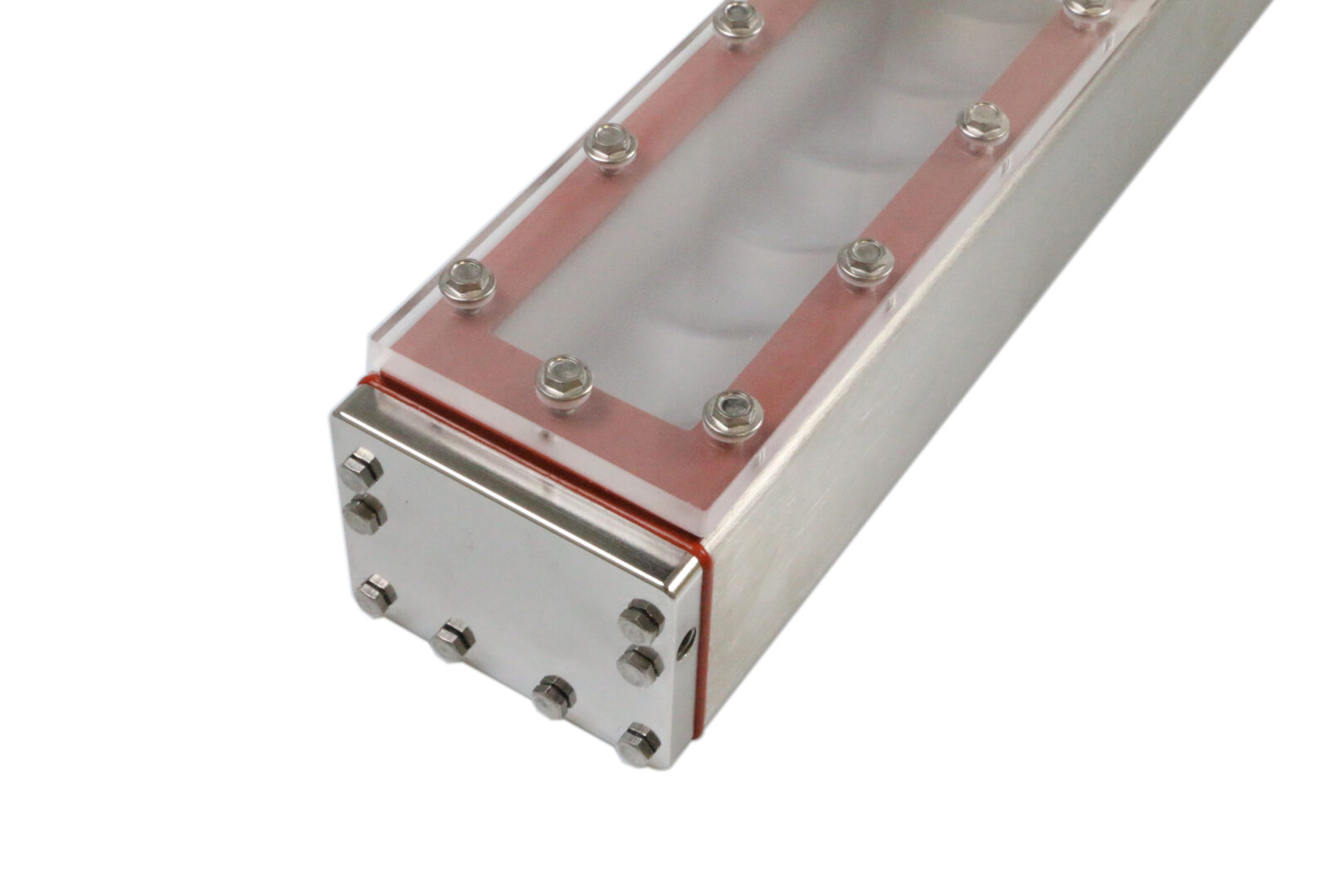

SD (Semi-diffuse)

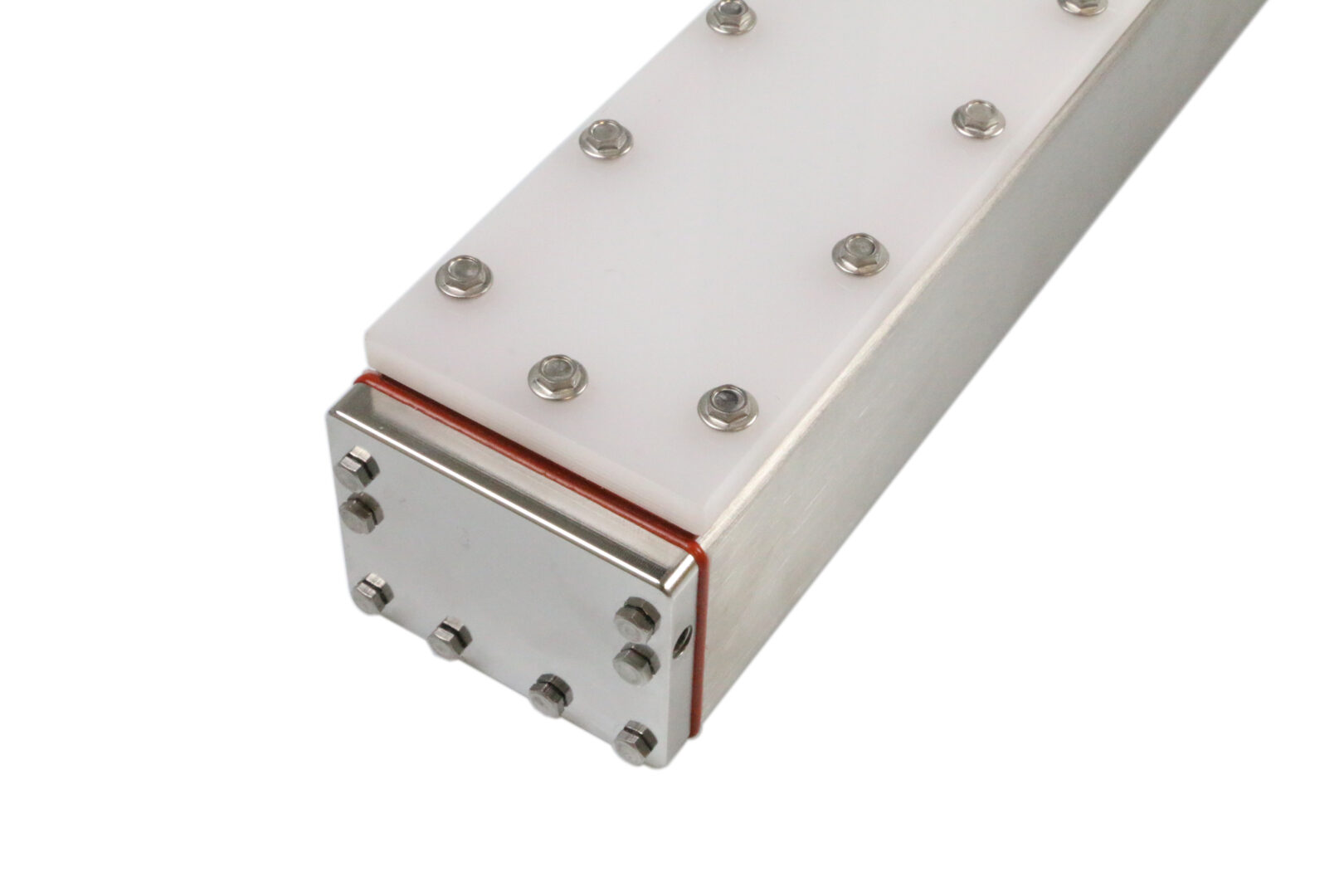

OP (Opaline)

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-WW…

EFFI-FLEX-IP69K accepts 4 lens configurations to adjust the emission angle to your need.

P0 : 75° (without lens)

P1 : 45°

P2 : 25°

P3 : 10°

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-WW-PP…

Polarizer

Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.

Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.

View accessory

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-WW-PP-POL

Before
Linescan

With the lens in the upper position, the Linescan accessory transforms the EFFI-FLEX2 light into a uniform line light ideal for either brightfield or darkfield illumination.

Possible to buy only the accessory. Not compatible with the UV365 wavelength.

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-TR-P3-LS

View accessory
Before
Pure UV

Innovative EFFILUX system that drastically improves the fluorescence effect while concurrently removing glare and improving contrast. Only for 365nm.

PART NUMBER:

EFFI-FLEX-IP69K-XXX-365-TR-P0-PUV

Before
SWIR
Extension of the existing visible wavelengths to reach the Short Wave Infrared spectrum.

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZZ-WW-PP (ZZZZ: SWIR wavelength)

RGB

RGB: Red, Green, Blue LED alternated

PART NUMBER:

EFFI-FLEX-IP69K-XXX-RGB-WW-PP

WUI
WUI: White, UV, Infrared LED alternated

PART NUMBER:

EFFI-FLEX-IP69K-XXX-WUI-WW-PP

Standard version : Autostrobe driver

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-WW-PP

Dimmable version : ELS driver

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-WW-PP-ELS-VVV-UUU
NB: VVV refers to the intensity current sent per LED 350/500/700/1000 and UUU refers to the ELS control ranges see below.

Depending on the size, the light comes with different connectors.

View Datasheet
Standard version

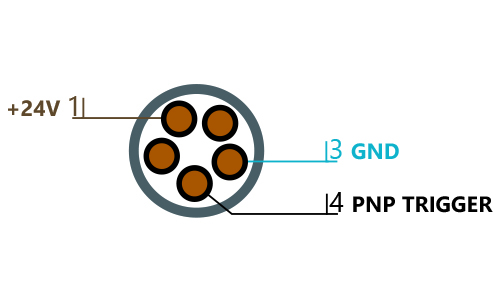

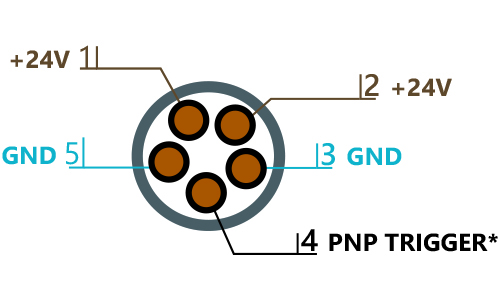

Flying Leads
Flying Leads - FL2
Food version

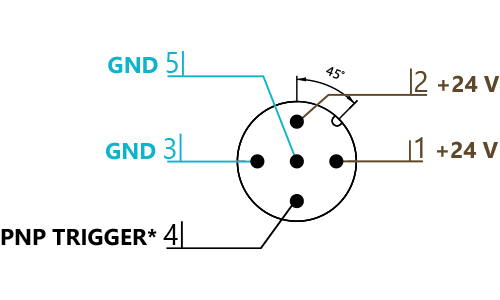

M12 5 Pins
M12 5 Pins - IN2

(*) : For the dimmable version, replace PNP by AIC.

Standard 0-24V

PART NUMBER:

(...) ELS-VVV-24V

Inverted 0-24V

PART NUMBER:

(...) ELS-IN-VVV-24V

Inverted 5-0V

PART NUMBER:

(...) ELS-IN-VVV-5V

L2 : Economical version

1 LED every 40mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).

PART NUMBER:

EFFI-FLEX-IP69K-L2-XXXX-ZZZ-WW-PP

MECHANICAL VERSIONSIP grade« Openable » bodyWater cooling (for high power)Smooth sections (anti-dust)Food compliant
EFFI-FLEX
EFFI-FLEX-CPT
EFFI-FLEX-IP69K

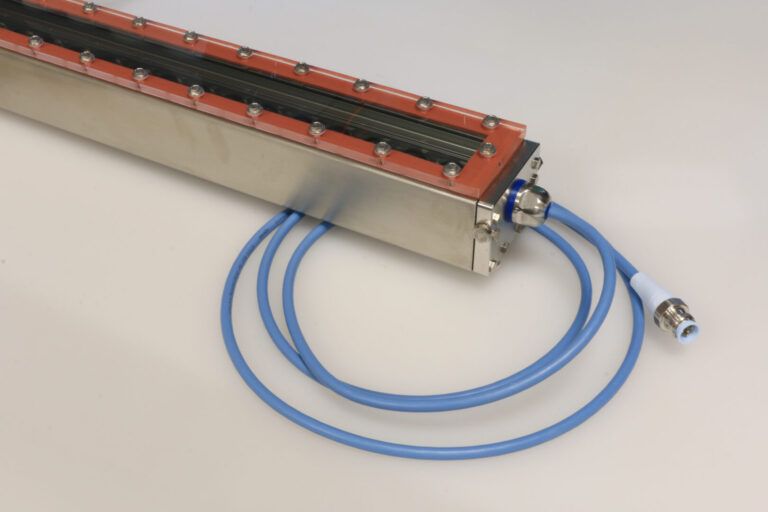

For food processing environment, the nickel-plated brass gland is replaced by stainless steel type and the standard cable by a certified food & beverage. The food option is not compatible with the venting option.

PART NUMBER:

EFFI-FLEX-IP69K-FOOD-XXX-ZZZ-WW-PP

For thermal reasons and boosted power (ELS) configurations, it can be necessary to provide water cooling (-WTR) by adding drip-free connectors on each side.

PART NUMBER:

EFFI-FLEX-IP69K-WTR-XXX-ZZZ-WW-PP

Adding a vent on one cap helps equalizing pressure with ambient environment and minimize condensation.

PART NUMBER:

EFFI-FLEX-IP69K-XXX-ZZZ-WW-PP-V

Filters
EFFILUX camera filters
Protection glasses
EFFILUX protection glasses
Light mounting solutions
Mechanical accessories for EFFILUX lighting
EFFI-PWR
Power supplies for EFFILUX lighting systems
Custom electronics

For all other inquiries, please contact EFFILUX.
