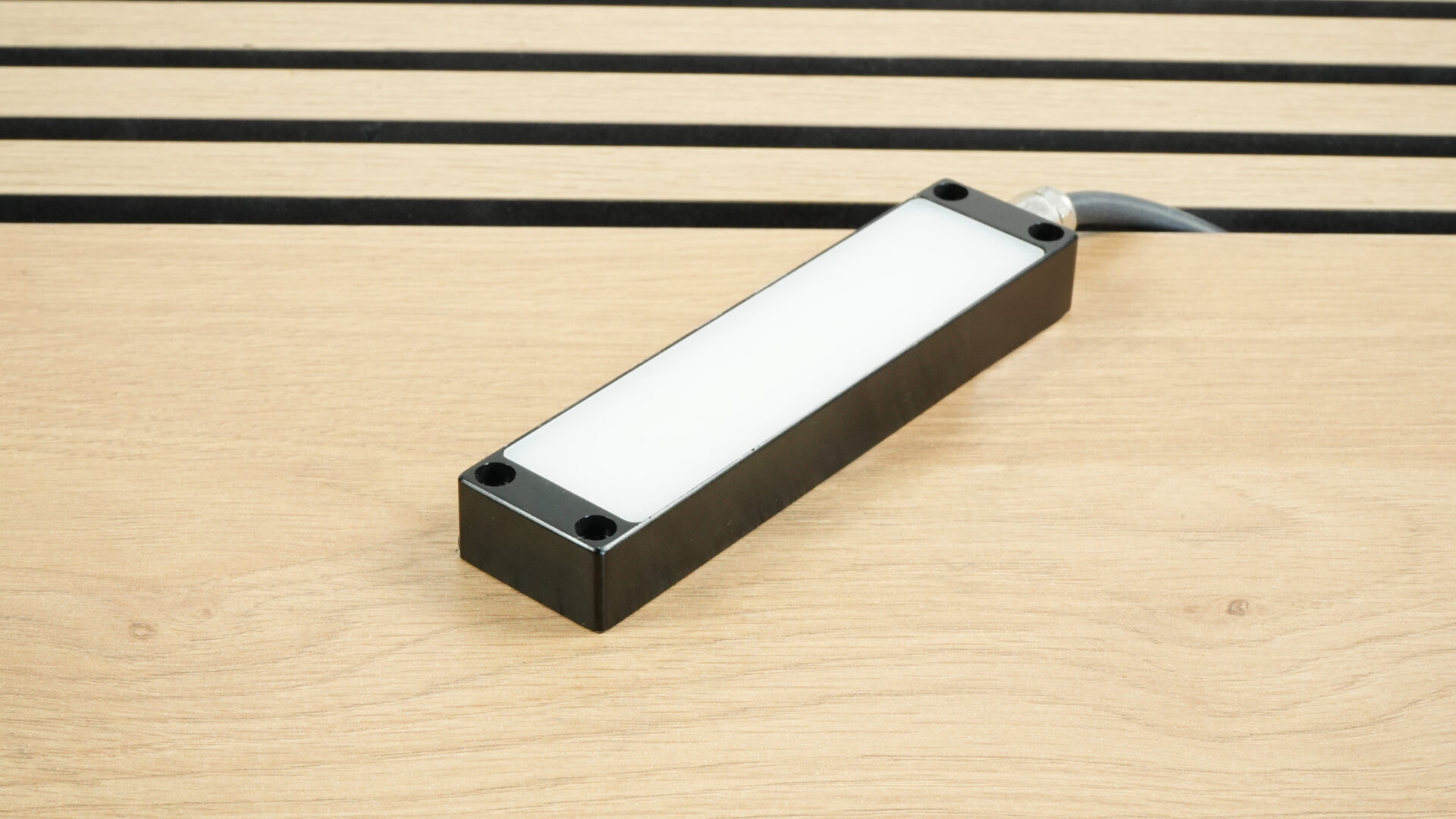

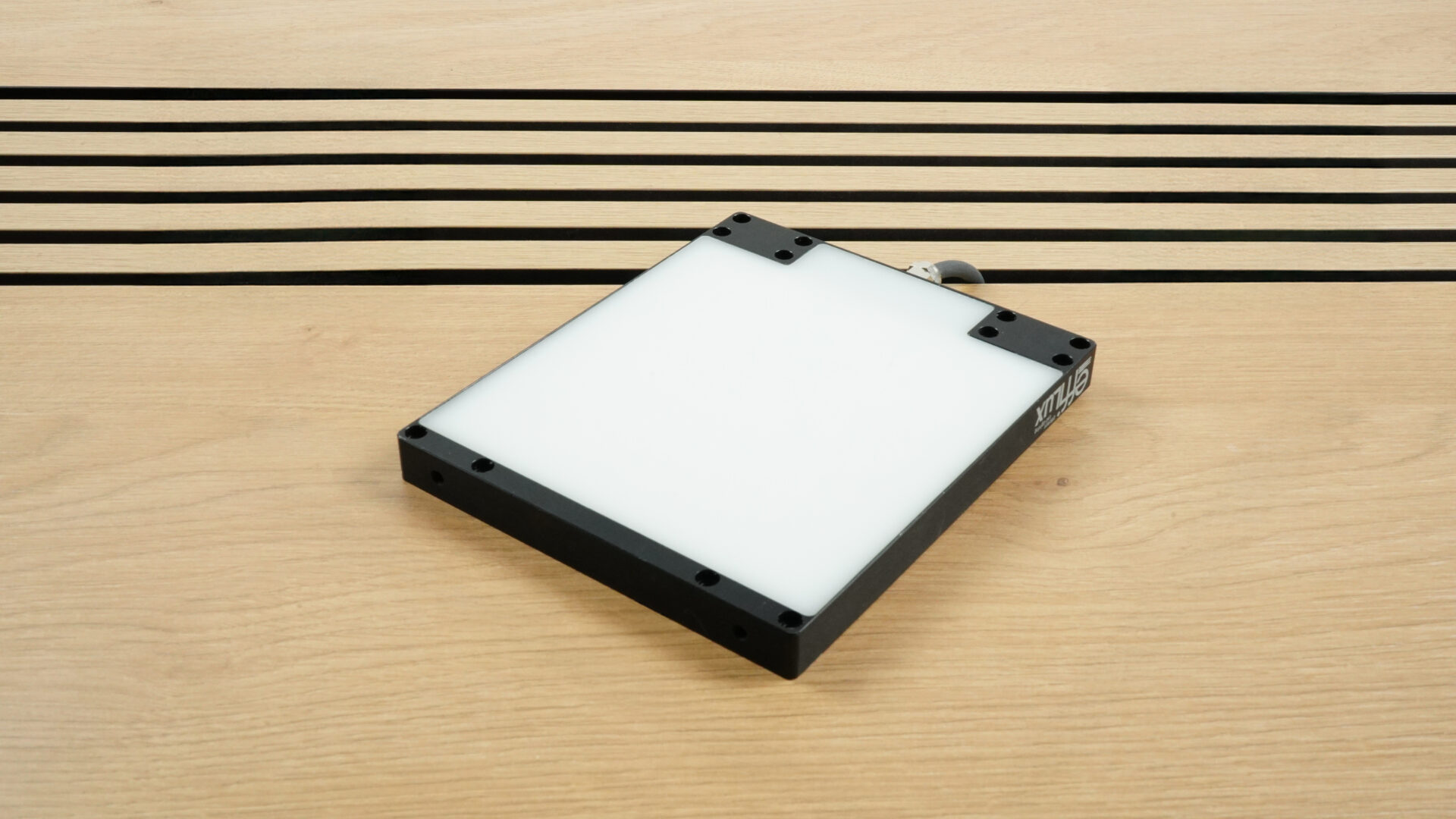

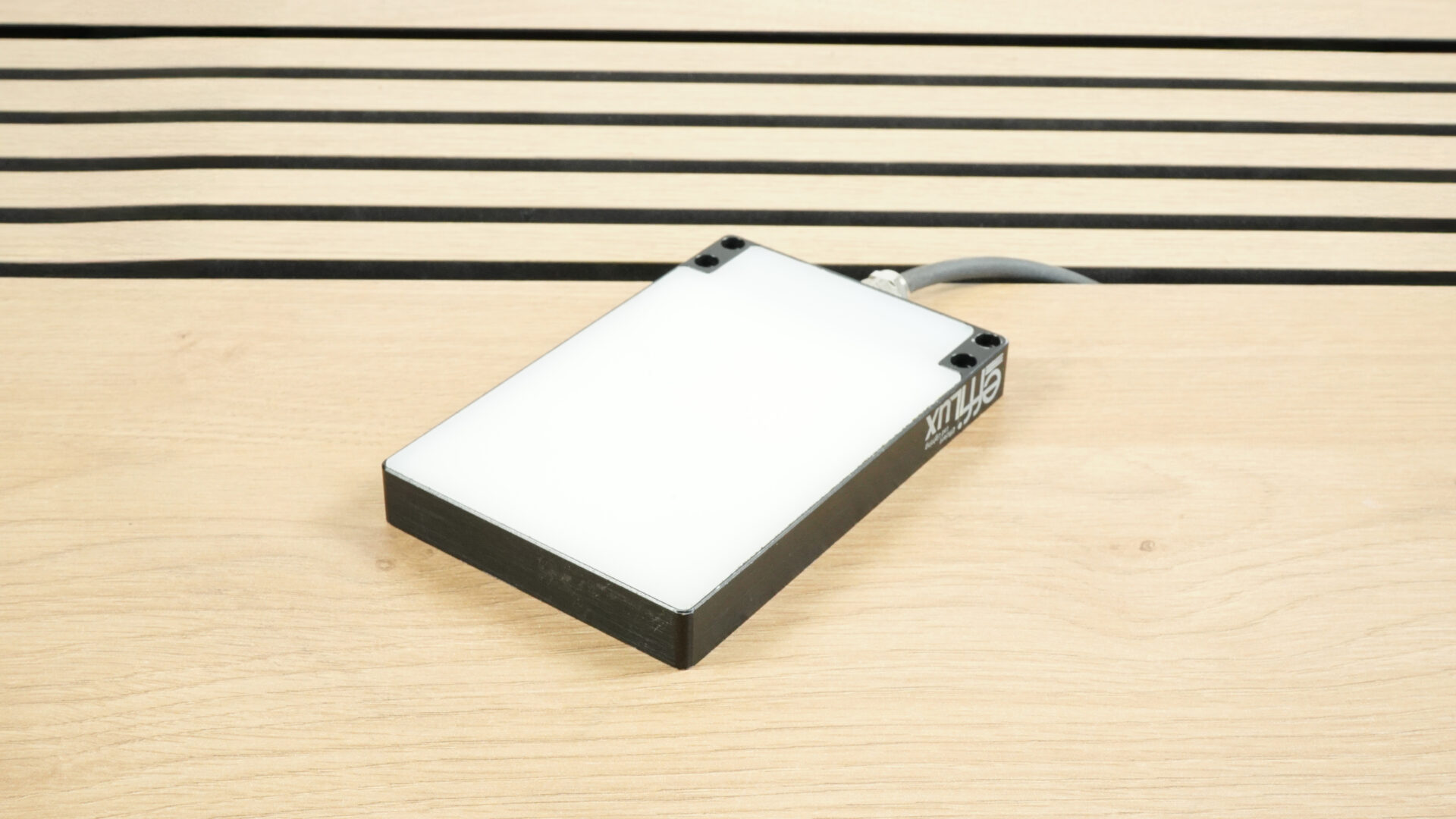

The EFFI-SBL is a space-saving LED backlight designed for machine vision applications where installation depth is limited. With a thickness of just 15 mm and ultra-thin borders, it maximizes the illuminated area while minimizing footprint.
Its high uniformity—over 90%—combined with an anti-reflection coating ensures excellent contrast without hotspots, making it ideal for presence detection, dimensional measurement, and positioning tasks. The EFFI-SBL is IP67-rated for protection against water and dust, and available in a wide range of standard sizes from 25 mm to 200 mm. It features a dimmable integrated driver (built-in or in-cable), standard M12 connector, and supports white, red, or infrared (850 nm) wavelengths. Custom mechanical, optical, or electronic configurations are also available to meet specific needs.
| Optical length (mm) | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 |
PART NUMBER:
EFFI-SBL-XXX-YYY... (XXX ≤ YYY)

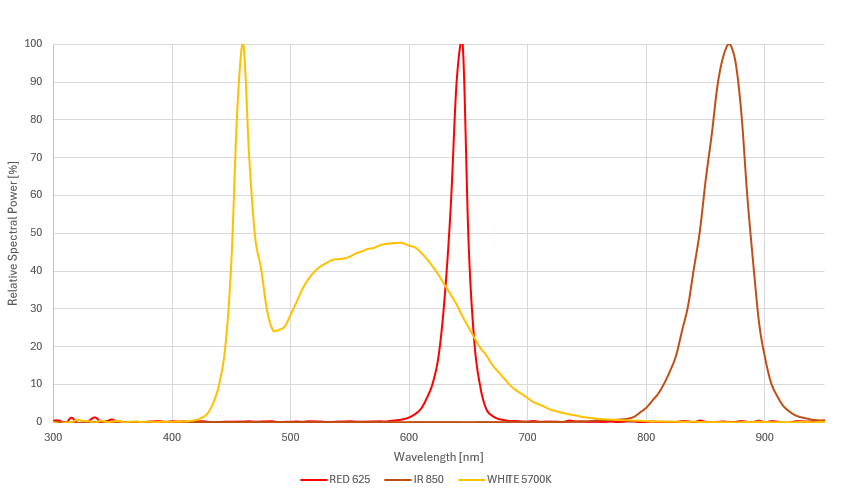

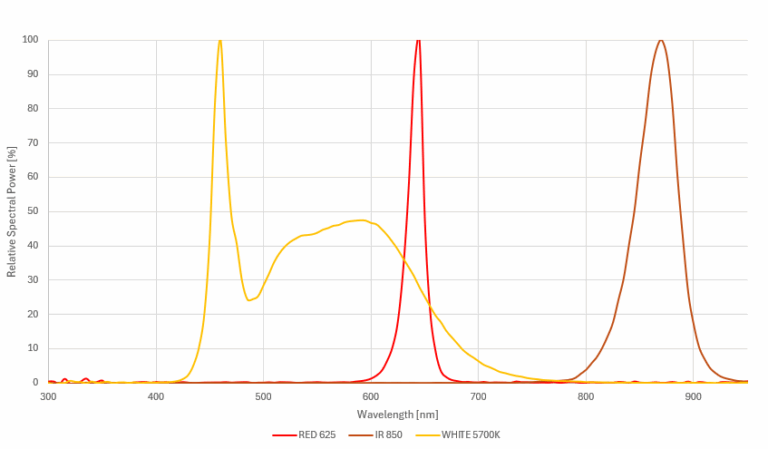

| Wavelength (nm) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-SBL-XXX-YYY-ZZZ...
Eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot. The design for this option is specific, refer to the datasheet.
PART NUMBER:
EFFI-SBL-XXX-YYY-ZZZ-POL2

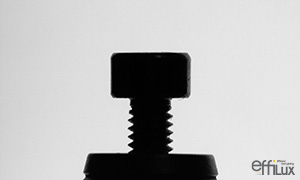

The collimation film allows you to collimate the light and reduce the emission angle. The design for this option is specific, refer to the datasheet.
PART NUMBER:
EFFI-SBL-XXX-YYY-ZZZ-1XLCF or 2XLCF
The output optical power of the EFFI-SBL is adjustable from 20% to 100% by applying a signal from 0V to 24V/10V/5V on the AIC pin.
PART NUMBER:
EFFI-SBL-XXX-YYY-ZZZ (24V default configuration) / EFFI-SBL-XXX-YYY-ZZZ-10V / EFFI-SBL-XXX-YYY-ZZZ-5V

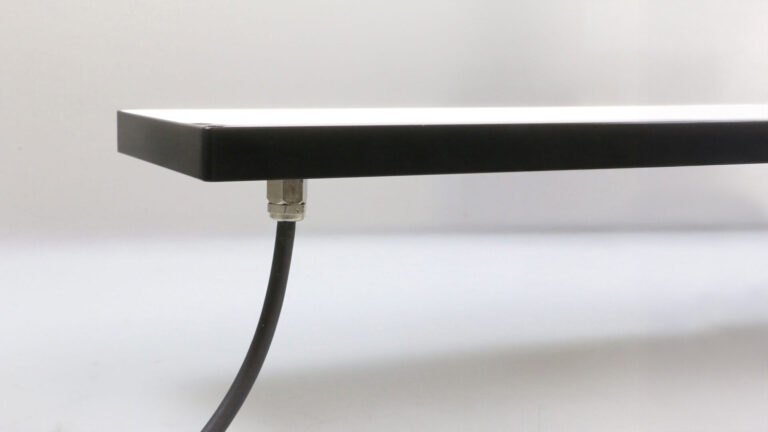

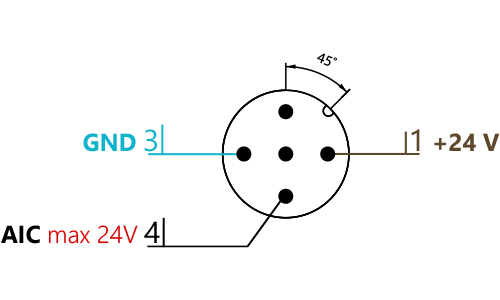

The EFFI-SBL is supplied directly at 24V DC via an M12 – 5 pins.

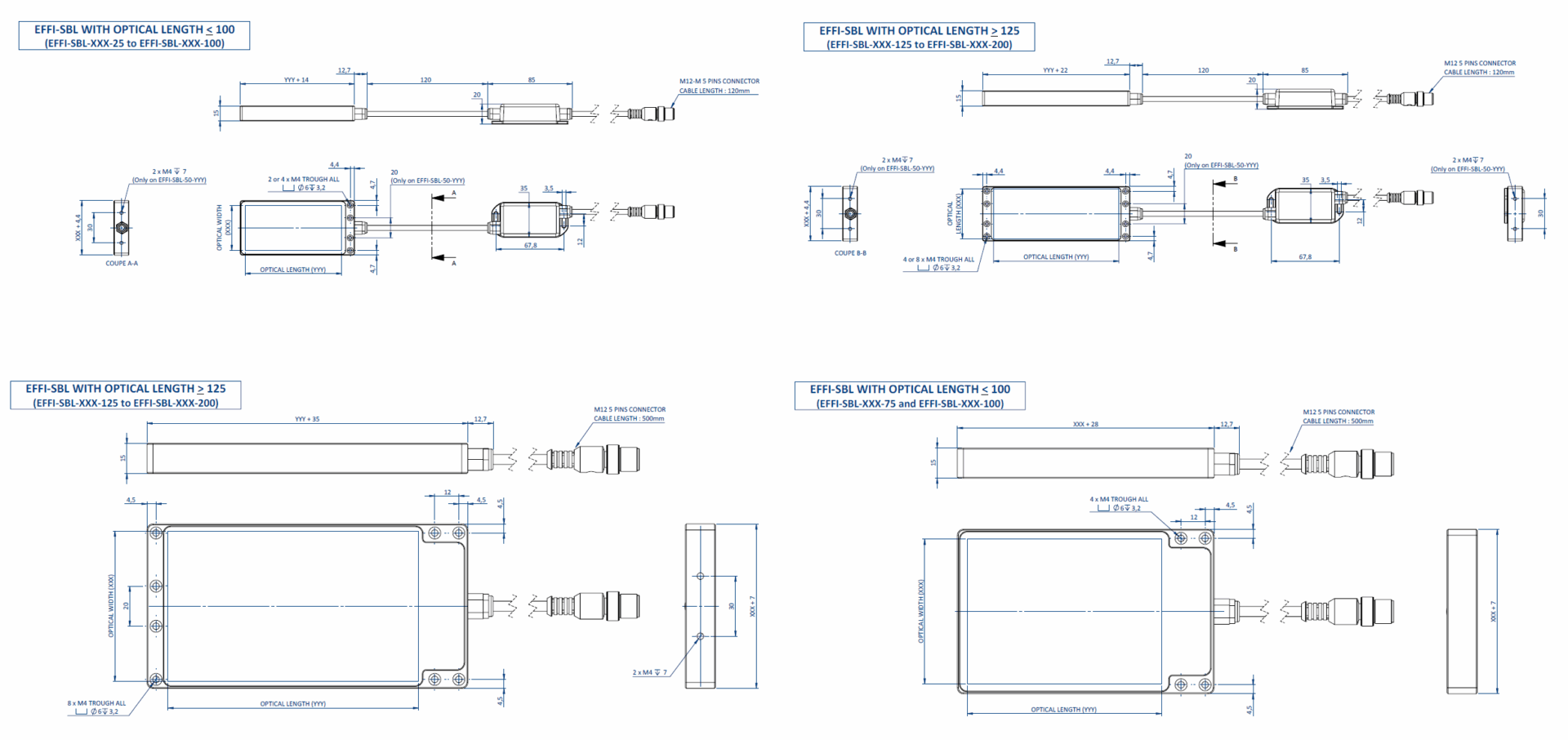

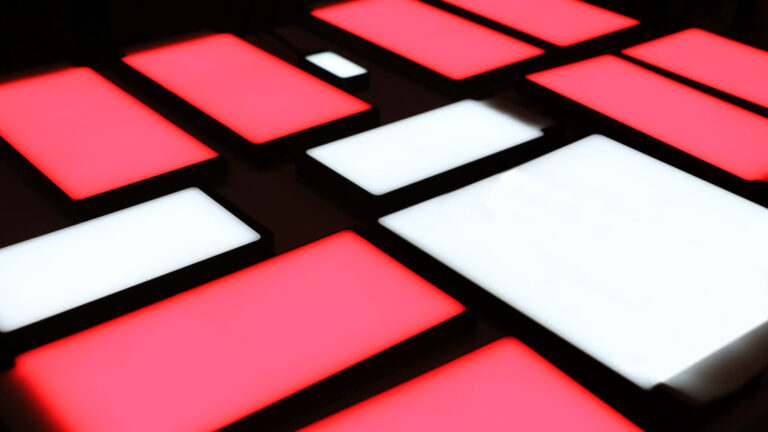

EFFILUX offers you the EFFI-SBL in all dimensions from 25mmx25mm to 300mmx300mm in 25mm increments (except the EFFI-SBL-175-175). For any intermediate or larger EFFI-SBL, please contact Effilux.
| Mechanical version | IP grade | Thickness | Size available | Available color |
| Standard Version EFFI-BL |  | 43,20mm | 50-50 to 1500-1500, in steps of 50mm | White, Red, Blue, Green, IR (850nm) |
| EFFI-SBL |  | 15mm | 25-25 to 300-300, in 25mm steps | White, Red, IR (850nm) |

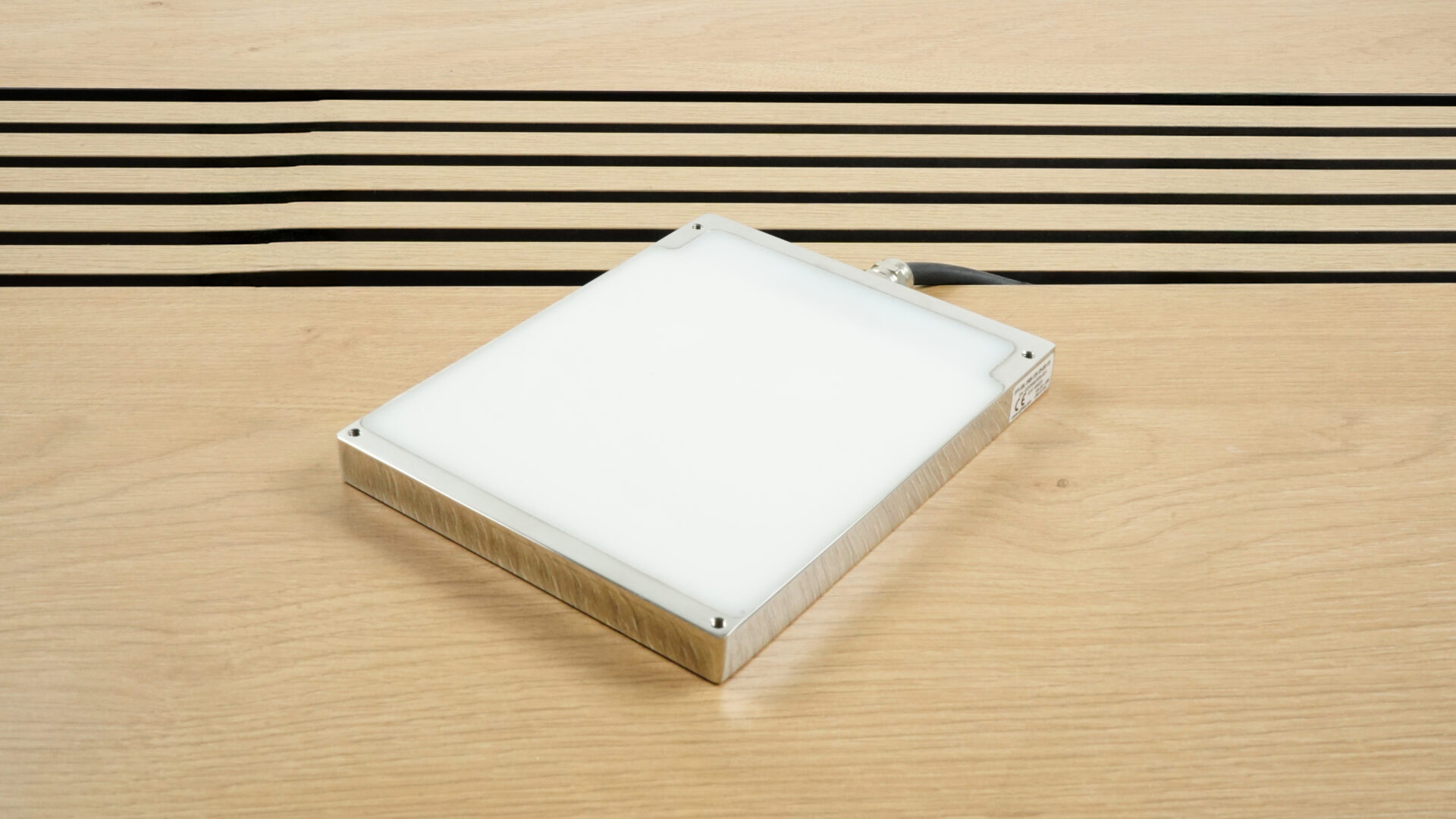

An IP69K version of the EFFI-SBL also exists for food environments.
| Mechanical version | IP grade | Thickness | Size available | Section material |
| EFFI-SBL | | 15mm | 25-25 to 200-200, in 25mm steps, customizable | Anodized aluminum |
| EFFI-SBL-IP69K |  | 15mm | 25-25 to 200-200, in 25mm steps, customizable | Stainless steel |
For all other inquiries, please contact EFFILUX.
