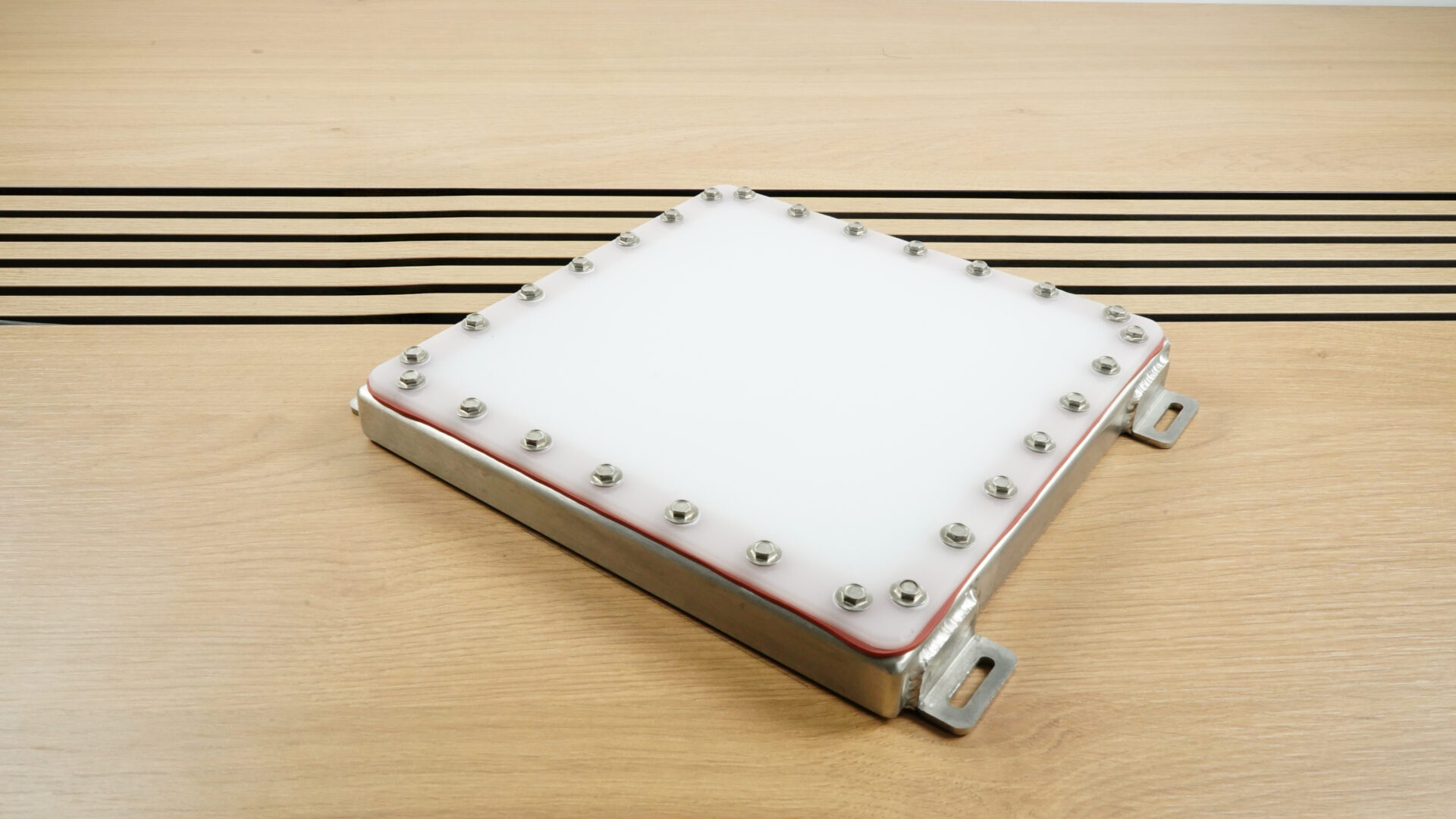

The EFFI-BL-IP69K is a high-power, large-format LED backlight designed for silhouette-based inspection in hygiene-critical environments. Built with a 100% waterproof stainless steel housing, it meets the IP69K standard, making it ideal for food processing, pharmaceutical, and washdown applications.
Its high luminance and uniformity above 80% ensure optimal contrast for detecting contours, shapes, and features in backlit machine vision setups. The EFFI-BL-IP69K combines powerful performance with robust, hygienic construction for reliable operation in harsh and regulated environments.
All sizes up to 0.6m x 0.6m are available in 100mm increments.
Contact Effilux for larger dimensions.
| Optical length (mm) | 100 | 200 | 300 | 400 | 500 | 600 |
| Length of the product (mm) | 146 | 246 | 346 | 446 | 546 | 646 |
PART NUMBER:
EFFI-BL-IP69K-XXX-YYY... XXX ≤ YYY

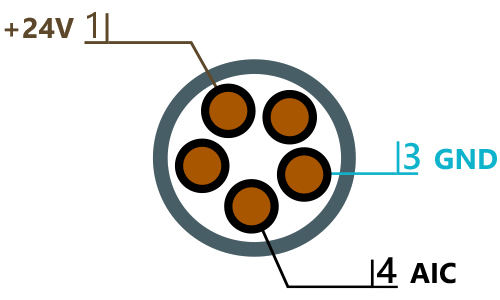

EFFI-BL-IP69K is powered by a 24V DC source.
By using the DIM pin, the light intensity can be increased linearly :
• 0V – OFF
• 24V – Full ON
A boost in power with a one minute max time ON and a 30% maximum duty cycle.
PART NUMBER:
EFFI-BL-IP69K-XXX-YYY-ZZZ-S150
EFFILUX offers various products as backlight solutions.
| MECHANICAL VERSIONS | IP grade | Thickness | Small footprint | Smooth section (anti-dust) | Food compliant |
| EFFI-BL | 43,20mm | ||||
| EFFI-BL Thin edges | 40mm | ||||
| EFFI-BL-IP69K | 35,60mm |
The EFFI-BL is equipped with a M5 groove along its 4 sides. Compatible fixing accessories are available.
PART NUMBER:
EFFI-BL-IP69K-FOOD-XXX-YYY-ZZZ
