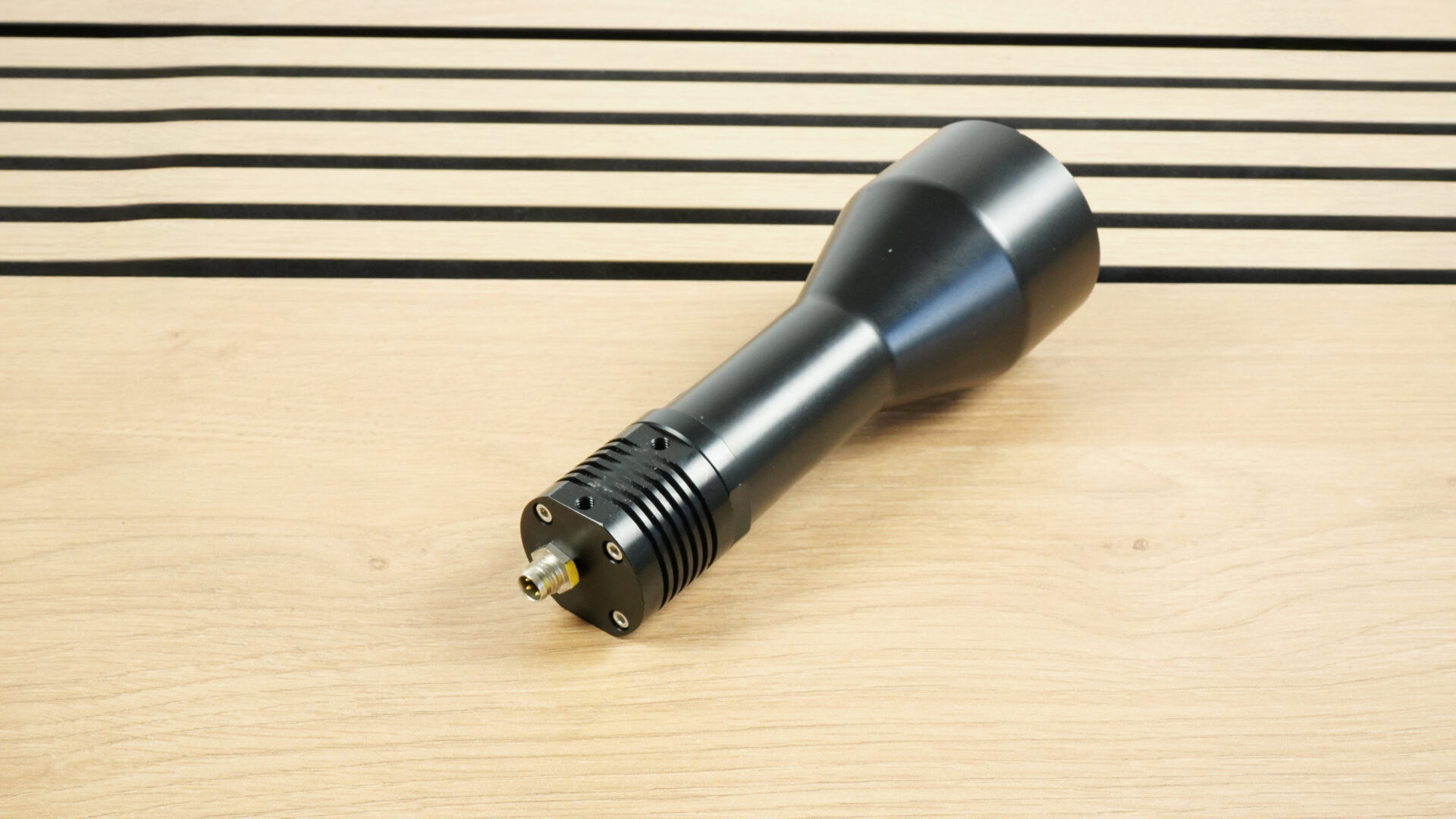

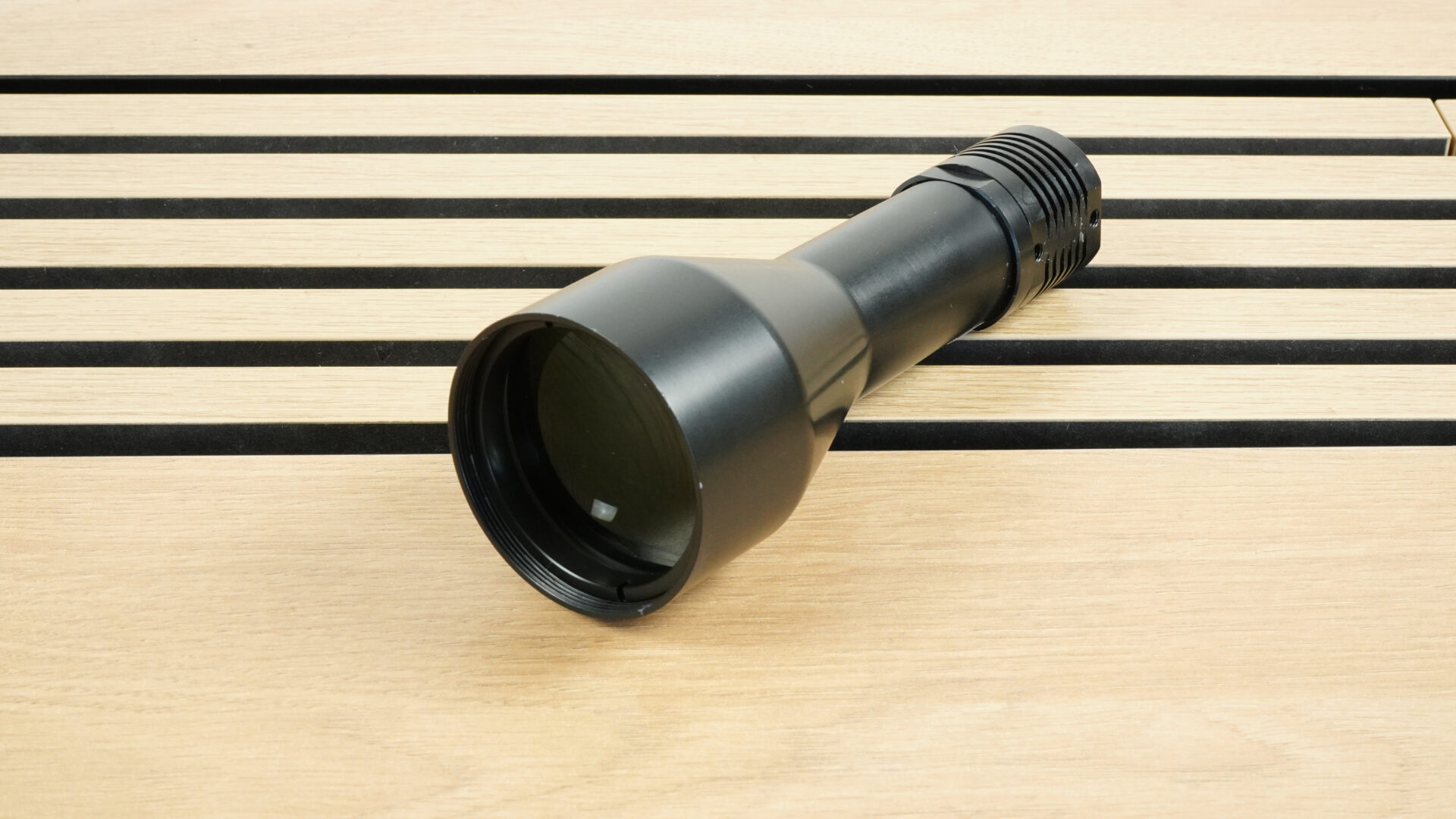

The EFFI-TELE is a high-precision LED light designed for industrial vision applications requiring accurate edge detection and part presence verification. Its highly collimated beam ensures sharp contrast and minimal light dispersion, making it ideal for detecting shapes and contours with clarity.
Versatile in use, the EFFI-TELE can be configured as either a frontlight or backlight and is available in multiple wavelengths to suit various inspection needs. Its optical performance enables reliable detection even in complex setups, supporting high-speed and high-accuracy vision systems.

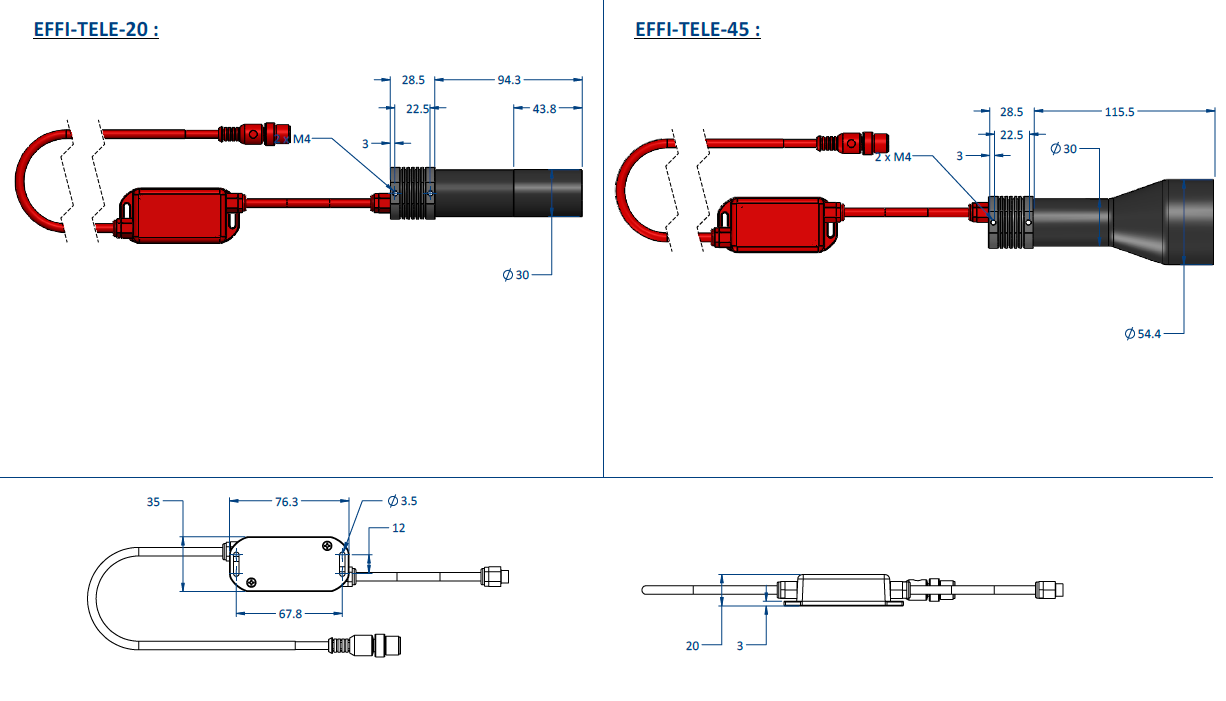

| XX: Optical diameter (mm) | 20 | 45 |
PART NUMBER:
EFFI-TELE-XX...

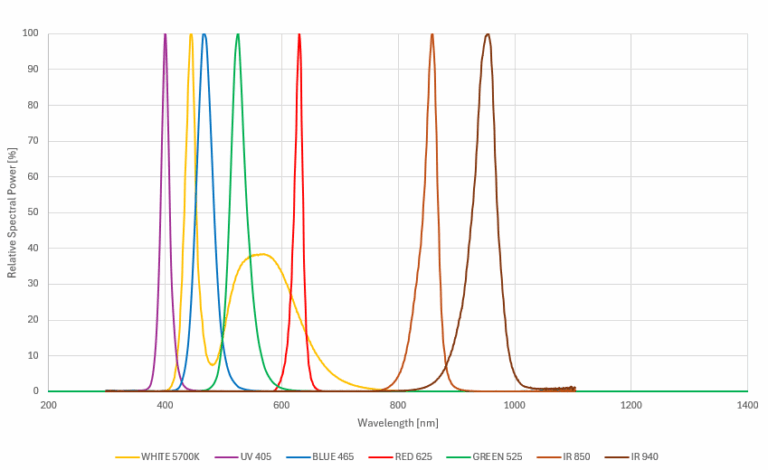

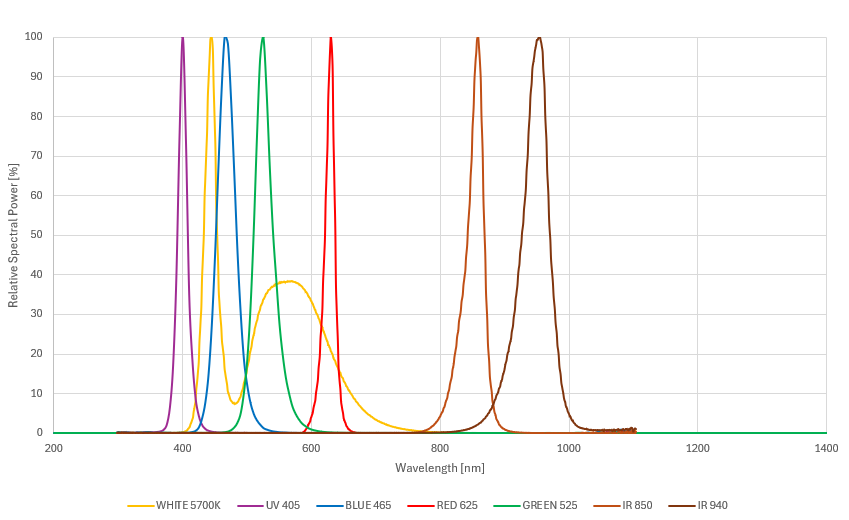

| Wavelength (nm) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-TELE-XX-ZZZ
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-TELE-XX-ZZZ-POL2
EFFI-TELE requires 24V DC input power.
PART NUMBERS:
Standard : EFFI-TELE-XX-ZZZ-STR
An IPSC4 pulse controller can be used to power the EFFI-SHARP version -STR.
For all other inquiries, please contact EFFILUX.
