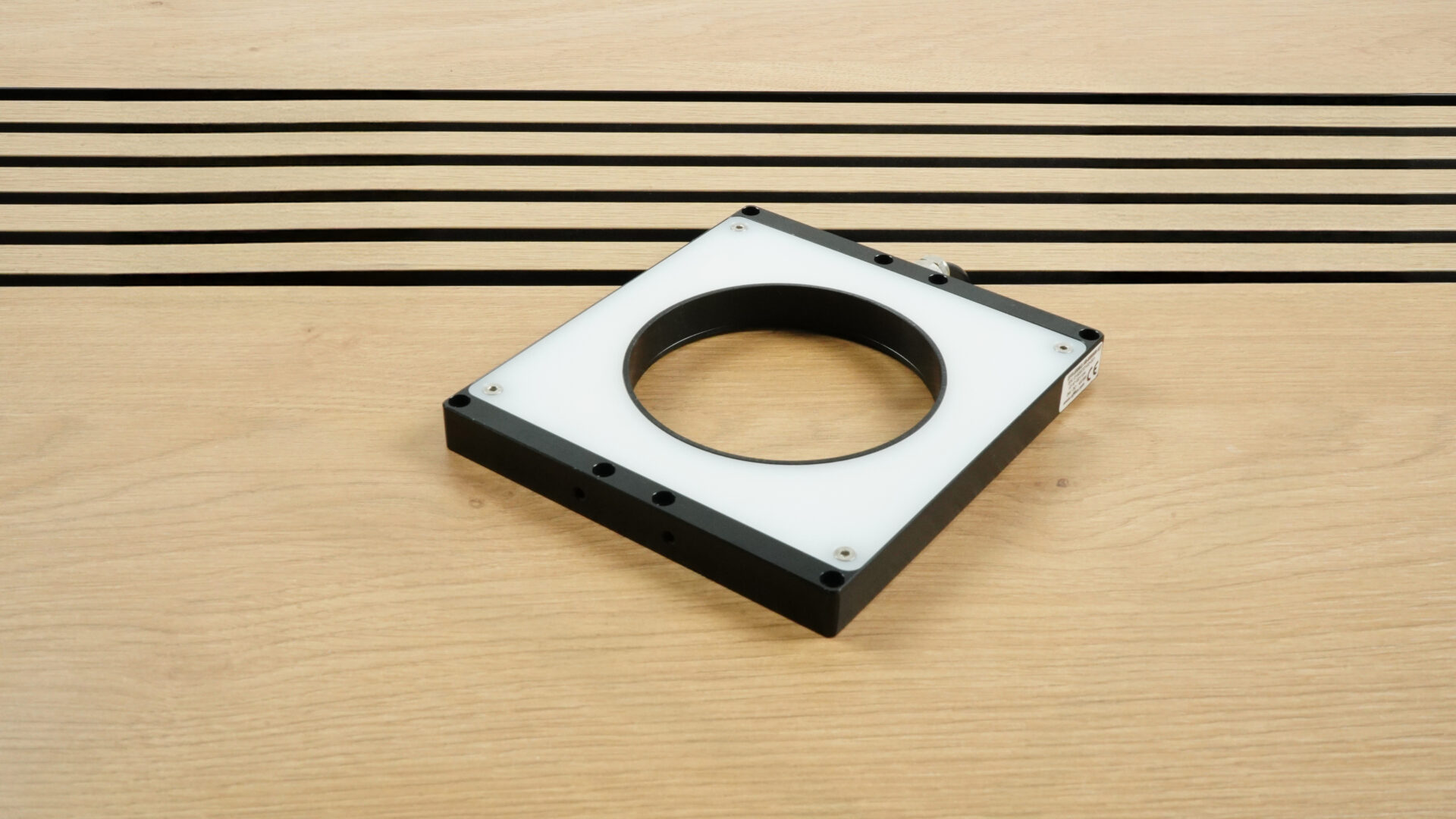

EFFI-SRING Structured Ring Light is a versatile and ultra-slim (15mm thick) LED solution designed for advanced machine vision and stereovision applications. It features an integrated AutoStrobe driver for powerful overdrive illumination and four independent lighting channels for precise control. Available in monochromatic or multi-color versions, EFFI-SRING can be easily converted into an EFFI-SDome making it ideal for flexible setups and complex inspection environments.

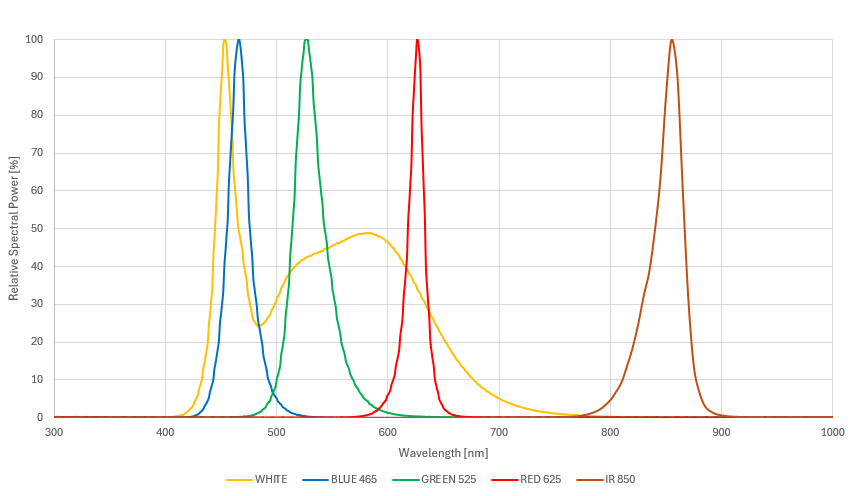

| Wavelength (nm) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-SRING-100-Z-Z-Z-Z…

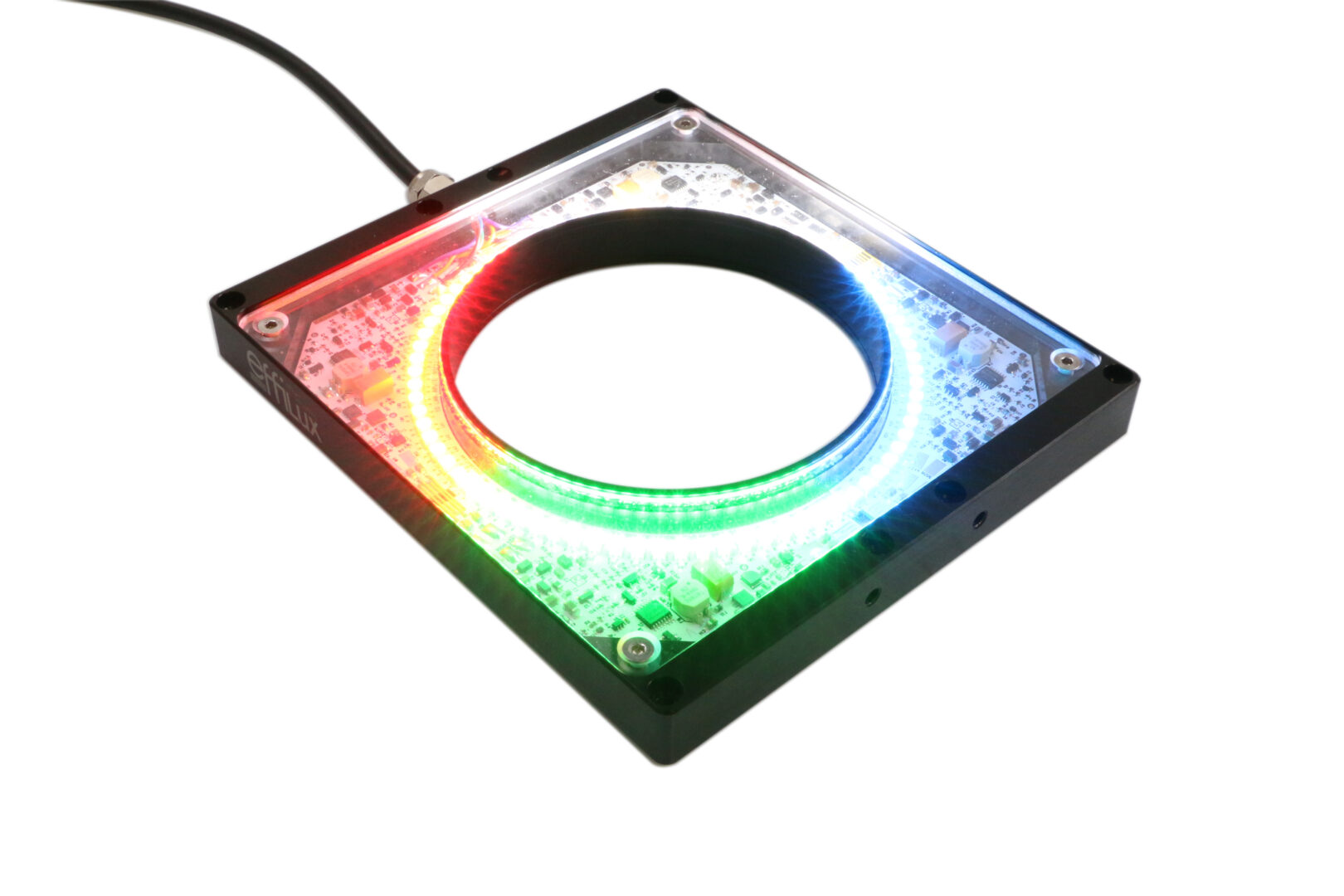

EFFI-SRing has 4 independent channels. It is possible to choose a different color for each one.
Even in monochromatic version the 4 channels can be controlled independently.

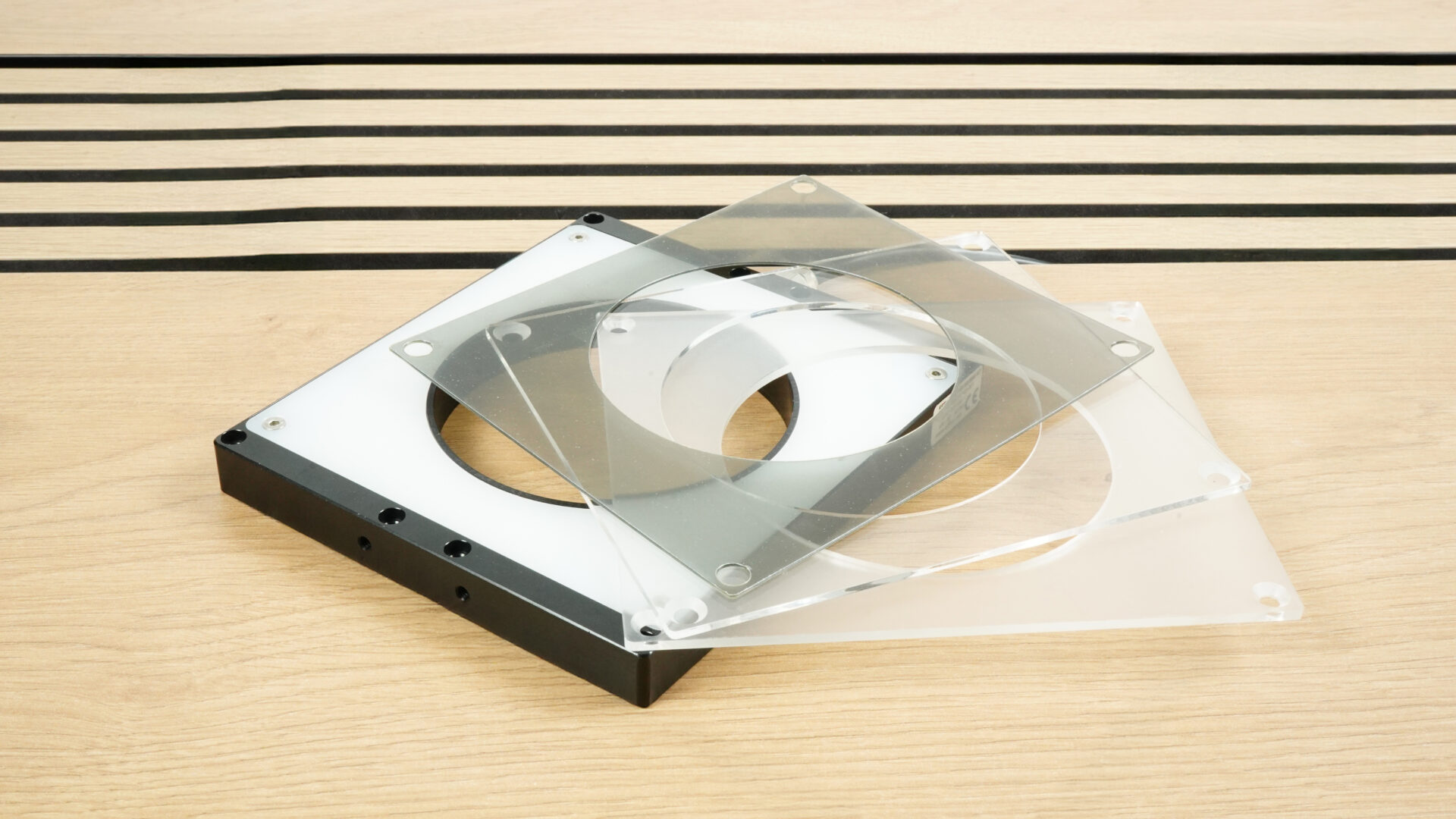

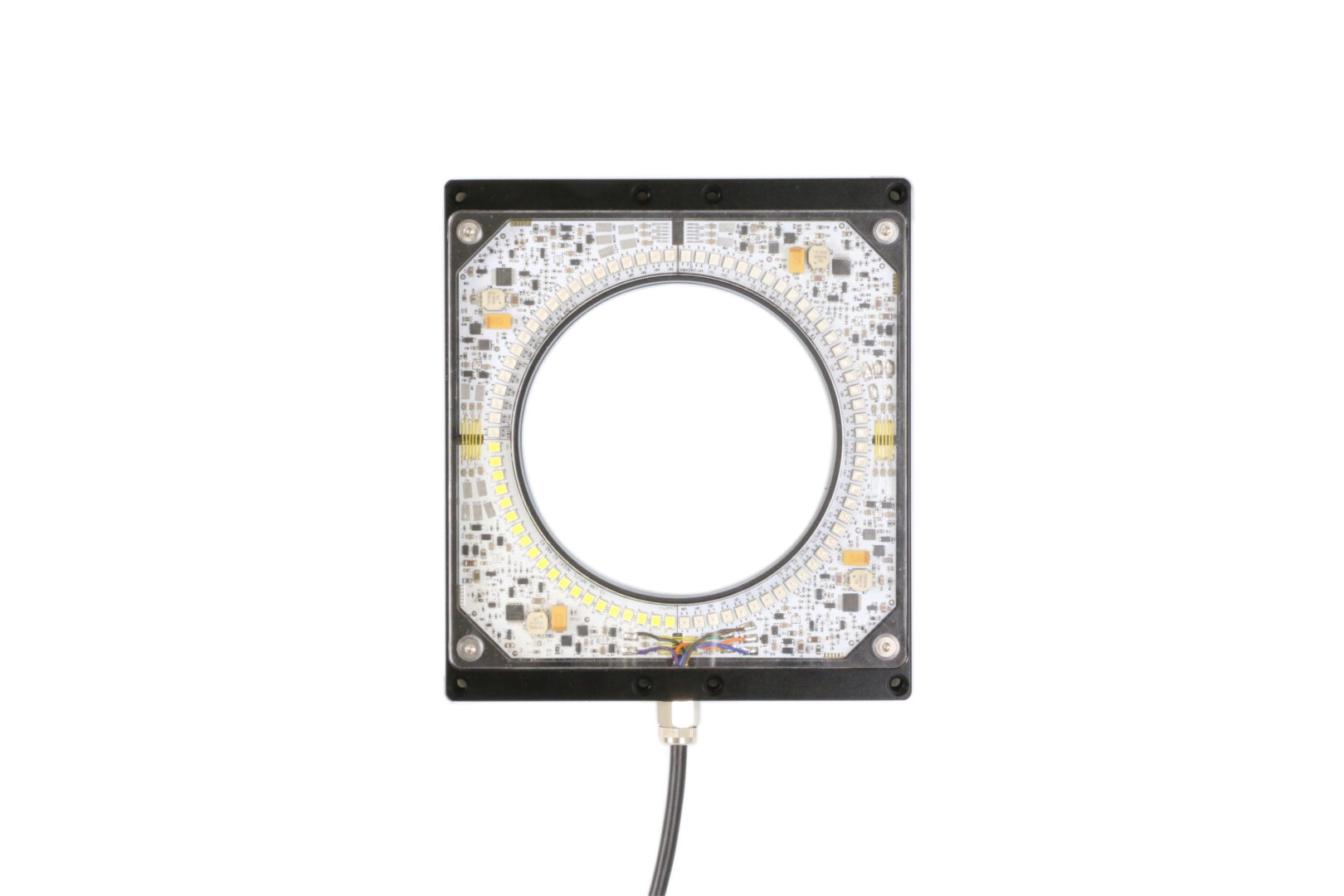

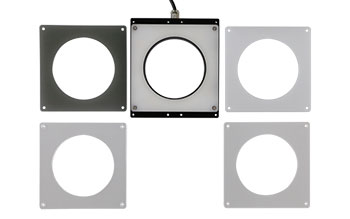

TR (Transparent)
SD (Semi-diffuse)

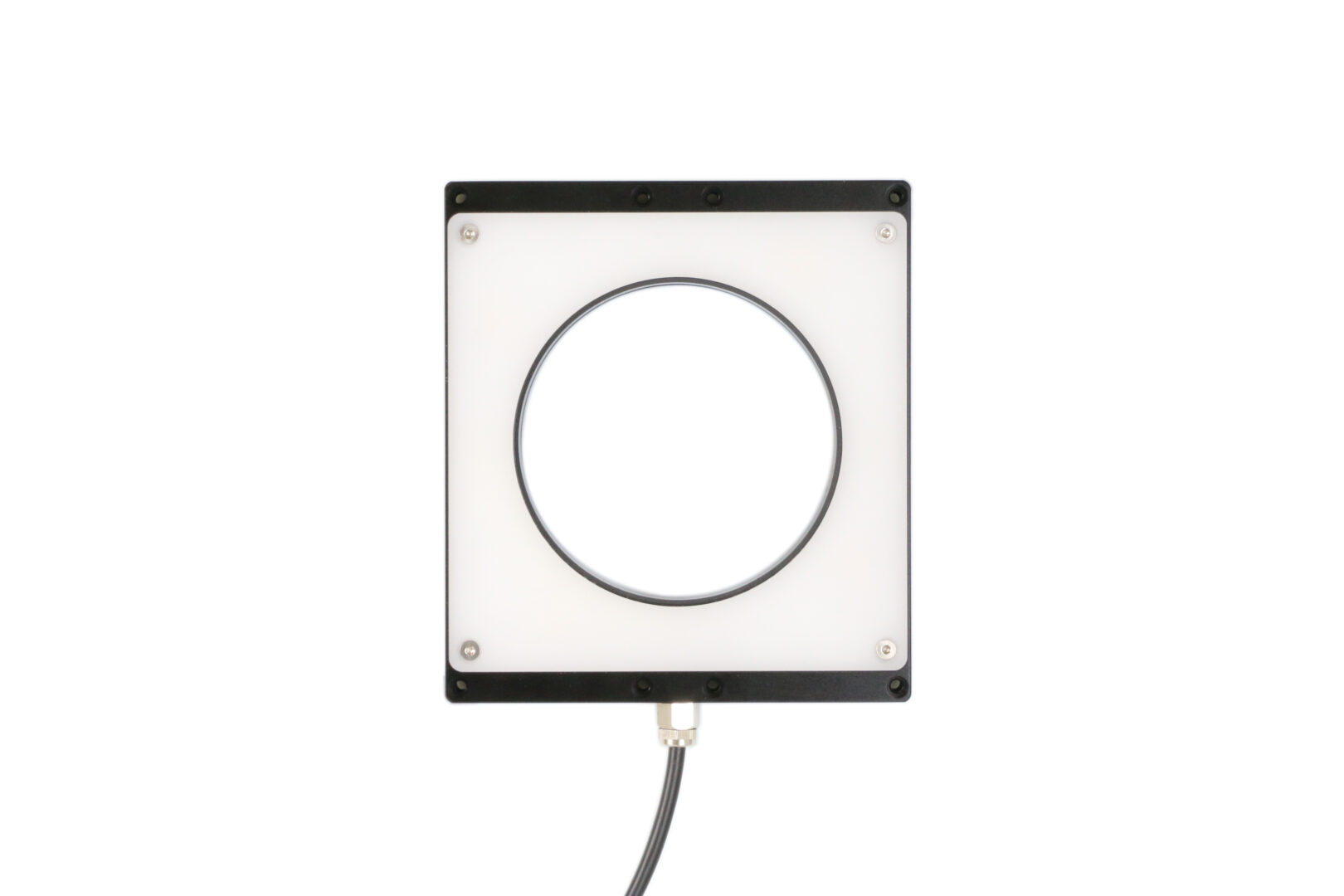

OP (Opaline)
Kit (All diffusers)
PART NUMBER:
EFFI-SRING-Z-Z-Z-Z-WW

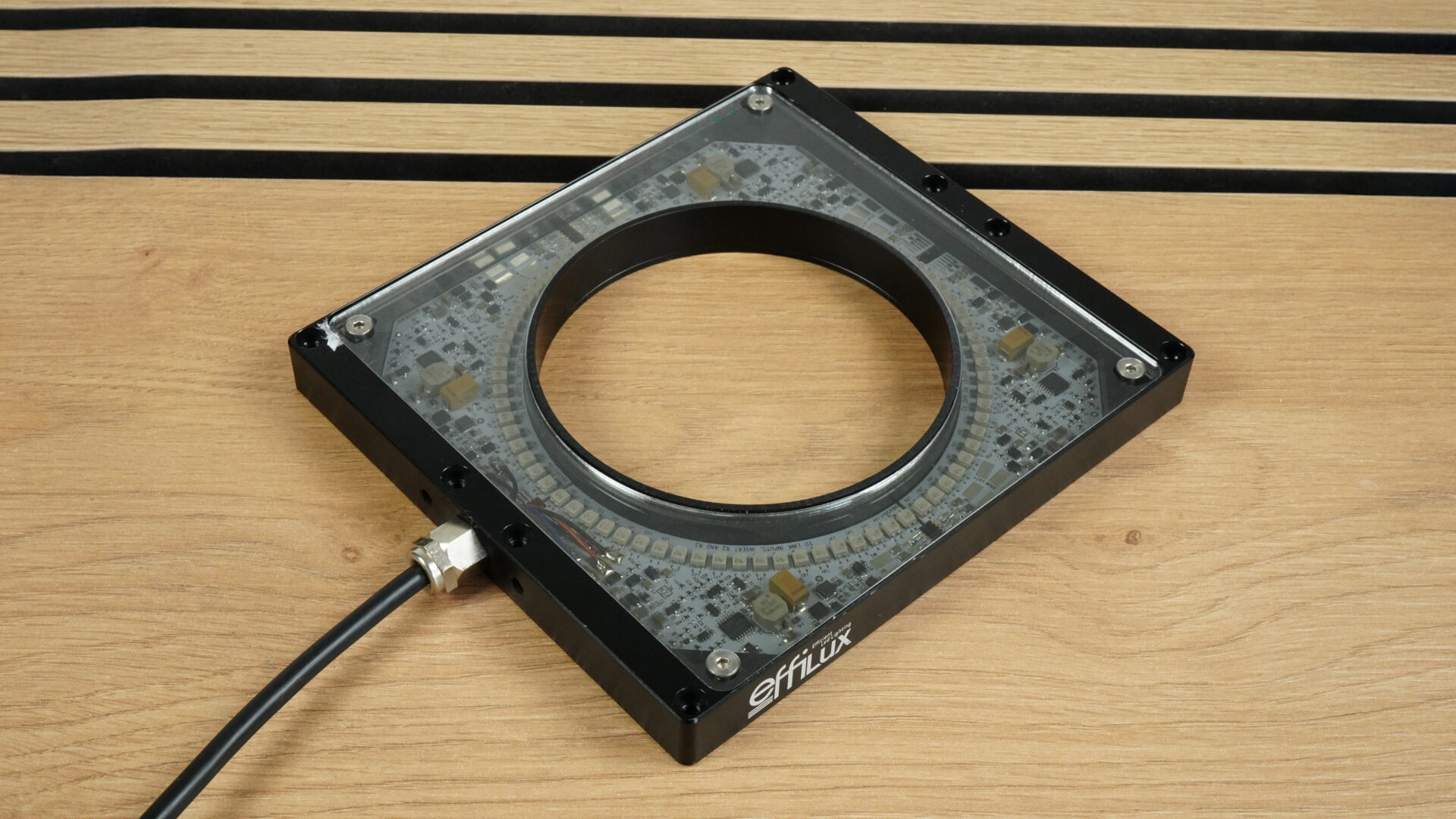

Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.PART NUMBER:
EFFI-SRING-100-Z-Z-Z-Z-WW-POL2
This accessory is required for a diffusive configuration with polarizer. Indeed, the diffuser erase the polarization.
PART NUMBER:
EFFI-SRING-100-Z-Z-Z-Z-WW-DIF-POL2
AutoStrobe mode: Respect a duty cycle of less than 25%.
PART NUMBER:
EFFI-SRING-100-Z-Z-Z-Z-WW-CW

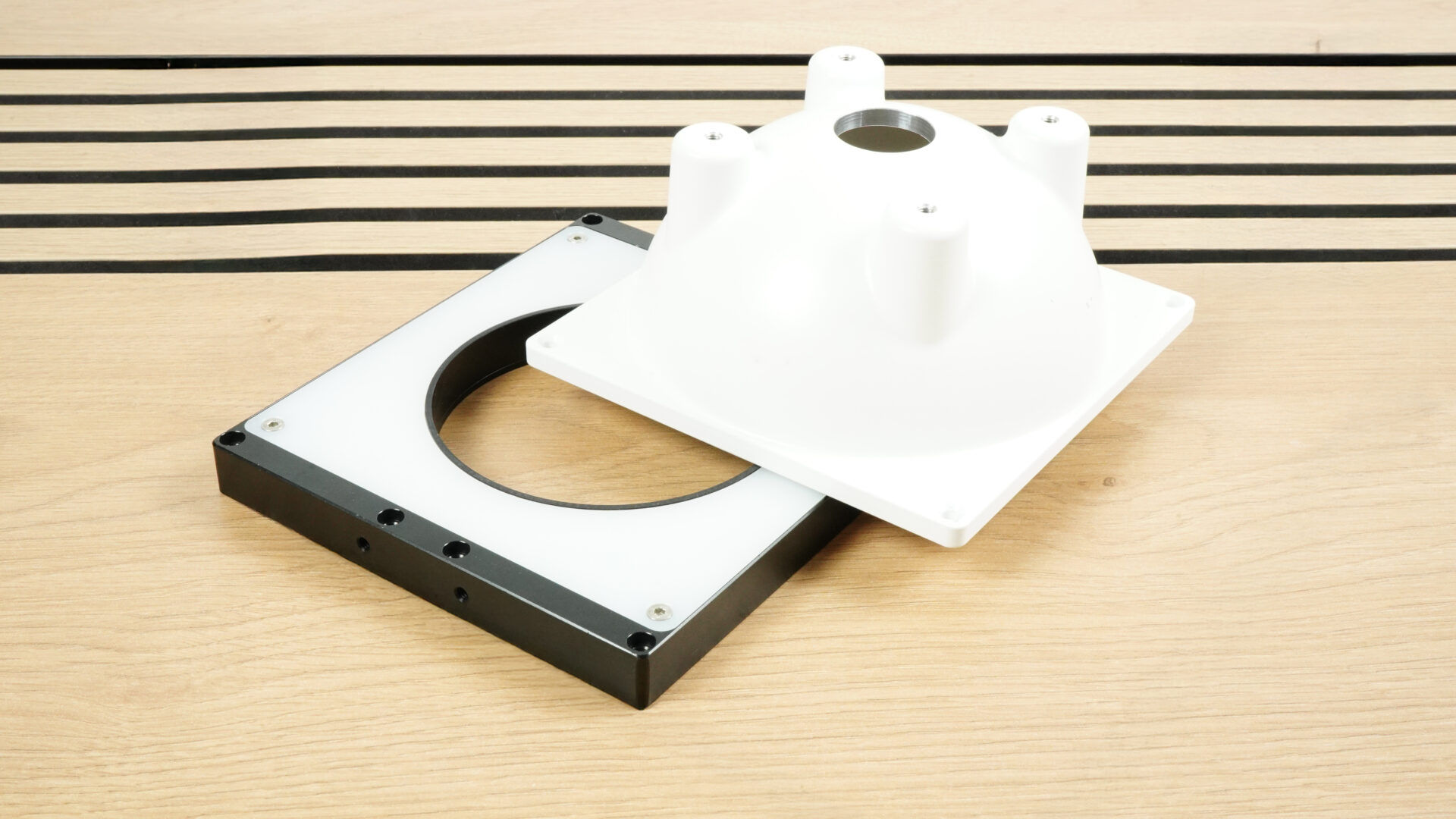

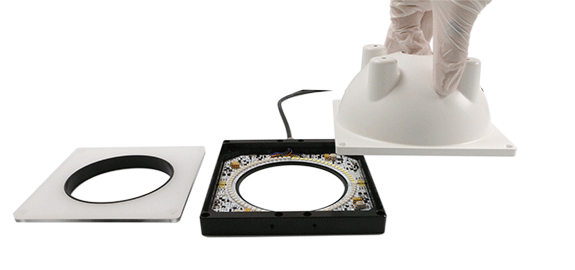

The EFFI-SDOME has the particularity of being able to be easily disassembled to become an EFFI-SRING.
References to transform the EFFI-SDome into an EFFI-SRing:
Collar: EFFO-SRING-COL-100
Transparent: EFFO-SRING-TR-100
Semi-diffuse: EFFO-SRING-SD-100
Opaline: EFFO-SRING-OP-100

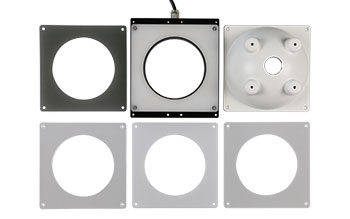

EFFI-SRING-SDOME-100-Z-Z-Z-Z-KIT
Contains:

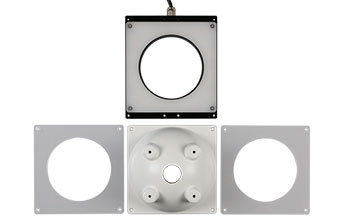

EFFI-SRING-SDOME-100-Z-Z-Z-Z-ESSENTIAL-KIT
Contains:
EFFI-SRING-100-Z-Z-Z-Z-KIT
Contains:
For all other inquiries, please contact EFFILUX.
