EFFI-RLLA

Enhance surface visibility in machine vision systems

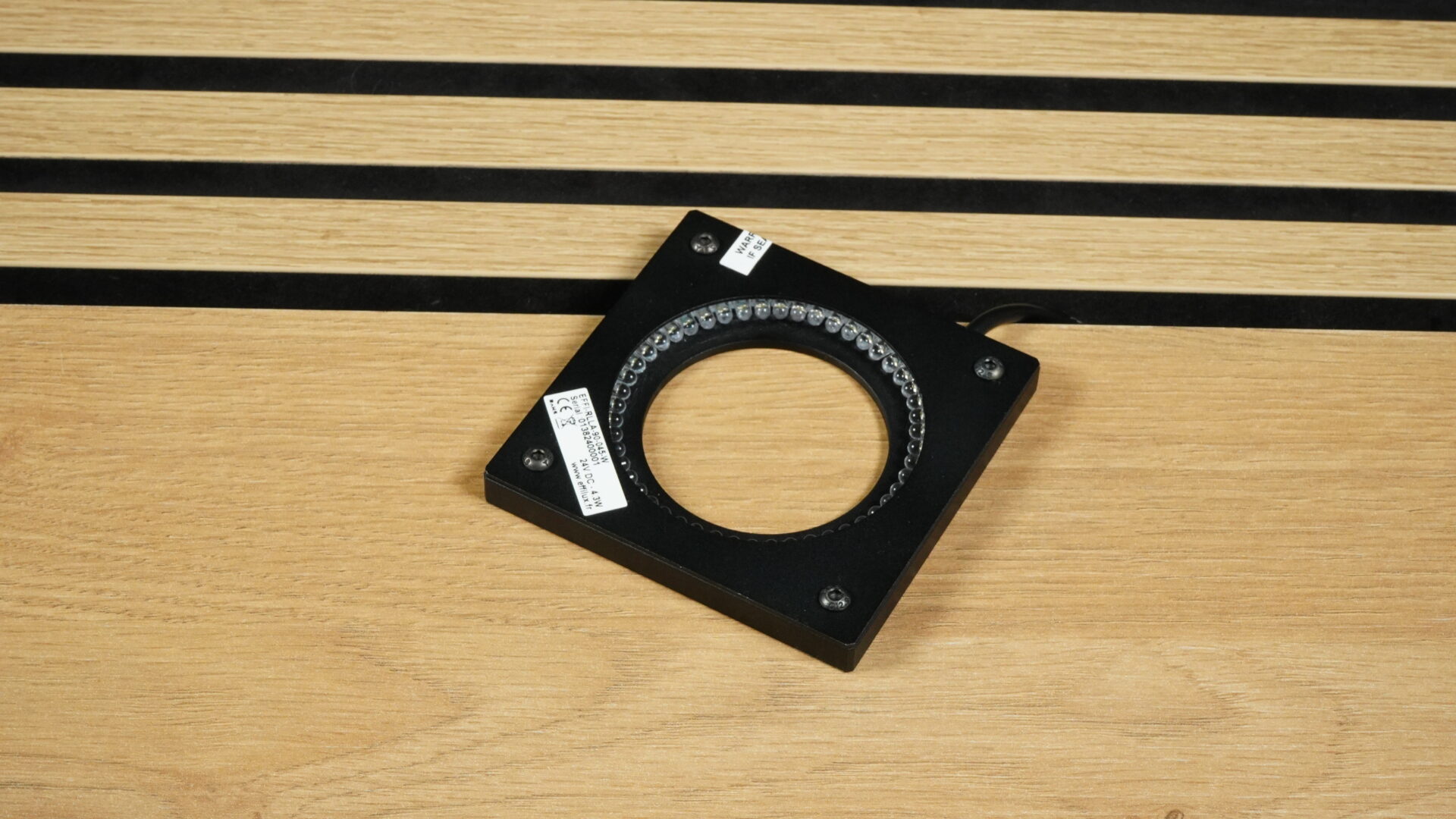

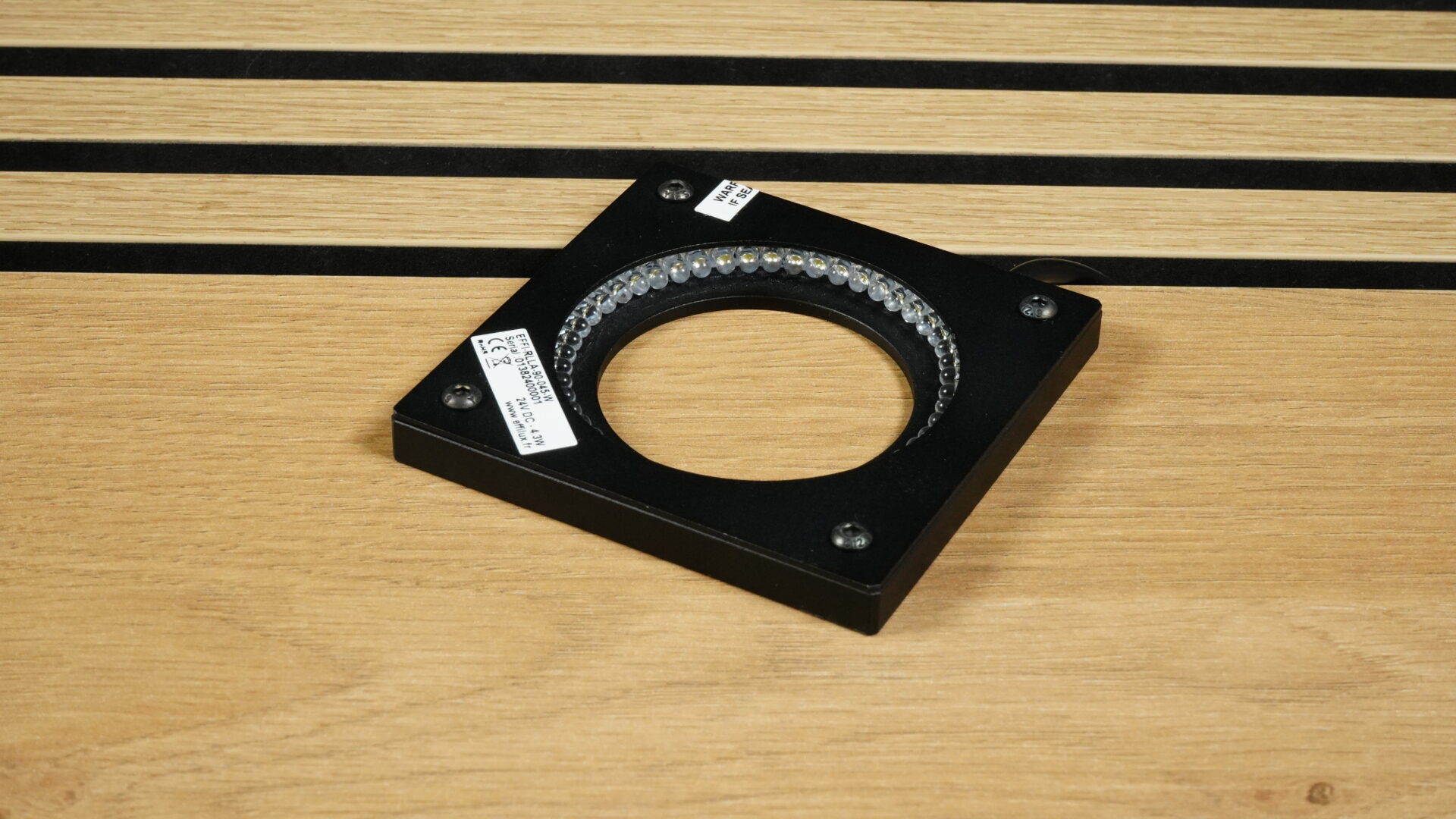

EFFI-RLLA Low-Angle Ring Light is an off-axis LED solution designed to enhance surface visibility in machine vision systems. Its low-angle illumination is ideal for detecting surface defects, engraving, and marking, as well as inspecting glass and parts made of steel, cast iron, plastic, or wood. EFFI-RLLA delivers high-contrast lighting that reveals subtle textures and imperfections, making it a powerful tool for quality control and industrial inspection.

Wavelength (nm)
465 (Blue)

525 (Green)

625 (Red)

940 (Infrared)

000 (White)

EFFI-RLLA is connected to the supply by a M12 4-pin connector.

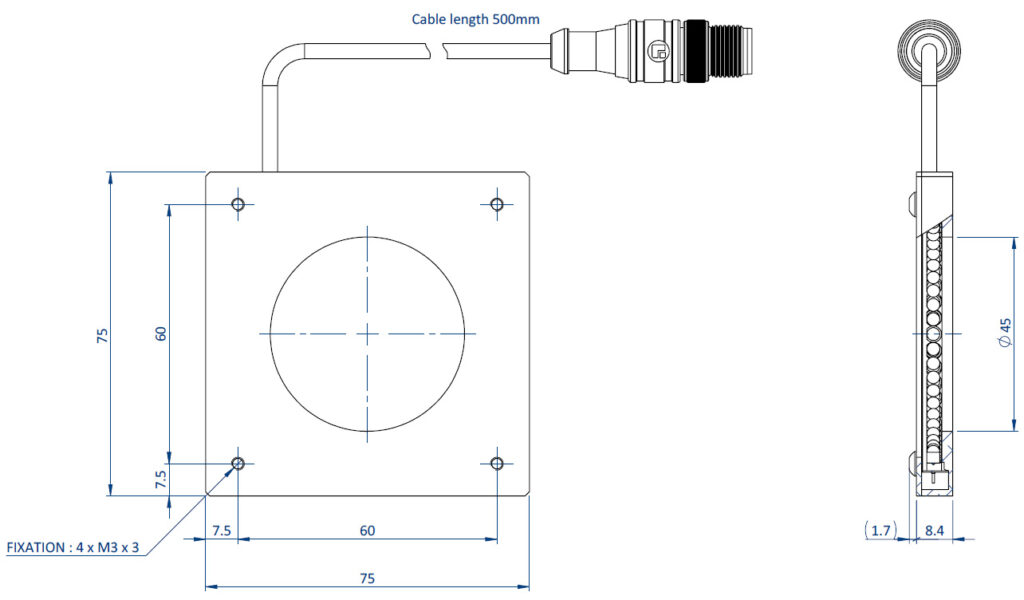

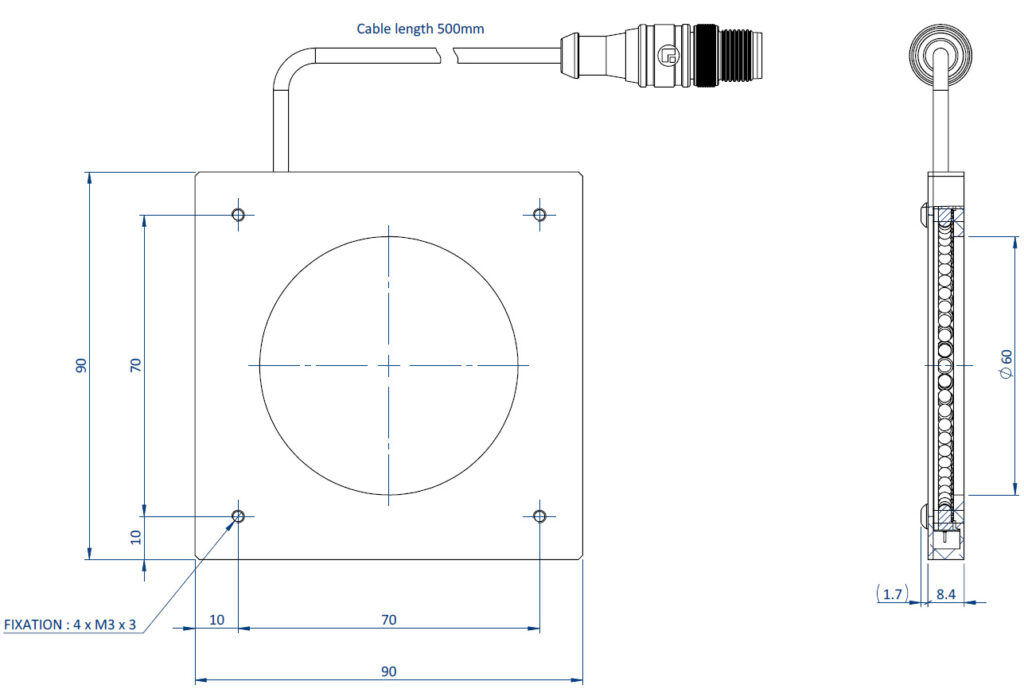

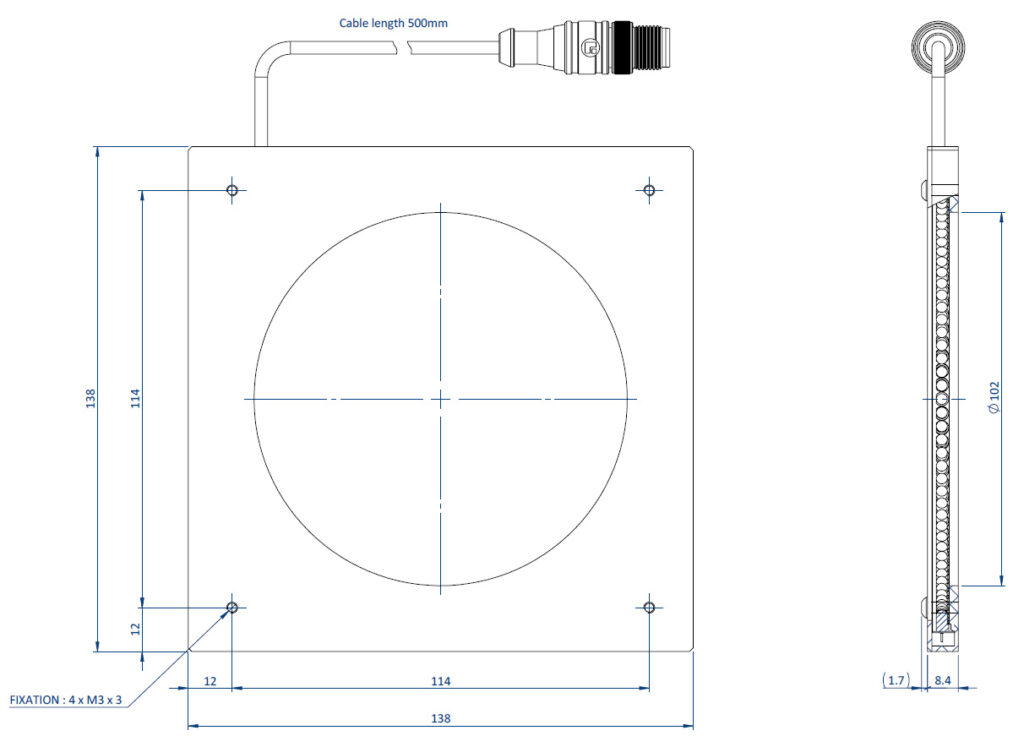

You can find the drawing and the weight of the products in the technical doc page.
