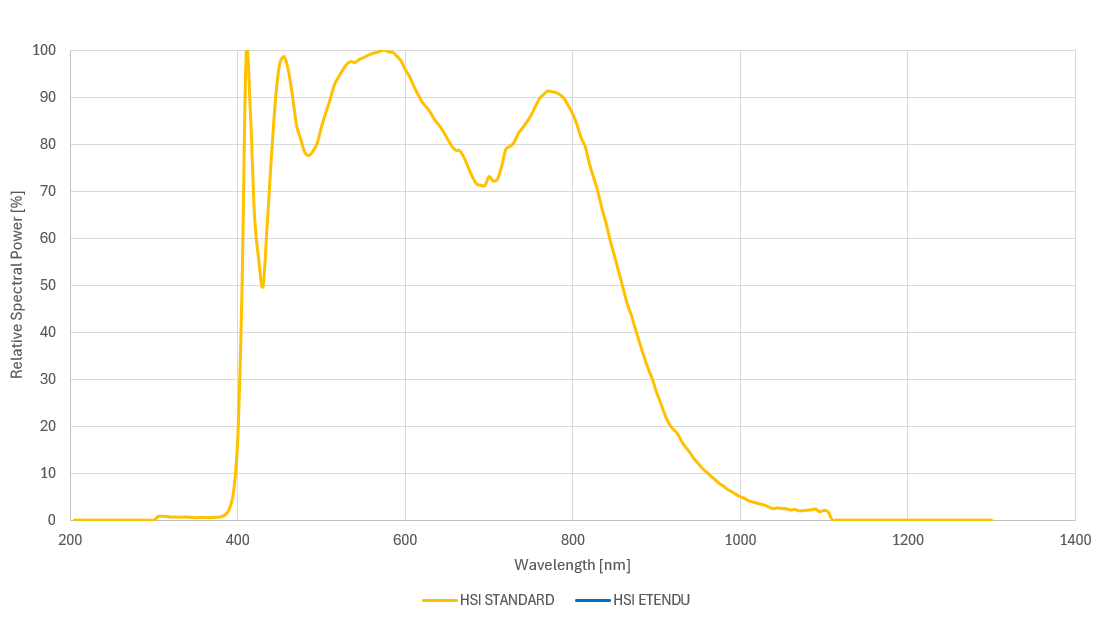

EFFI-RING-HSI is a high-performance hyperspectral ring light designed for industrial inspection and optical sorting applications. Featuring adjustable beam angles, interchangeable diffusers, and a robust IP65-rated housing, it delivers precise and flexible illumination across the VIS-NIR spectrum (400–900 nm). Its modular design supports polarizer accessories and extended spectrum versions up to 1000 nm, making it ideal for demanding hyperspectral imaging setups.
TR (Transparent)
SD (Semi-diffuse)
OP (Opaline)

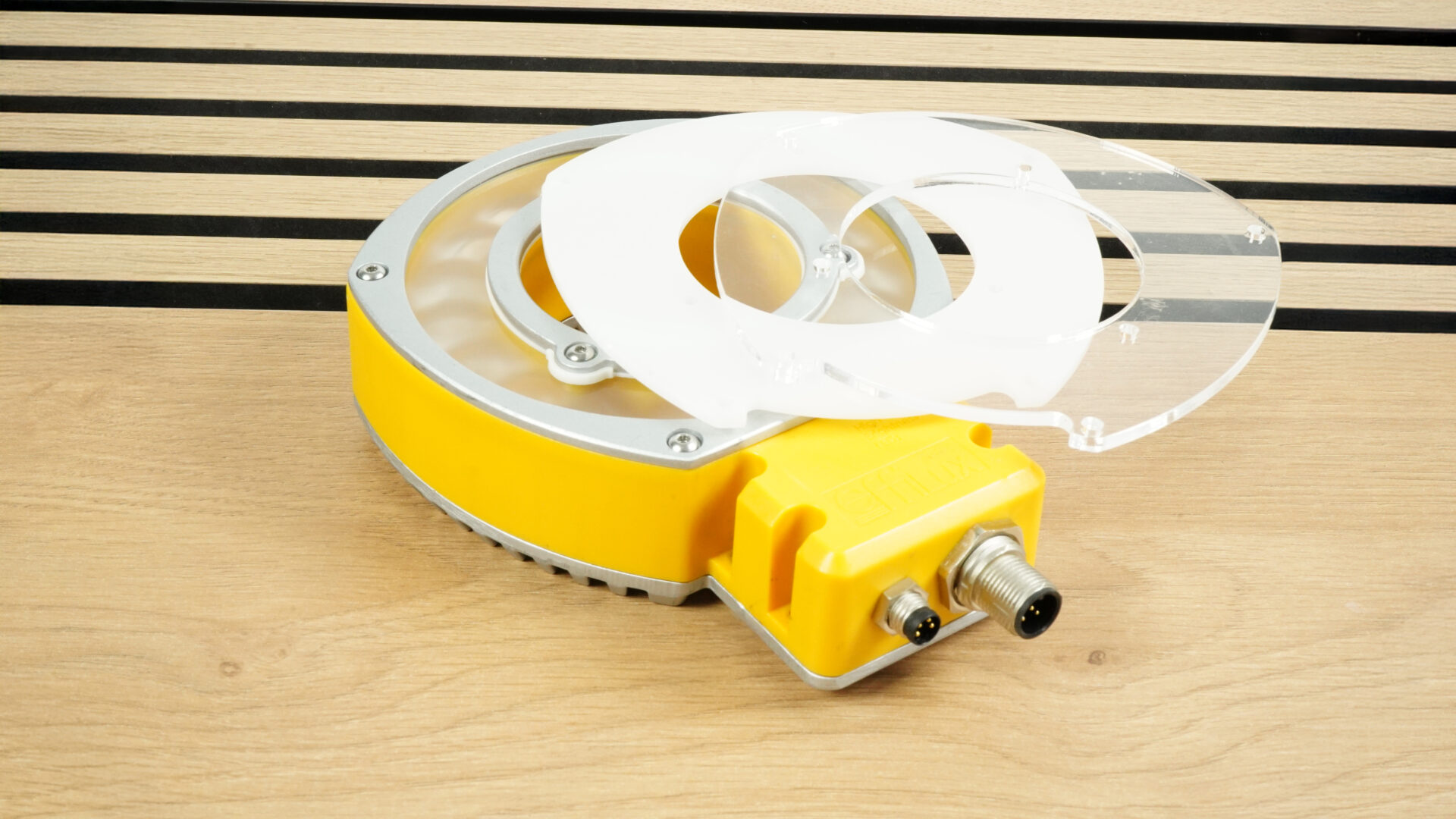

Kit (All diffusers)
PART NUMBER:
EFFI-RING-ZZZ-WW…
P0 : 90° (without lens)
P1 : 45°
P2 : 25°
P3 : 10°
PART NUMBER:
EFFI-RING-ZZZ-WW-PP
PP : P0, P1, P2 ou P3. If not specified, default position P2.
The position of the lens can be changed by the customer for more flexibility.
PART NUMBER:
EFFI-RING-ZZZ-KIT
Eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
POL : polarizer accessory. If polarizer, add -POL in the part number.
Possibility to buy only the accessory, see part number here
logo info Please note that with the polarizer accessory, the EFFI-Ring is IP50. For IP65 polarized version, choose -POL-IP option (polarizer directly glued on a transparent window).
PART NUMBER:
EFFI-RING-ZZZ-WW-PP-POL
AutoStrobe mode: Respect a duty cycle of less than 0.15.
You can find the drawing and the weight of the products in the technical doc page.
Four tapped holes for M4 screws and four non-tapped holes for M3 screws can be used to secure the device.
EFFI-RING is compatible with the majority of standard cameras thanks to its fixing accessory.
EFFI-RING is a waterproof product IP65. To keep the product watertight after dismantling, replace the gaskets as they were originally when reassembling them.
For all other inquiries, please contact EFFILUX.
