EFFI-SHARP-PSV-HSI Hyperspectral LED Projector is EFFILUX’s high-performance solution for hyperspectral imaging, combining precise shape projection with broadband spectral uniformity. Designed for industrial and scientific applications, it projects discs, squares, or half-moons with sharp edges at working distances from near to far field. Engineered for VIS-NIR hyperspectral use (400–1000 nm), it delivers consistent illumination across wavelengths, enabling accurate spectral signature acquisition. Compatible with C-mount optics and available with interchangeable masks and polarizers, EFFI-SHARP-PSV-HSI ensures optimal contrast and flexibility for demanding inspection environments.

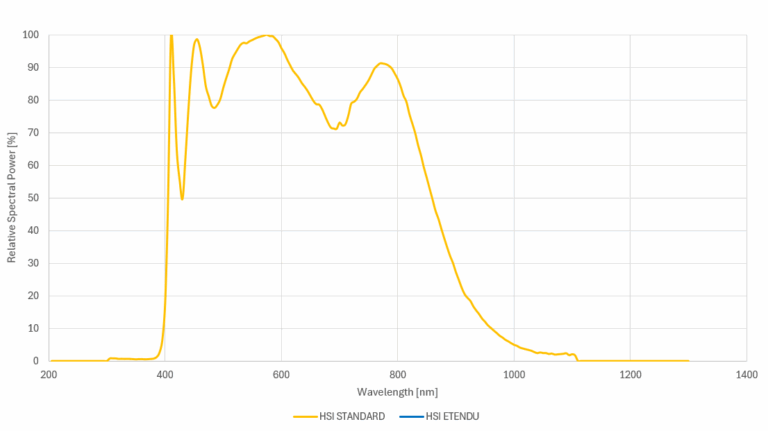

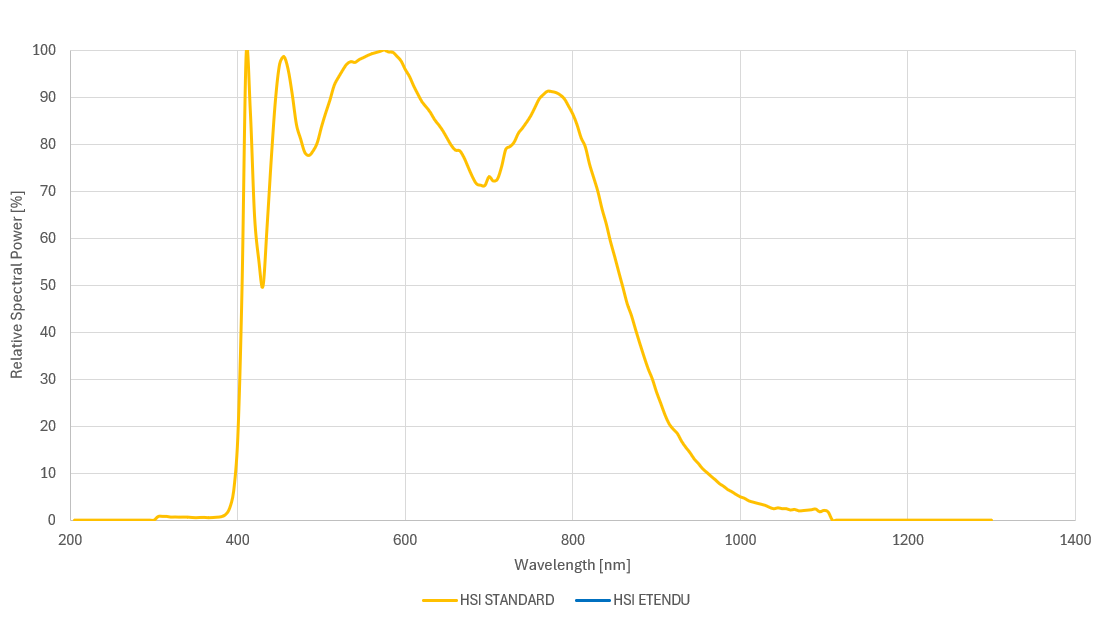

The EFFI-SHARP-PSV-HSI has a broad spectrum for hyperspectral inspections between 400nm and 1000nm.
PART NUMBERS:
EFFI-SHARP-PSV-HSI...
| XX : Objective | Working distances (Typical) | |
| NF (Near Field) | 80 to 400mm | |
| MF (Middle Field) | 400 to 3000mm | |
| FF (Far Field) | 400 to 3000mm | |
| CM | To adjust a C-mount lens. | |
PART NUMBERS:
XX : NF (Near Field), MF (Middle Field) or FF (Far Field). If not mentioned, default NF lens.
The EFFI-SHARP-PSV-HSI-CM accepts only C-Mount projection lens (M25.4). Those lenses are not supplied with the light. EFFILUX offers a wide range of lenses, for more information please refer to our page lenses. Refer to the documentation to identify the size of the projected pattern depending on the chosen lens.
To avoid any distortion effect, EFFILUX recommends using a 1″ sensor lens for masks with rectangular patterns, such as point clouds.
| OBJ-1-F12.5 CF12.5HA-1 | OBJ-1-F25 CF25HA-1 | OBJ-1-F35 CF35HA-1 | OBJ-1-F50 CF50HA-1 | OBJ-1-F75 CF75HA-1 | |
| Focal length (mm) | 12.5 | 25 | 35 | 50 | 75 |
| Iris range | F1.4 – F22 | F1.8 – F22 | |||
| Viewing angle (HxV) | 45° 13’ x 42° 01’ | 28° 43’ x 21° 44’ | 20° 43’ x 15° 37’ | 14° 35’ x 10° 58’ | 9° 45’ x 7° 19’ |
| Filter thread | M49 x 0.75mm | ||||
| L x Ø | 68.5 x 51 mm | 75.5 x 51 mm | 48.5 x 51 mm | 55.5 x 51 mm | 76 x 51 mm |
| Mask | [Image « EFFI-SHARP-MASK-SQUARRE »] | [Image « EFFI-SHARP-MASK-DISC »] | [Image « EFFI-SHARP-MASK-HALF-MOON »] |
| M : Shape number | 1 | 2 | 3 |
| Masks dimensions | 9x9mm | Ø15.1mm | R = 9.5mm |
PART NUMBERS:
Standard : EFFI-SHARP-XX-ZZZ-M
Power : EFFI-SHARP-PWR-XX-ZZZ-M
Focuslight : EFFI-SHARP-FL-XX-ZZZ-M
M: 1, 2 or 3
For custom shape, please contact us.
 |  |  | |
| M : Shape number | 1 | 2 | 3 |
| Masks dimensions | 9x9mm | Ø15.1mm | R = 9.5mm |
PART NUMBERS:
EFFI-SHARP-PSV-HSI-XX-M
M : 1, 2 or 3
For custom shape, please contact us.
The EFFI-SHARP-PSV-HSI is supplied with a 24V constant voltage.
For all other inquiries, please contact EFFILUX.
