EFFI-SHARP LED Projector delivers ultra-focused and powerful illumination, ideal for precision lighting in industrial and inspection environments.
Capable of projecting discs, squares, or custom shapes, it adapts to short or long working distances from 20mm to 2 meters.
Choose the FocusLight version for intense lighting at close range, or the Power version for beams 2.5x stronger—perfect for long-distance applications. For maximum versatility, the FocusLight Power combines both features, offering unmatched brightness and adaptability.

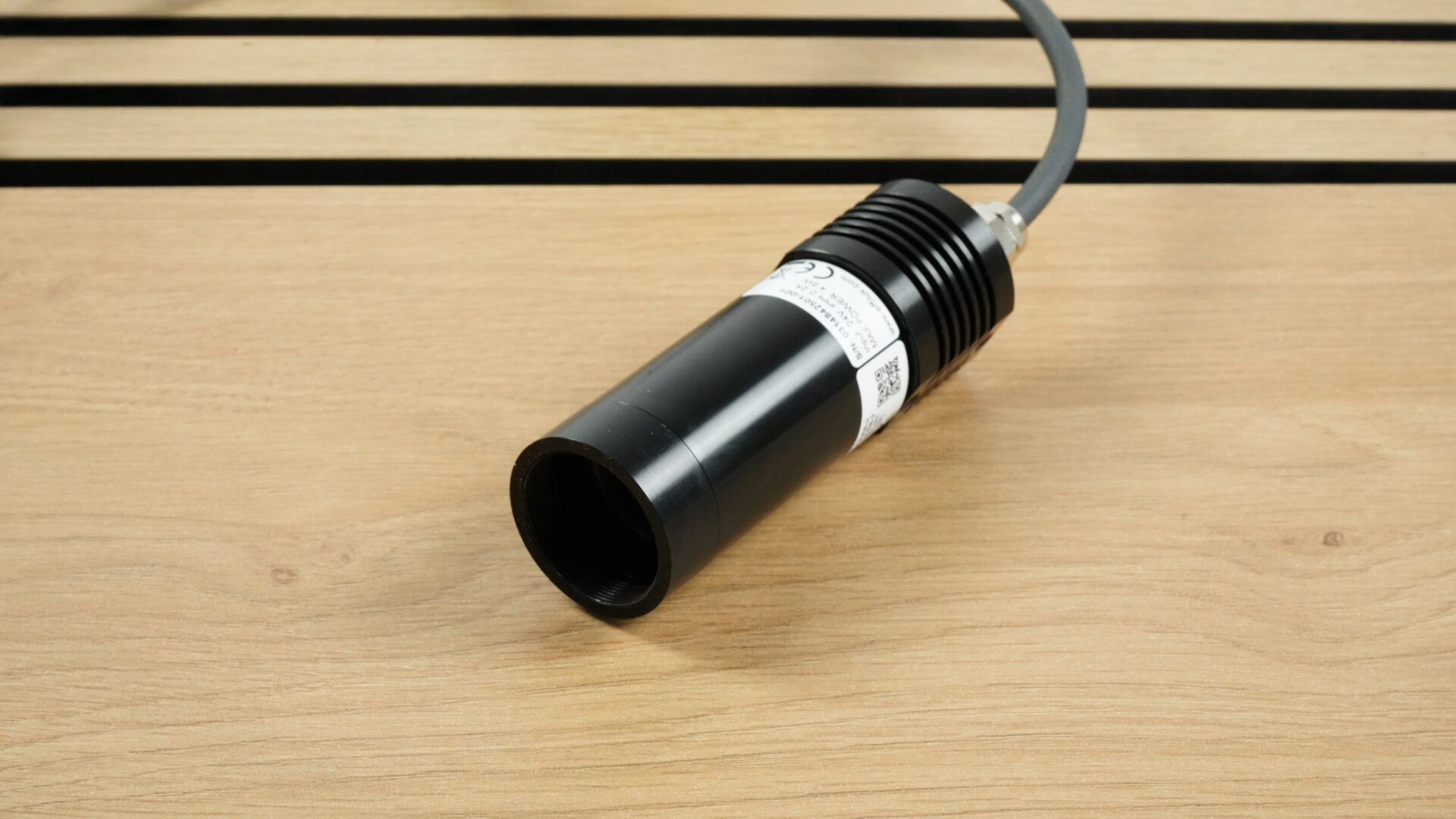

The EFFI-SHARP has been designed to project shapes for working distances from 20mm to 2m.
PART NUMBER:
EFFI-SHARP...

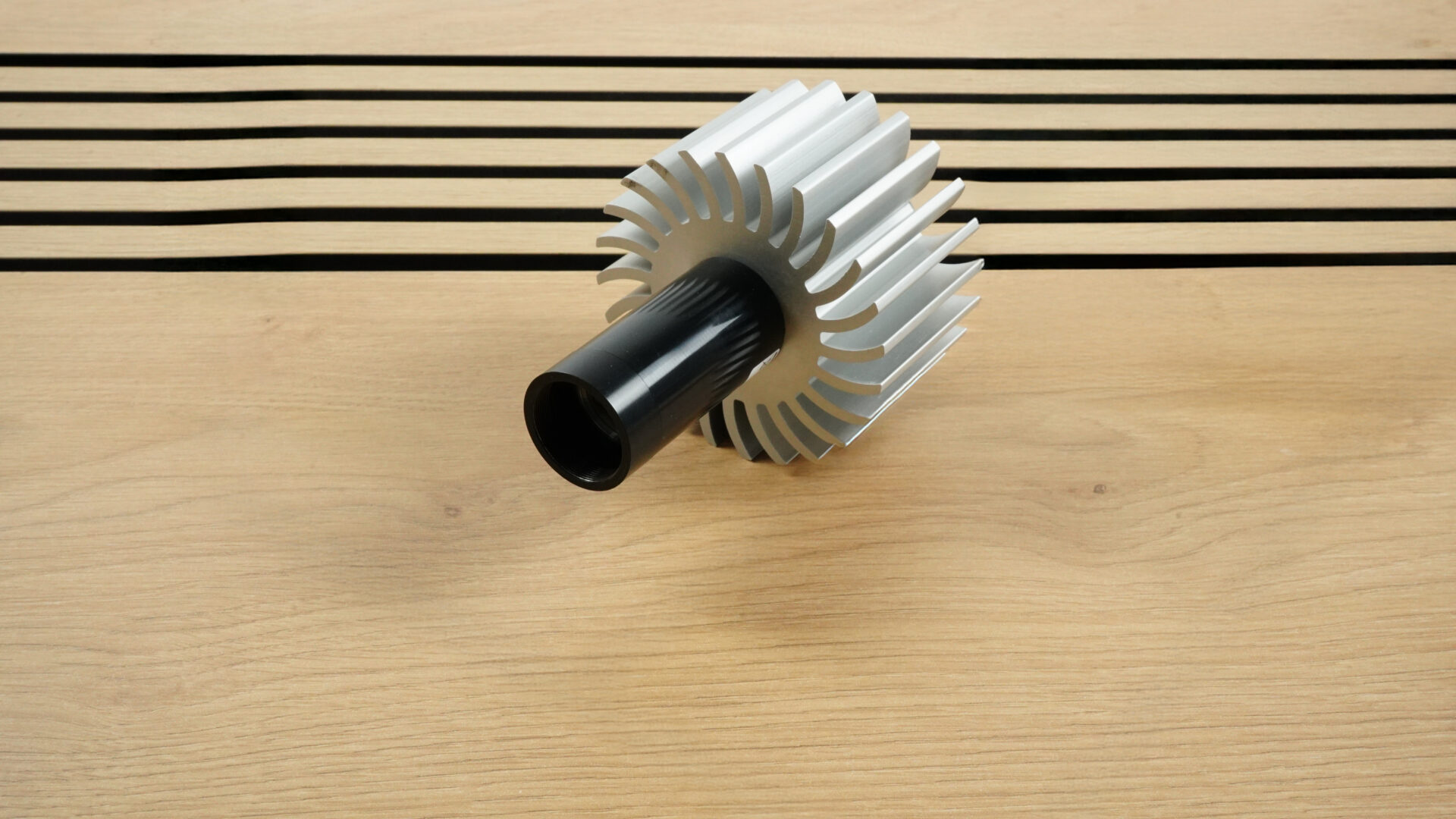

The power version x2.5 the output power for larger working distances.
PART NUMBER:
EFFI-SHARP-PWR...

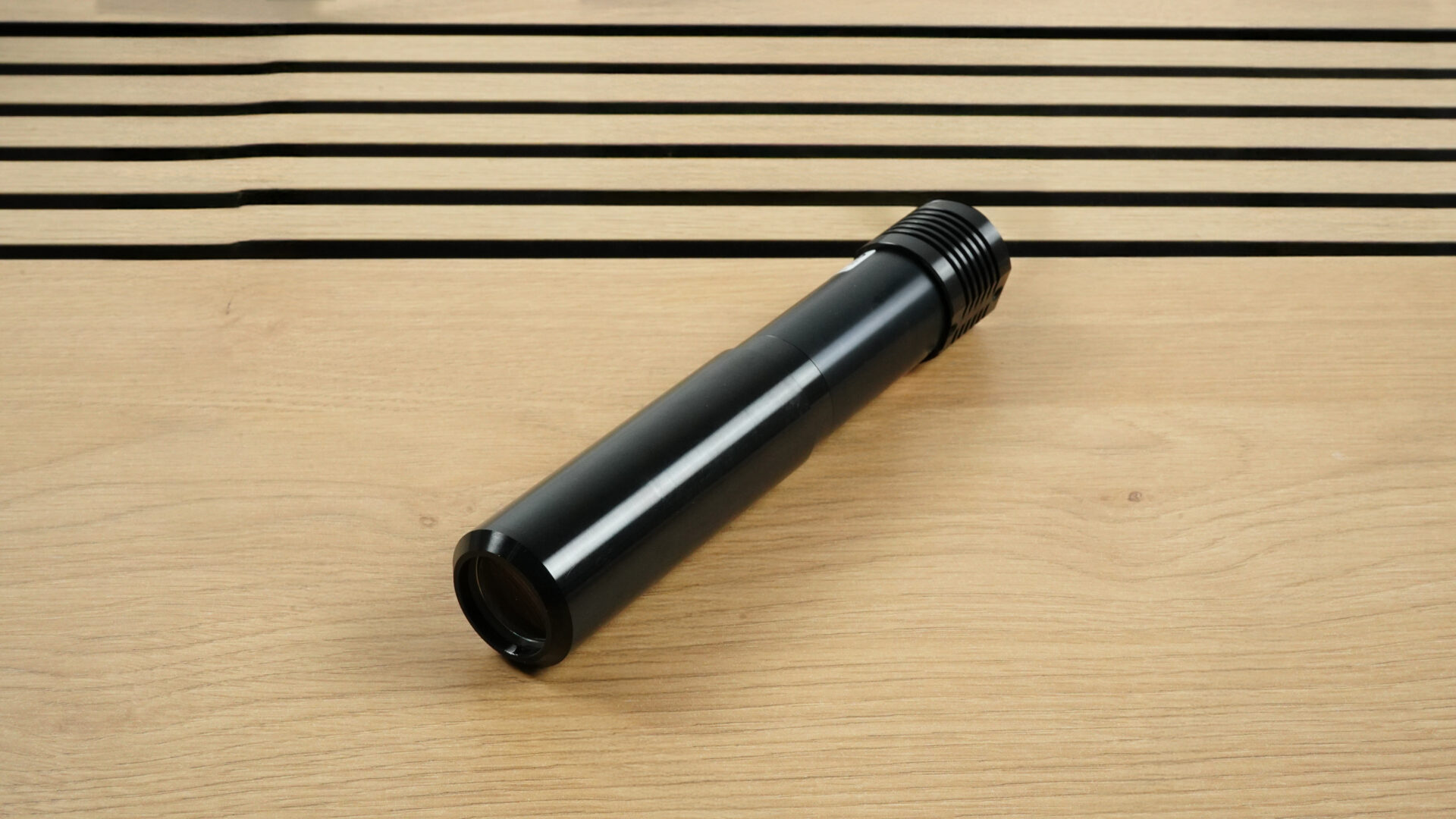

The beam is focused to provide more intense lighting at short working distances.
PART NUMBER:
EFFI-SHARP-FL...
EFFI-SHARP-PWR-FL...
| EFFI-SHARP | EFFI-SHARP PWR Power version | EFFI-SHARP FL Focus light version for more focused lighting | ||||||||||
| XX : Objective | Typical working distance | Illuminance | Typical working distance | Illuminance | Typical working distance | Illuminance | ||||||
| Near Field (NF) | 100 – 800mm | 100 000Lux to 100mm | 100 – 800mm | 250 000Lux to 100mm | 40 – 70mm | 1 000 000Lux to 50mm | ||||||
| Middle Field (MF) | 400 – 1600mm | 5000Lux to 500mm | 400 – 1600mm | 12 500Lux to 500mm | 80 – 120mm | 300 000Lux to 100mm | ||||||
| Far Field (FF) | 500 – 1800mm | 650Lux to 2000mm | 500 – 1800mm | 1500Lux to 2000mm | 150 – 300mm | 150 000Lux to 180mm | ||||||
| CM | To adjust a C-mount objective | |||||||||||
PART NUMBERS:
Near field: EFFI-SHARP-VVV-NF...
Middle Field: EFFI-SHARP-VVV-MF...
Far field: EFFI-SHARP-VVV-FF…
CM: EFFI-SHARP-VVV-CM…
| Wavelength (nm) | ● 365 (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBERS:
Standard : EFFI-SHARP-VVV-XX-ZZZ...
The mask is mounted directly inside the product. It will be the shape projected by the EFFI-SHARP.
 |  |  | |
| M : Shape number | 1 | 2 | 3 |
| Masks dimensions | 9x9mm | Ø15.1mm | R = 9.5mm |
PART NUMBERS:
Standard : EFFI-SHARP-VVV-XX-ZZZ-M
M: 1, 2 or 3
For custom shape, please contact us.
The EFFI-SHARP-VVV-CM accepts only C-Mount projection lens (M25.4). Those lenses are not supplied with the light. EFFILUX offers a wide range of lenses, for more information please refer to our page lenses. Refer to the documentation to identify the size of the projected pattern depending on the chosen lens.
To avoid any distortion effect, EFFILUX recommends using a 1″ sensor lens for masks with rectangular patterns, such as point clouds.
| EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1 »-HR-CM | |
| Focal distance | 6mm | 8mm | 12,5mm | 16mm | 25mm | 35mm | 50mm | 75mm |
| Aperture of the diaphragm | F1.8 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (HxV) | 96.8°x79.4° | 79.4°x63° | 55.5° | 44.3°x33.6° | 16.1°x19.0° | 20.9°x15.8° | 14.4° | 9.7°x7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
PART NUMBERS:
Standard : EFFI-SHARP-VVV-XX-ZZZ-M-POL2
Innovative EFFILUX system that drastically improves the fluorescence effect while concurrently removing glare and improving contrast. Only for 365nm.
PART NUMBERS:
Standard : EFFI-SHARP-VVV-XX-365-M-PUV
The EFFI-SHARP is a dimmable product thanks to the the AIC pin.

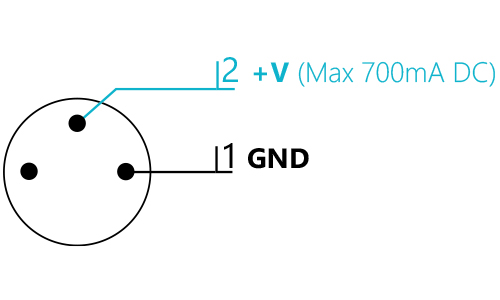

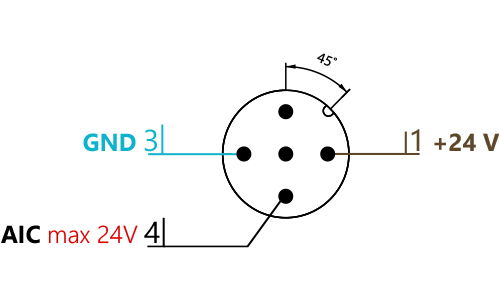

The EFFI-SHARP is supplied with 24V DC via an M12 – 5 pins as a standard or with the STR option through direct LED control with a M8 connector. The STR configuration is an expert configuration.

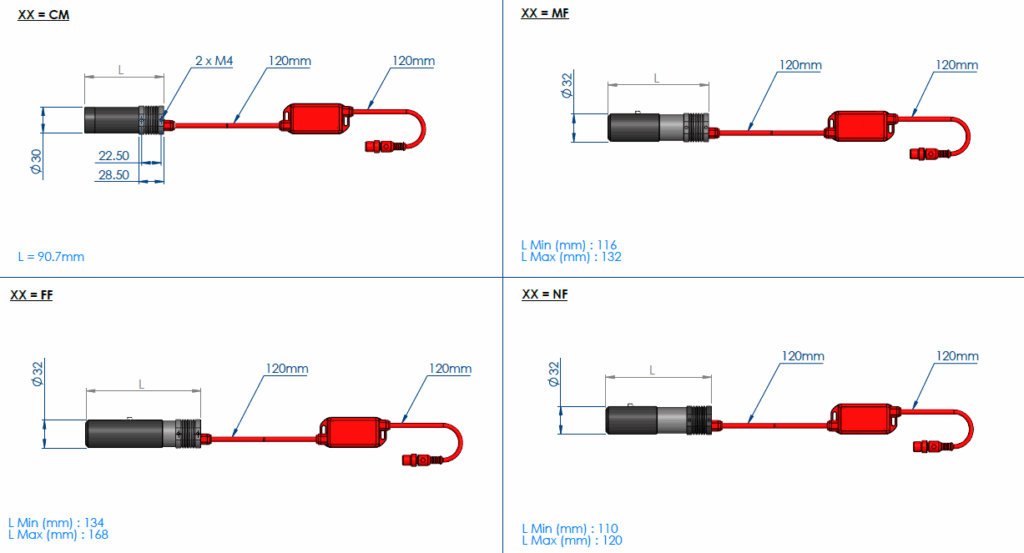

| EFFI-SHARP | ||||
| Product length | CM | NF | MF | FF |
| Min | 90.7mm | 110mm | 116mm | 134mm |
| Max | 90.7mm | 120mm | 132mm | 168mm |
| EFFI-SHARP-PWR | ||||
| Product length | CM | NF | MF | FF |
| Min | 113mm | 133mm | 138mm | 155mm |
| Max | 113mm | 143mm | 153mm | 188mm |
| EFFI-SHARP-FL | ||||
| Product length | CM | NF | MF | FF |
| Min | 90.7mm | 110mm | 116mm | 134mm |
| Max | 90.7mm | 120mm | 132mm | 168mm |
| EFFI-SHARP-PWR-FL | ||||
| Product length | CM | NF | MF | FF |
| Min | 156mm | 176mm | 181mm | 198mm |
| Max | 156mm | 186mm | 196mm | 231mm |
For all other inquiries, please contact EFFILUX.
