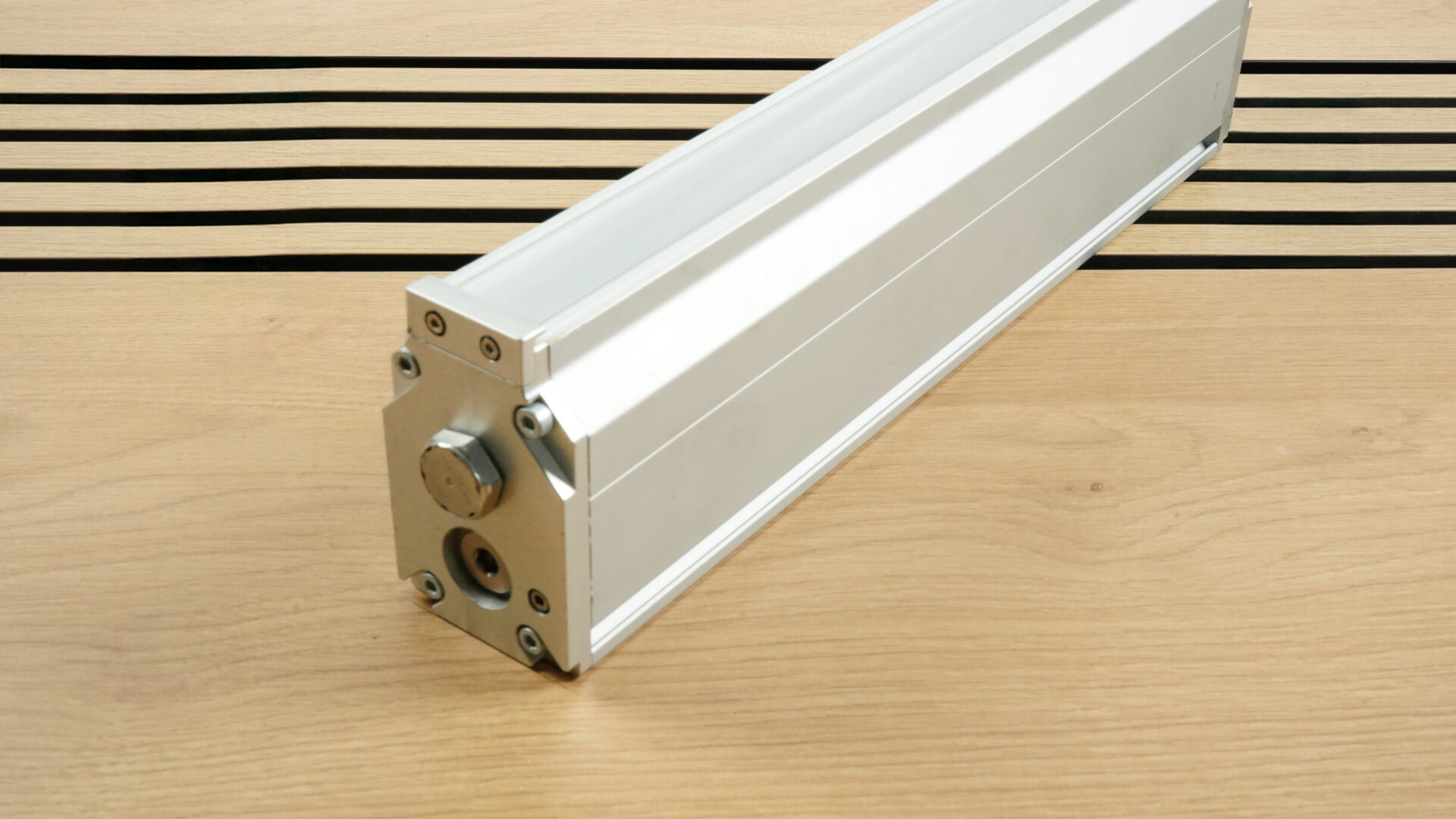

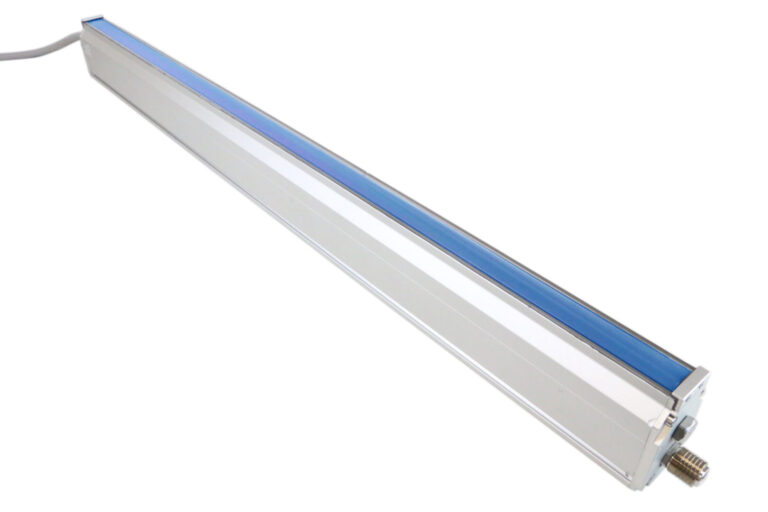

The EFFI-LINE3 is the latest generation of linear LED lighting developed by Effilux for demanding machine vision applications. It delivers exceptional optical power, excellent collimation, and high uniformity, making it ideal for precise inspection tasks.
Its versatility allows it to perform efficiently across a wide range of working distances, with adaptable intensity and homogeneity to match specific application needs. The integrated driver supports both continuous and strobe modes, with analog intensity control (AIC) for fine-tuned output. Designed for industrial environments, the EFFI-LINE3 combines performance and durability for reliable operation in harsh conditions.

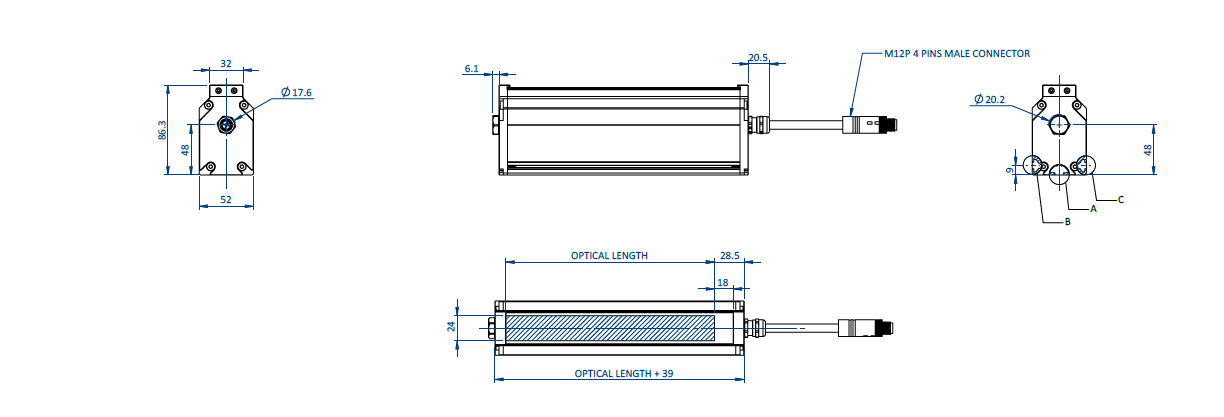

| XXX : optical length (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 |
| Length of the product (mm) | 239 | 339 | 439 | 539 | 639 | 739 | 839 | 939 | 1039 | 1139 | 1239 | 1339 | 1439 | 1539 | 1639 | 1739 | 1839 | 1939 | 2039 | 2139 | 2239 | 2339 | 2439 | 2539 | 2639 | 2739 | 2839 | 2939 |
PART NUMBER:
EFFI-LINE3-XXX…

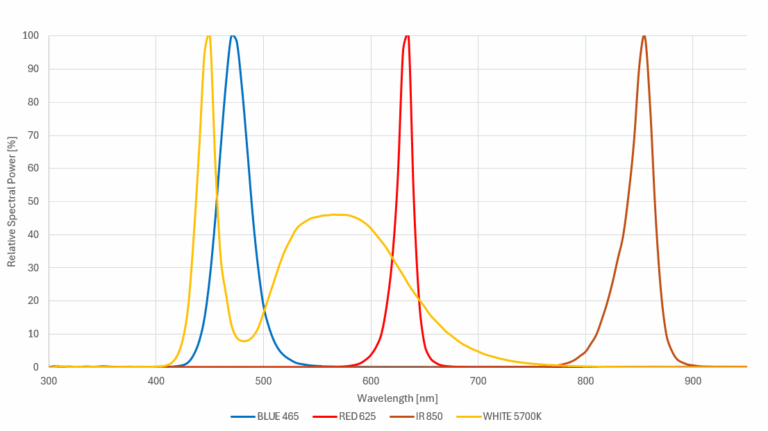

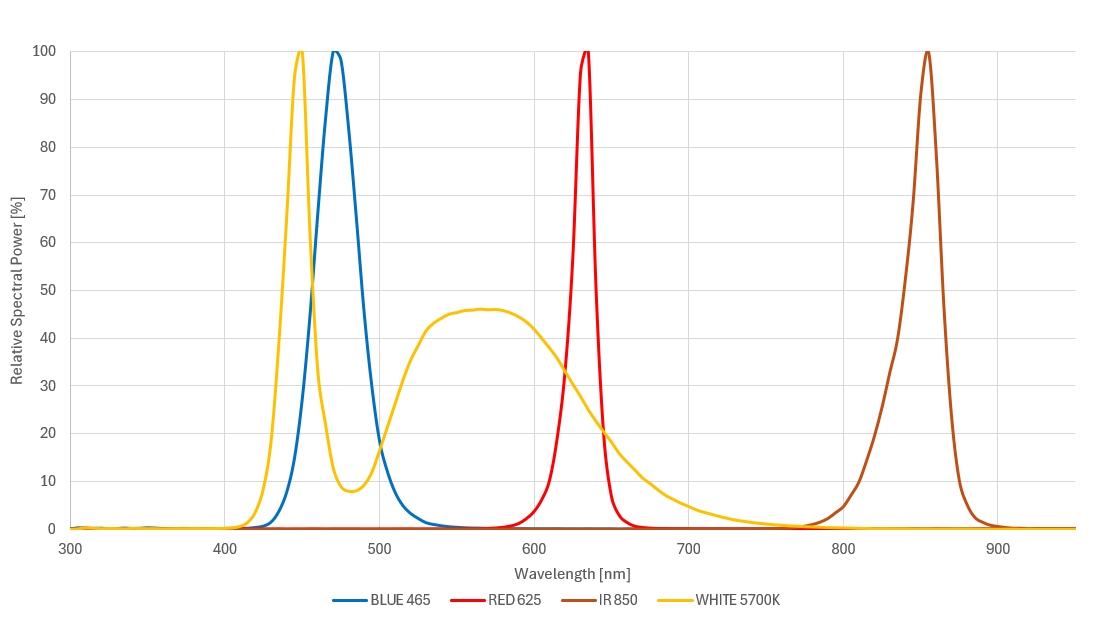

| Wavelength (nm) | ● 465 (Blue) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-LINE3-XXX-ZZZ…
The BACKLIGHT version has an enhanced uniformity which is neccesary for most backlight applications. All the options and versions are compatible with BACKLIGHT version.
PART NUMBER:
EFFI-LINE3-BL-XXX-ZZZ- …
The Focus option has been designed to get a high optical output at short working distances.
PART NUMBER:
EFFI-LINE3-XXX-ZZZ-FOC
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
PART NUMBER:
EFFI-LINE3-XXX-ZZZ-POL2

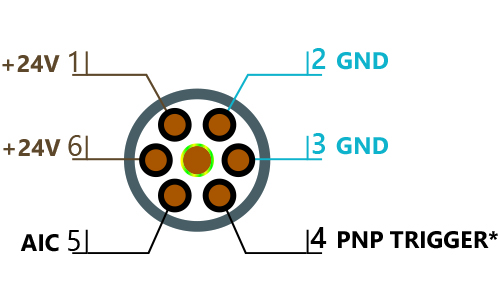

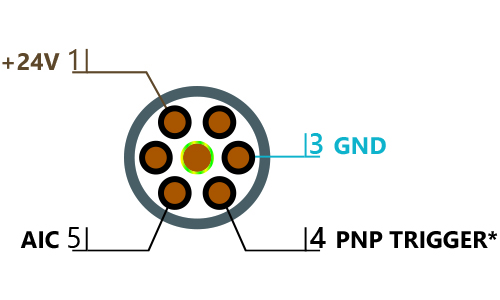

EFFI-LINE3 is powered by a 24V DC source.

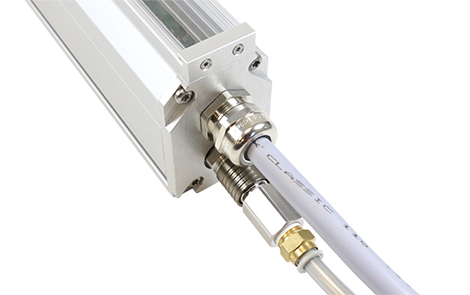

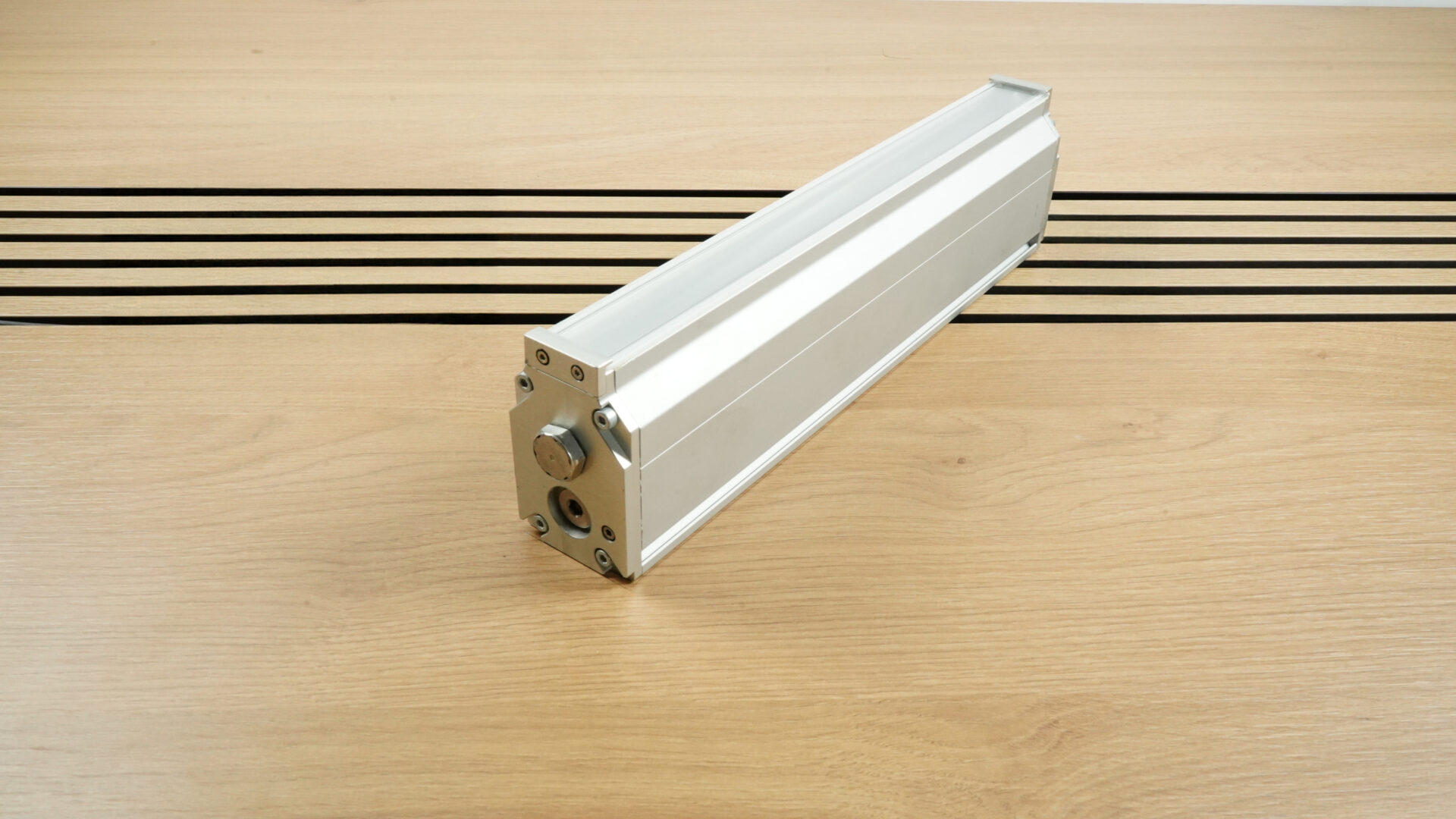

The POWER version consists in providing a higher current to the LEDs. The watercooling system is then mandatory to keep the product at the good working temperature.
PART NUMBER:
EFFI-LINE3-XXX-ZZZ
PART NUMBER:

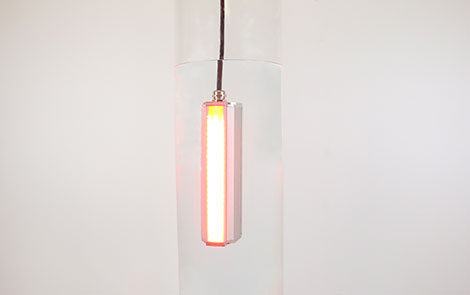

EFFI-LINE3-IP67-XXX-ZZZ-…
PART NUMBER:
EFFI-LINE3-WTR-XXX-ZZZ-…
For all other inquiries, please contact EFFILUX.
