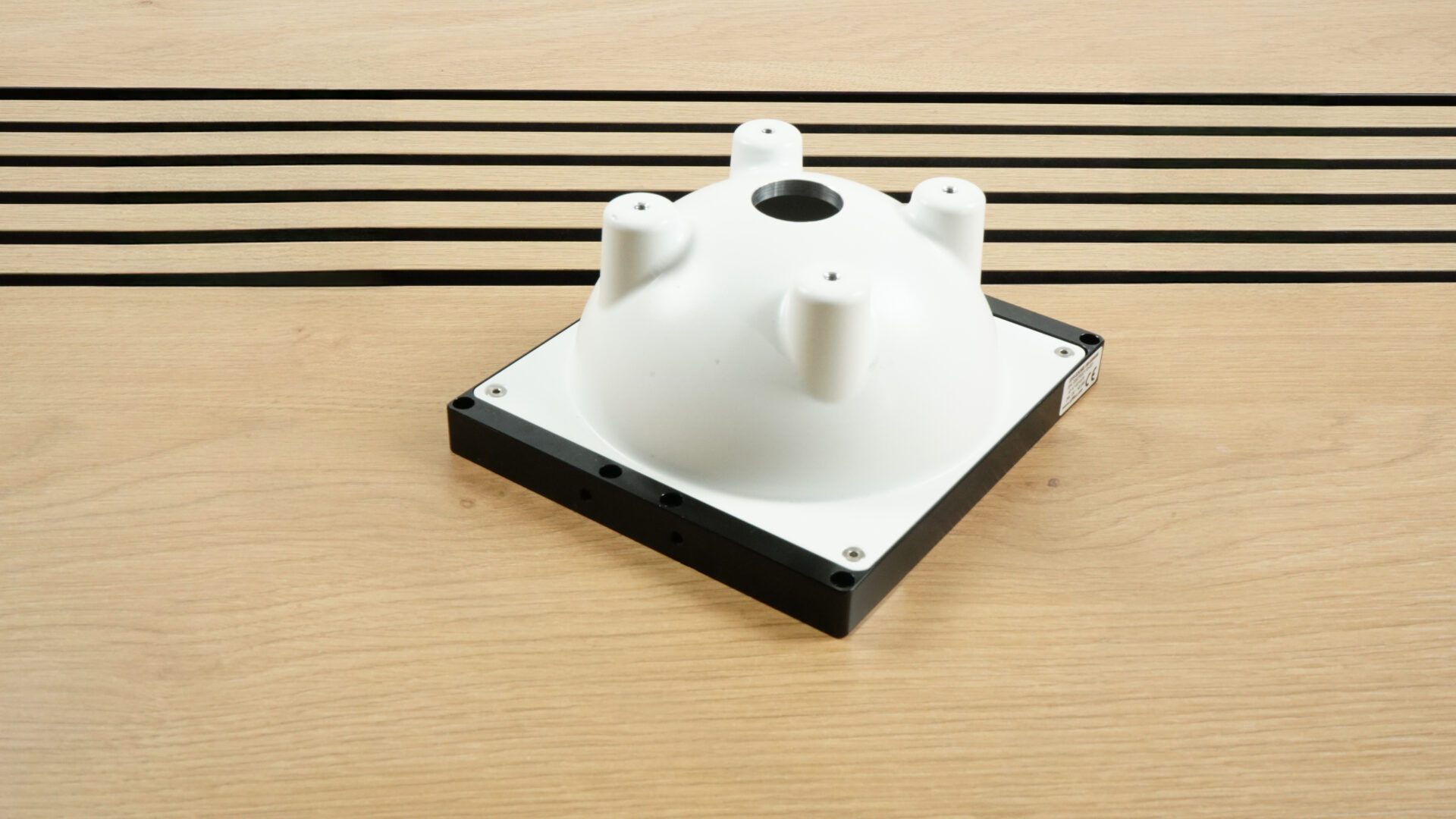

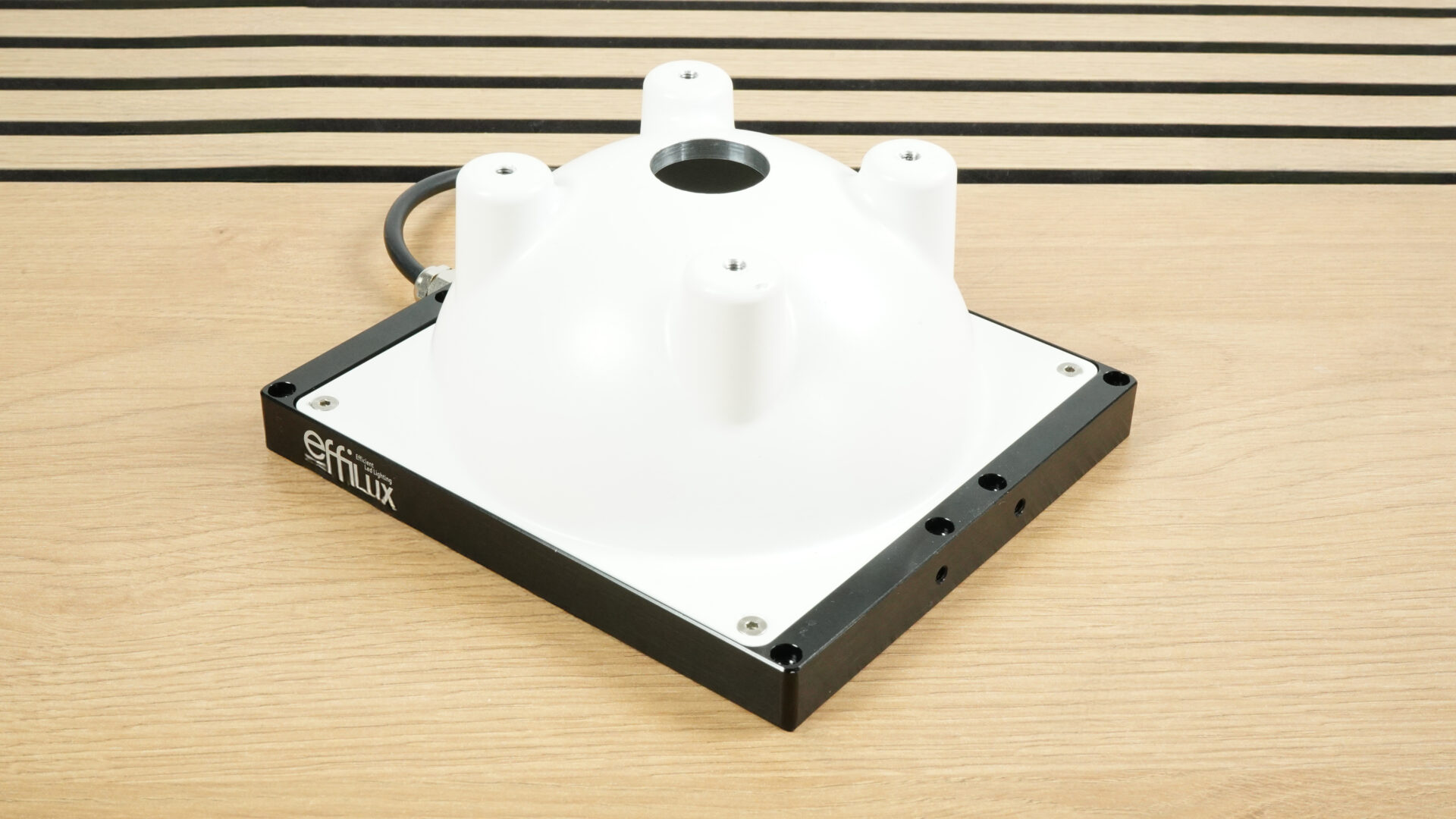

The EFFI-SDOME is a dome-shaped LED light that delivers uniform, shadow-free illumination for inspecting reflective or curved surfaces. It is ideal for applications like code reading on shiny packaging or quality control on metallic parts.
Designed in a single optimized size, the EFFI-SDOME is also mechanically and optically compatible with the EFFI-SRING, allowing users to easily switch between dome and ring lighting without changing the setup. This flexibility makes it a smart and adaptable choice for demanding machine vision environments.
| XXX : Diameter of the LED system (mm) | 100 |
PART NUMBER:
EFFI-SRING-SDOME-XXX...

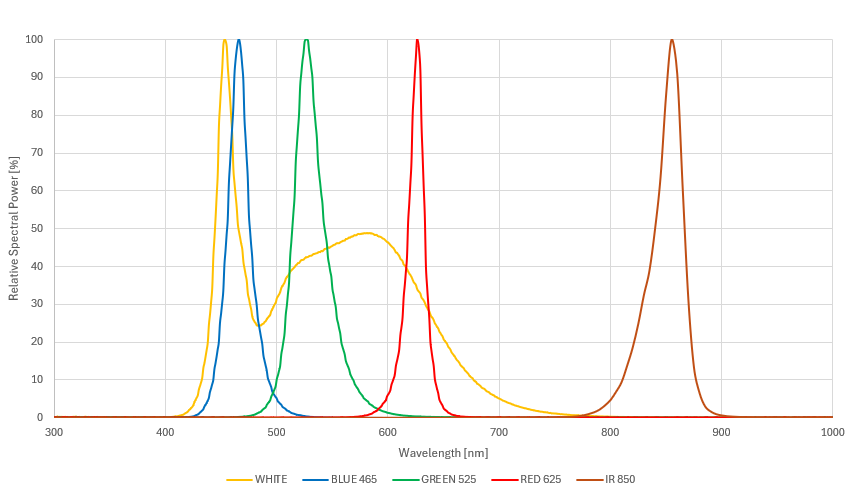

| Wavelength (nm) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-SRING-SDOME-XXX-Z-Z-Z-Z...

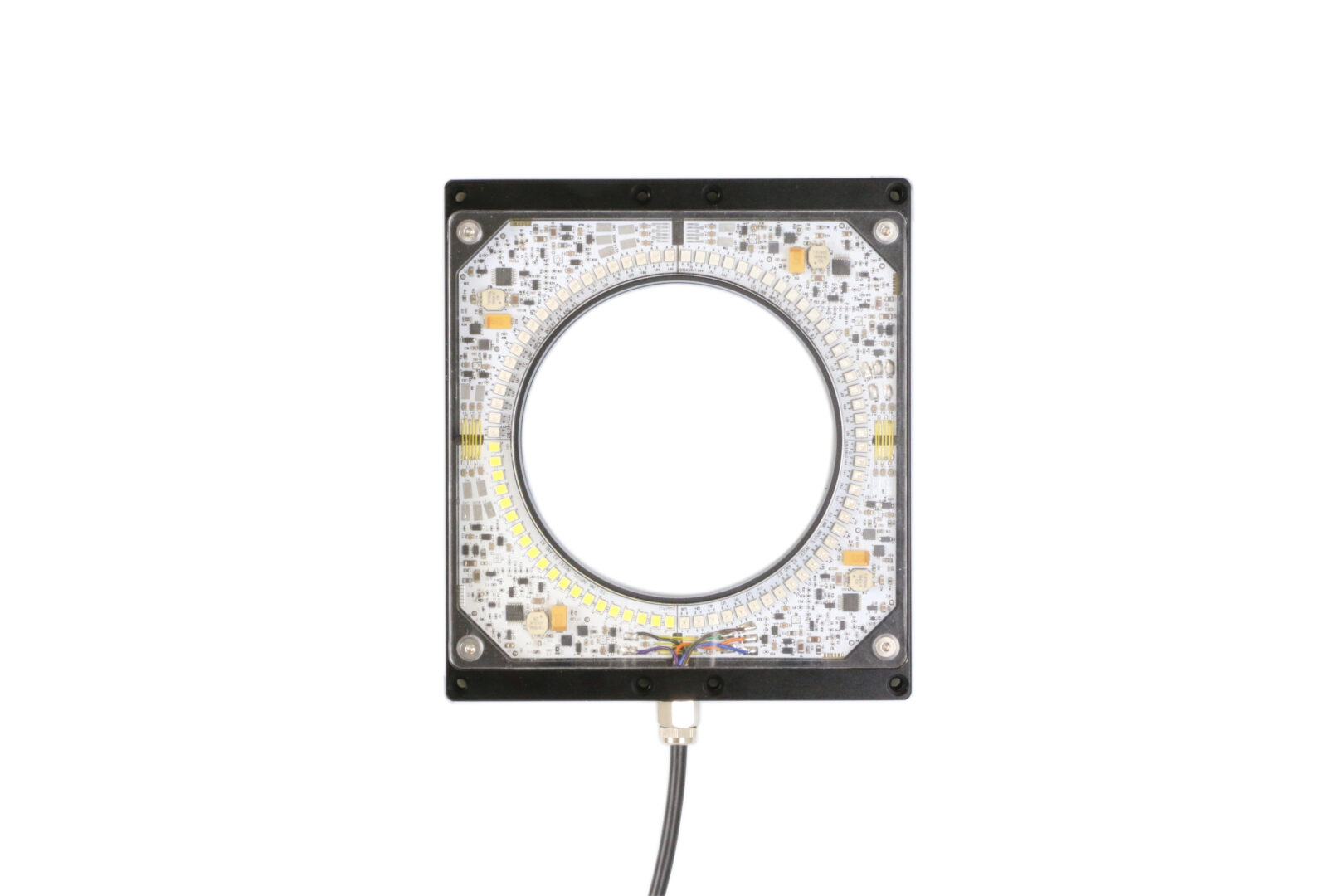

TR (Transparent)
SD (Semi-diffuse)

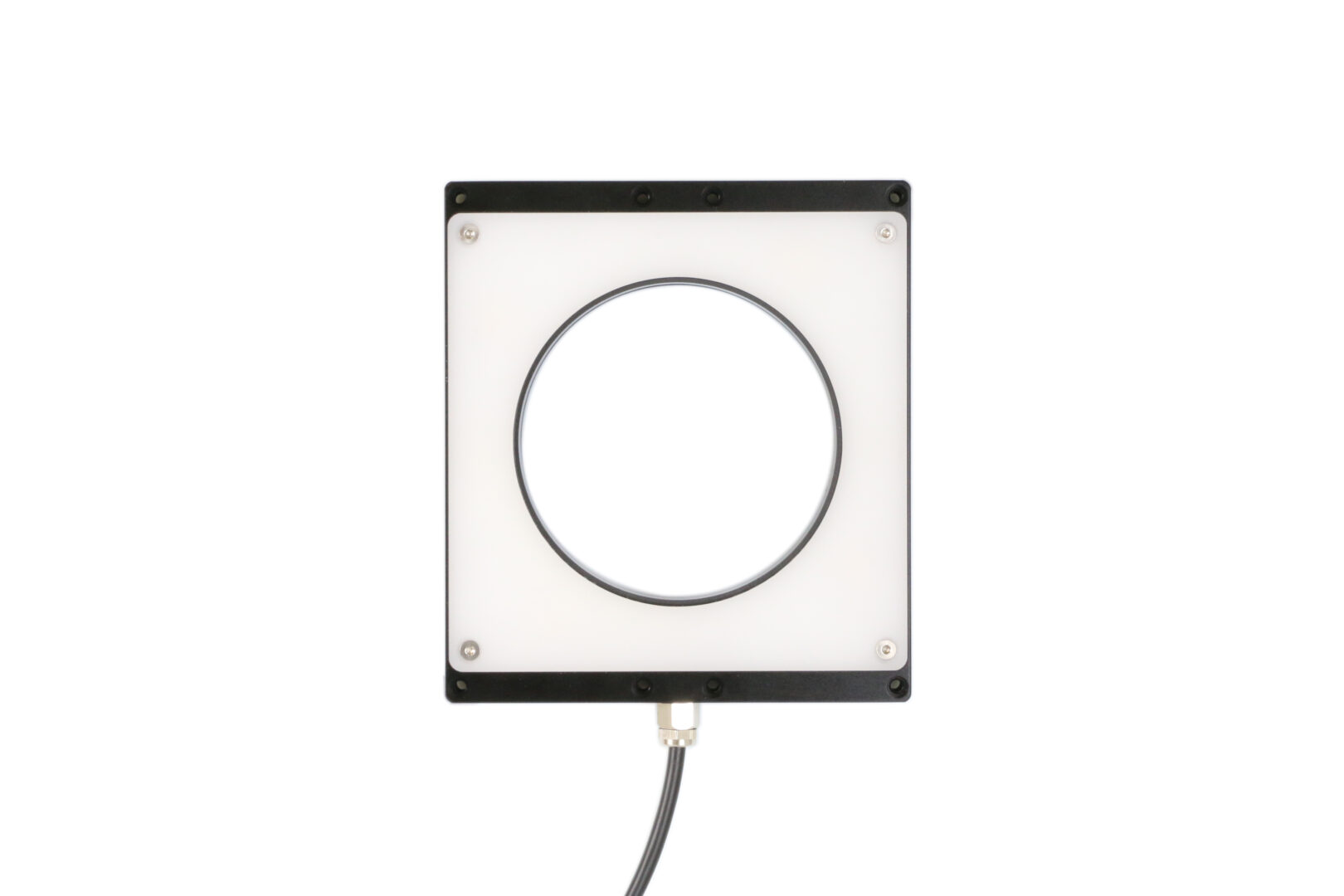

OP (Opaline)
Kit (All diffusers)
PART NUMBER:
EFFI-SRING-SDOME-XXX-Z-Z-Z-Z-WW...
The EFFI-SDOME is supplied directly with 24V DC with a M12 8pins connector.
PART NUMBER:
EFFI-SRING-SDOME-100-Z-Z-Z-Z-WW-CW

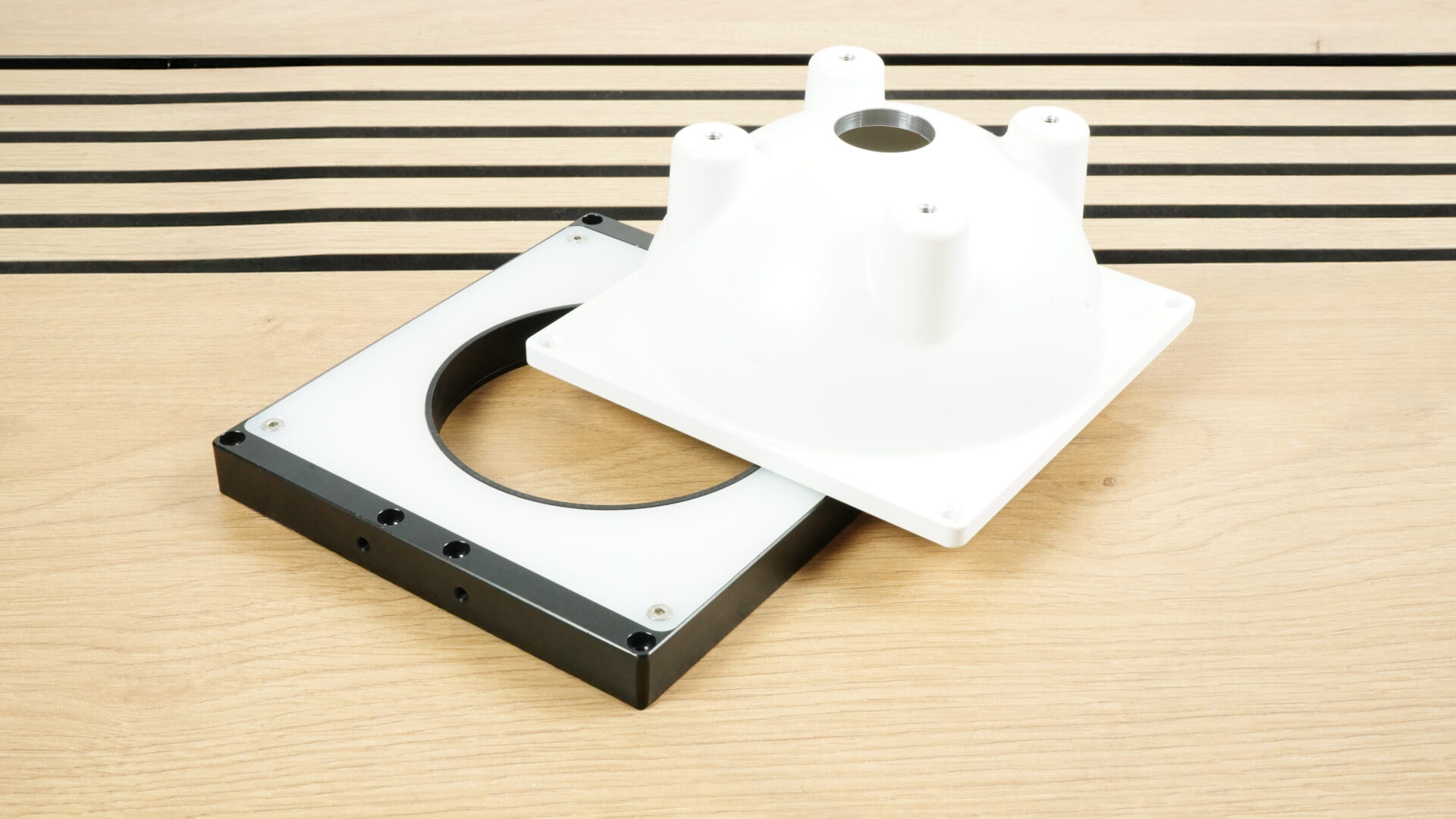

The EFFI-SDOME has the particularity of being able to be easily disassembled to become an EFFI-SRING.
References to transform the EFFI-SDome into an EFFI-SRing:
Collar: EFFO-SRING-COL-100
Transparent: EFFO-SRING-TR-100
Semi-diffuse: EFFO-SRING-SD-100
Opaline: EFFO-SRING-OP-100
EFFI-SRING-SDOME-100-Z-Z-Z-Z-KIT
Contains:
EFFI-SRING-SDOME-100-Z-Z-Z-Z-ESSENTIAL-KIT
Contains:
EFFI-SRING-100-Z-Z-Z-Z-KIT
Contains:
For all other inquiries, please contact EFFILUX.
