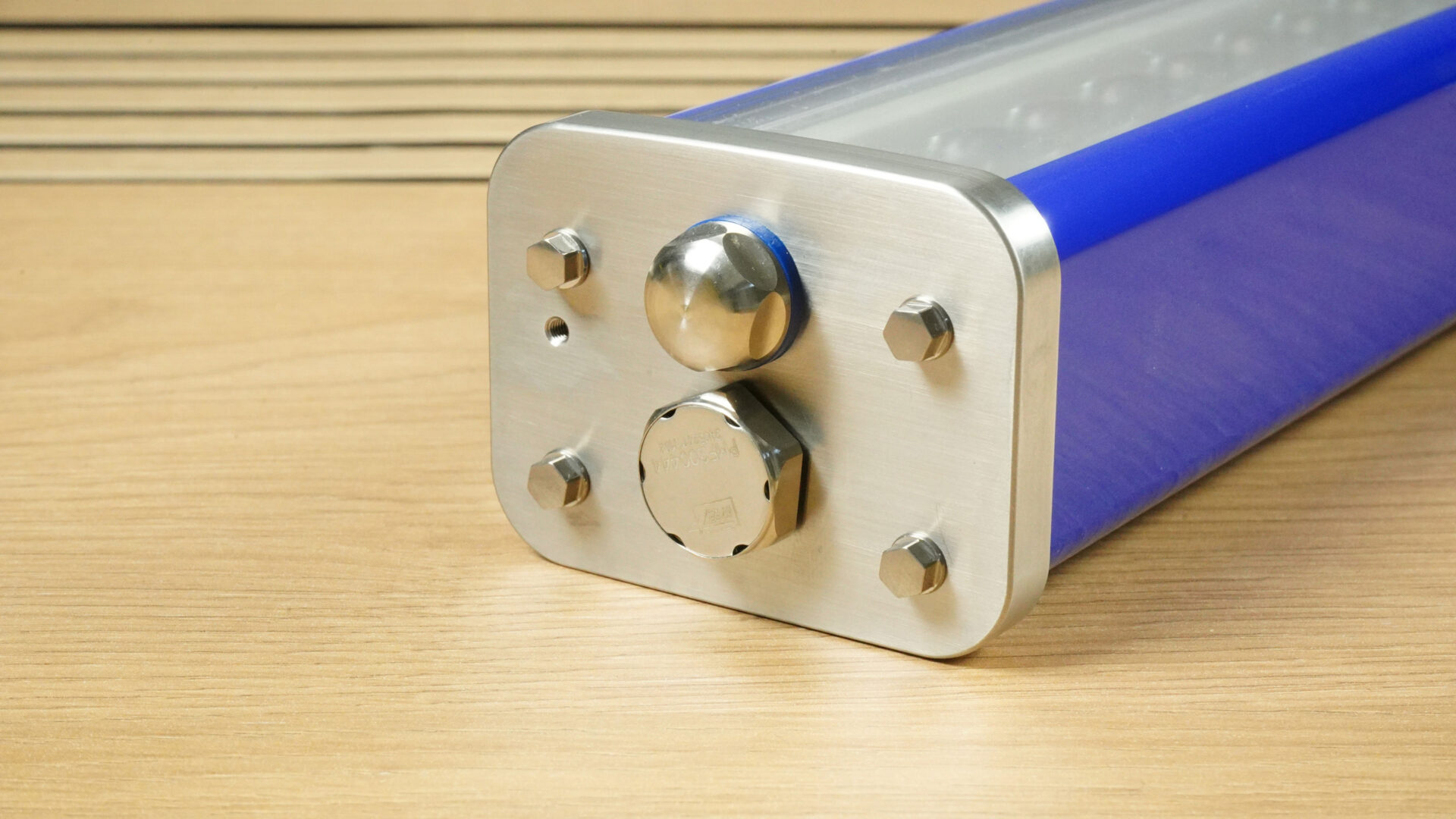

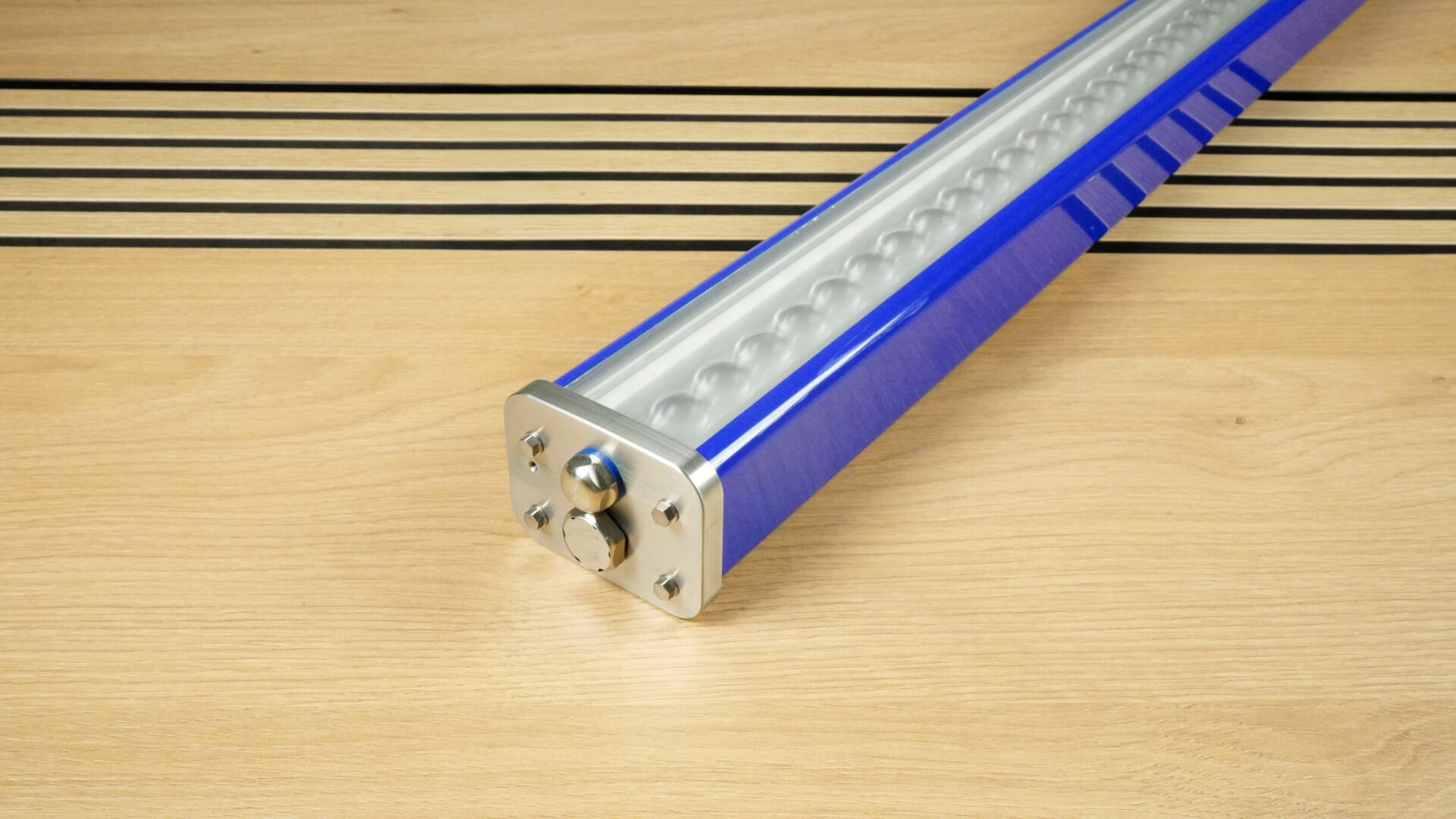

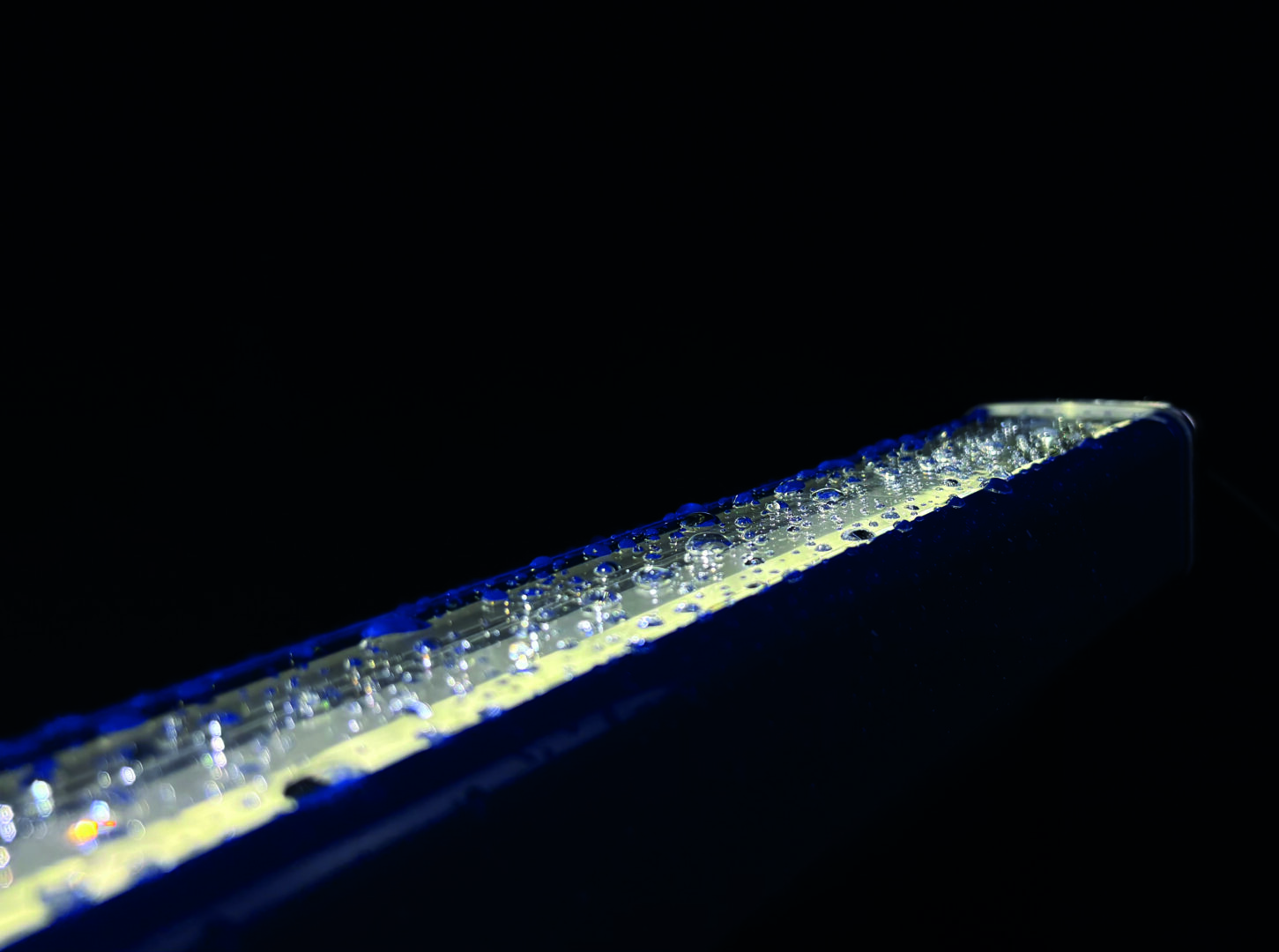

The EFFI-FLEX2-IP69K enhances the EFFI-FLEX2 range with a 100% specific design for the food, beverage, and pharmaceutical industries where high-pressure cleaning and chemical resistance are essential.

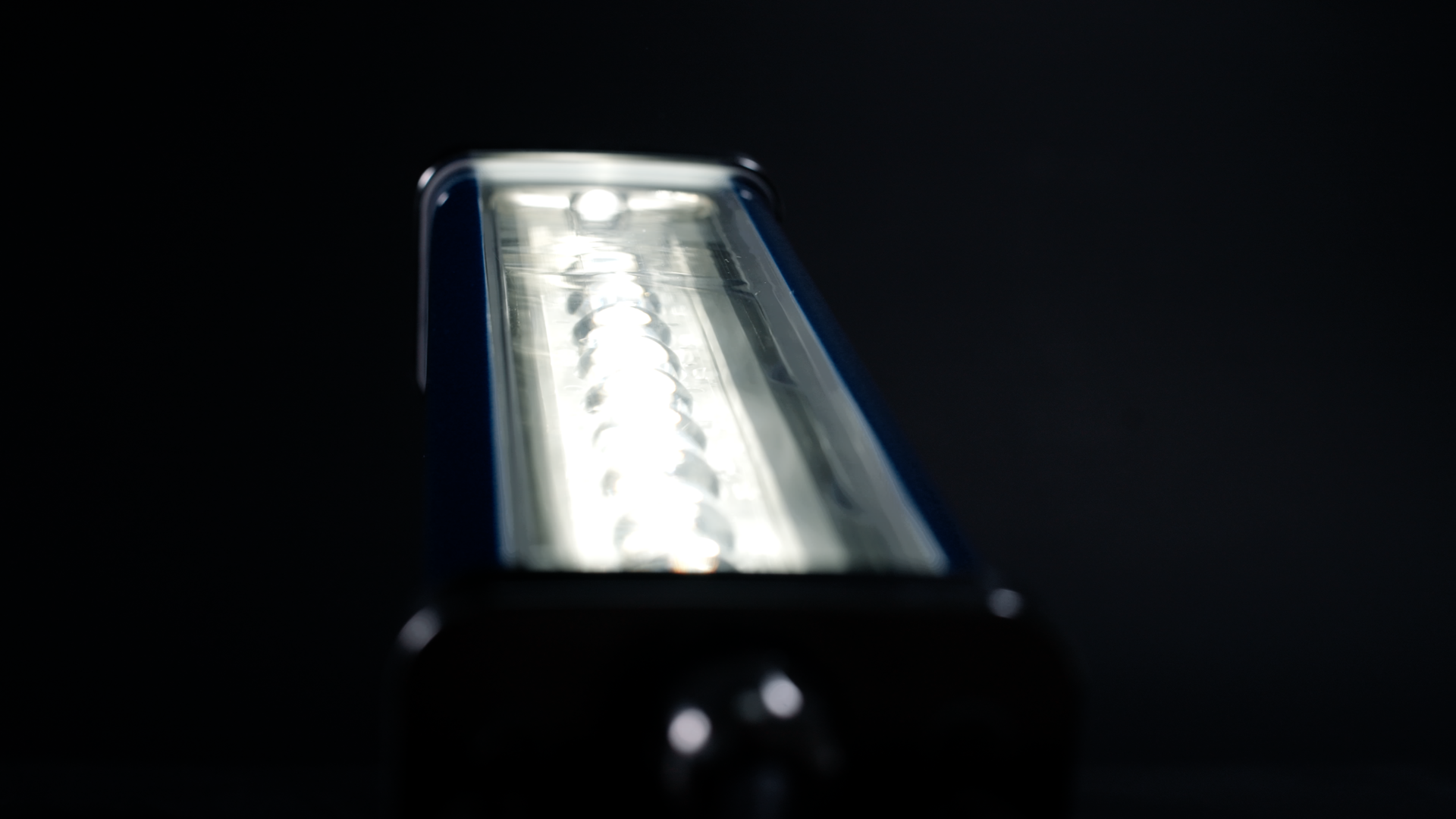

This advanced LED bar integrates a multimode driver offering three operating modes: AutoStrobe with up to 450% intensity in Overdrive, dimmable strobe, and dimmable continuous mode. It maintains the full optical flexibility of the EFFI-FLEX2, including three beam angles, three diffuser options, and compatibility with a wide range of optical accessories.

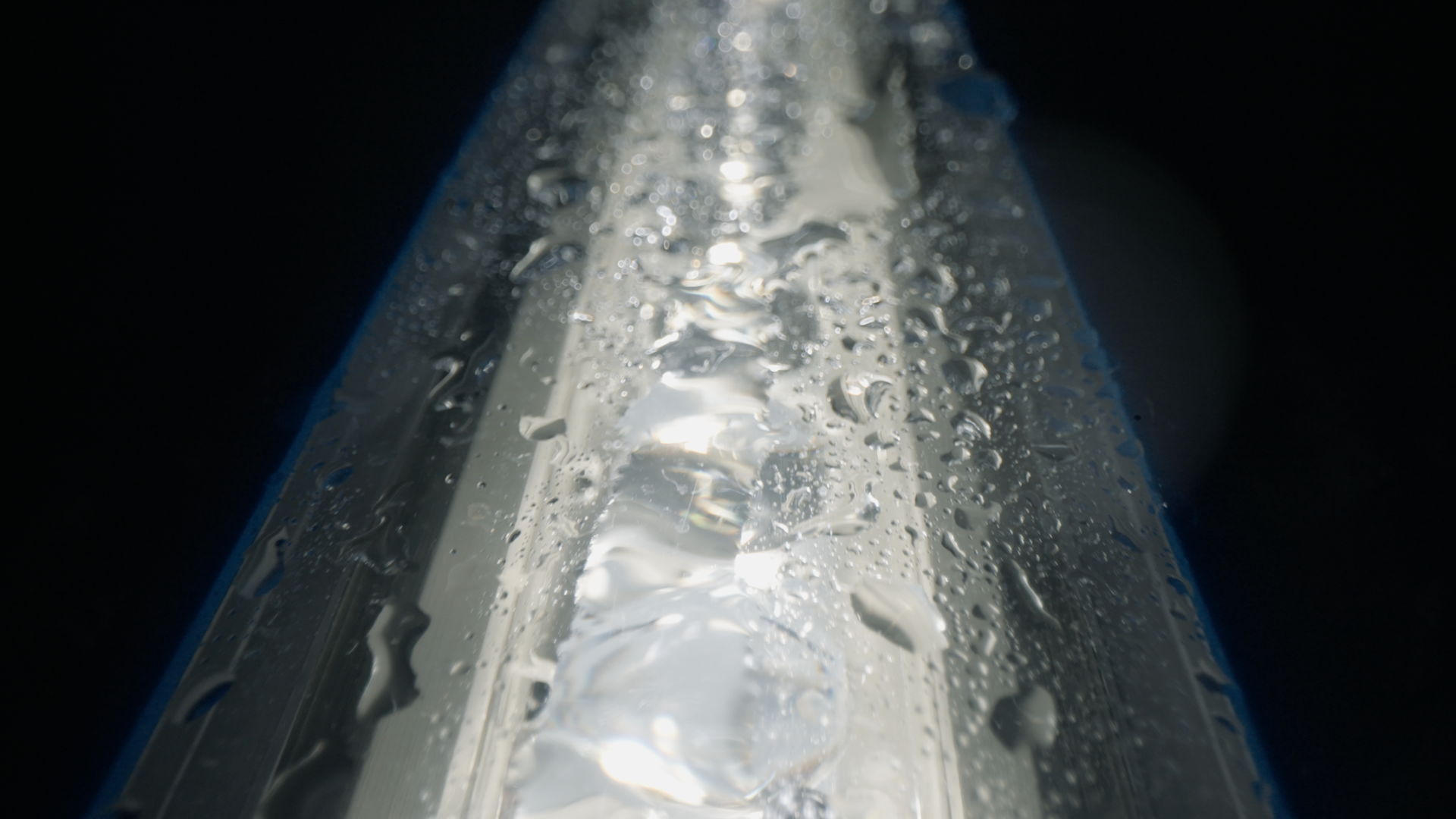

Built for uncompromising hygiene and durability, the EFFI-FLEX2-IP69K supports optional water cooling for high-power or high-temperature environments. It is the ideal solution for machine vision, quality control, and automation systems operating in washdown zones or cleanroom conditions.

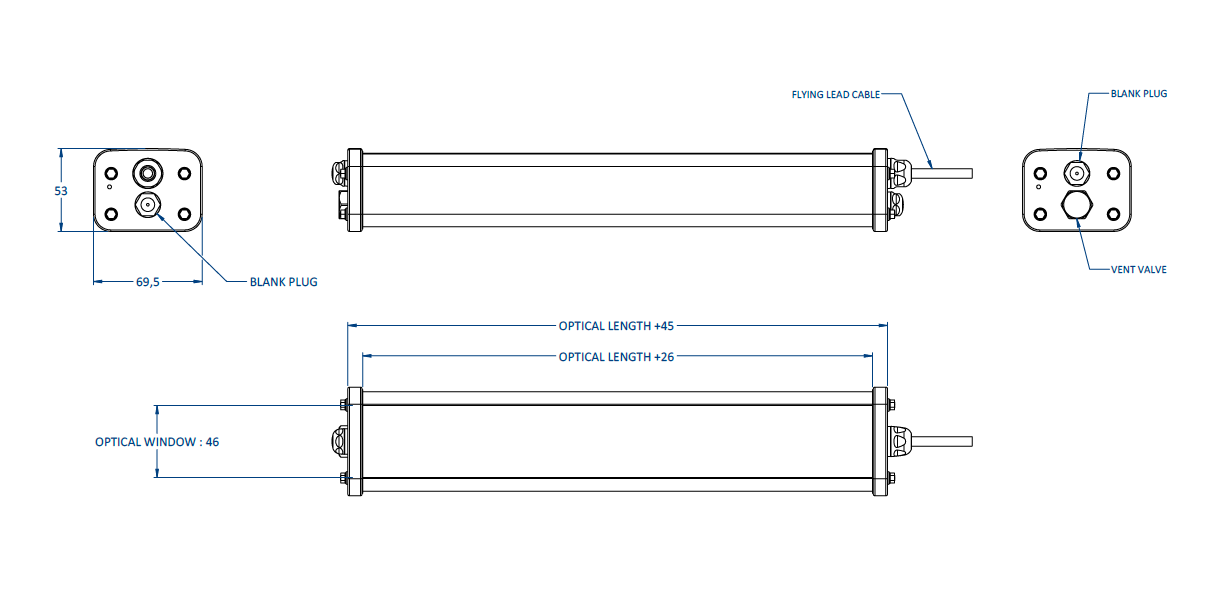

| Optical length (mm) | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 |
| Length of the product (mm) | 105 | 145 | 245 | 345 | 445 | 545 | 645 | 745 | 845 | 945 | 1045 | 1145 | 1245 | 1345 | 1445 | 1545 | 1645 | 1745 | 1845 | 1945 | 2045 | 2145 | 2245 | 2345 | 2445 | 2545 | 2645 | 2745 | 2845 | 2945 |
PART NUMBER:
EFFI-FLEX2-IP69K-XXXX…

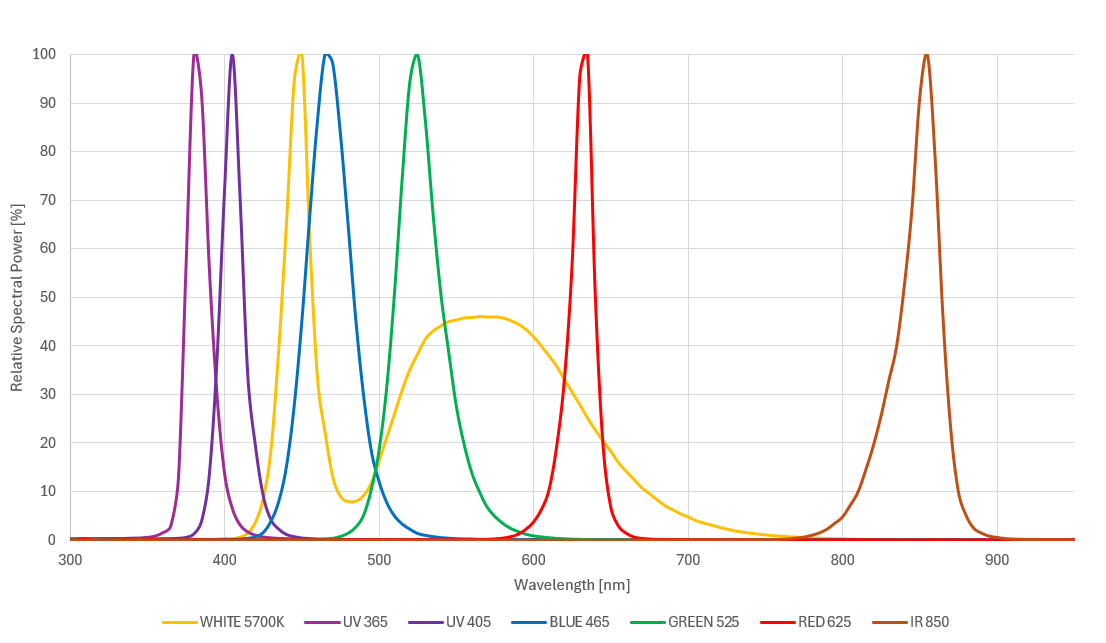

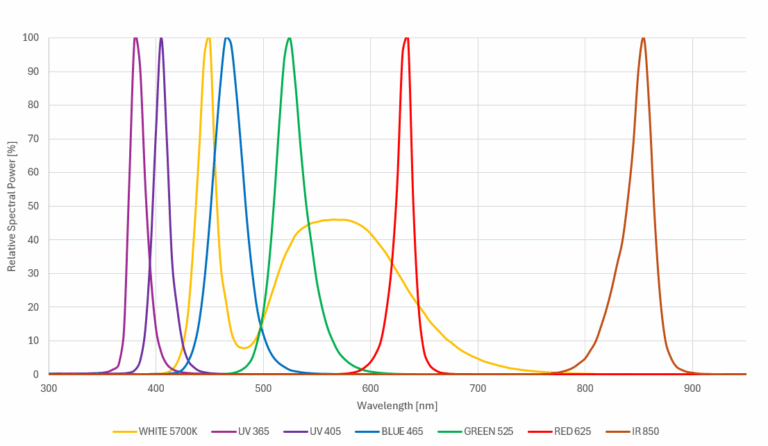

| Wavelength (nm) | ● 365 (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-FLEX2-IP69K-XXXX-ZZZ…
EFFILUX offers different types of interchangeable windows to supply a good compromise between power and uniformity according to the requirements and material of the inspection.
TR (Transparent)
SD (Semi-diffuse)
OP (Opaline)
PART NUMBER:
EFFI-FLEX2-IP69K-XXXX-ZZZ-WW…
P0 : 90° (without lens)
P1 : 45°
P2 : 25°
P3 : 10°
PART NUMBER:
EFFI-FLEX2-IP69K-XXX-ZZZ-WW-PP…
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX2-IP69K-XXXX-ZZZ-WW-PP-POL
With the lens in the upper position, the Linescan accessory transforms the EFFI-FLEX2 light into a uniform line light ideal for either brightfield or darkfield illumination.
Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX2-IP69K-XXXX-ZZZ-TR-P3-LS
Autostrobe* with 450% Overdrive intensity then 100% continuous
Adjustable Strobe with controlled intensity from 20% to 100%
Dimmable Continuous with controlled intensity from 20% to 100%
*: For the UV365nm wavelength, the overdrive is limited to 300%

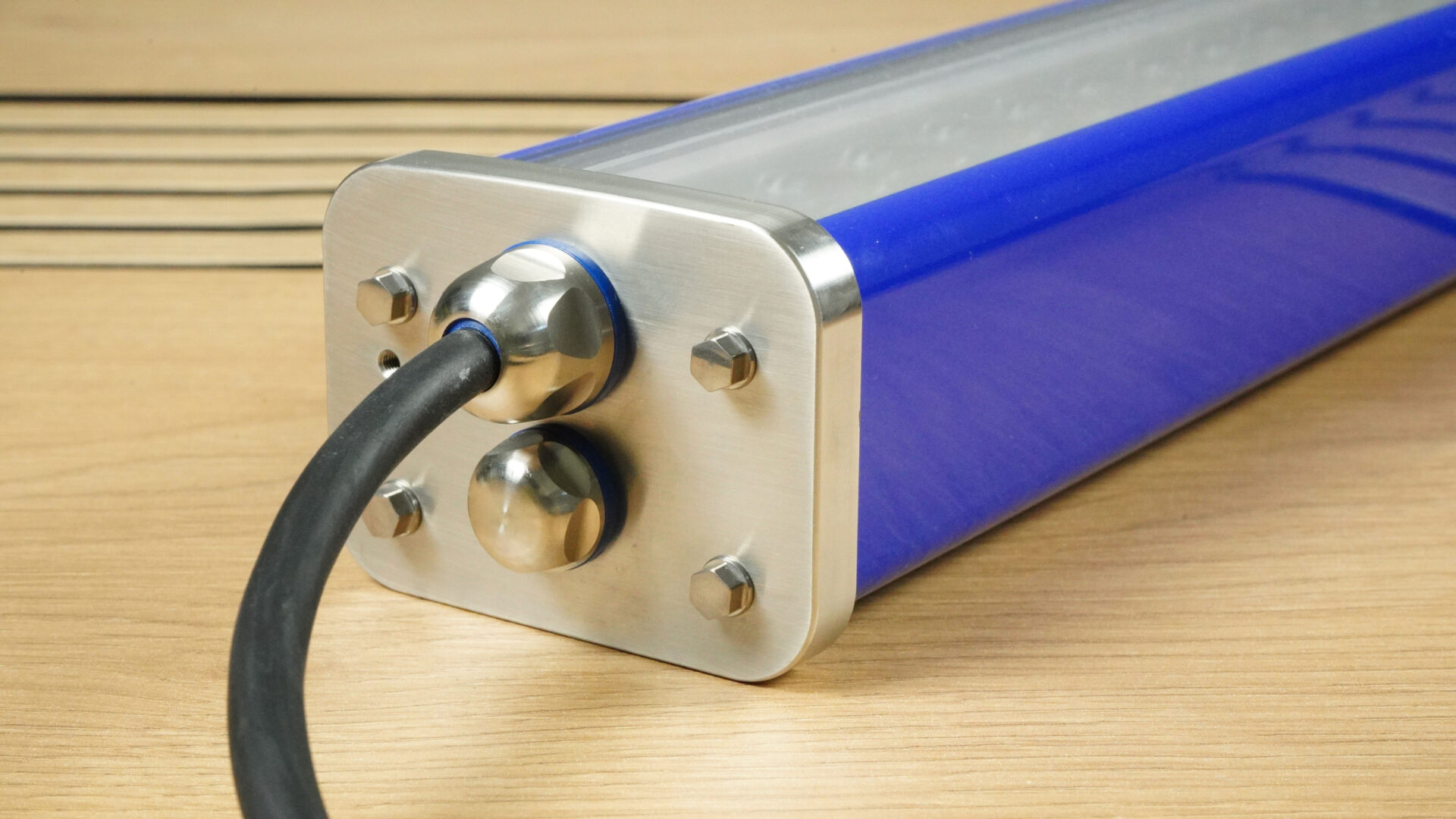

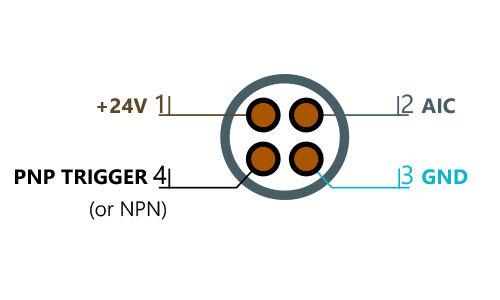

Depending on the size, the light comes with different connectors.
1 LED every 40mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).
PART NUMBER:
EFFI-FLEX2-IP69K-L2-XXXX-ZZZ-WW-PP...
1 LED every 10mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).
PART NUMBER:
EFFI-FLEX2-IP69K-X2-XXXX-ZZZ-WW-PP...
| MECHANICAL VERSIONS | IP grade | « Openable » body | Water cooling (for high power) | Smooth sections (anti-dust) | Food compliant |
| EFFI-FLEX2 |  |  |  | | |
| EFFI-FLEX2-IP67 |  | | | | |
| EFFI-FLEX2-IP69K |  | | | | |
PART NUMBER:
EFFI-FLEX2-IP69K-WTR-XXXX-ZZZ-WW-PP
For all other inquiries, please contact EFFILUX.
