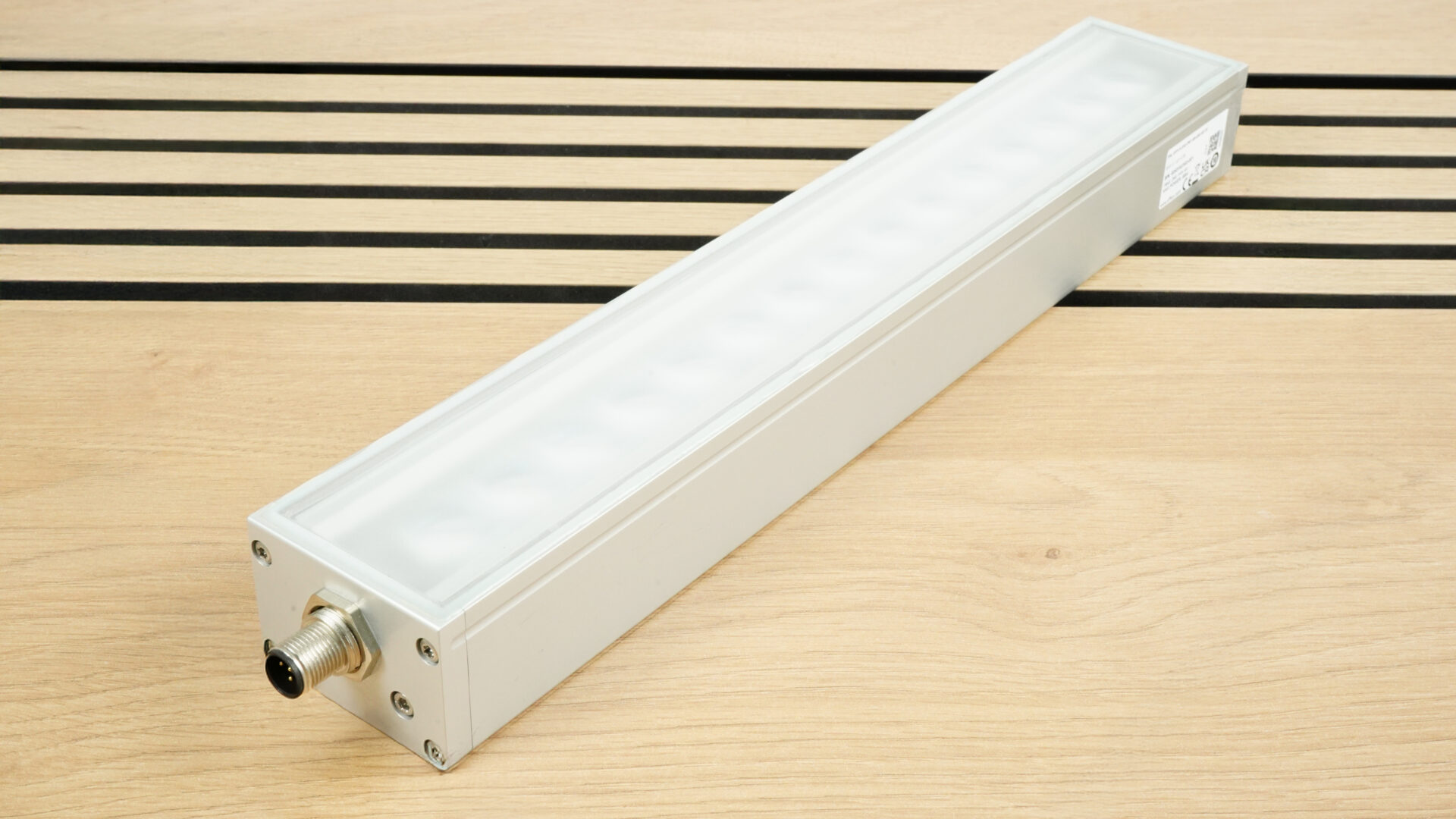

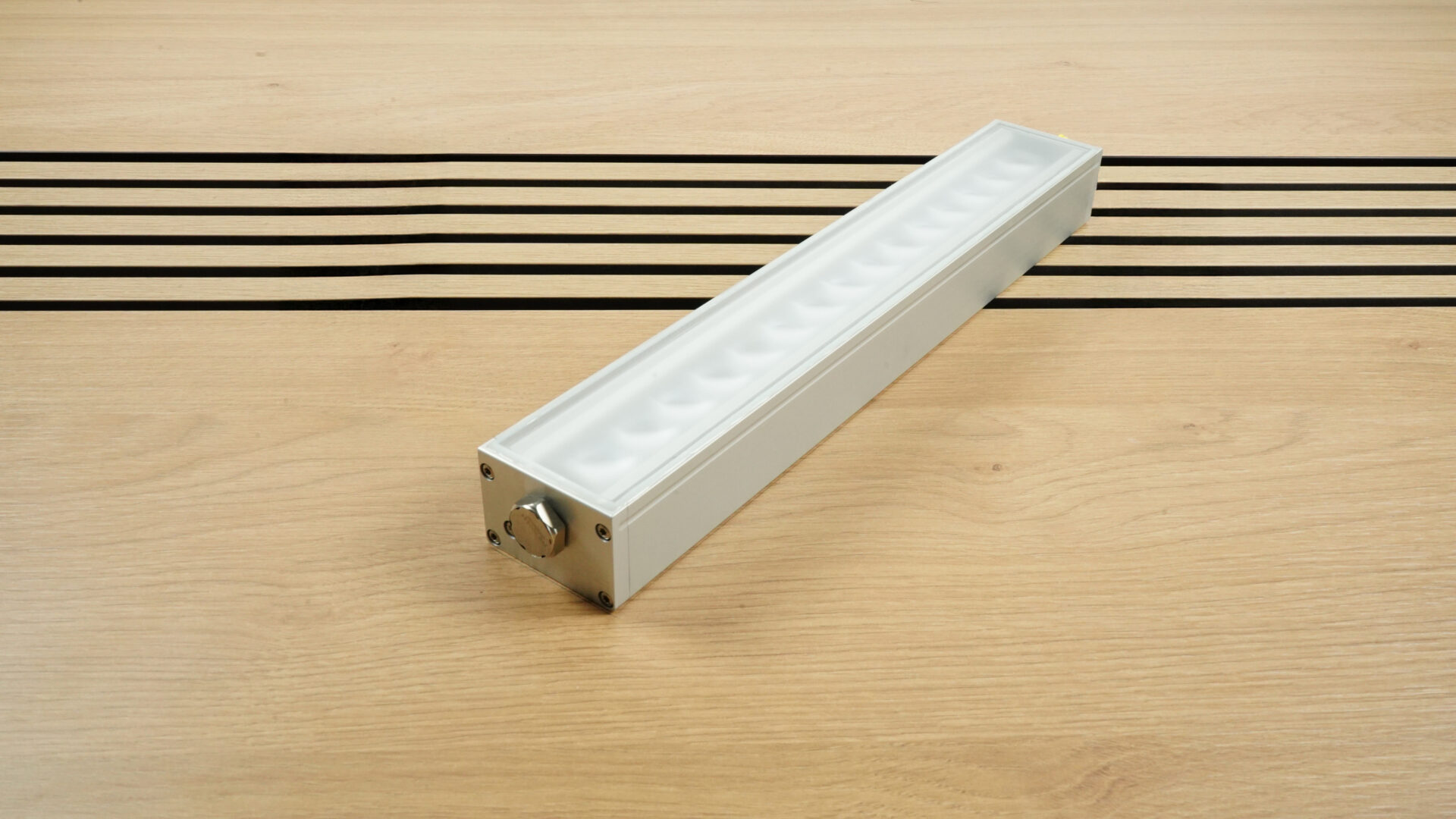

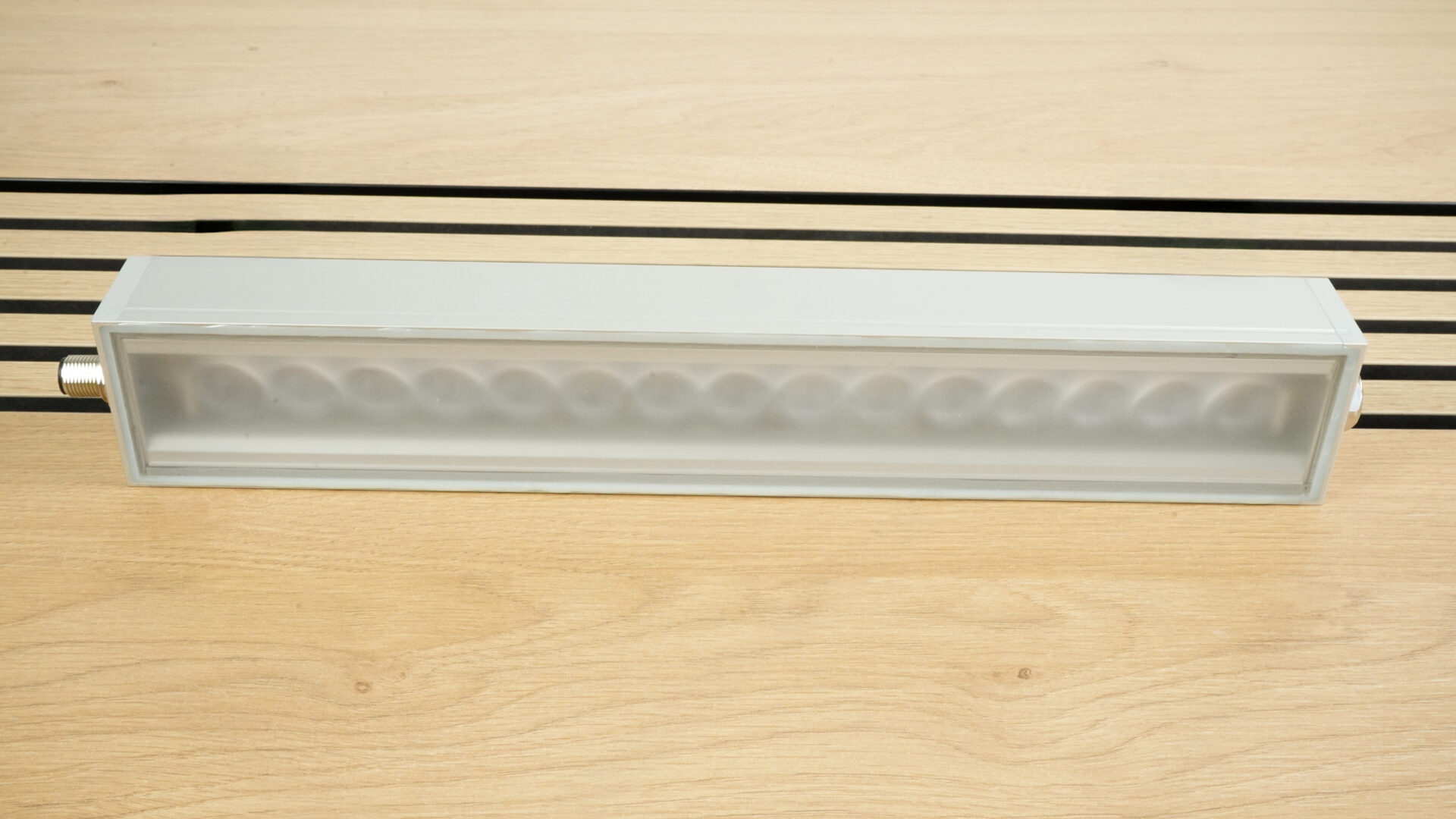

The EFFI-FLEX2-IP67 extends the capabilities of the EFFI-FLEX2 range with a fully waterproof IP67-rated design, making it ideal for demanding industrial environments where durability and performance are critical.
This high-power LED bar integrates a multimode driver offering three operating modes: AutoStrobe with up to 450% intensity in Overdrive, dimmable strobe, and dimmable continuous mode. It retains the full optical flexibility of the standard EFFI-FLEX2, with three beam angles, three diffuser options, and compatibility with a wide range of optical accessories.
Built for harsh conditions, the EFFI-FLEX2-IP67 features a rugged, sealed housing and supports optional water cooling for high-power or high-temperature applications. It is the perfect solution for machine vision, robotics, logistics, and inspection systems requiring reliable, high-performance lighting in wet or dusty environments.

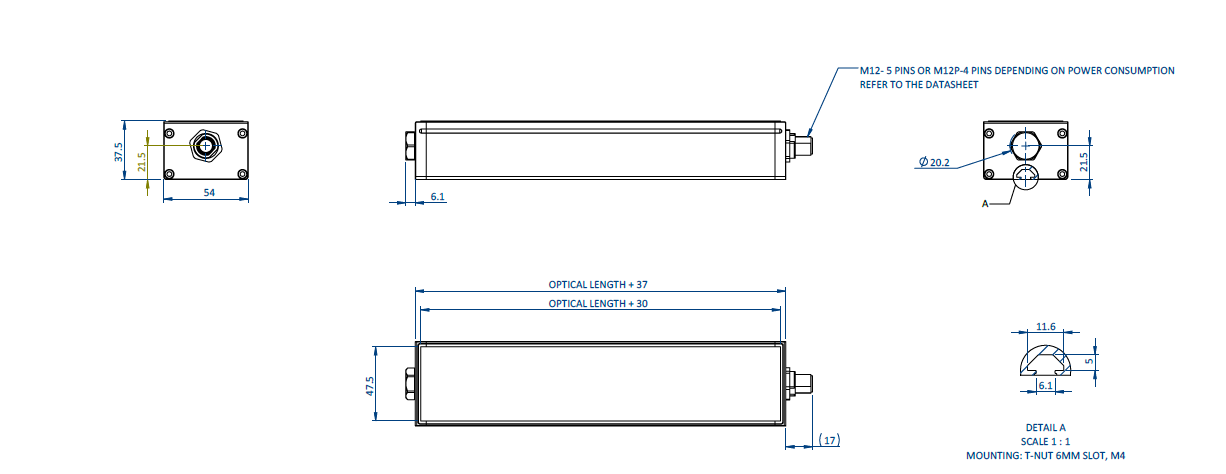

| Optical length (mm) | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 |
| Length of the product (mm) | 97 | 137 | 237 | 337 | 437 | 537 | 637 | 737 | 837 | 937 | 1037 | 1137 | 1237 | 1337 | 1437 | 1537 | 1637 | 1737 | 1837 | 1937 | 2037 | 2137 | 2237 | 2337 | 2437 | 2537 | 2637 | 2737 | 2837 | 2937 |
PART NUMBER:
EFFI-FLEX2-IP67-XXXX…

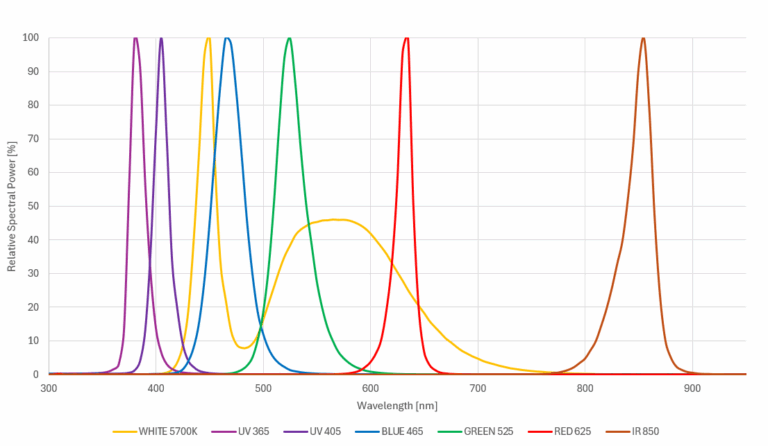

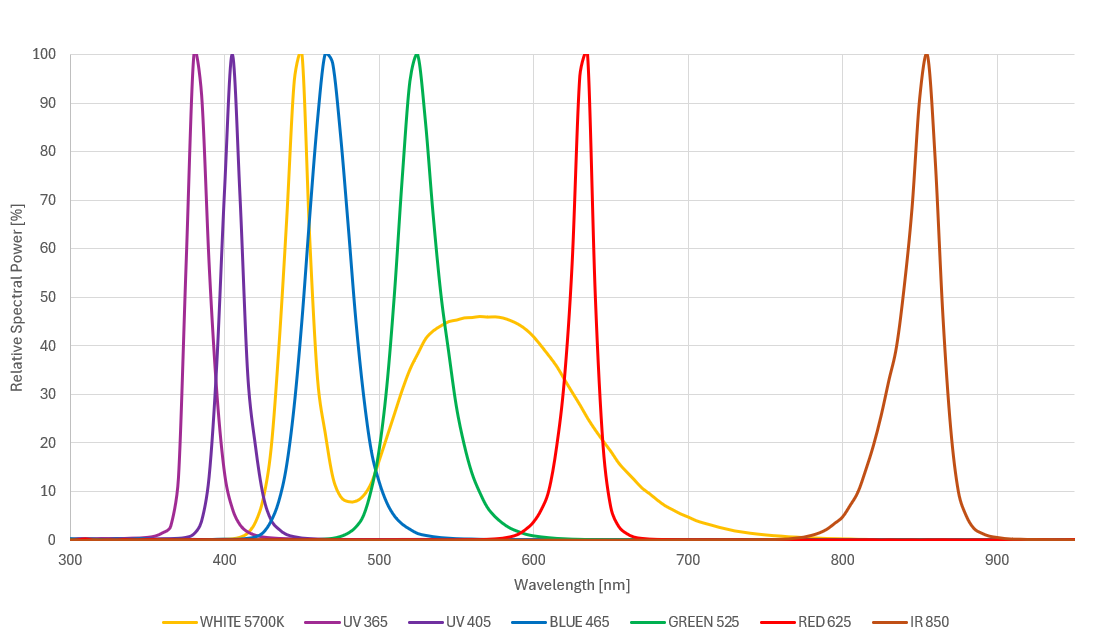

| Wavelength (nm) | ● 365 (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-FLEX2-IP67-XXXX-ZZZ…
EFFILUX offers different types of interchangeable windows to supply a good compromise between power and uniformity according to the requirements and material of the inspection.
TR (Transparent)
SD (Semi-diffuse)
OP (Opaline)
PART NUMBER:
EFFI-FLEX2-IP67-XXXX-ZZZ-WW…
EFFI-FLEX2-IP67 accepts 4 lens configurations to adjust the emission angle to your need.
P0 : 90° (without lens)
P1 : 45°
P2 : 25°
P3 : 10°
PART NUMBER:
EFFI-FLEX2-IP67-XXX-ZZZ-WW-PP…
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX2-IP67-XXXX-ZZZ-WW-PP-POL
With the lens in the upper position, the Linescan accessory transforms the EFFI-Flex2 light into a uniform line light ideal for either brightfield or darkfield illumination.
Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX2-IP67-XXXX-ZZZ-TR-P3-LS
Depending on how the EFFI-FLEX2-IP67 is wired, the user can access different operating mode:
Autostrobe* with 450% Overdrive intensity then 100% continuous
Adjustable Strobe with controlled intensity from 20% to 100%
Dimmable Continuous with controlled intensity from 20% to 100%
*: For the UV365nm wavelength, the overdrive is limited to 300%

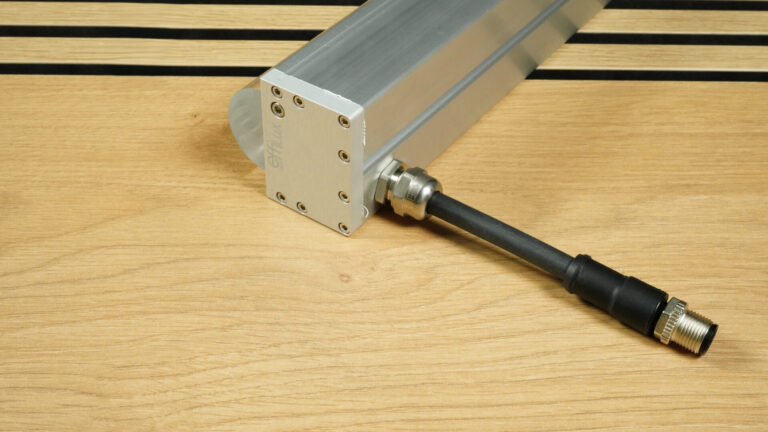

Depending on the size, the light comes with different connectors.
NB : For the 2M12P configuration, the second connector (black nut) only needs its 24V and GND to be connected. Connect the GND with the main connector GND.
PART NUMBER:
EFFI-FLEX2-L2-XXXX-ZZZ-WW-PP...
PART NUMBER:
EFFI-FLEX2-L2-XXXX-ZZZ-WW-PP...
| MECHANICAL VERSIONS | IP grade | « Openable » body | Water cooling (for high power) | Smooth sections (anti-dust) | Food compliant |
| EFFI-FLEX2 |  |  |  | | |
| EFFI-FLEX2-IP67 |  | | | | |
| EFFI-FLEX2-IP69K |  | | | | |
For thermal reasons and boosted power (ELS) configurations, it can be necessary to provide water cooling (-WTR) by adding drip-free connectors on each side.
PART NUMBER:
EFFI-FLEX2-IP67-WTR-XXXX-ZZZ-WW-PP
For all other inquiries, please contact EFFILUX.
