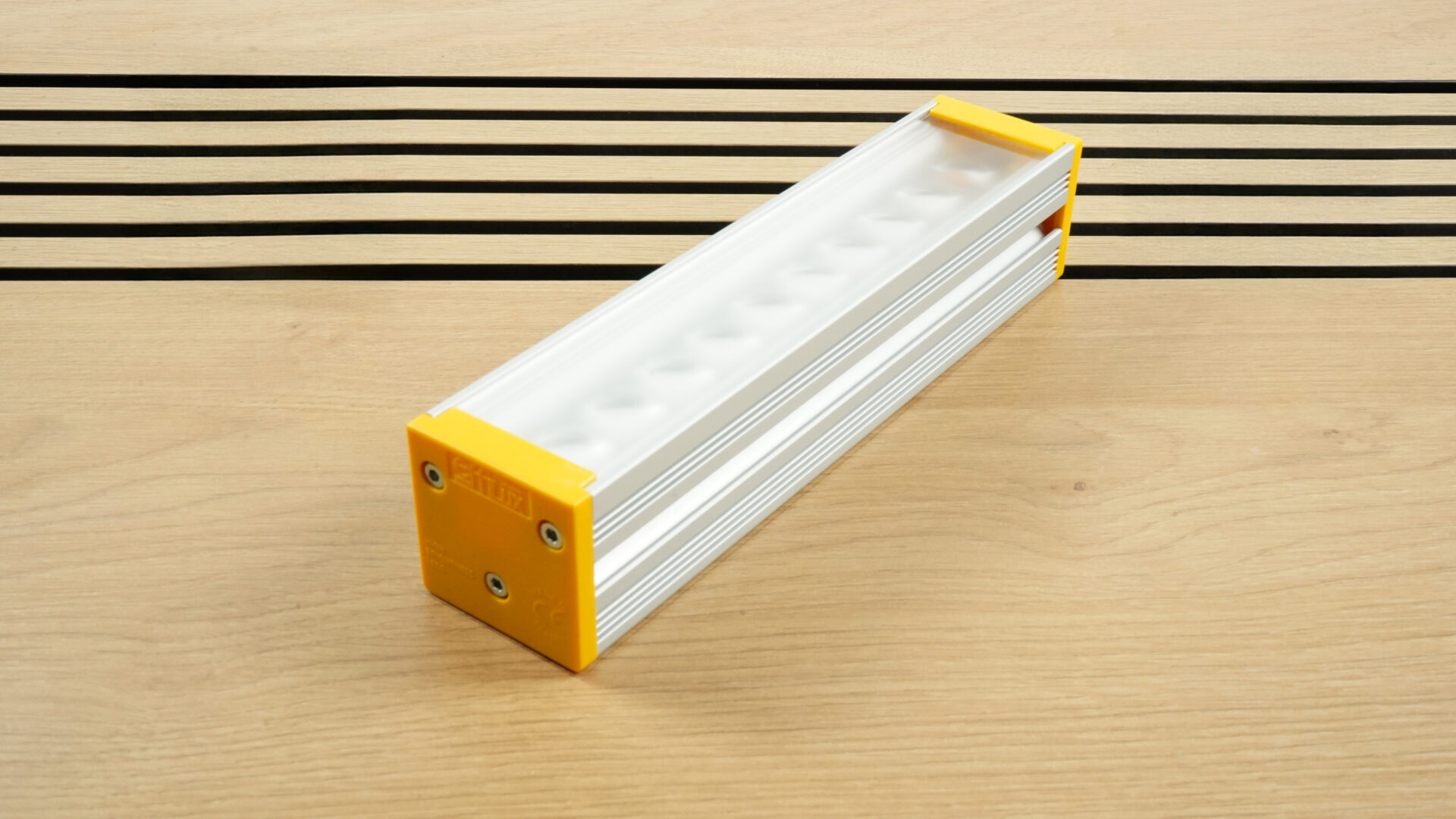

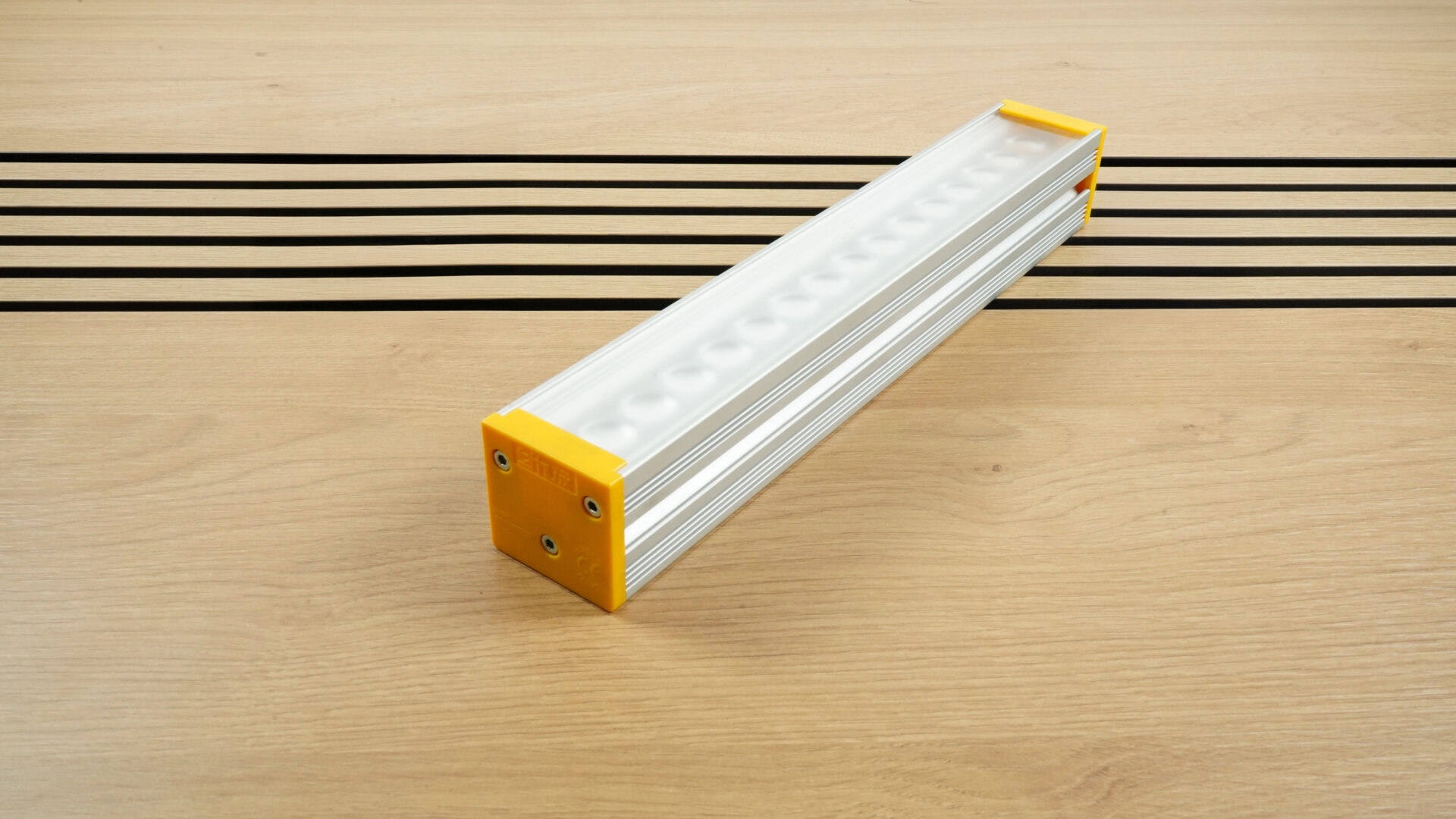

The EFFI-FLEX2 is the latest evolution of the EFFILUX LED bar, delivering enhanced flexibility, increased power, and smarter control for demanding industrial environments.
Equipped with an integrated multimode driver, it supports three operating modes in a single product: AutoStrobe with Overdrive for up to 450% intensity boost, adjustable Strobe mode for precise timing, and Continuous mode with dimming control. It retains the optical versatility of the original EFFI-FLEX, featuring adjustable beam angles, interchangeable diffusers, and a wide range of innovative optical accessories.
Its sleek, modernized design maintains identical mechanical dimensions, ensuring seamless integration into existing setups. With unmatched adaptability—optically, electronically, and mechanically—the EFFI-FLEX2 is ideal for machine vision, robotics, logistics, and other industrial automation applications.
| Optical length (mm) | 60 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 |
| Length of the product (mm) | 95 | 135 | 235 | 335 | 435 | 535 | 635 | 735 | 835 | 935 | 1035 | 1135 | 1235 | 1335 | 1435 | 1535 | 1635 | 1735 | 1835 | 1935 | 2035 | 2135 | 2235 | 2335 | 2435 | 2535 | 2635 | 2735 | 2835 | 2935 |
PART NUMBER:
EFFI-FLEX2-XXXX…

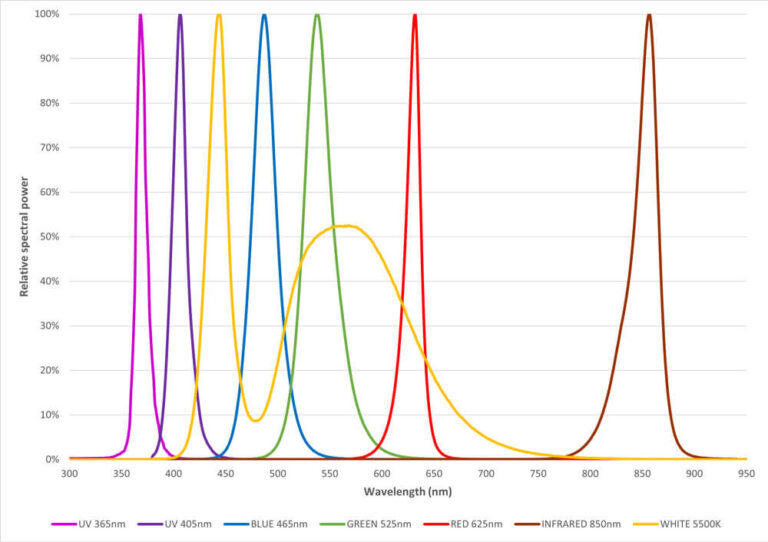

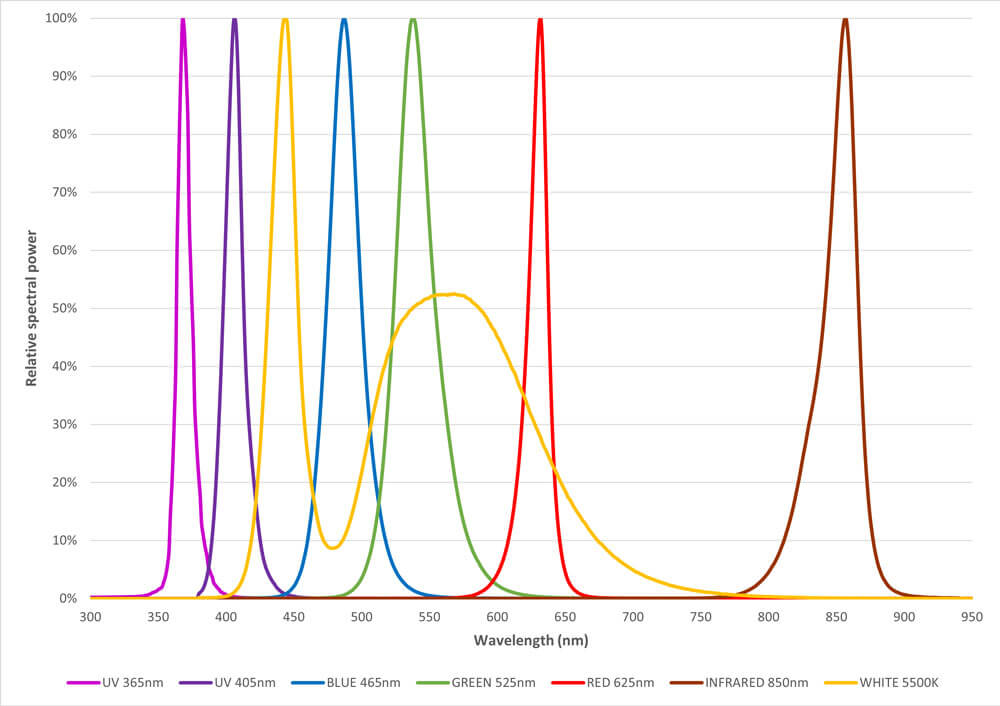

| Wavelength (nm) | ● 365 (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-FLEX2-XXXX-ZZZ…
EFFILUX offers different types of interchangeable windows to supply a good compromise between power and uniformity according to the requirements and material of the inspection. The light can also be delivered as a kit, including all diffuser. See details in the options below.

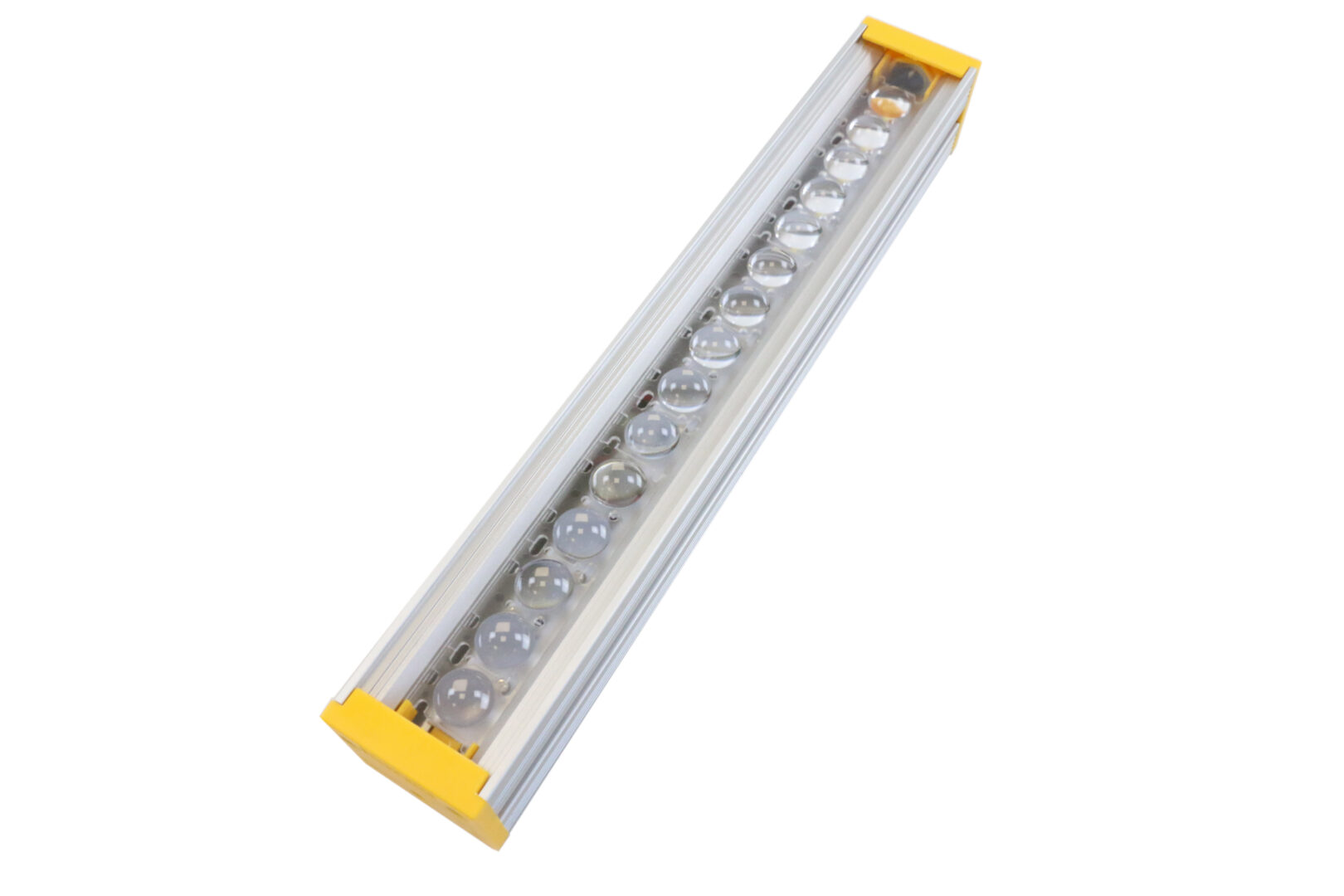

TR (Transparent)

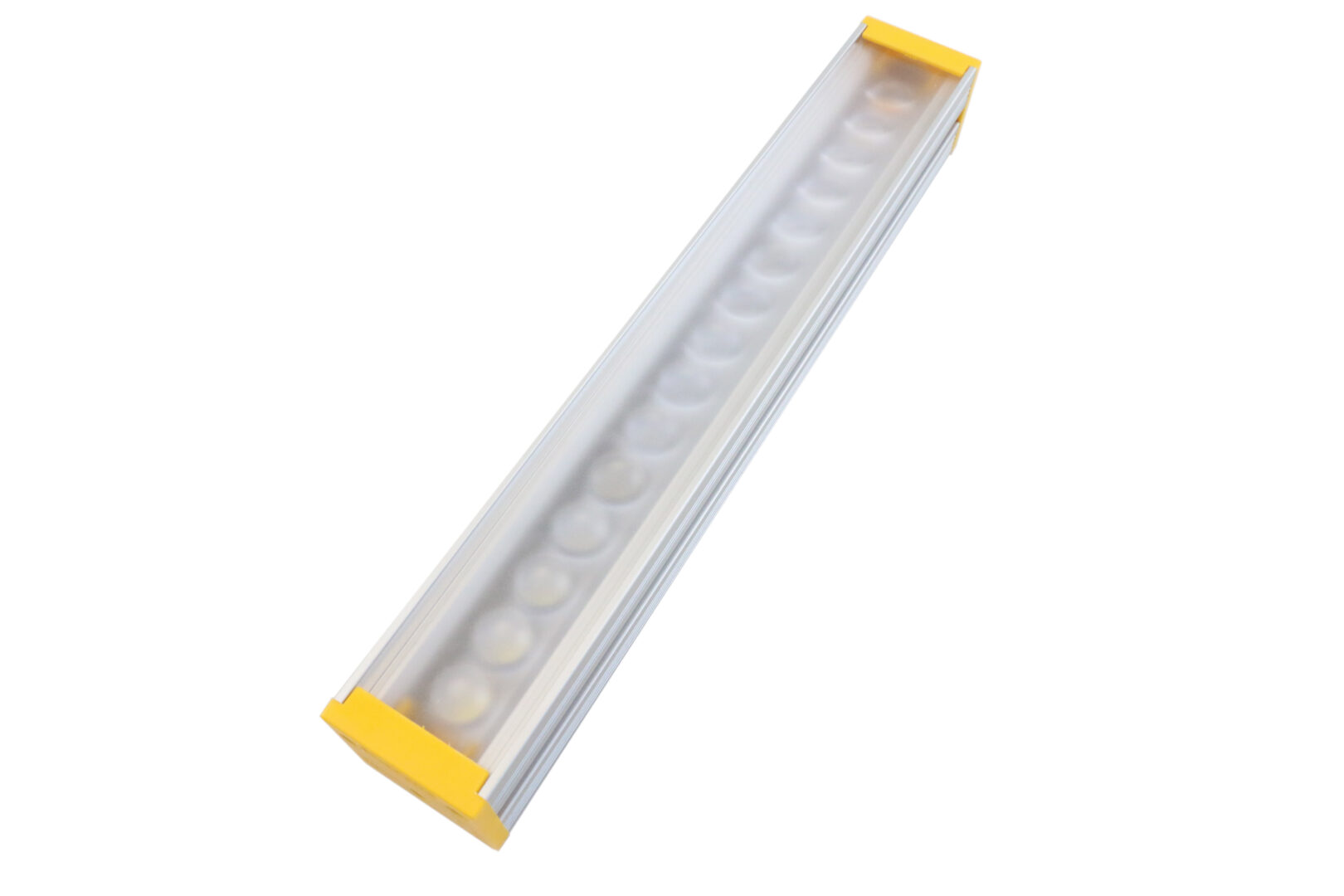

SD (Semi-diffuse)

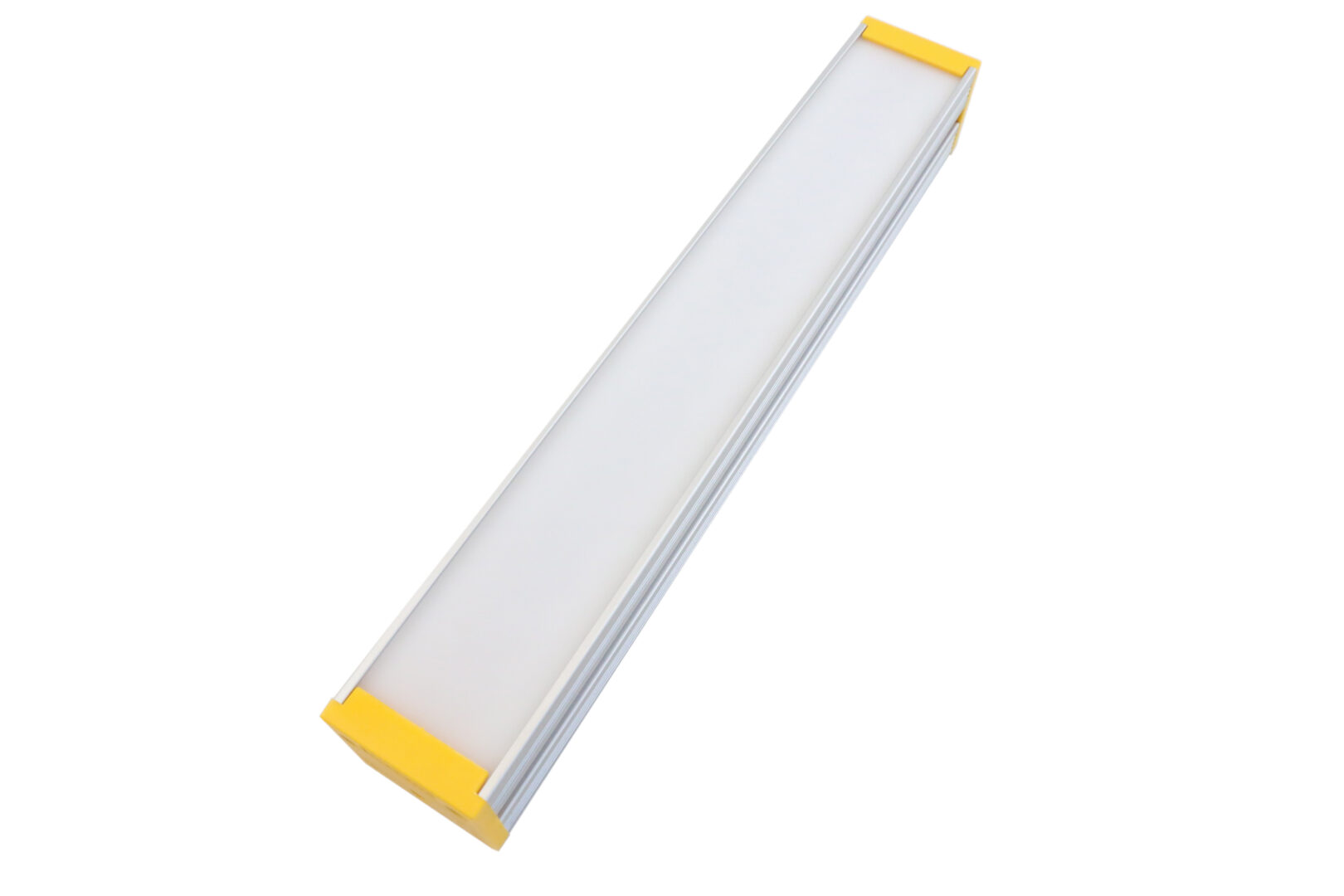

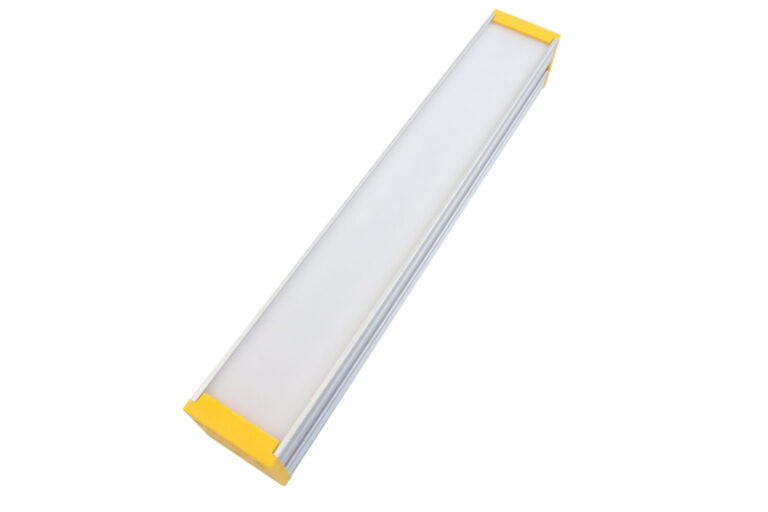

OP (Opaline)

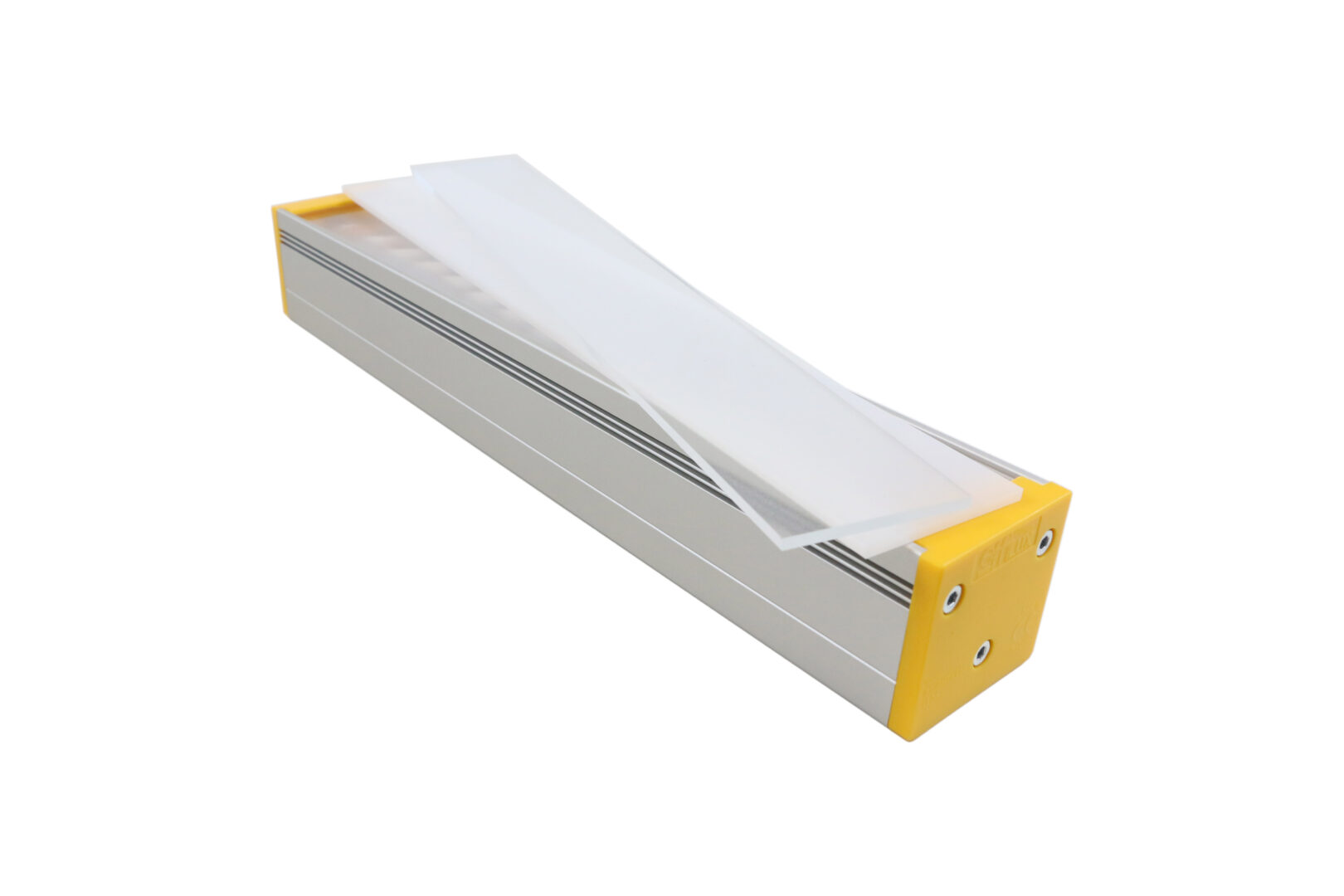

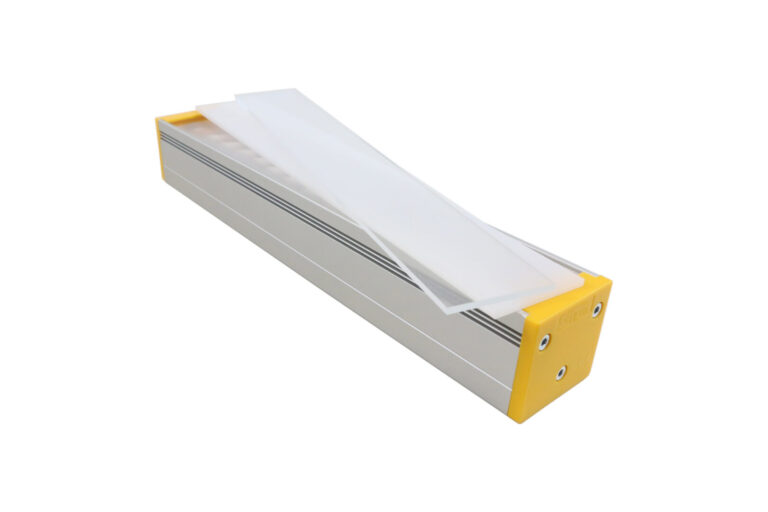

Kit (All diffusers)
PART NUMBER:
EFFI-FLEX2-XXXX-ZZZ-WWW...
EFFI-FLEX2 offers 4 lens configurations to choose the right emission angle, manually adjustable to change the emission angle.

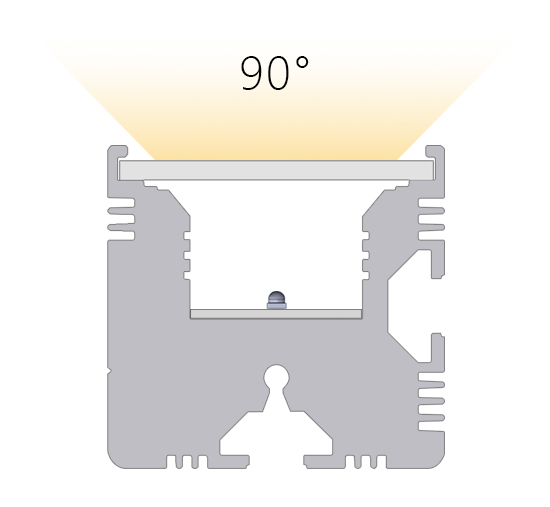

P0 : 90° (without lens)

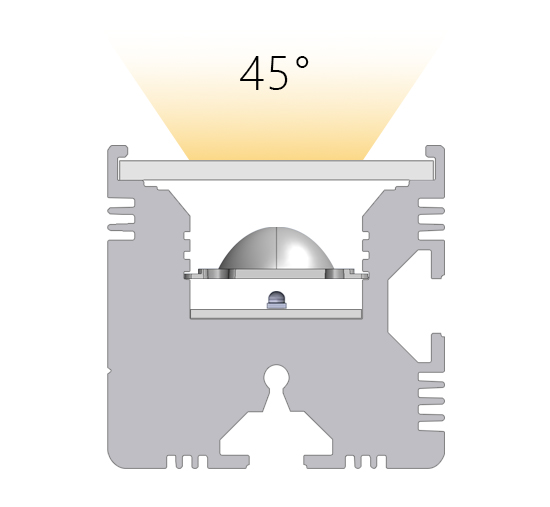

P1 : 45°
P2 : 25°

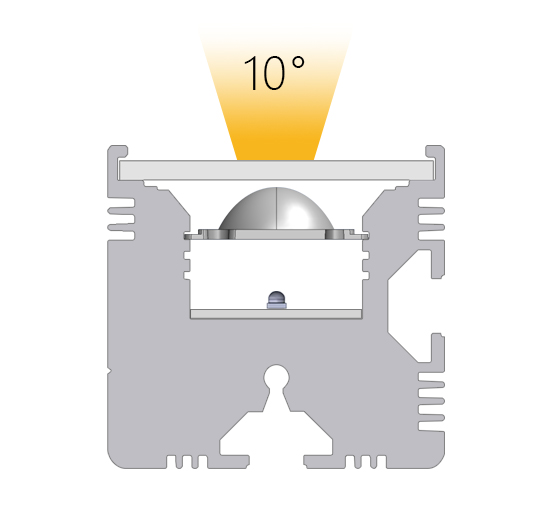

P3 : 10°
PART NUMBER:
EFFI-FLEX2-XXX-ZZZ-WW-PP…
The light will be delivered as a package including TR, SD and OP windows, and assembled in the default configuration with the lens plate positioned at P2 and the SD diffuser. Only available for sizes ≤ 800mm.
PART NUMBER:
EFFI-FLEX2-XXXX-ZZZ-KIT
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX2-XXXX-ZZZ-WW-PP-POL

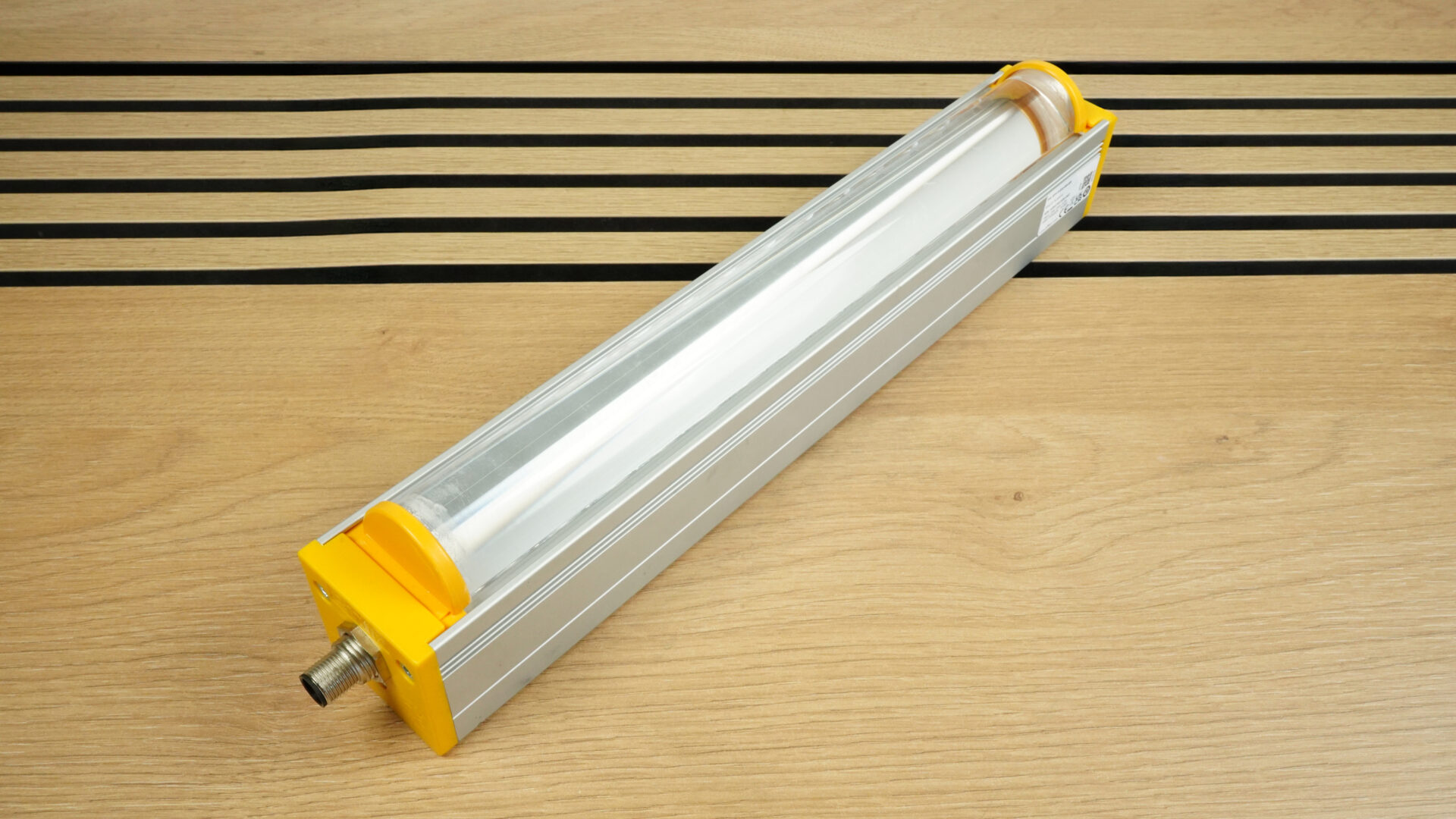

With the lens in the upper position, the Linescan accessory transforms the EFFI-FLEX2 light into a uniform line light ideal for either brightfield or darkfield illumination.
Possible to buy only the accessory. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX2-XXXX-ZZZ-TR-P3-LS

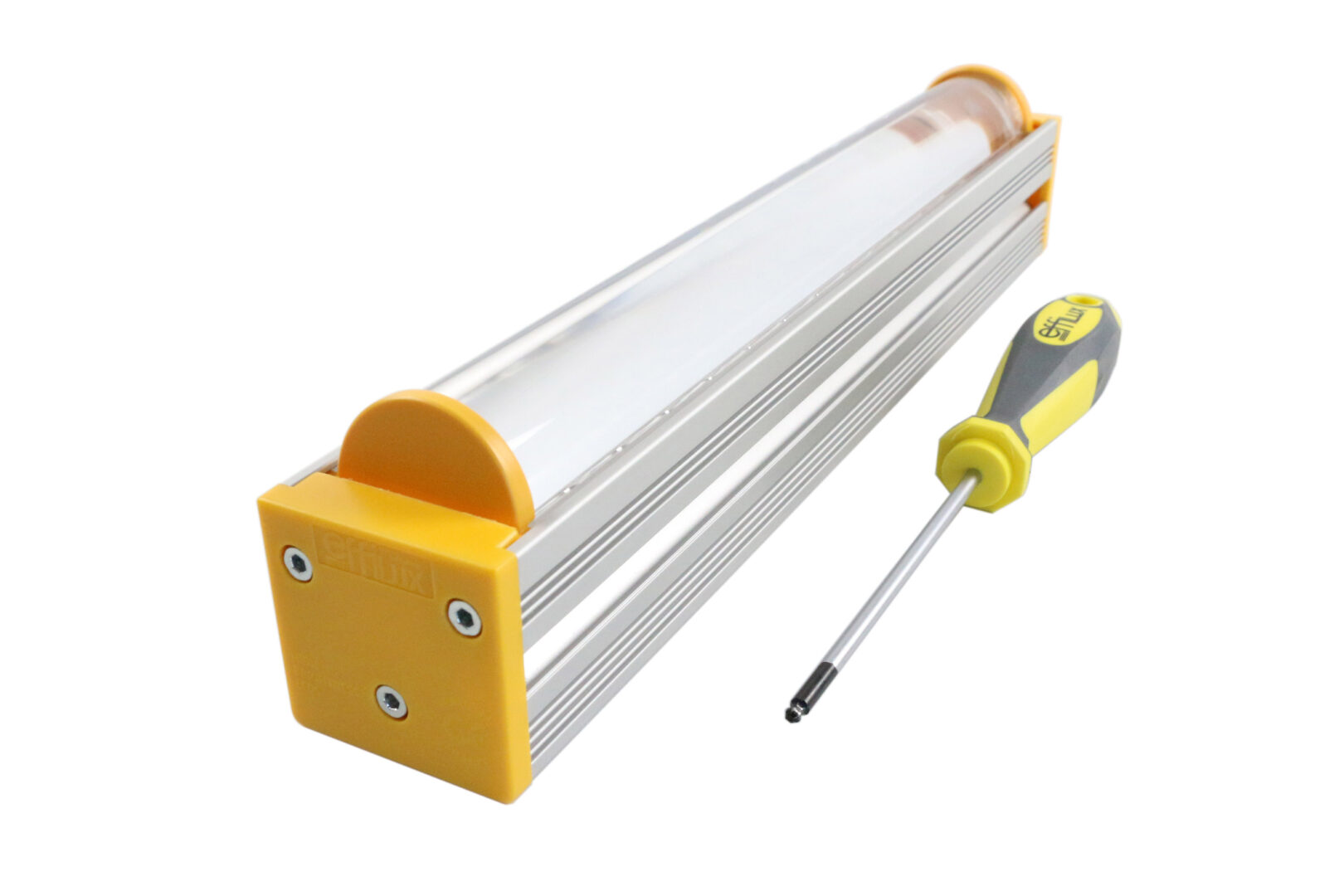

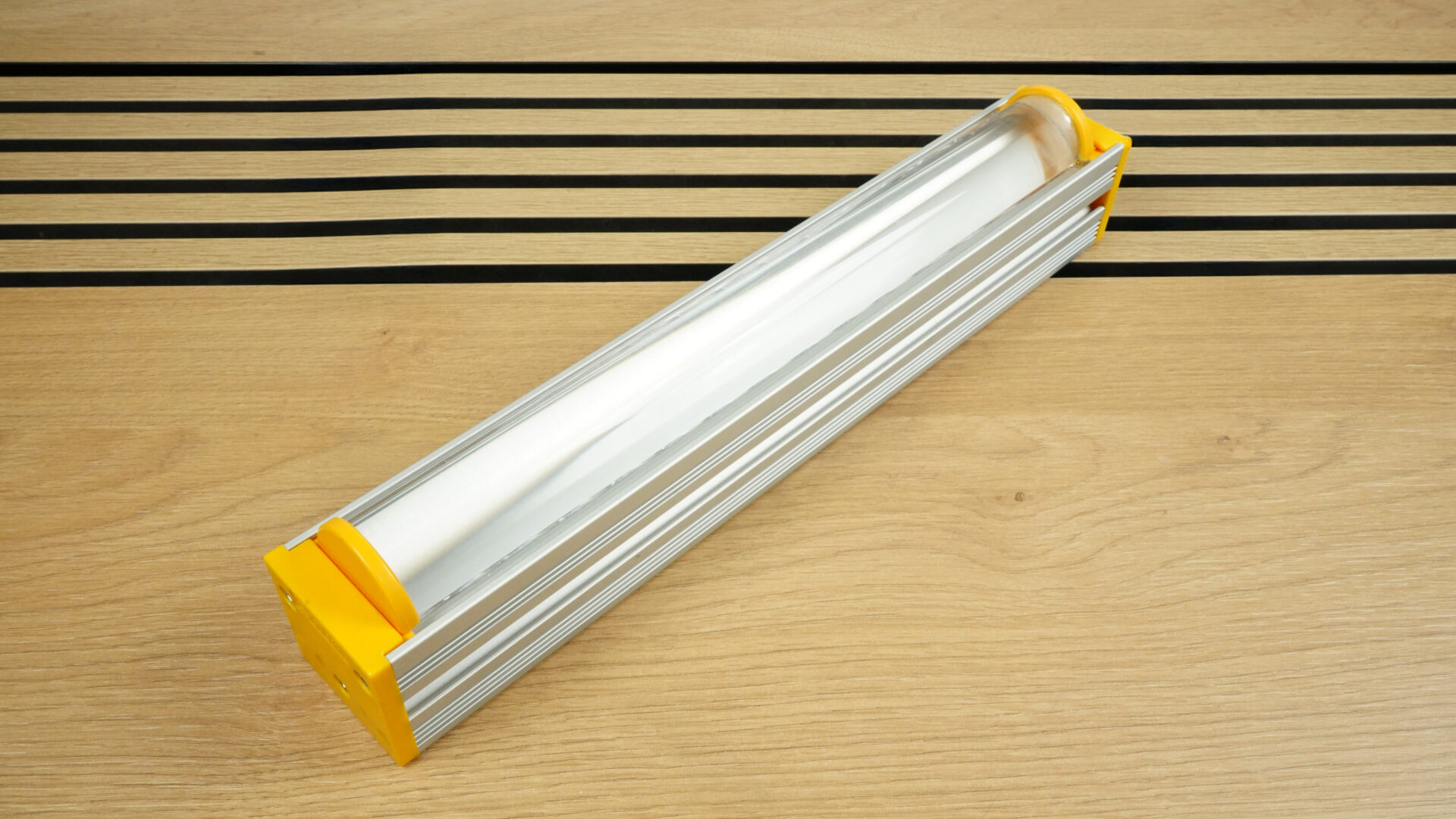

In addition to the linescan film, and with the internal lens in the lower postion, this optical system will focus the light even more into a very bright line.
Possible to buy only the accessory.
PART NUMBER:
EFFI-FLEX2-XXXX-ZZZ-TR-P1-LS-CYL

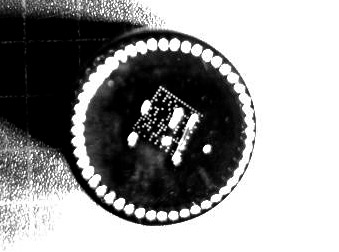

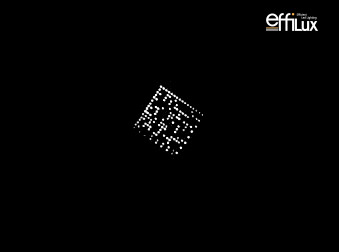

Innovative EFFILUX system that drastically improves the fluorescence effect while concurrently removing glare and improving contrast. Only for 365nm.
PART NUMBER:
EFFI-FLEX2-XXXX-365-TR-P0-PUV
Depending on how the EFFI-FLEX2 is wired, the user can access different operating mode:
Autostrobe* with 450% Overdrive intensity then 100% continuous
Adjustable Strobe with controlled intensity from 20% to 100%
Dimmable Continuous with controlled intensity from 20% to 100%
*: For the UV365nm wavelength, the overdrive is limited to 300%

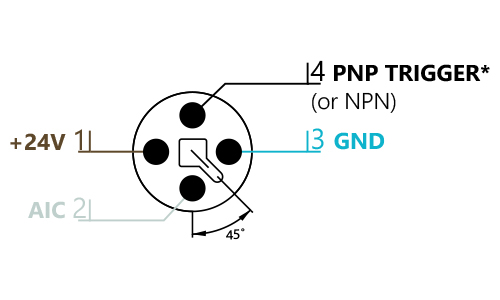

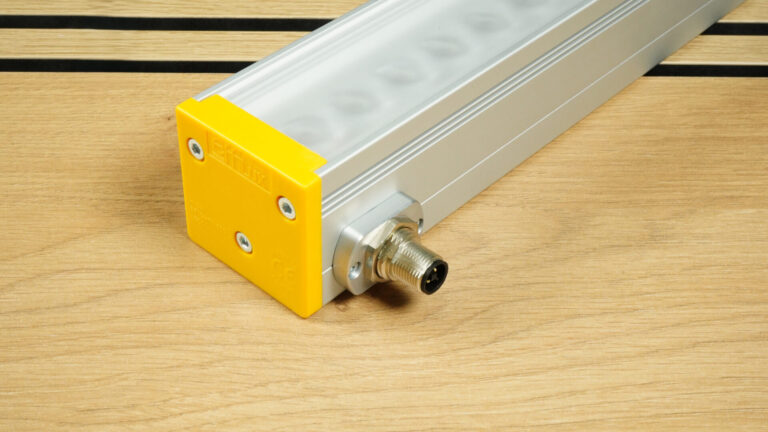

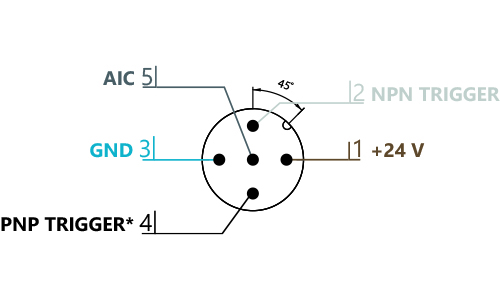

Depending on the size, the light comes with different connectors.
NB : For the 2M12P configuration, the second connector (black nut) only needs its 24V and GND to be connected. Connect the GND with the main connector GND.
1 LED every 40mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).
PART NUMBER:
EFFI-FLEX2-L2-XXXX-ZZZ-WW-PP...
1 LED every 10mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).
PART NUMBER:
EFFI-FLEX2-X2-XXXX-ZZZ-WW-PP...

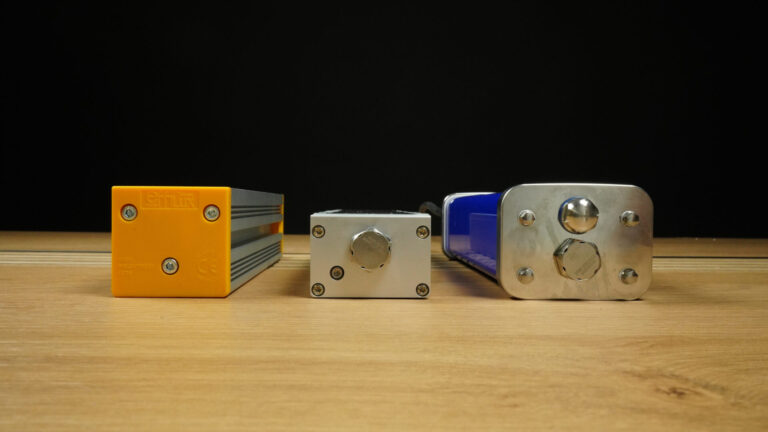

| MECHANICAL VERSIONS | Sealing | « Openable » body | Water cooling (for high power) | Smooth sections (anti-dust) | Food compliant |
| EFFI-FLEX2 |  |  |  | | |
| EFFI-FLEX2-IP67 |  | | | | |
| EFFI-FLEX2-IP69K |  | | | | |

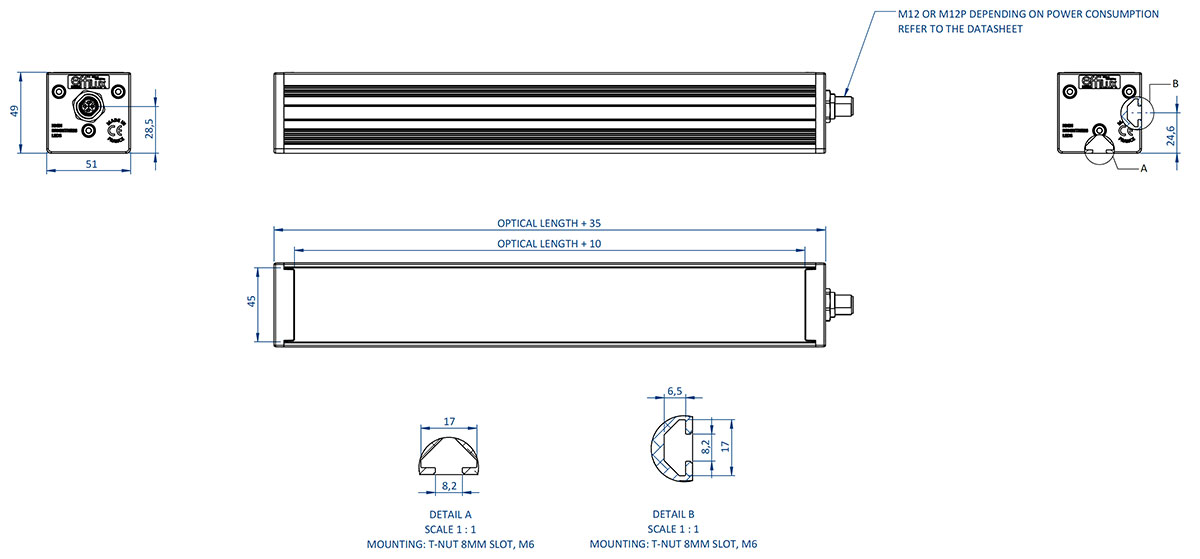

The EFFI-FLEX2 has two T-slots for 8mm T-nut, one on the back and one on the side of the extrusion. Two M6 T-nuts are included. See other compatible mounting solutions below.
For all other inquiries, please contact EFFILUX.
