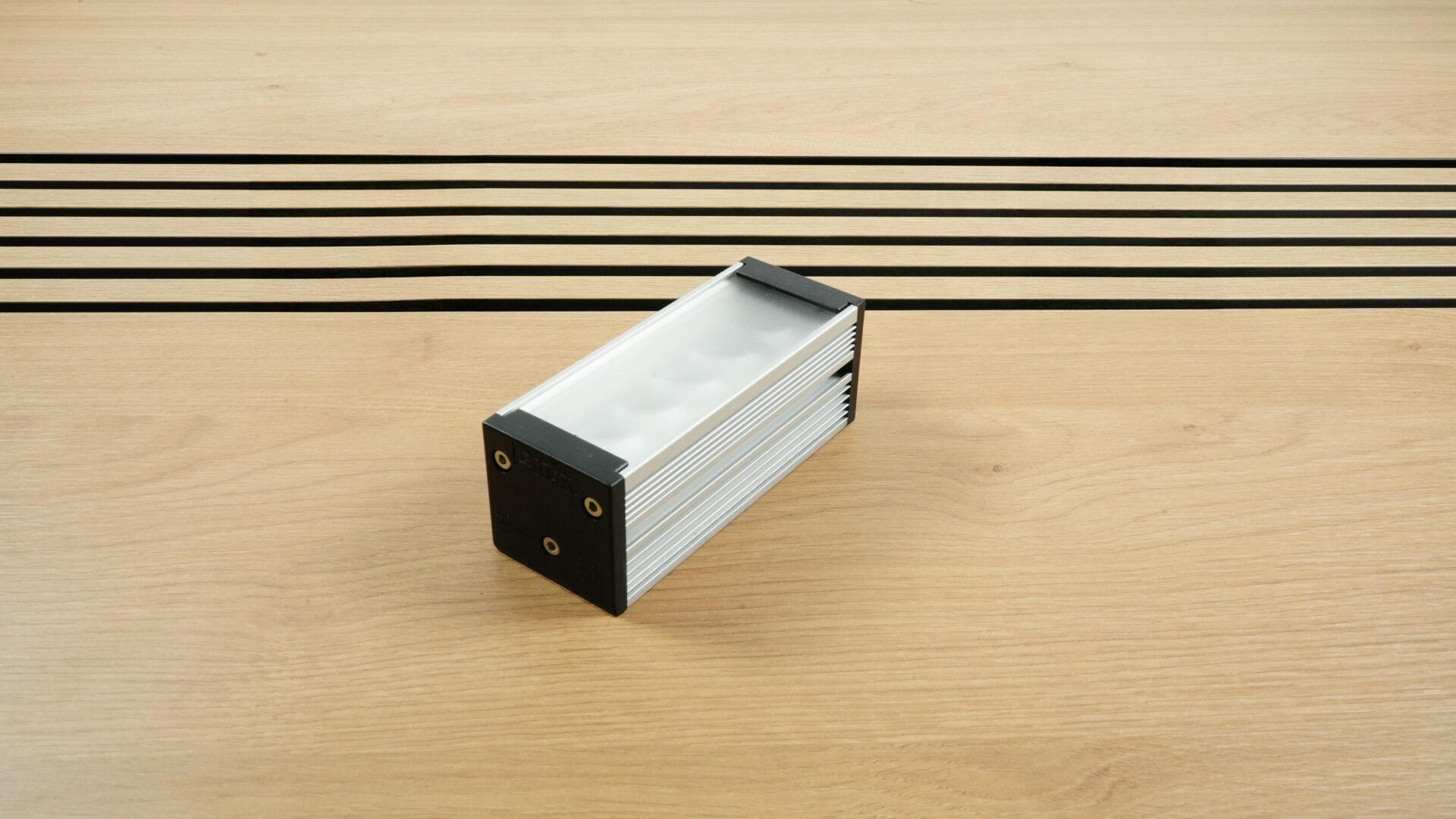

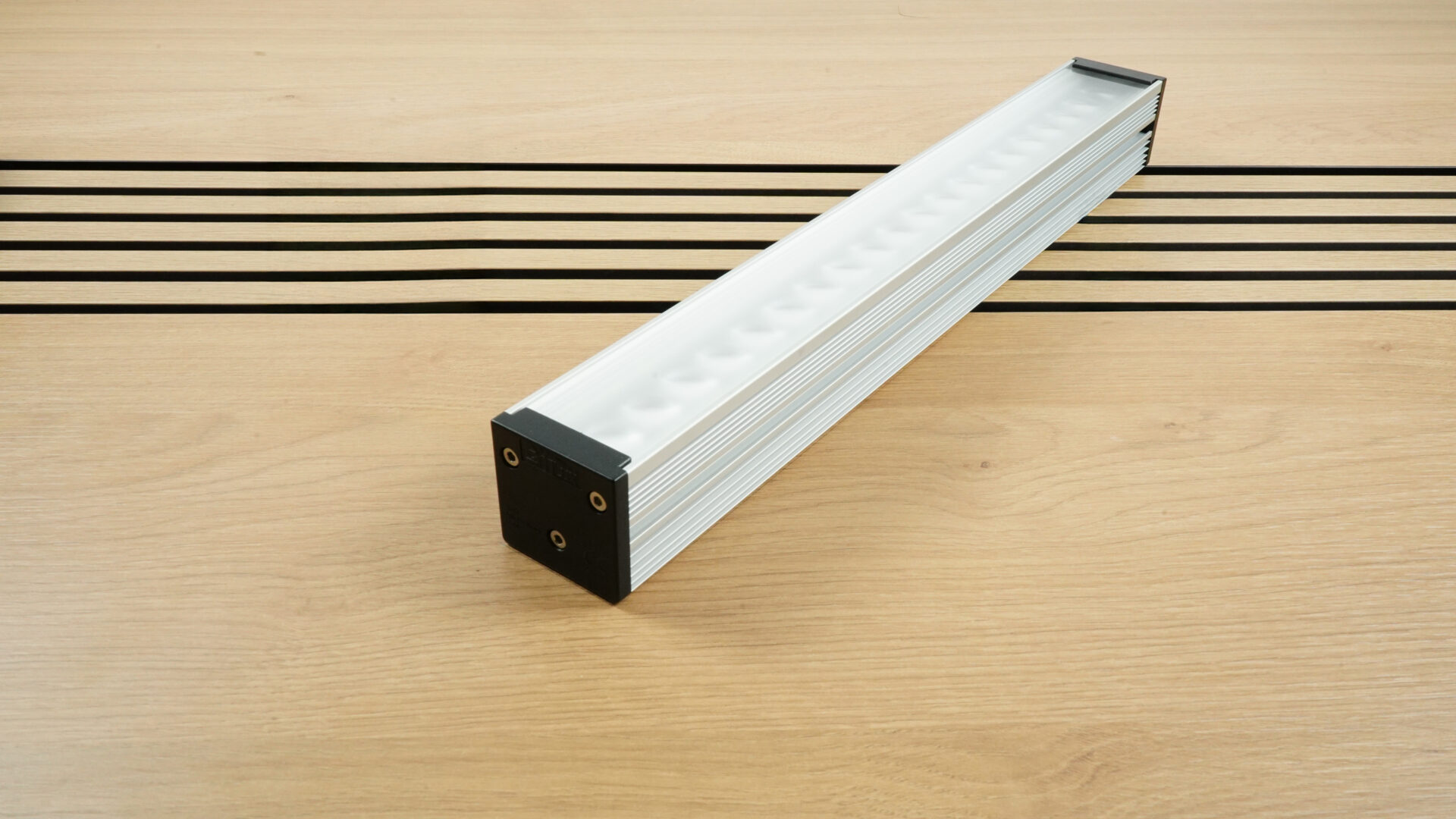

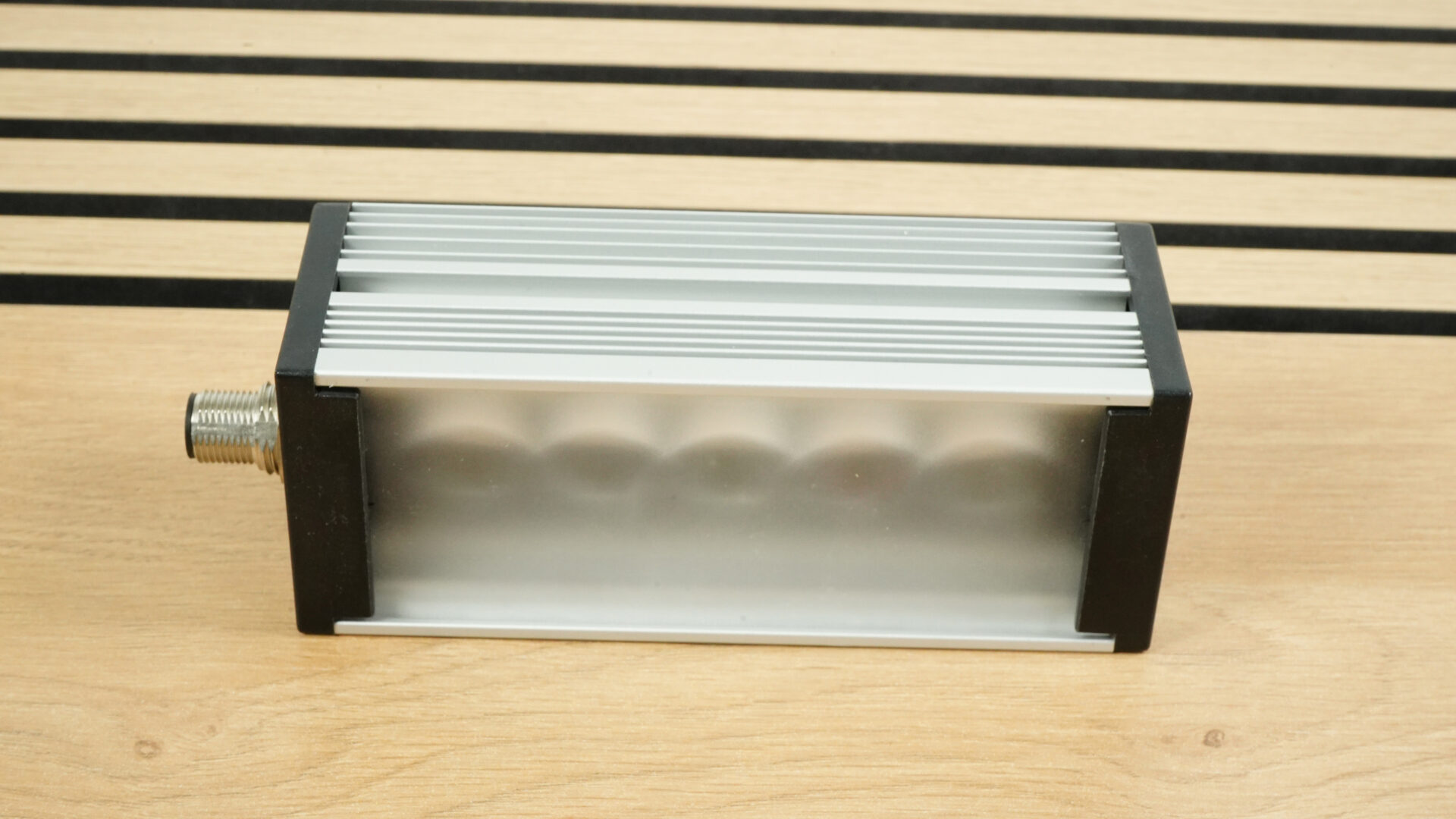

EFFI-FLEX-HSI

LED bar for hyperspectral analysis

The EFFI-FLEX-HSI is a high-performance hyperspectral illumination system designed to meet the most demanding industrial and scientific imaging requirements. Engineered for flexibility and precision, it delivers uniform, tunable lighting across a wide spectral range, enabling enhanced contrast and material differentiation. Whether you’re working in quality control, biomedical imaging, or advanced research, EFFI-FLEX-HSI empowers your vision systems with unmatched clarity and adaptability.

Datasheet
User Manual
Drawing
Step CAD
EFFILUX offers different types of interchangeable windows to supply a good compromise between power and uniformity according to the requirements and material of the inspection. The light can also be delivered as a kit, including all diffuser. See details on the option below.

TR (Transparent)

SD (Semi-diffuse)

OP (Opaline)

KIT (All diffusers)

PART NUMBER:

EFFI-FLEX-HSI-XXX-WW…

EFFI-FLEX-HSI offers 4 lens configurations to choose the right emission angle, manually adjustable to change the emission angle.

P0 : 75° (without lens)

P1 : 45°

P2 : 25°

P3 : 10°

PART NUMBER:

EFFI-FLEX-HSI-XXX-WW-PP…

KIT with all diffuser
The light will be delivered as a package including TR, SD and OP windows, and assembled in the default configuration with the lens plate positioned at P2 and the SD diffuser. Only available for sizes ≤ 40LED.

PART NUMBER:

EFFI-FLEX-HSI-XXX-ZZZ-KIT

Polarizer
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
View accessory

PART NUMBER:

EFFI-FLEX-HSI-XXX-TR-PP-POL2

Before
Linescan
With the lens in the upper position, the Linescan accessory transforms the EFFI-FLEX-HSI light into a uniform line light ideal for either brightfield or darkfield illumination.

PART NUMBER:

EFFI-FLEX-HSI-XXX-TR-P3-LS

View accessory
Before

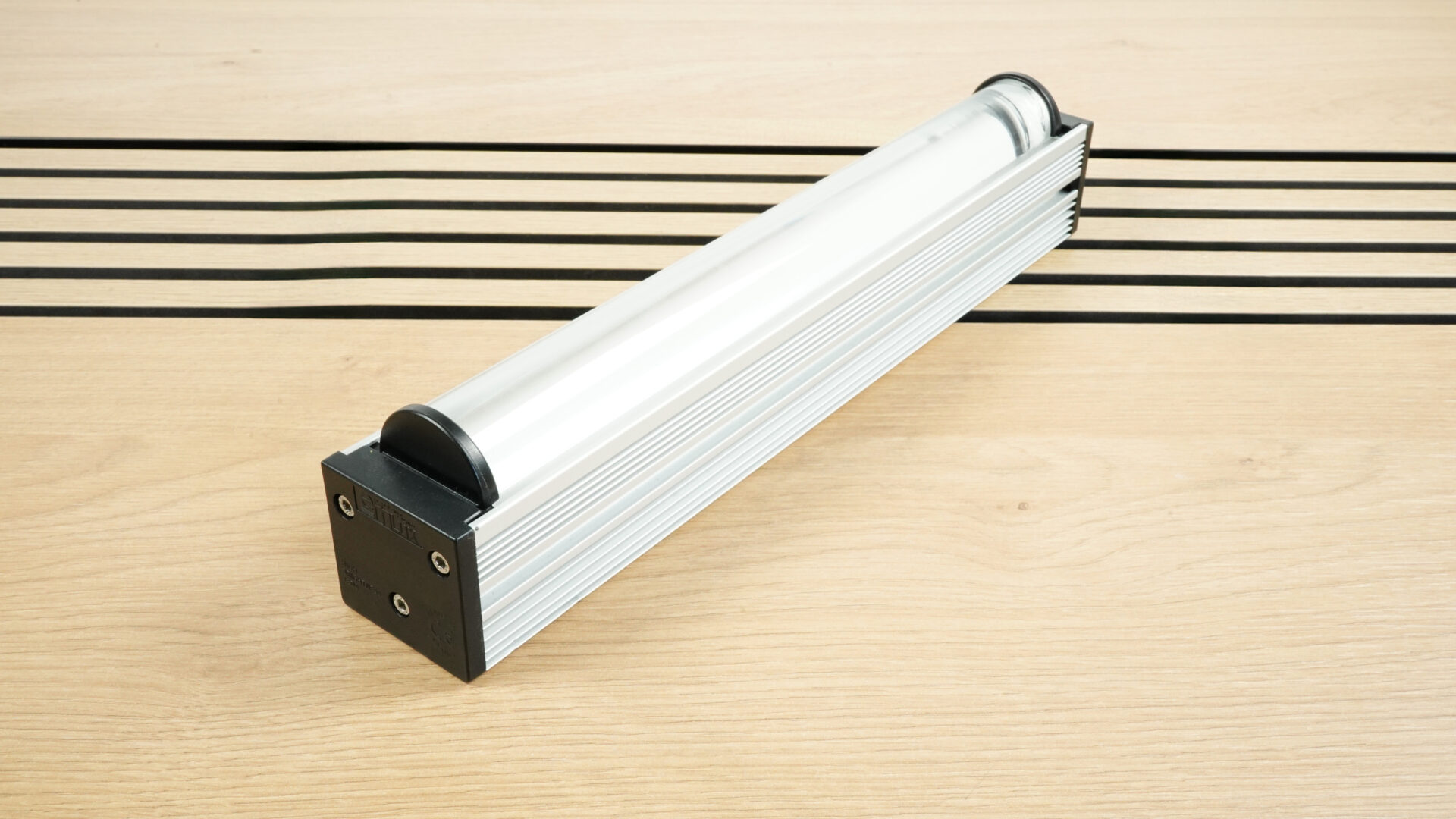

Cylindrical lens
Focus the light, into a very bright line. Classic configuration with linescan accessory and lens in position P1.

PART NUMBER:

EFFI-FLEX-HSI-XXX-TR-P1-LS-CYL

Extended spectrum version
X2: twice more LEDs. / ELS: AIC version only / UUU: adjustment range of the AIC (24V, 10V or 5V).

PART NUMBER:

EFFI-FLEX-HSI-X2-XXX-910-970-WW-PP-ELS-UUU

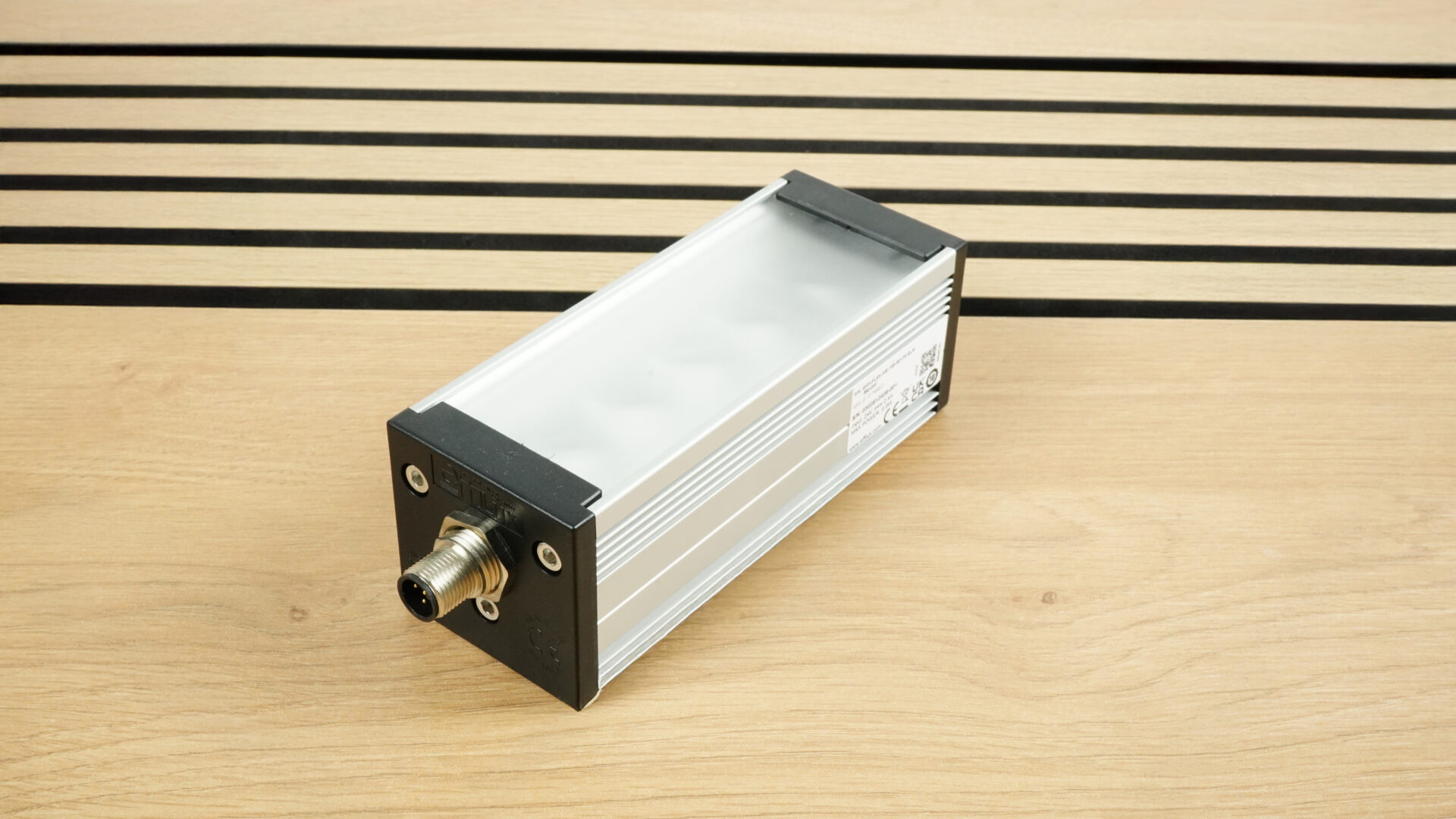

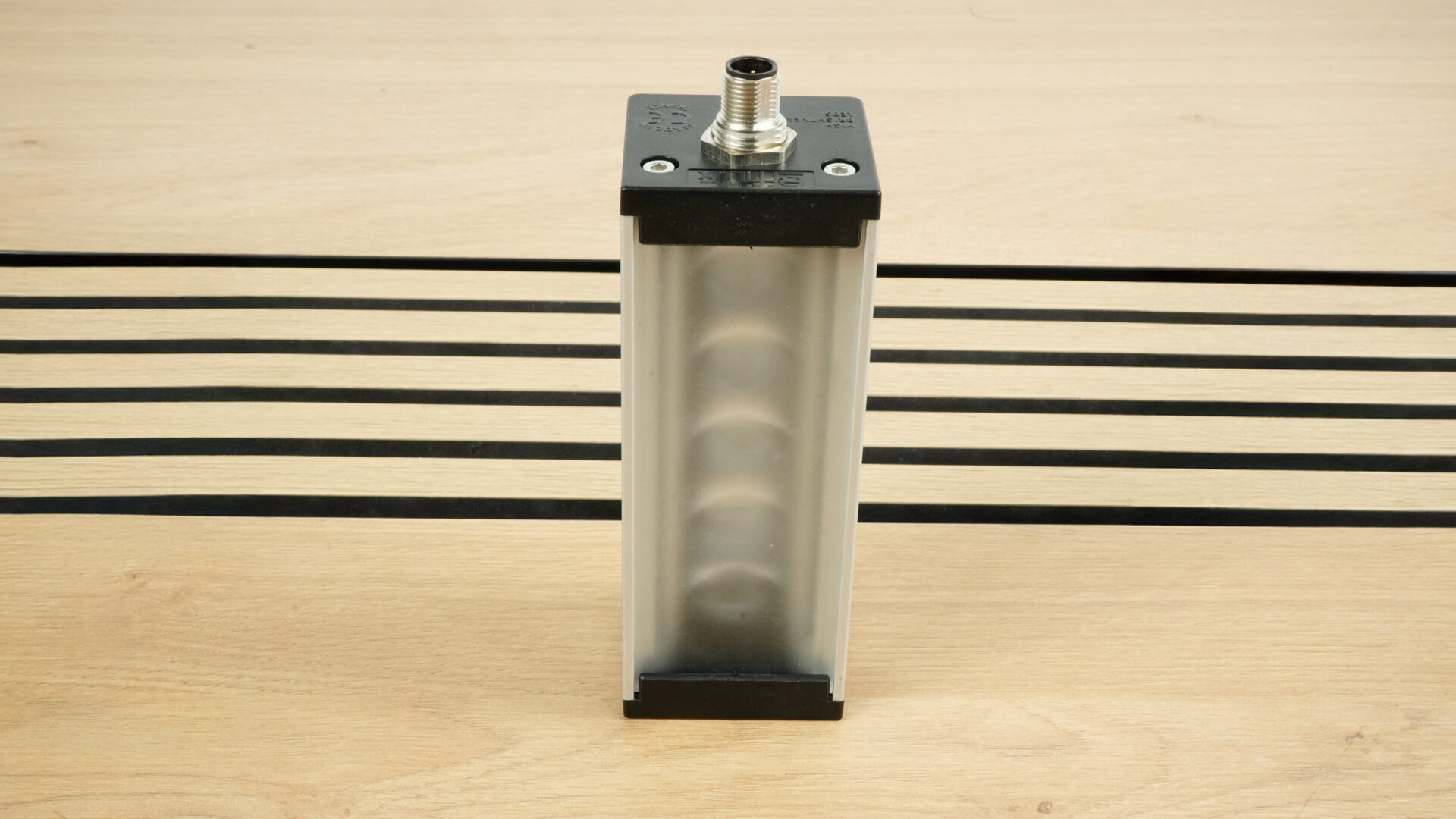

General pinout: Depending on the size, the light comes with different connectors.

View Datasheet

The standard product (AutoStrobe) is not dimmable, EFFILUX offers an alternative electronic configuration suitable for continuous use and linear applications. This ELS driver version allows you to adjust the light intensity of the product according to the input signal: AIC Version (Analog Intensity Control).

The wiring layout of the AIC version is similar to the standard wiring layout. The signal input (PNP trigger in the standard version) has to be replaced by the Analog Intensity Control signal in order to adjust the light intensity.

Windows
Interchangeable windows
Polarizers
Polarizers for EFFILUX lights
Light mounting solutions
Mechanical accessories for EFFILUX lighting
EFFI-CABLES
Cables for EFFILUX products and accessories
EFFI-PWR
Power supplies for EFFILUX lighting systems

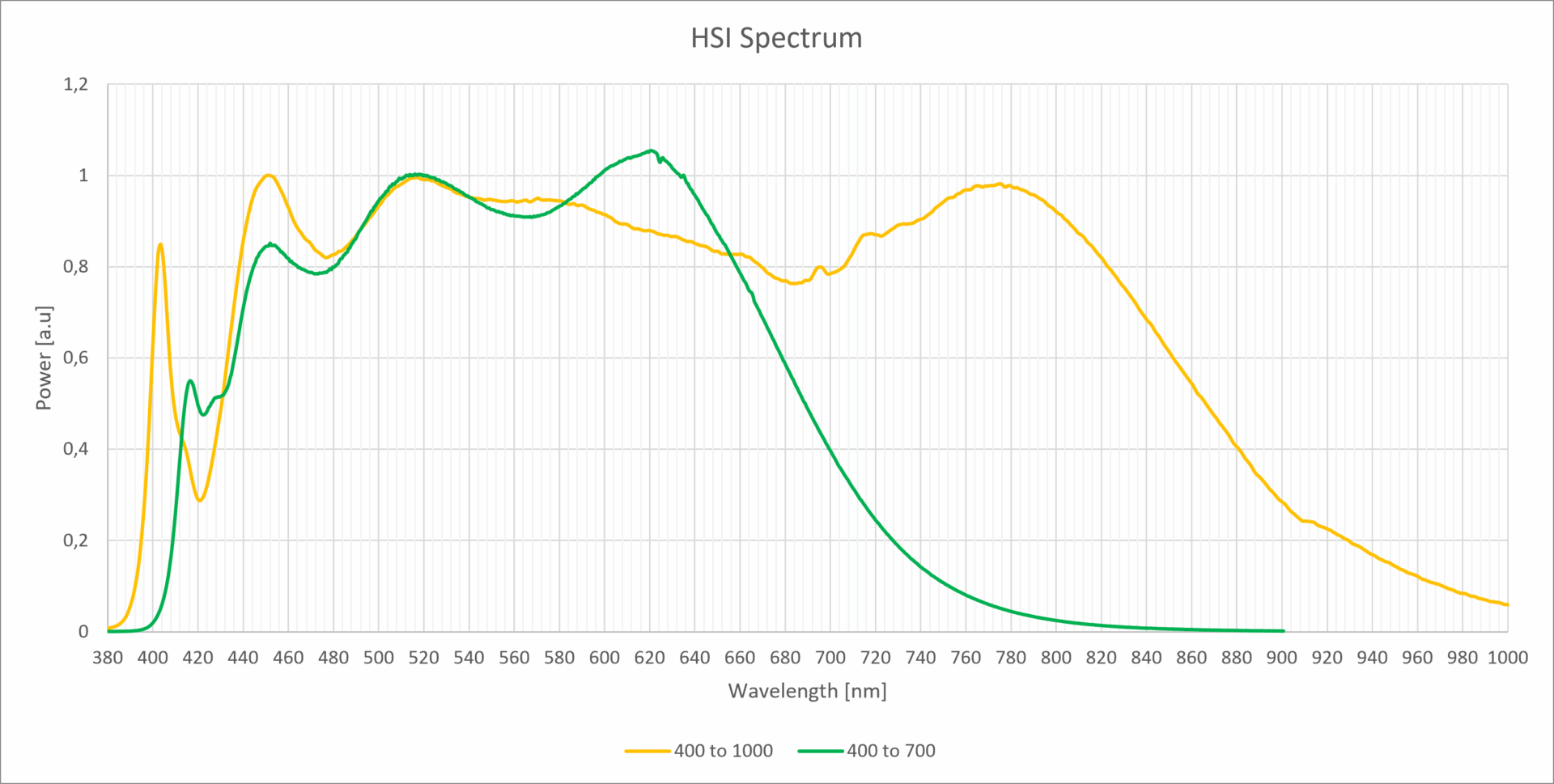

Other spectrum

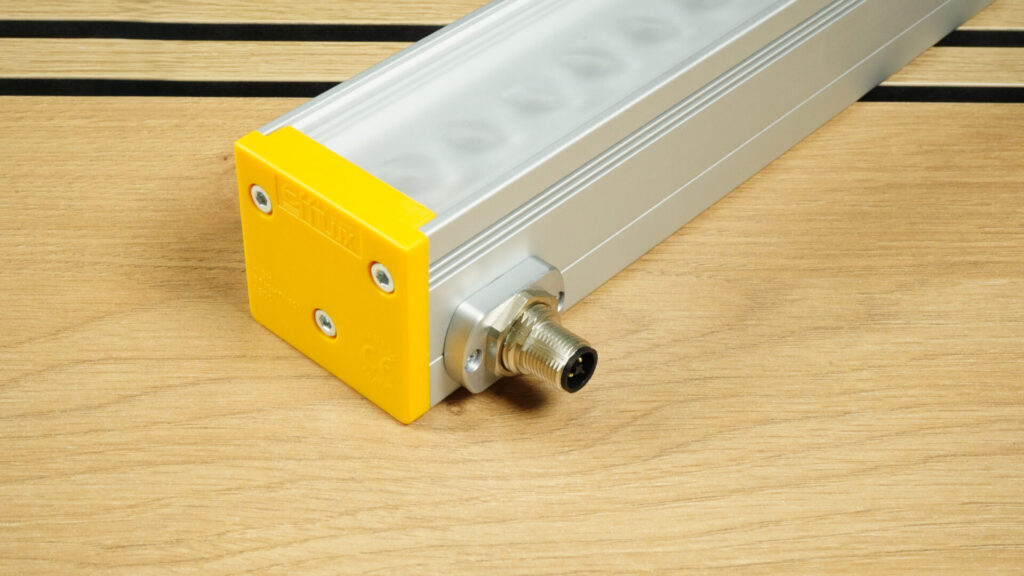

Other positions of connectors
Multispectral SWIR

For all other inquiries, please contact EFFILUX.
