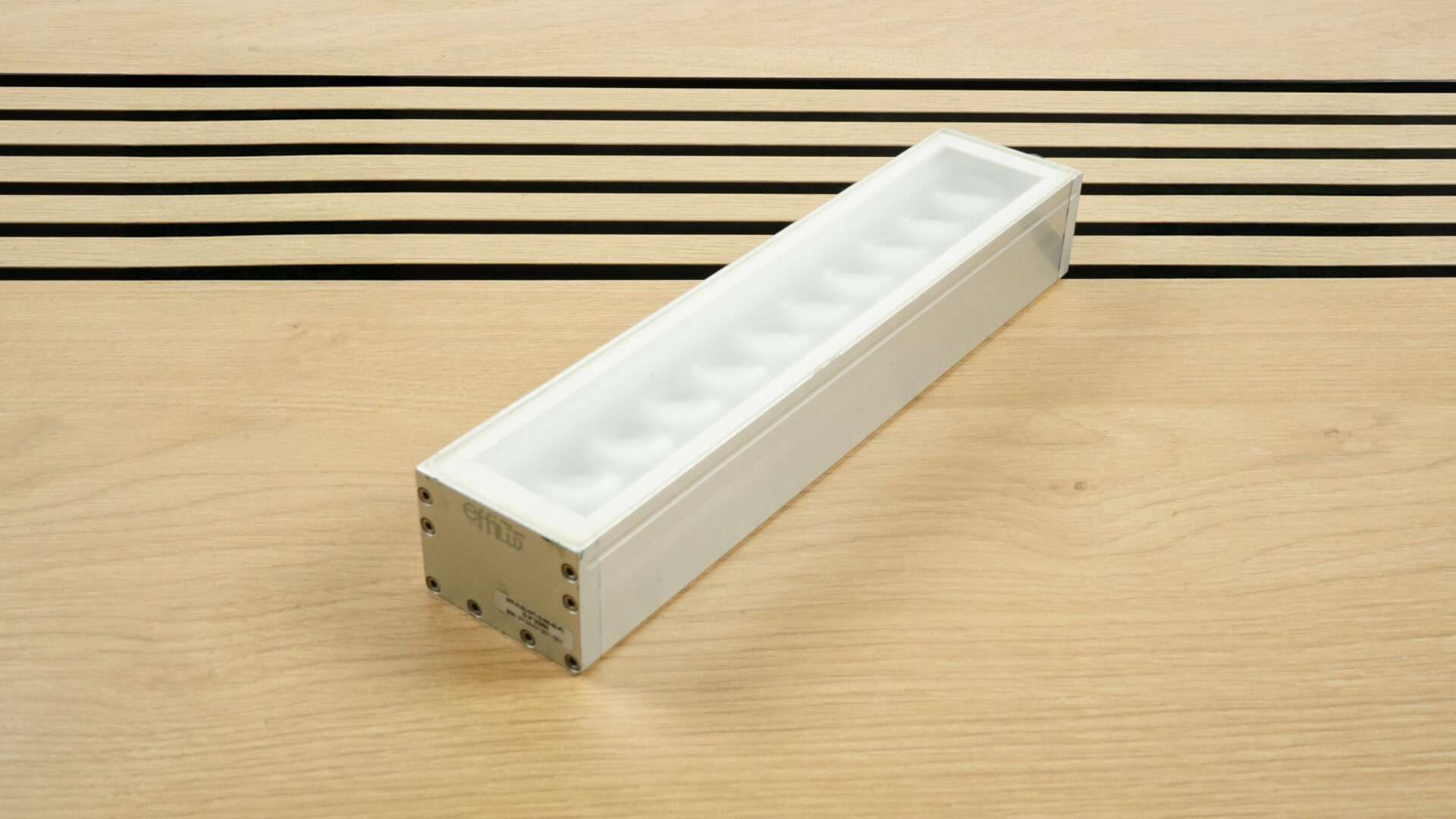

EFFI-FLEX-CPT

Compact, IP67-rated waterproof LED bar

The EFFI-FLEX-CPT is a compact, high-power LED bar light based on the proven EFFI-FLEX design, now enhanced with IP67 protection for use in harsh industrial environments.

This powerful and versatile lighting solution is available in a wide range of wavelengths and window options. Its rugged, space-saving design makes it easy to install in tight or demanding setups. The integrated driver includes AutoStrobe functionality, enabling up to 300% increased brightness in overdrive mode compared to continuous operation.

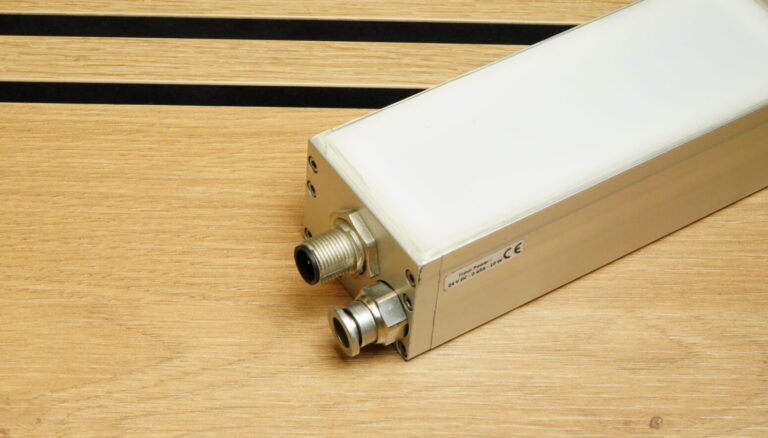

With its sealed IP67-rated housing, the EFFI-FLEX-CPT is fully protected against dust and water ingress. Optional water cooling is available for high-power configurations, ensuring optimal thermal performance. Ideal for machine vision, robotics, logistics, and inspection systems, the EFFI-FLEX-CPT delivers reliable, adaptable illumination in even the most challenging environments.

Datasheet

User Manual

Drawing

Step CAD

Optical length

Number of LED	1	3	5	10	15	20	25	30	35	40	45	50	55	60	65	70	75	80	85	90	95	100	105	110	115	120	125	130	135	140	145
Length of the product (mm)	57	97	137	237	337	437	537	637	737	837	937	1037	1137	1237	1337	1437	1537	1637	1737	1837	1937	2037	2137	2237	2337	2437	2537	2637	2737	2837	2937

PART NUMBER:

EFFI-FLEX-CPT-XXX…

Available wavelength

Wavelength (nm)

● 365 (UV)

● 405 (UV)

● 465 (Blue)

● 525 (Green)

● 625 (Red)

● 850 (Infrared)

○ 000 (White)

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ…

SWIR (nm)

1050

1200

1300

1450

1550

1650

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZZ…

Windows

EFFILUX offers different types of interchangeable windows to supply a good compromise between power and uniformity according to the requirements and material of the inspection.

TR (Transparent)

SD (Semi-diffuse)

OP (Opaline)

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-WW…

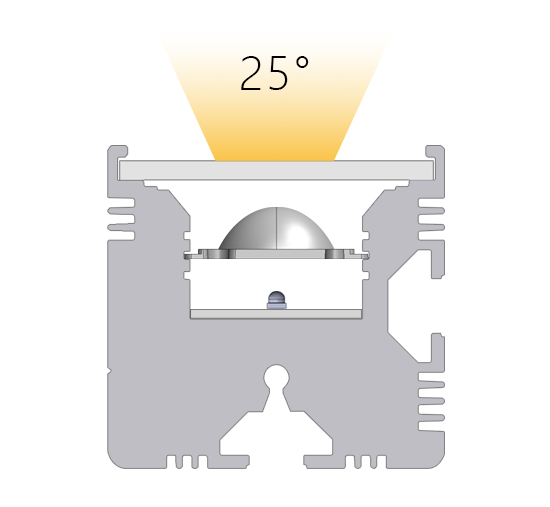

Emission angle

EFFI-FLEX-CPT accepts 4 lens configurations to adjust the emission angle to your need.

P0 : 90° (without lens)

P1 : 45°

P2 : 25°

P3 : 10°

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-WW-PP…

Optical options

Polarizer

Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.

Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-WW-PP-POL

Linescan

With the lens in the upper position, the Linescan accessory transforms the EFFI-FLEX2 light into a uniform line light ideal for either brightfield or darkfield illumination.

Possible to buy only the accessory. Not compatible with the UV365 wavelength.

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-TR-P3-LS

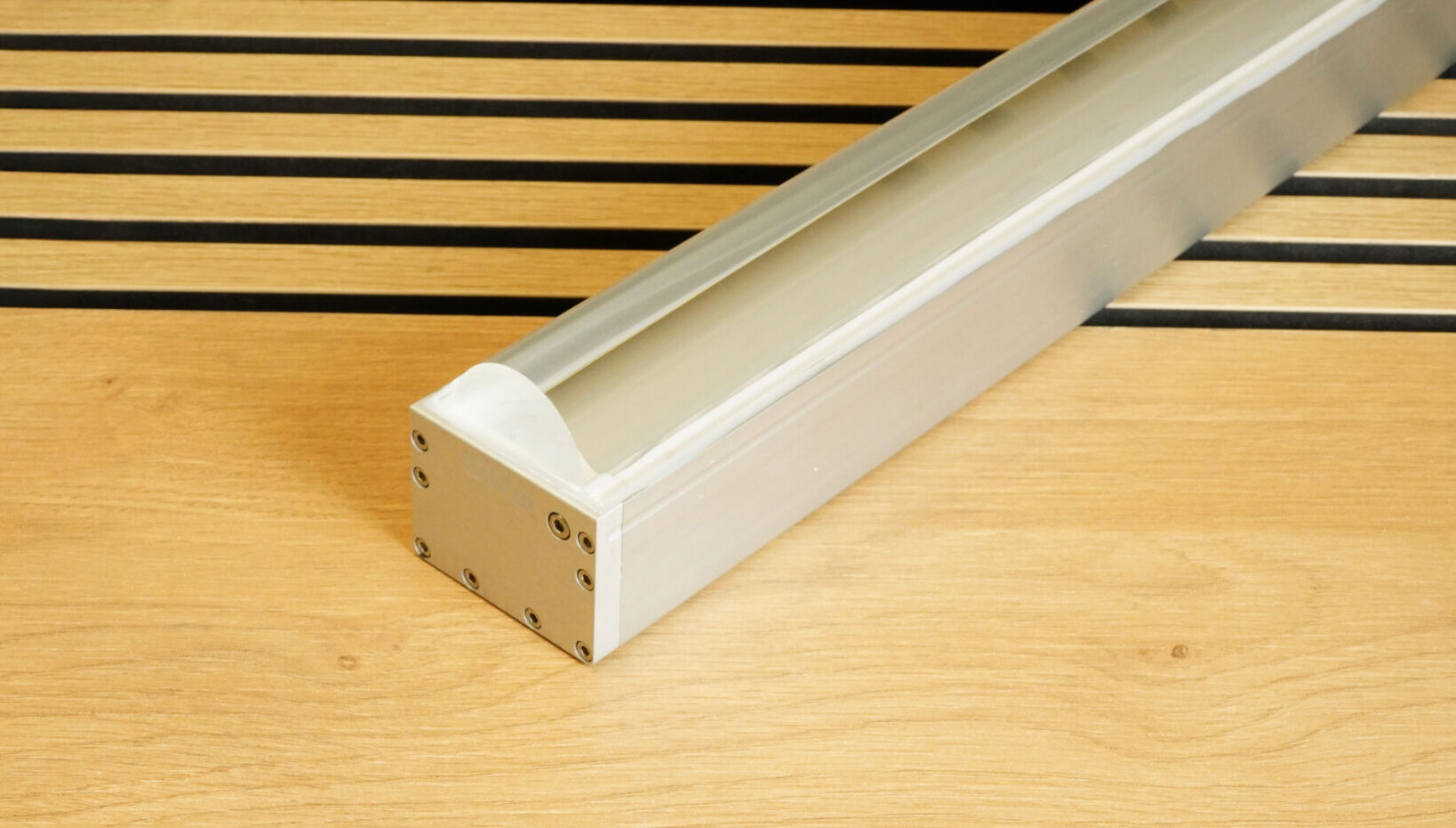

Cylindrical Lens

In addition to the linescan film, and with the internal lens in the lower postion, this optical system will focus the light even more into a very bright line.

Possible to buy only the accessory.

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-TR-P1-LS-CYL

Pure UV

Innovative EFFILUX system that drastically improves the fluorescence effect while concurrently removing glare and improving contrast. Only for 365nm.

PART NUMBER:

EFFI-FLEX-CPT-XXX-365-TR-P0-PUV

SWIR

Extension of the existing visible wavelengths to reach the Short Wave Infrared spectrum.

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZZ-WW-PP (ZZZZ: SWIR wavelength)

RGB

RGB: Red, Green, Blue LED alternated

PART NUMBER:

EFFI-FLEX-CPT-XXX-RGB-WW-PP

WUI

WUI: White, UV, Infrared LED alternated

PART NUMBER:

EFFI-FLEX-CPT-XXX-WUI-WW-PP

Electronic modes

Standard version : Autostrobe driver

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-WW-PP

Dimmable version : ELS driver

PART NUMBER:

EFFI-FLEX-CPT-XXX-ZZZ-WW-PP-ELS-VVV-UUU
NB: VVV refers to the intensity current sent per LED 350/500/700/1000 and UUU refers to the ELS control ranges see below.

General Pinout

Depending on the size, the light comes with different connectors.

(*) : For the dimmable version, replace PNP by AIC.

ELS Control Ranges

Standard 0-24V

PART NUMBER:

(...) ELS-VVV-24V

Inverted 0-24V

PART NUMBER:

(...) ELS-IN-VVV-24V

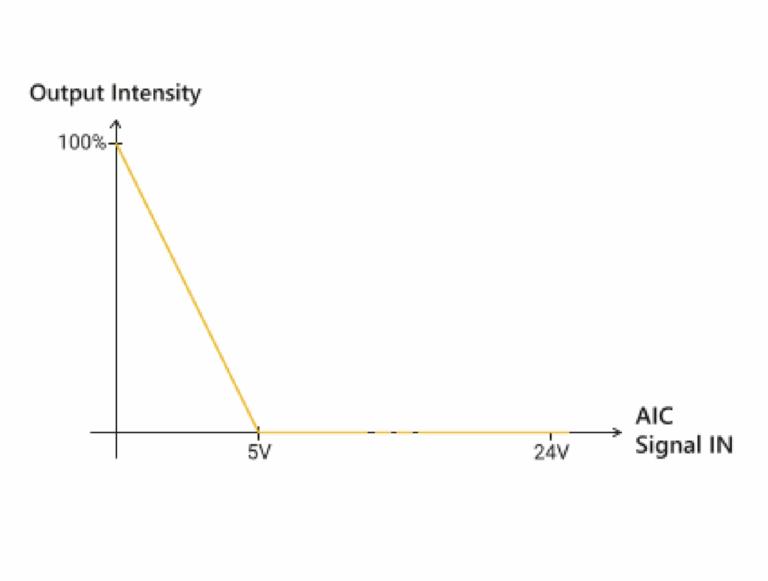

Inverted 5-0V

PART NUMBER:

(...) ELS-IN-VVV-5V

Options

L2 : Economical version

1 LED every 40mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).

PART NUMBER:

EFFI-FLEX-CPT-L2-XXX-ZZZ-WW-PP

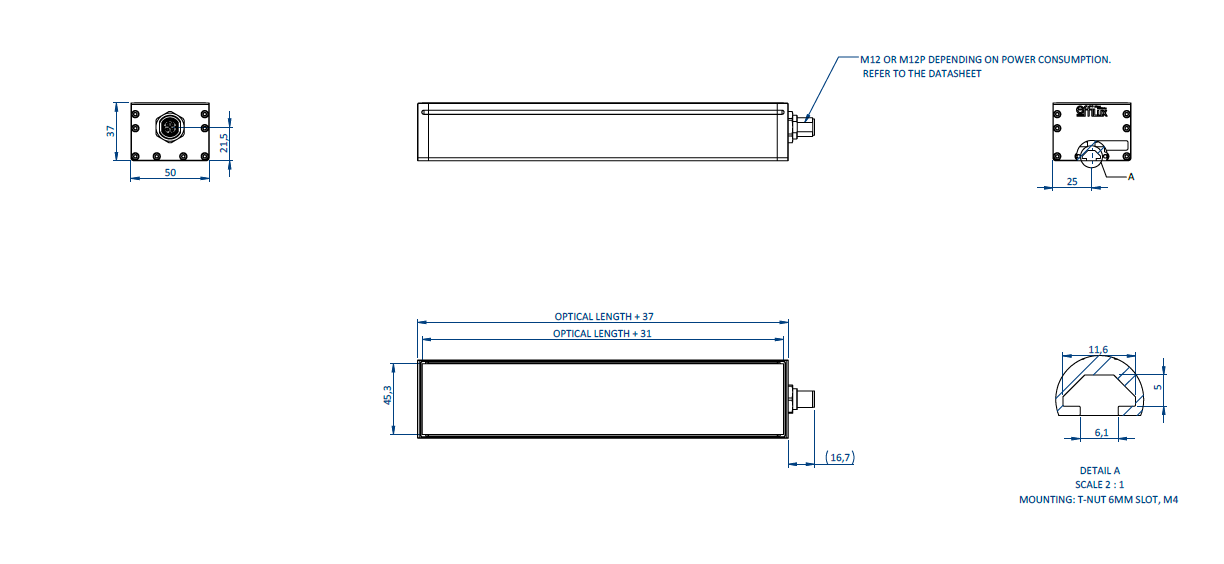

Drawing

Mechanical versions

EFFI-FLEX MECHANICAL VERSIONS	Sealing	« Openable » body	Water cooling (for high power)	Smooth walls (Anti-dust)	Food option
EFFI-FLEX
EFFI-FLEX-CPT
EFFI-FLEX-IP69K
