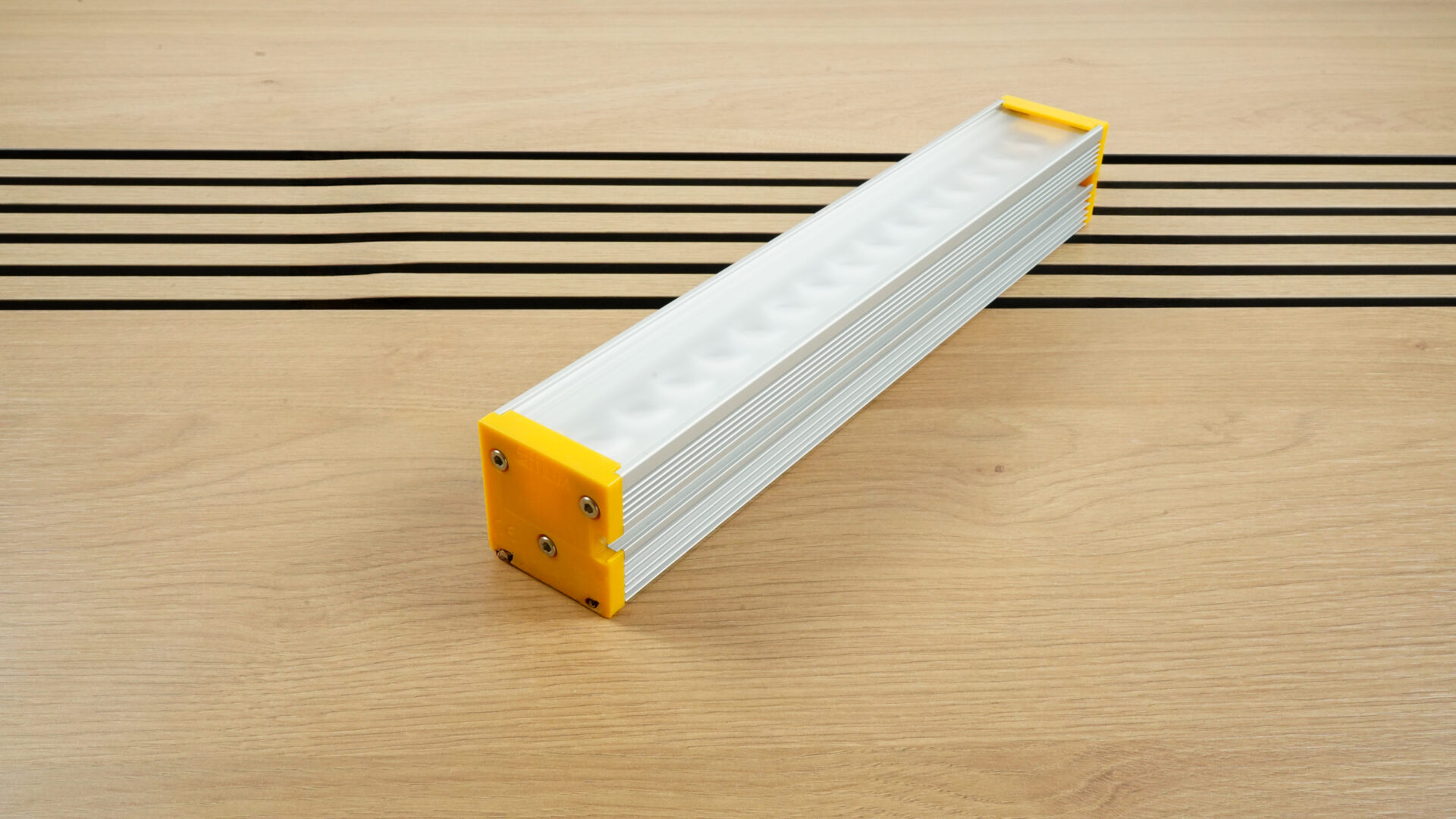

The EFFI-FLEX is a high-performance LED bar designed for industrial applications requiring adaptable and precise lighting. Featuring high-power LEDs and adjustable lens positions, it delivers multiple lighting configurations in a single compact solution.
Available in a wide range of colors, the EFFI-FLEX is easy to integrate thanks to its slim industrial profile. With interchangeable diffusers and optical accessories, it supports direct, low-angle, or diffused illumination—ideal for machine vision, robotics, logistics, and inspection systems.
Its optical flexibility allows users to fine-tune the beam angle from 90° to 10°, balancing intensity, coverage, and uniformity. The integrated controller includes in standard configuration an AutoStrobe mode, boosting brightness by up to 300% in strobe mode compared to continuous operation. Built with a robust housing, the EFFI-FLEX is engineered for reliable performance in harsh industrial environments.
| Number of LED | 1 | 3 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 | 130 | 135 | 140 | 145 |
| Length of the product (mm) | 55 | 95 | 135 | 235 | 335 | 435 | 535 | 635 | 735 | 835 | 935 | 1035 | 1135 | 1235 | 1335 | 1435 | 1535 | 1635 | 1735 | 1835 | 1935 | 2035 | 2135 | 2235 | 2335 | 2435 | 2535 | 2635 | 2735 | 2835 | 2935 |
PART NUMBER:
EFFI-FLEX-XXX…

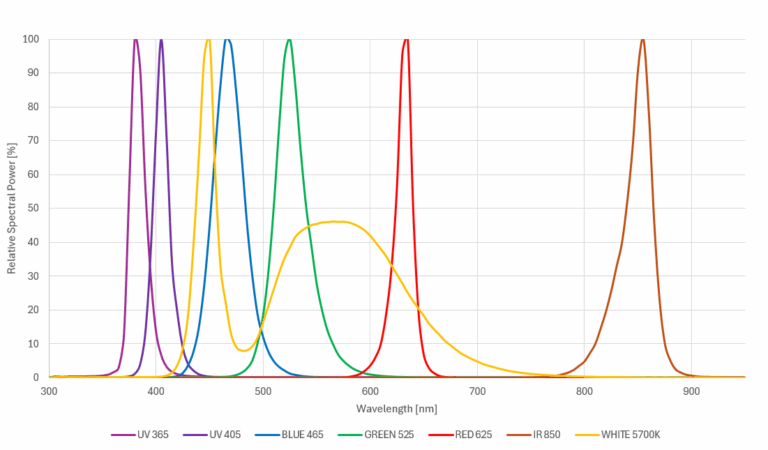

| Wavelength (nm) | ● 365 (UV) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-FLEX-XXX-ZZZ…

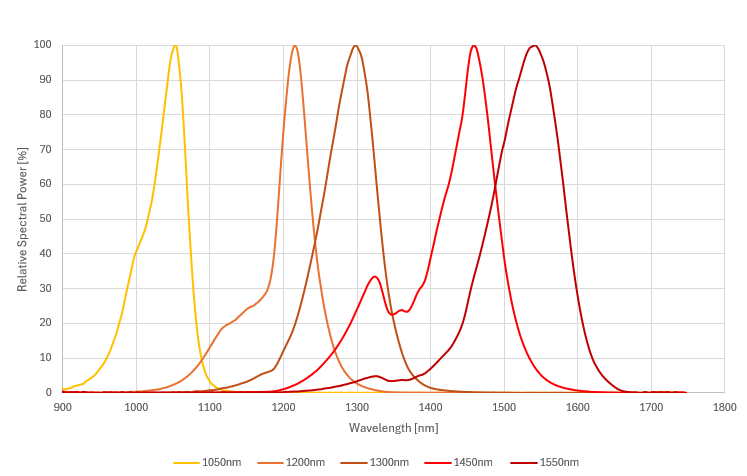

| SWIR (nm) | 1050 | 1200 | 1300 | 1450 | 1550 | 1650 |
PART NUMBER:
EFFI-FLEX-XXX-ZZZZ…

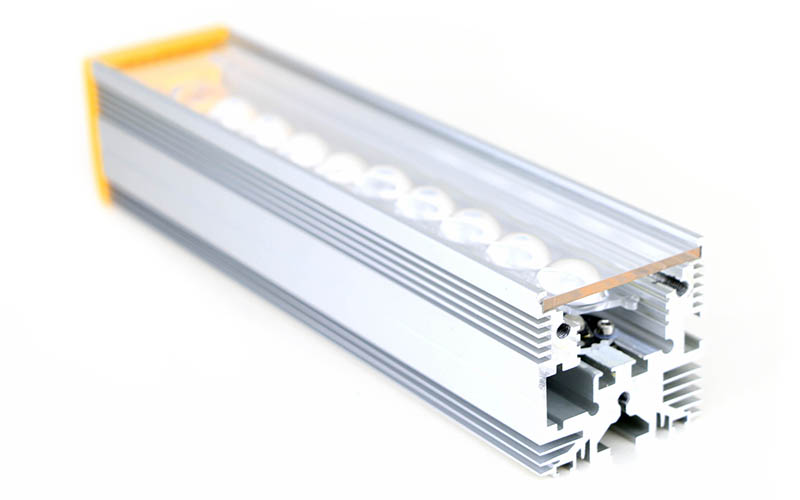

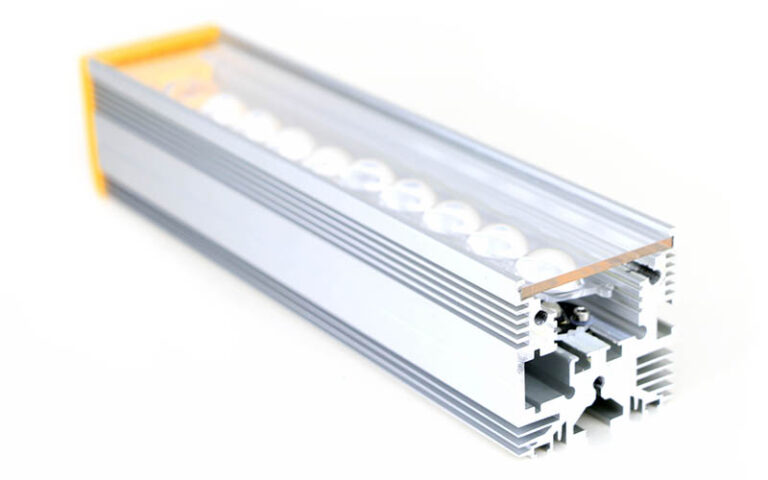

TR (Transparent)

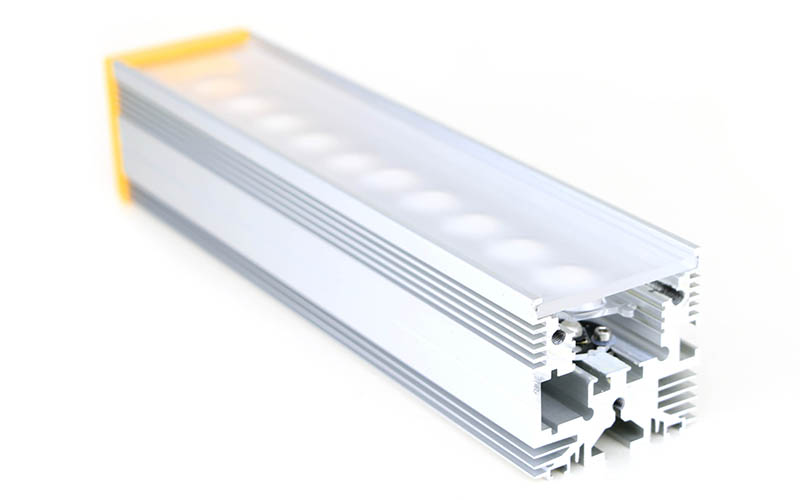

SD (Semi-diffuse)

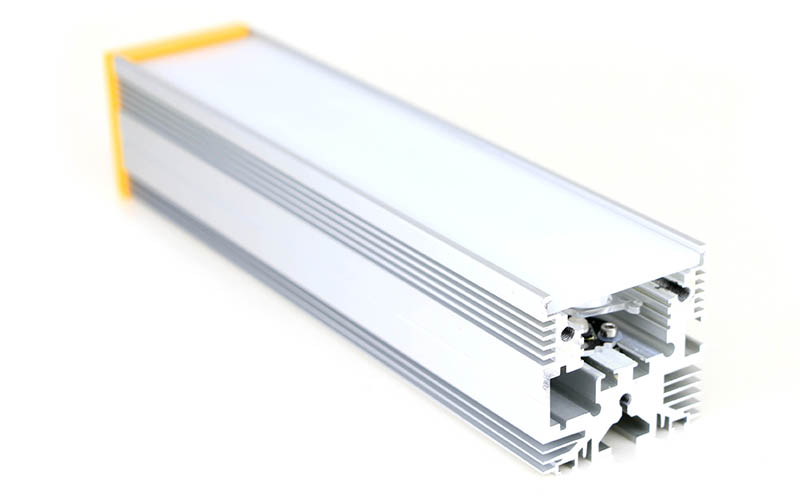

OP (Opaline)

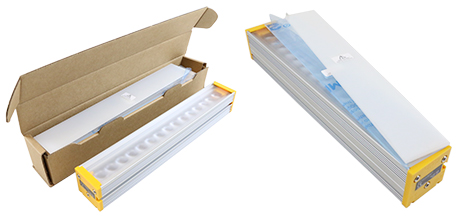

Kit (All diffusers)
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-WW...
EFFI-FLEX offers 4 lens configurations to choose the right emission angle, manually adjustable to change the emission angle.
P0 : 90° (without lens)
P1 : 45°
P2 : 25°
P3 : 10°
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-WW-PP…
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-KIT
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-WW-PP-POL
With the lens in the upper position, the Linescan accessory transforms the EFFI-FLEX2 light into a uniform line light ideal for either brightfield or darkfield illumination.
Possible to buy only the accessory. Not compatible with the UV365 wavelength.
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-TR-P3-LS

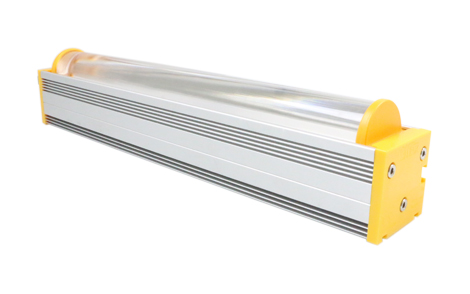

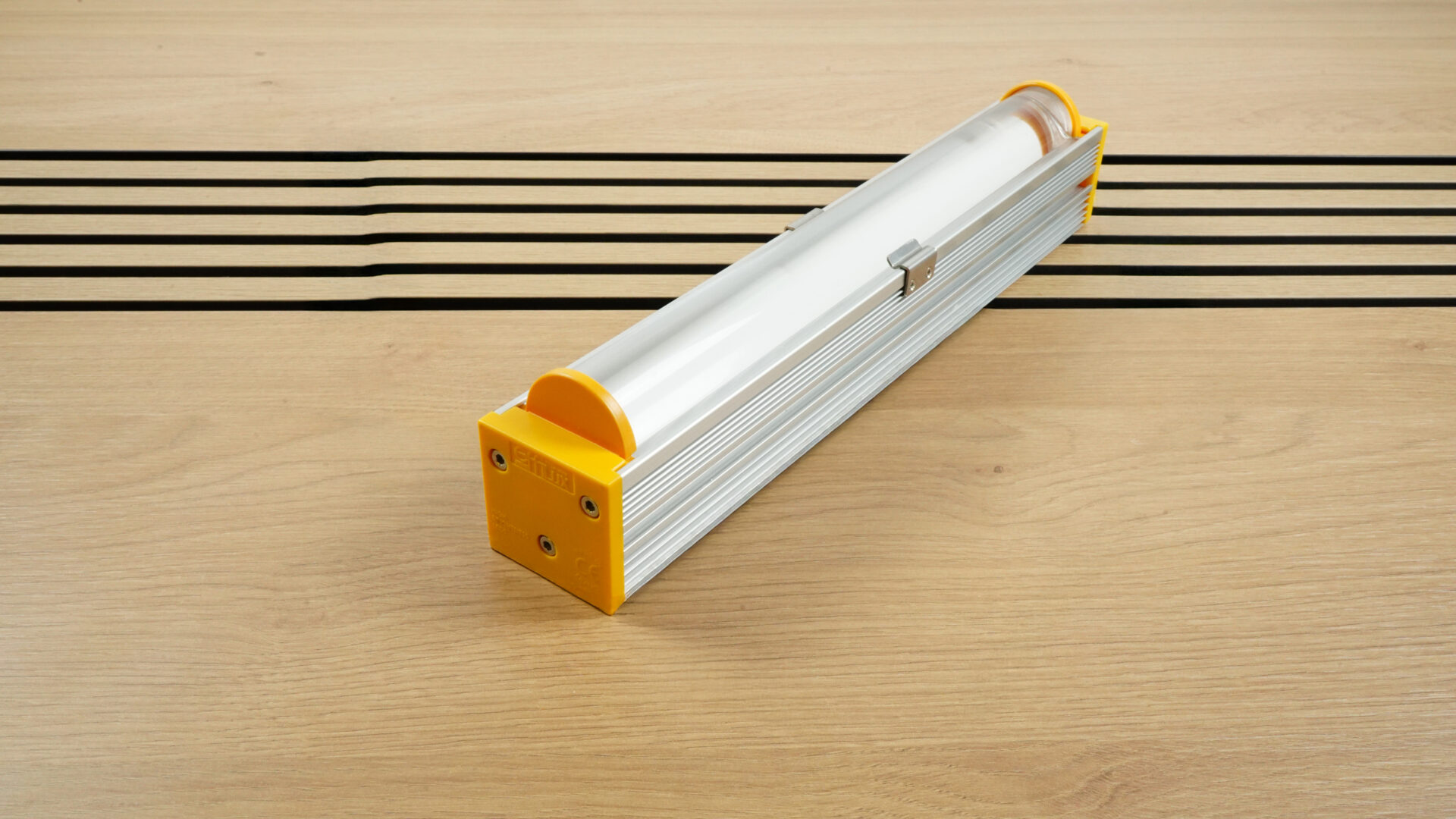

In addition to the linescan film, and with the internal lens in the lower postion, this optical system will focus the light even more into a very bright line.
Possible to buy only the accessory.
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-TR-P1-LS-CYL

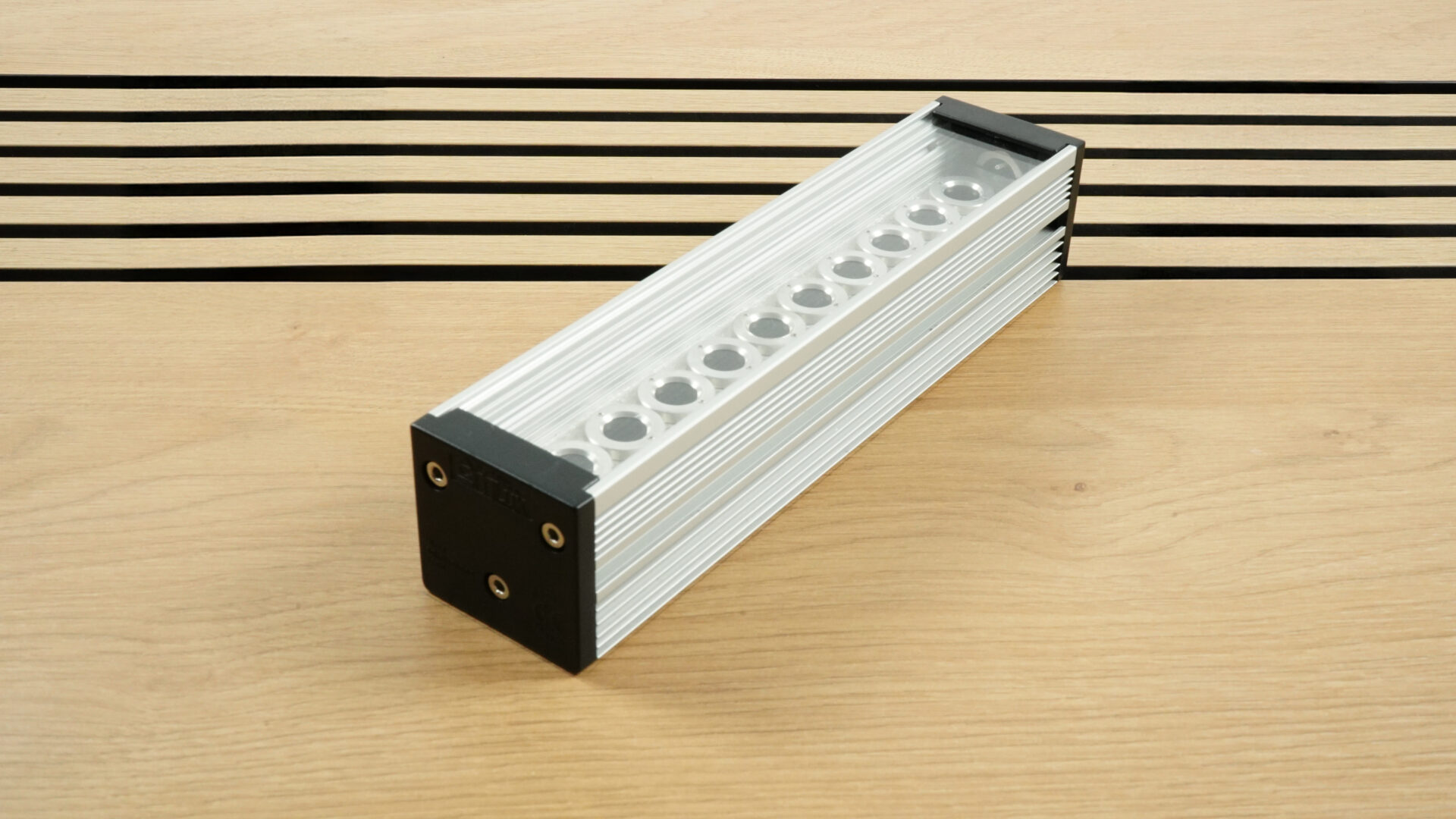

Innovative EFFILUX system that drastically improves the fluorescence effect while concurrently removing glare and improving contrast. Only for 365nm.
PART NUMBER:
EFFI-FLEX-XXX-365-TR-P0-PUV
PART NUMBER:
EFFI-FLEX-XXX-ZZZZ-WW-PP (ZZZZ: SWIR wavelength)
RGB: Red, Green, Blue LED alternated
PART NUMBER:
EFFI-FLEX-XXX-RGB-WW-PP
PART NUMBER:
EFFI-FLEX-XXX-WUI-WW-PP
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-WW-PP
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-WW-PP-ELS-VVV-UUU

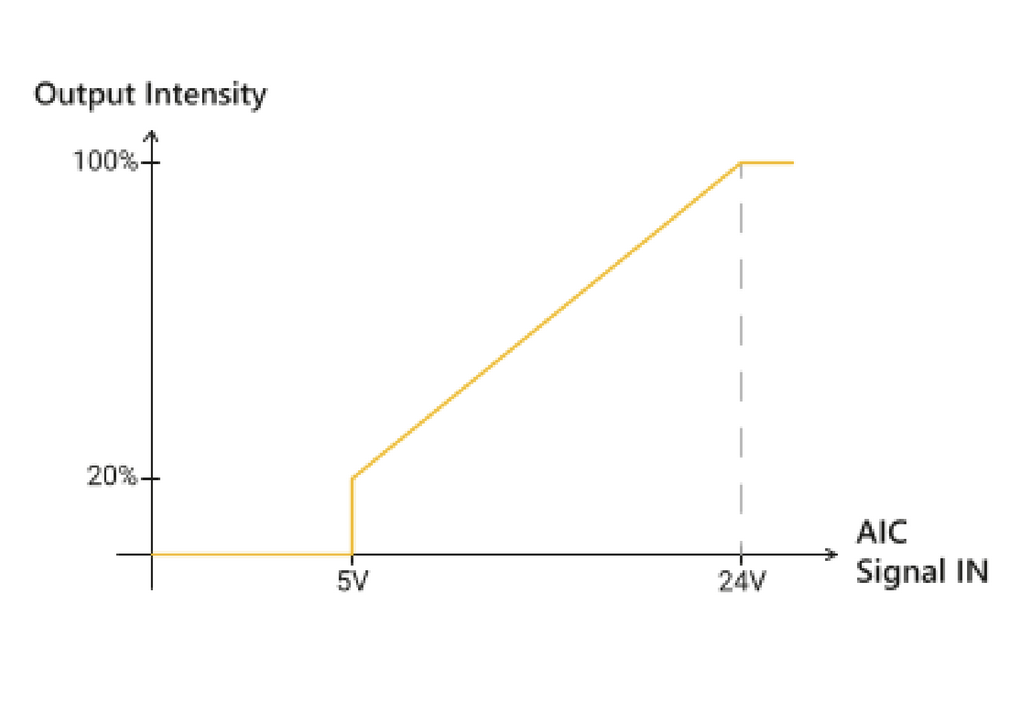

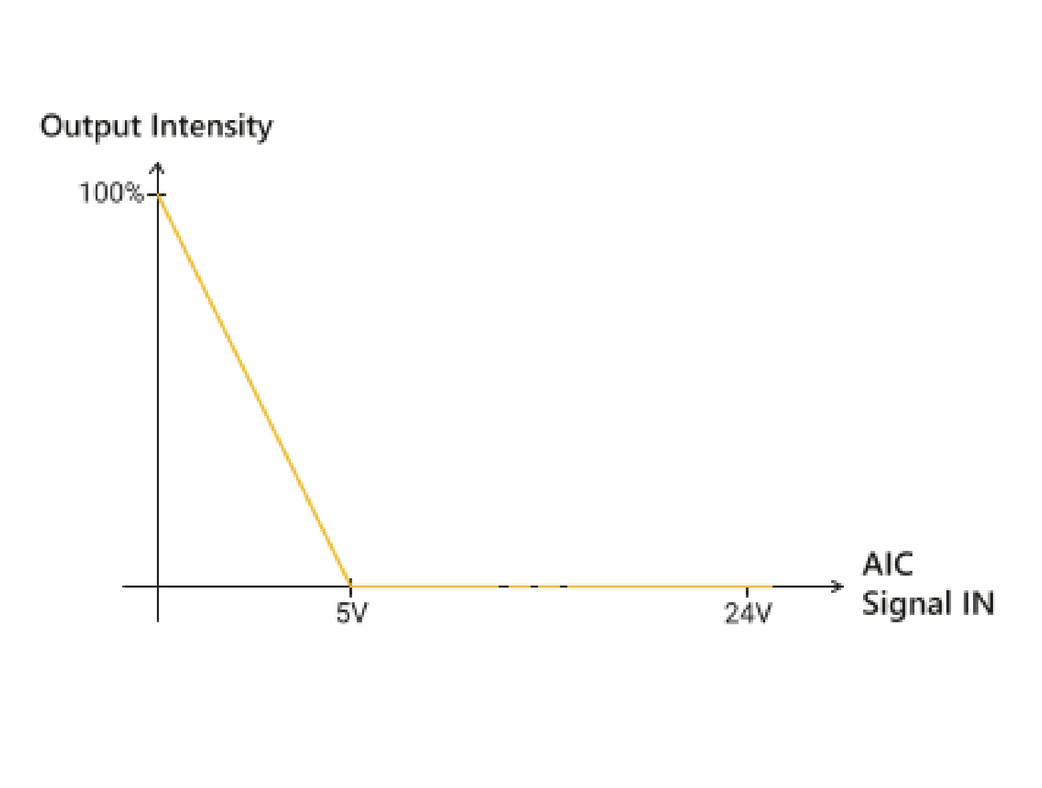

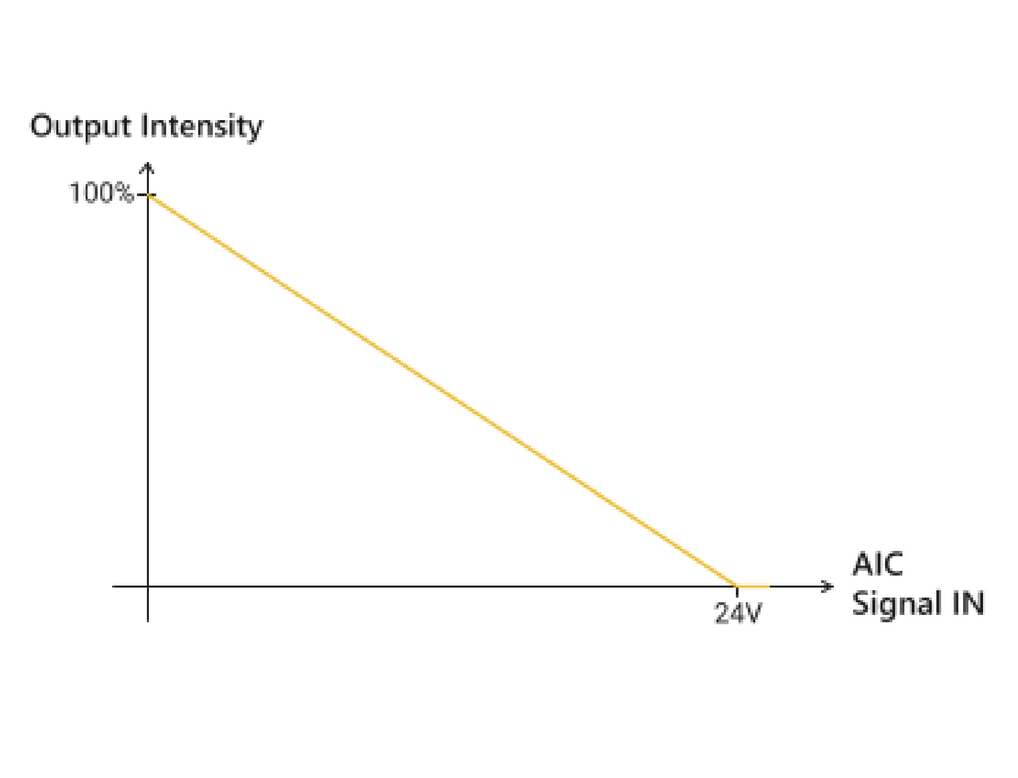

NB: VVV refers to the intensity current sent per LED 350/500/700/1000 and UUU refers to the ELS control ranges see below.

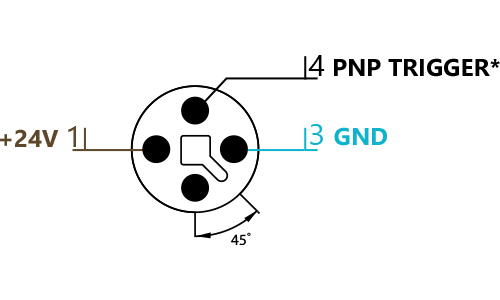

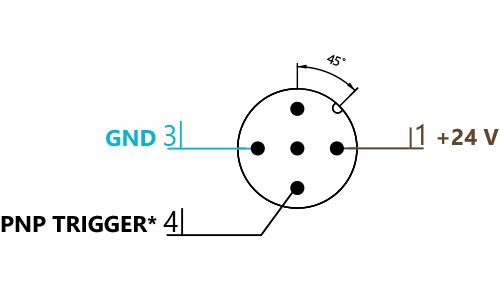

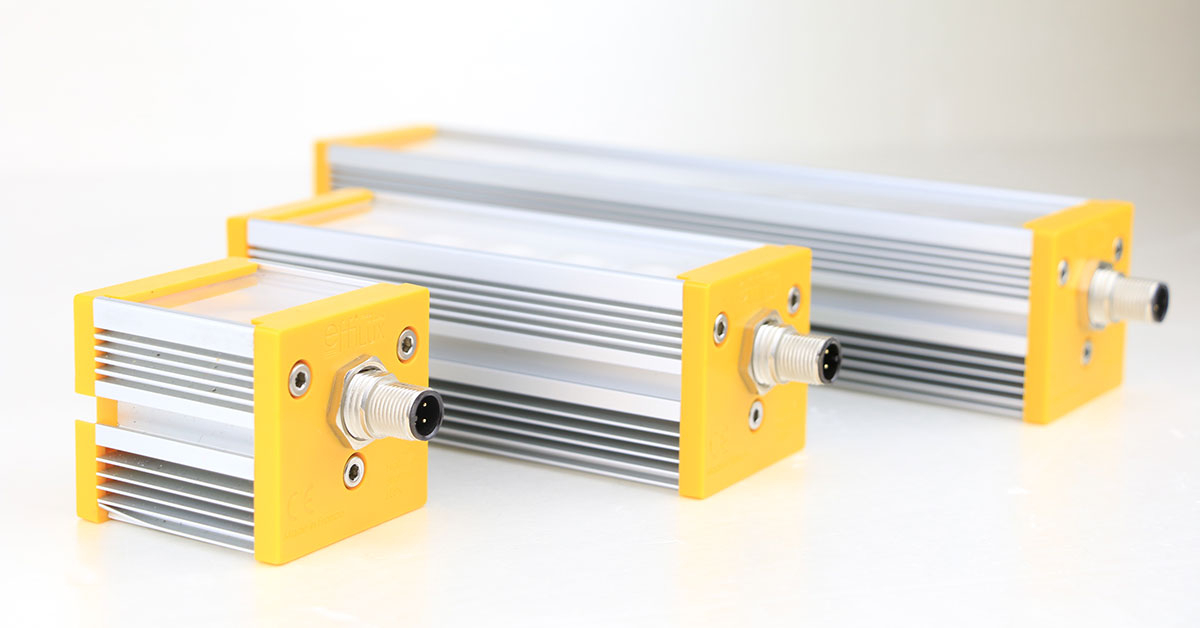

General pinout: Depending on the size, the light comes with different connectors.
(*) : For the dimmable version, replace PNP by AIC.
PART NUMBER:
(...) ELS-VVV-24V
PART NUMBER:
(...) ELS-IN-VVV-24V
PART NUMBER:
(...) ELS-IN-VVV-5V
1 LED every 40mm vs 1 LED every 20mm for standard (See corresponding annex on the datasheet).
PART NUMBER:
EFFI-FLEX-L2-XXXX-ZZZ-WW-PP
| MECHANICAL VERSIONS | IP grade | « Openable » body | Water cooling (for high power) | Smooth sections (anti-dust) | Food compliant |
| EFFI-FLEX |  |  |  | | |
| EFFI-FLEX-CPT |  | | | | |
| EFFI-FLEX-IP69K |  | | | | |
For all other inquiries, please contact EFFILUX.
