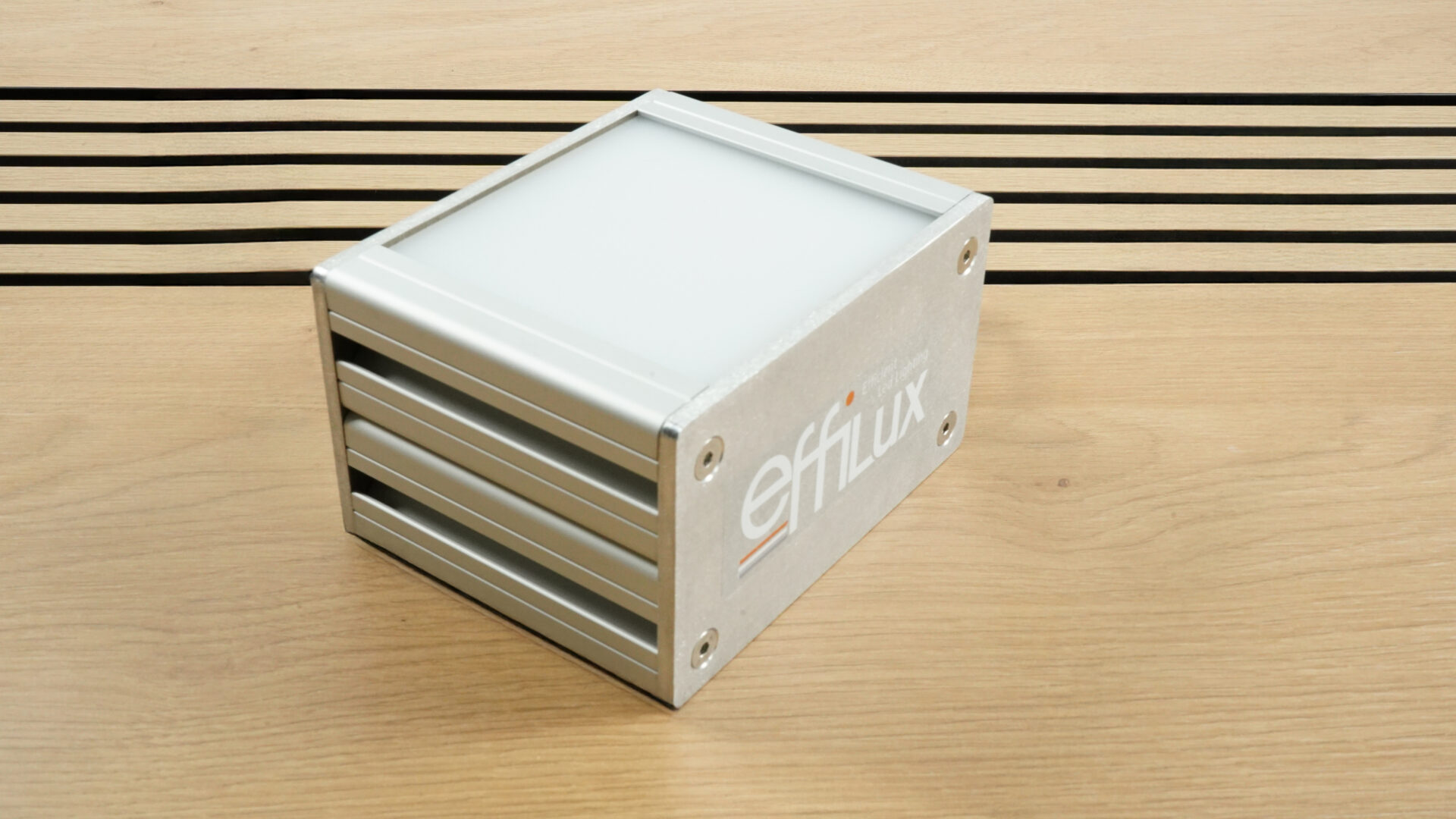

The EFFI-MBL is a powerful and uniform LED backlight designed for short-wave infrared (SWIR) inspection tasks. Its high luminance and uniformity above 80% make it ideal for silhouette-based analysis of materials that require infrared illumination.
Equipped with an anti-reflection option to reduce stray light interference, the EFFI-MBL ensures high-contrast imaging even in complex environments. It also features analog intensity control for precise adjustment of light output, supporting both continuous and strobe operation.
| Optical length (mm) | 100 | 200 | 300 | 400 |
| Length of the product (mm) | 110 | 210 | 310 | 410 |
PART NUMBER:
EFFI-MBL-XXXT-YYY…

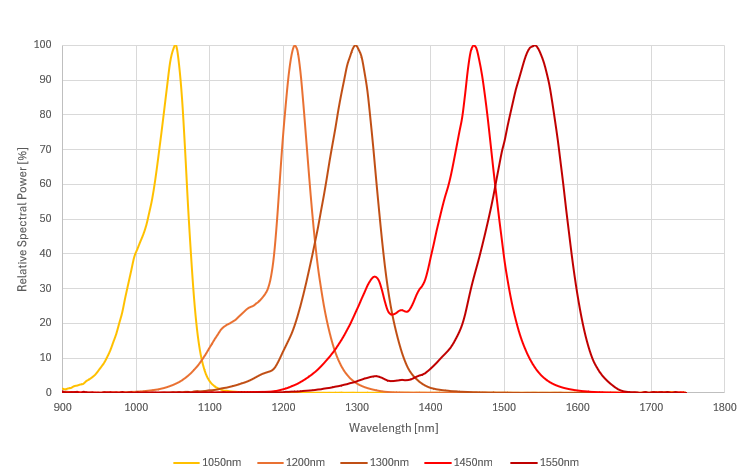

| Wavelength (nm) | 1050 | 1200 | 1300 | 1450 | 1550 | 1650 |
PART NUMBER:
EFFI-MBL-XXXT-YYY-ZZZ
Eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
PART NUMBER:
EFFI-MBL-XXXT-YYY-ZZZ-POL-NIR2
