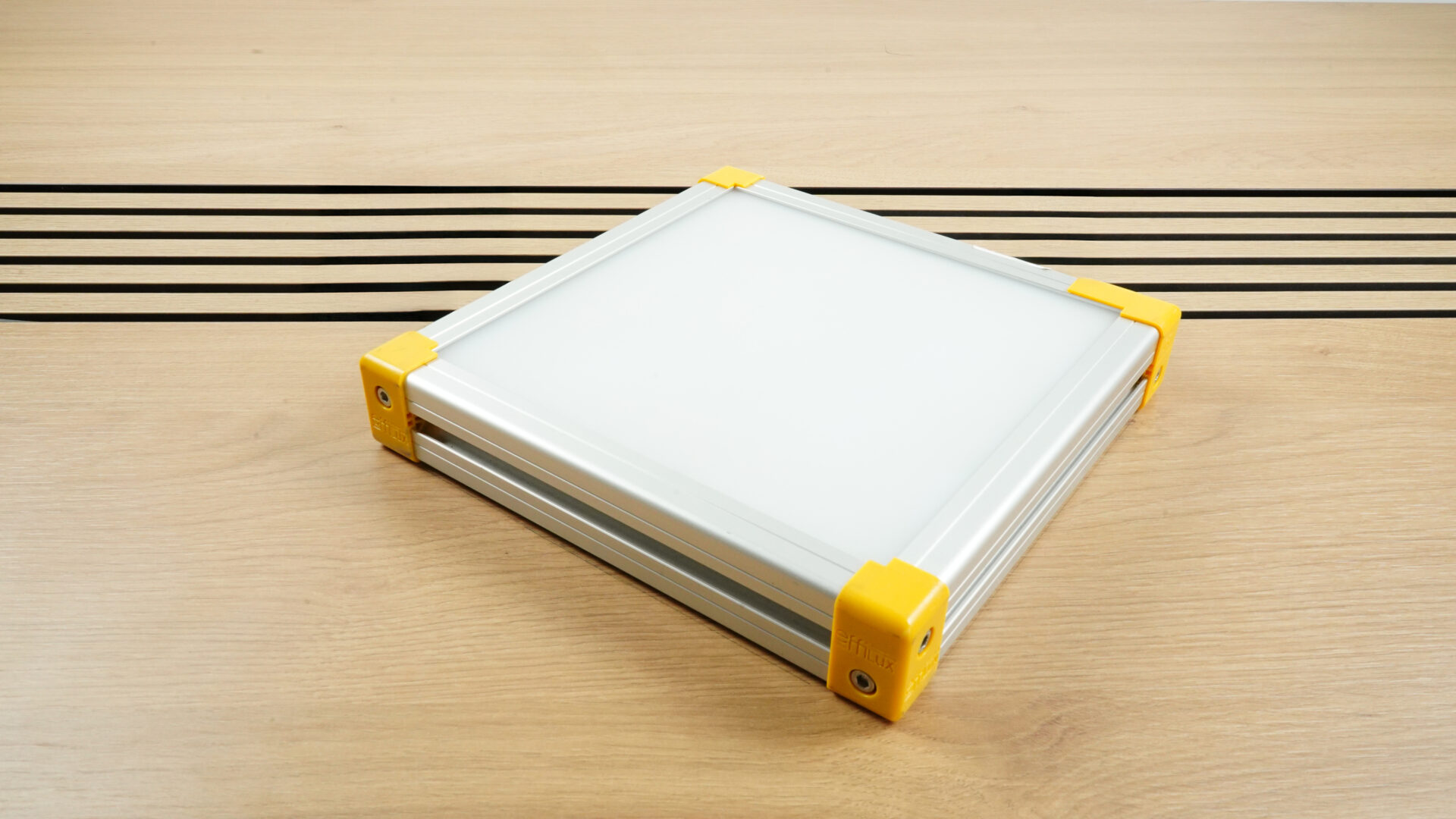

The EFFI-BL is a large-area LED backlight designed to deliver powerful and highly uniform illumination, ideal for silhouette-based inspection tasks. It provides optimal contrast for detecting object contours, shapes, holes, and morphological features in machine vision applications.
With a homogeneity greater than 80%, the EFFI-BL ensures consistent lighting across the entire surface. Its anti-reflection system minimizes interference from surrounding light sources, enhancing image clarity. The integrated AIC driver allows precise control of light intensity, and the product can be easily customized to meet specific dimensional or optical requirements.
| Optical length (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | 850 | 900 | 950 | 1000 | 1050 | 1100 | 1150 | 1200 | 1250 | 1300 | 1350 | 1400 | 1450 |
| Length of the product (mm) | 89 | 139 | 189 | 239 | 289 | 339 | 389 | 439 | 489 | 539 | 589 | 639 | 689 | 739 | 789 | 839 | 889 | 939 | 989 | 1039 | 1089 | 1139 | 1189 | 1239 | 1289 | 1339 | 1389 | 1439 | 1489 |
PART NUMBER:
EFFI-BL-XXX-YYY... (XXX ≤ YYY)

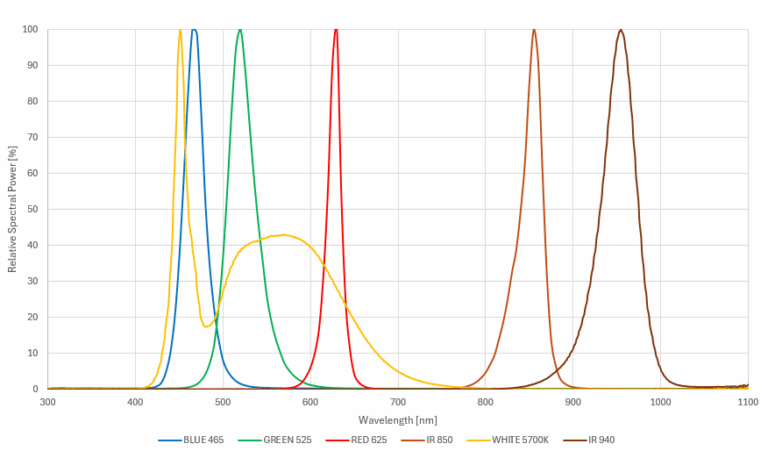

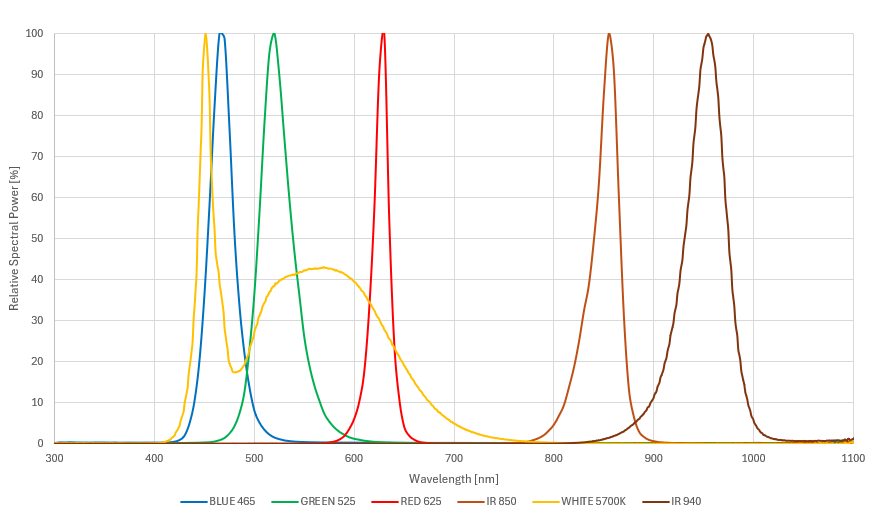

| Wavelength (nm) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBER:
EFFI-BL-XXX-YYY-ZZZ…
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy the kit accessory to install on top of the product: EFFO-BL-POL2-XXX-YYY-KIT
PART NUMBER:
EFFI-BL-XXX-YYY-ZZZ-VVV-POL2
The collimation film collimates the light and reduces the emission angle.
Possible to buy the kit accessory to install on top of the product: EFFO-BL-1XLCF-XXX-YYY or EFFO-BL-2XLCF-XXX-YYY
PART NUMBER:
EFFI-BL-XXX-YYY-ZZZ-VVVV-1XLCF or 2XLCF
Used in metrology and deflectometry to reveal defects (scratch, impact, or positioning …) on reflective, transparent surfaces , or semi-transparent

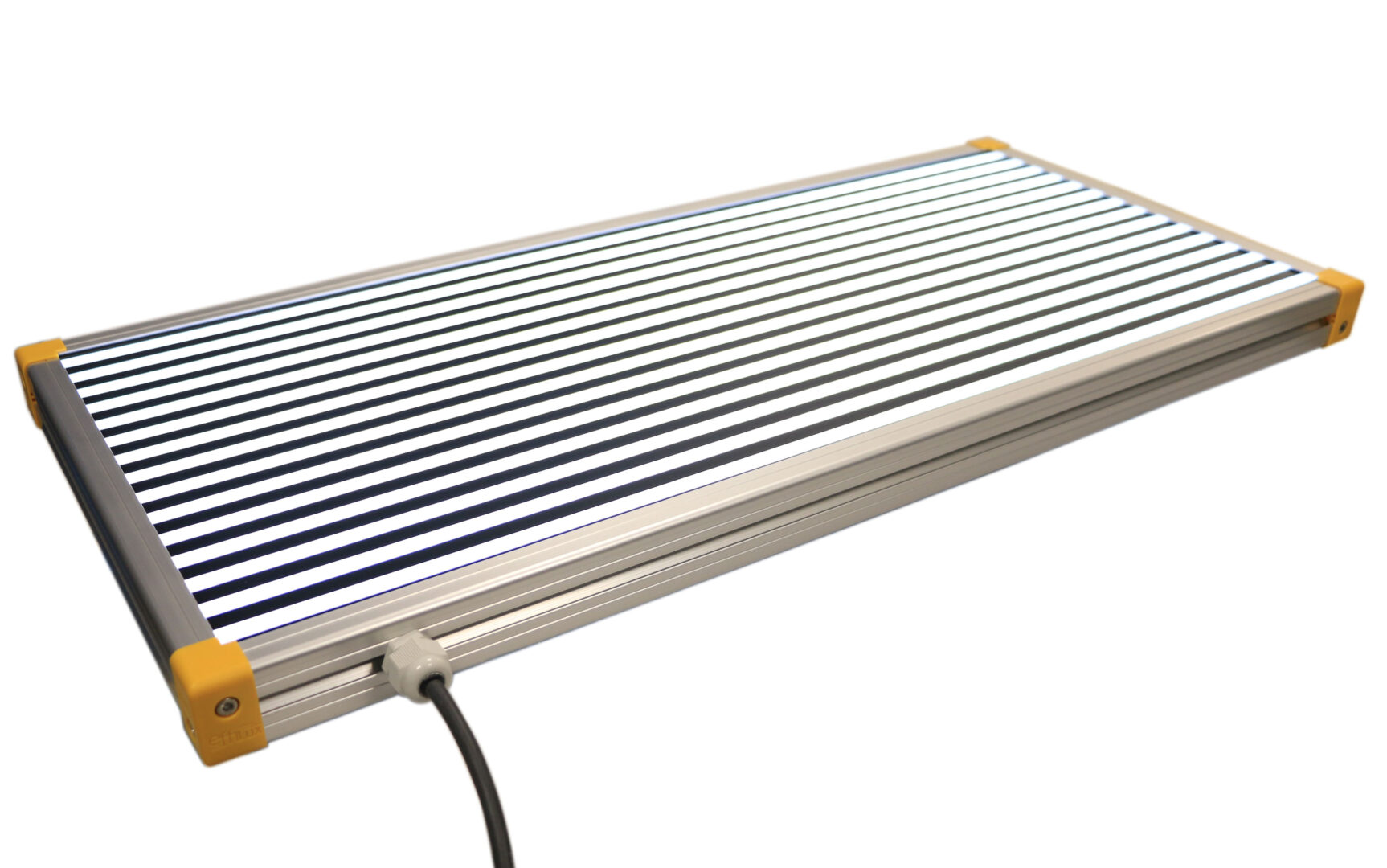

The EFFI-Flex-BL with zebra mask allows transmission control of a transparent surface (glass, plastic, …). The defect will be revealed in white or black on the shot.
PART NUMBER:
EFFI-BL-XXX-YYY-ZZZ-VVV-ZB-TR-MMM

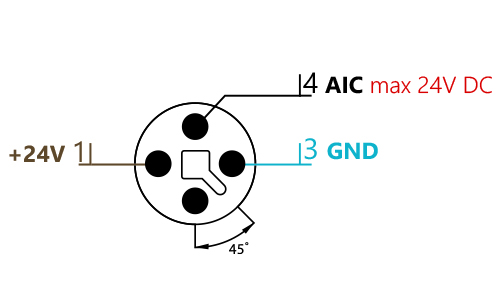

The EFFI-BL is supplied directly with 24V DC via one or more M12 – 5 pins, or M12 power 4 – pins, depending on the electrical consumption of the product this corresponds to the -VVVV segment of the part-number.
A boost in power with a one minute max time ON and a 30% maximum duty cycle.
PART NUMBER:
EFFI-BL-XXX-YYY-ZZZ-VVVV-S150

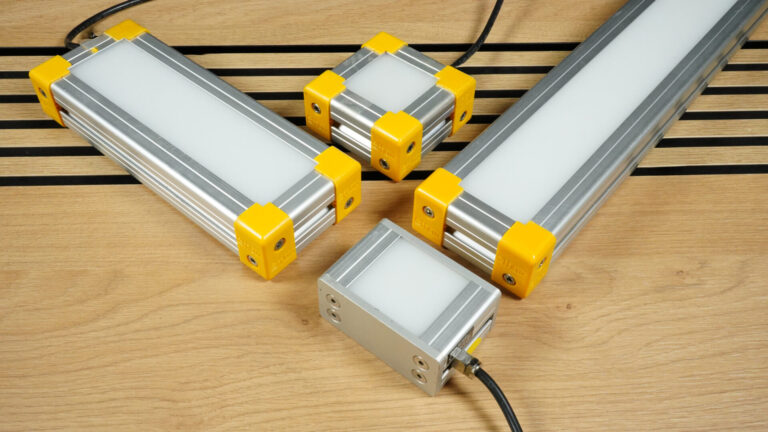

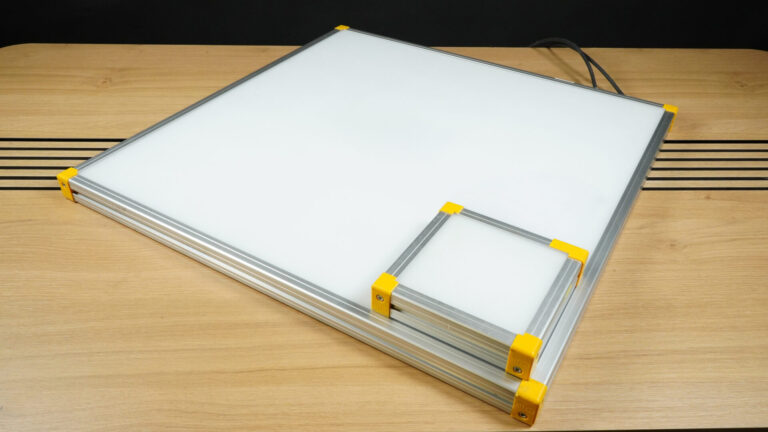

EFFILUX offers various dimensions for EFFI-BL and EFFI-BL thin edges, up to 1m² in steps of 50mm.
| MECHANICAL VERSIONS | IP grade | Thickness | Small footprint | Smooth sections (anti-dust) | Food compliant |
| EFFI-BL |  | 43,20mm |  | | |

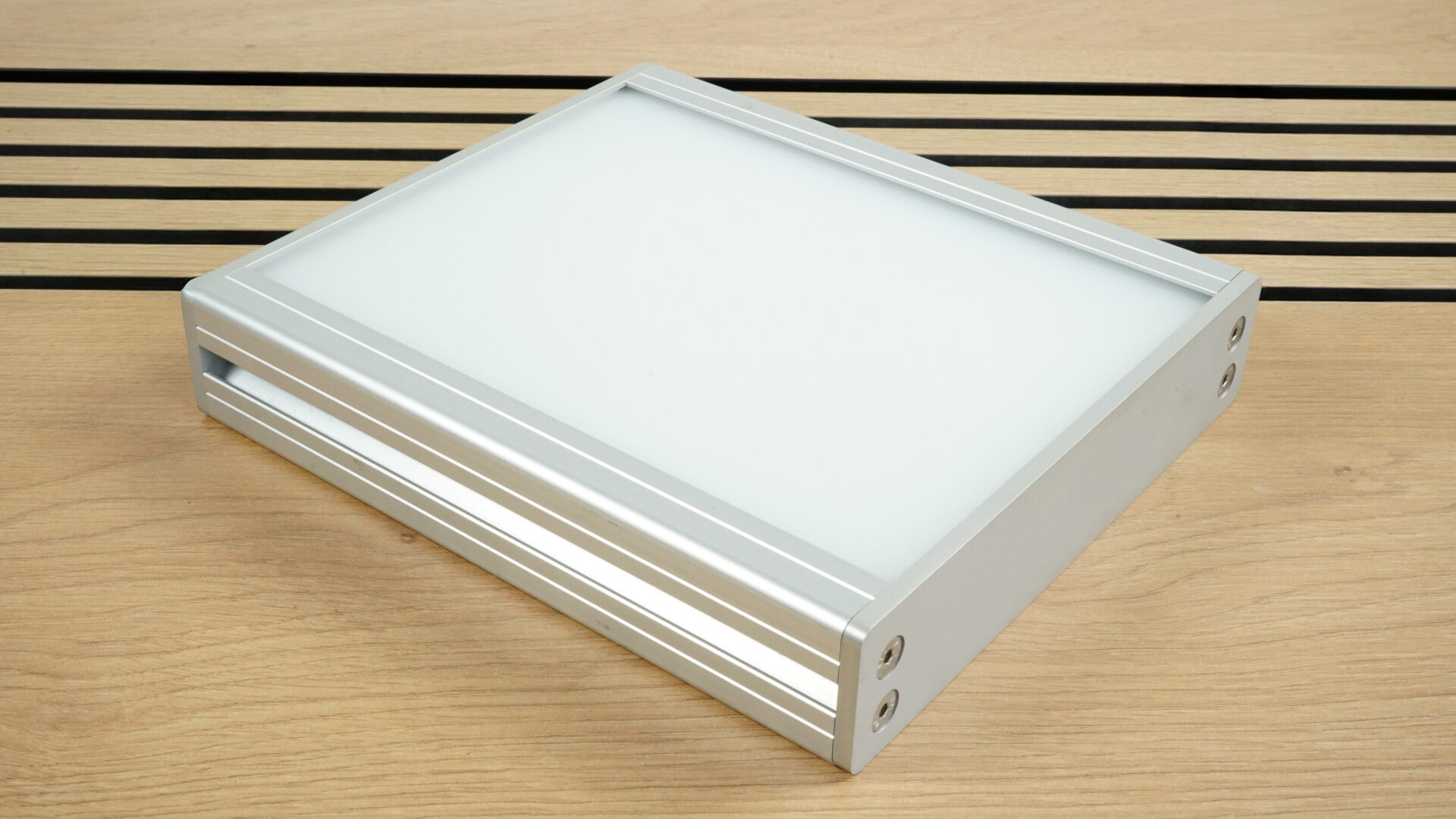

| EFFI-BL Thin edges | | 40mm |  | | |

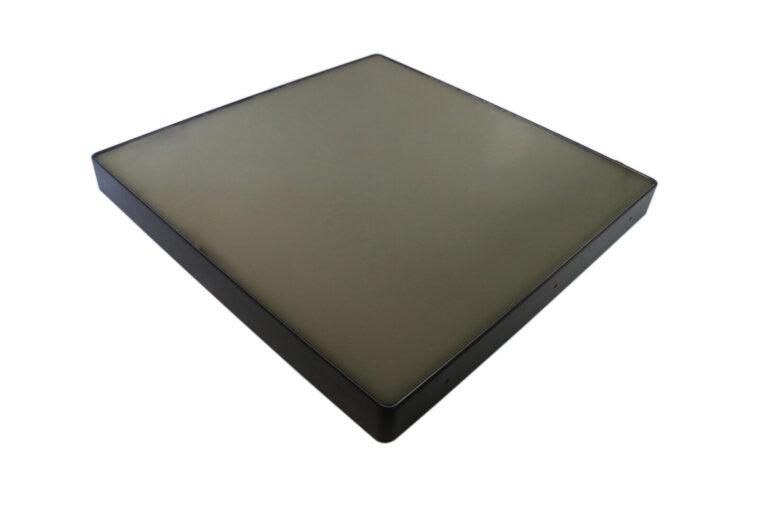

| EFFI-BL-IP69K |  | 35,60mm | | | |

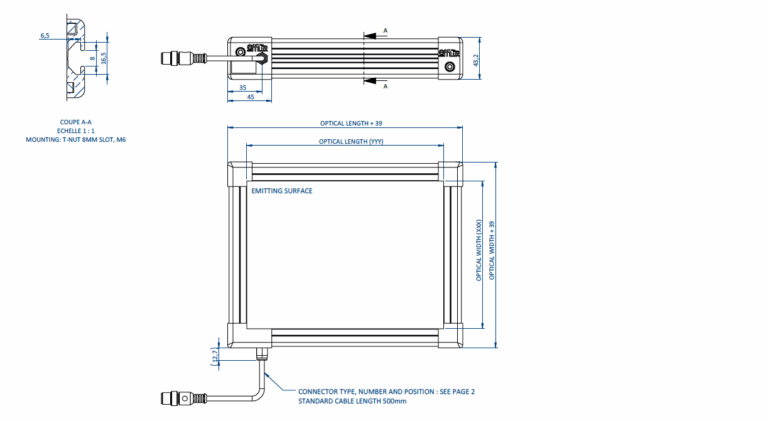

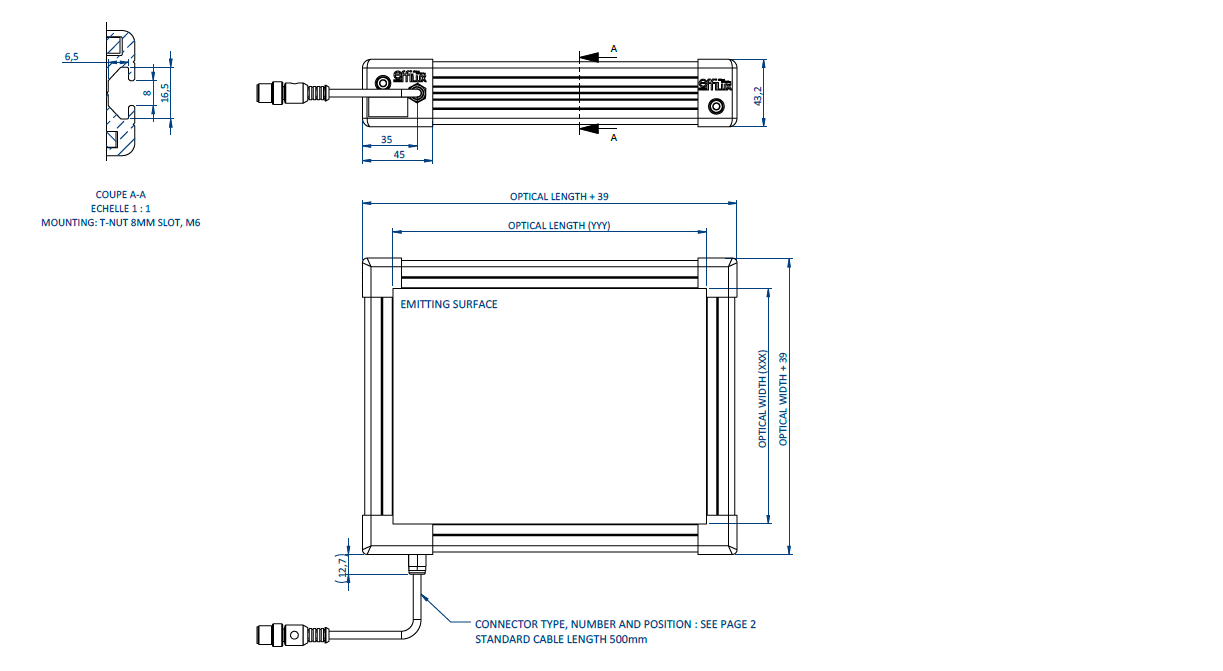

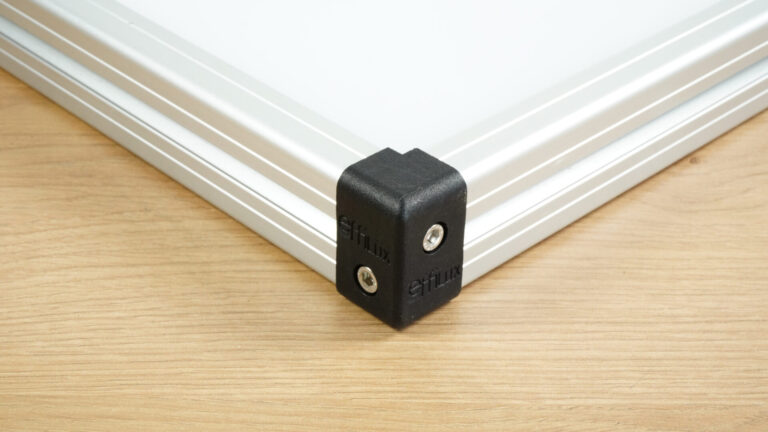

The EFFI-BL is equipped with a T-NUT M6 groove along its 4 sides. Compatible fixing accessories are available.
| Number of connectors | Connector type | Connector position(s) | ||||||||||
| EFFI-BL Standard : On the longuest side | EFFI-BL Thin Edges : on the side with standard edges | |||||||||||
| 1 | M12 Standard | 35mm from the edge of the product | 15mm from the edge of the product | |||||||||
 |
 |
|||||||||||
| M12 Power | 90mm from the edge of the product | 75mm from the edge of the product | ||||||||||
 |
 |
|||||||||||

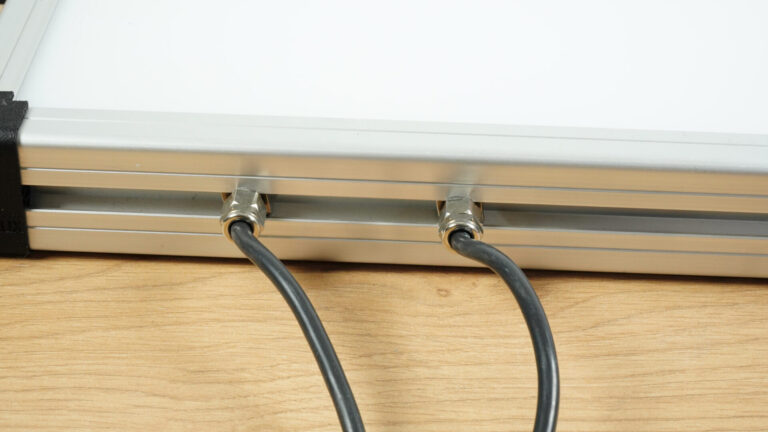

| Many | M12 Standard or M12 Power | First 90mm connector Space between 2 cable glands: 60mm | First 75mm connector Space between 2 cable glands: 60mm | |||||||||
 |
 |
|||||||||||
One of the side (length or width) can have a thin edge configuration.
For a thin edge dimension greater than 1m, contact Effilux.
PART NUMBER:
EFFI-BL-XXXT-YYY-ZZZ-VVVV or EFFI-BL-XXX-YYYT-ZZZ-VVVV
| Number of connectors | Connector type | Connector position(s) | |
|---|---|---|---|
| EFFI-BL Standard: On the longest side | EFFI-BL Thin Edges: On the side with standard edges | ||
| 1 | M12 Standard | 35mm from the edge of the product
| 15mm from the edge of the product
|
| M12 Power | 90mm from the edge of the product
| 75mm from the edge of the product
| |
| Many | M12 Standard or M12 Power | First 90mm connector | First 75mm connector
|
For all other inquiries, please contact EFFILUX.
