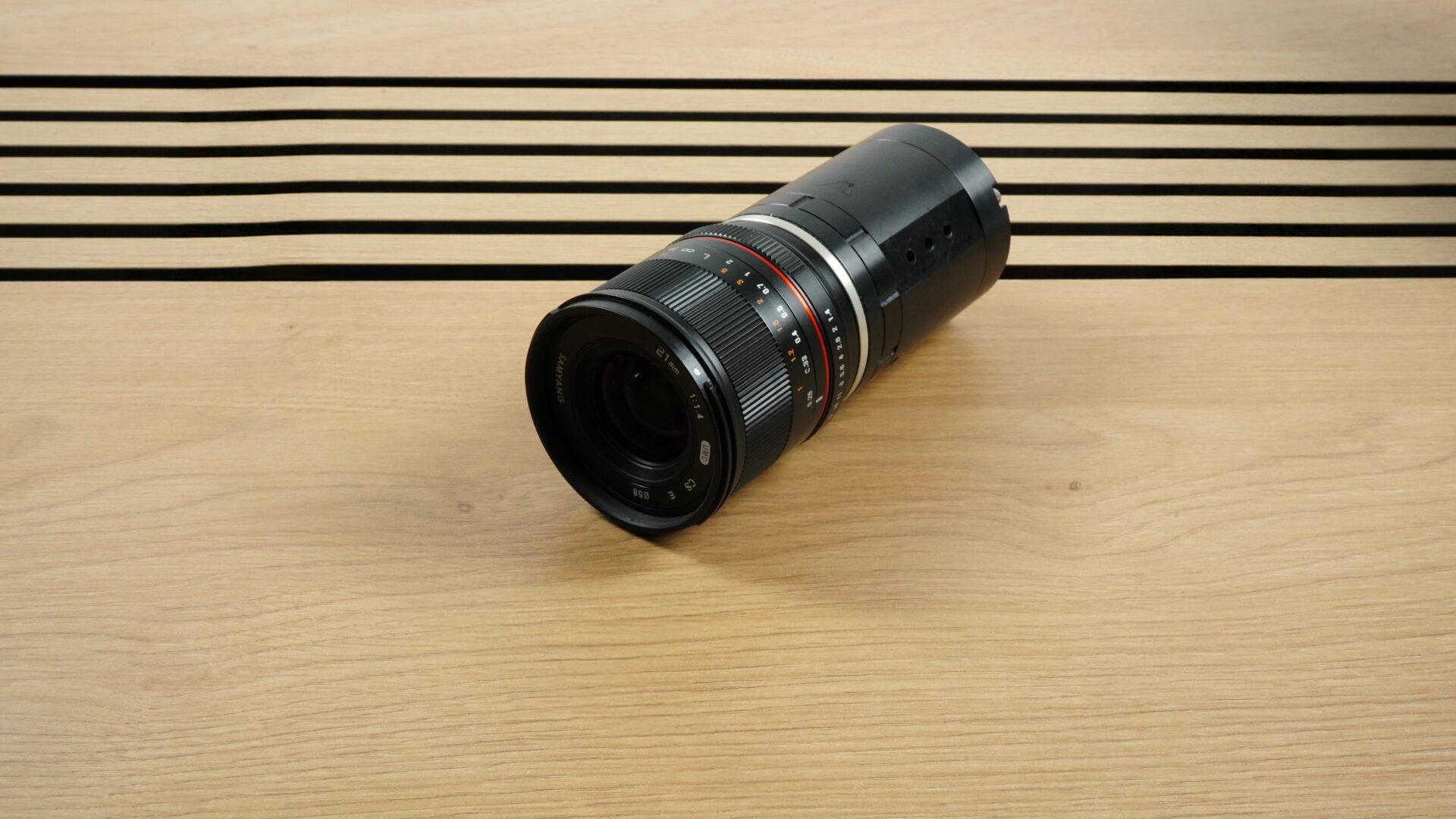

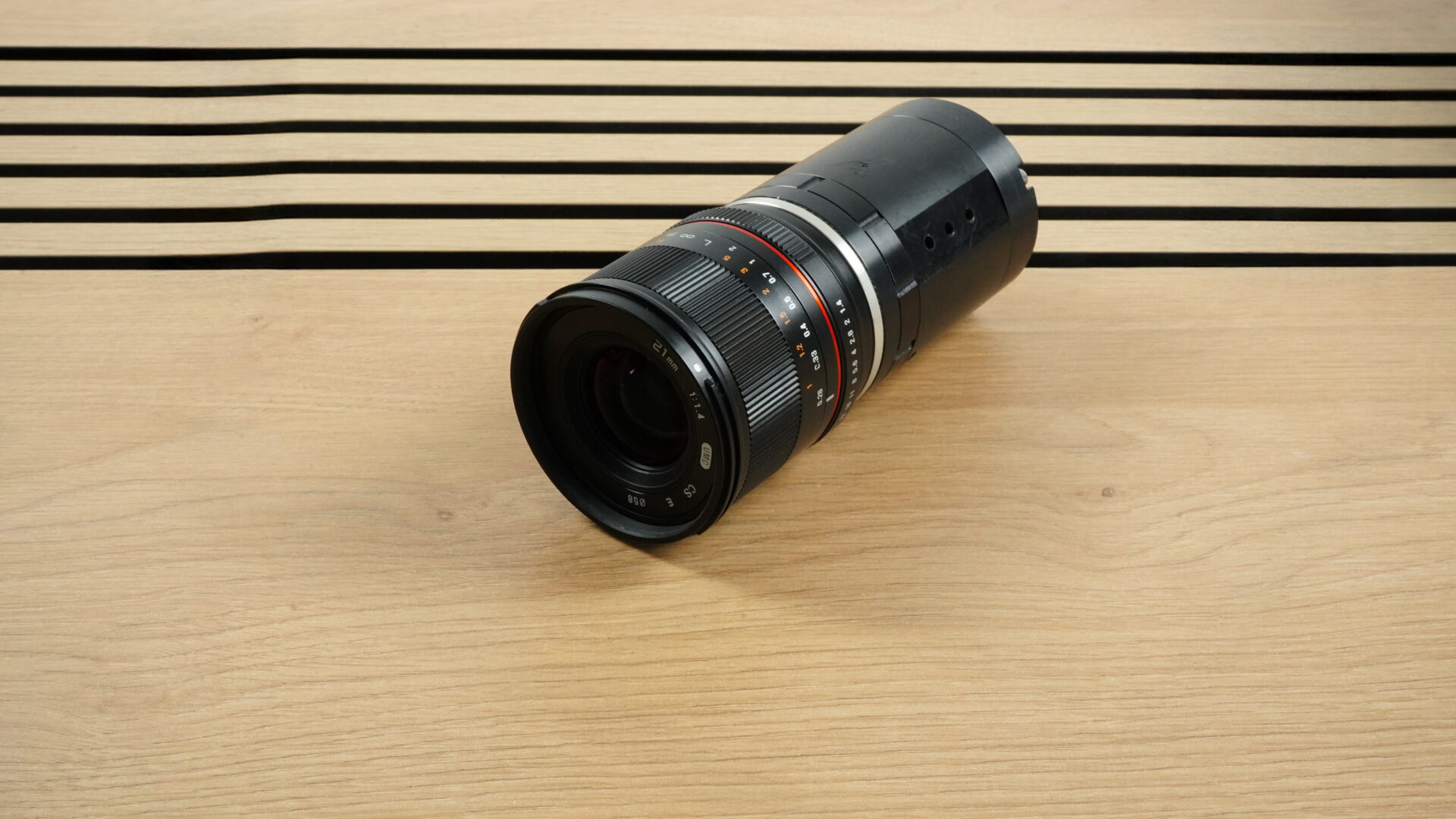

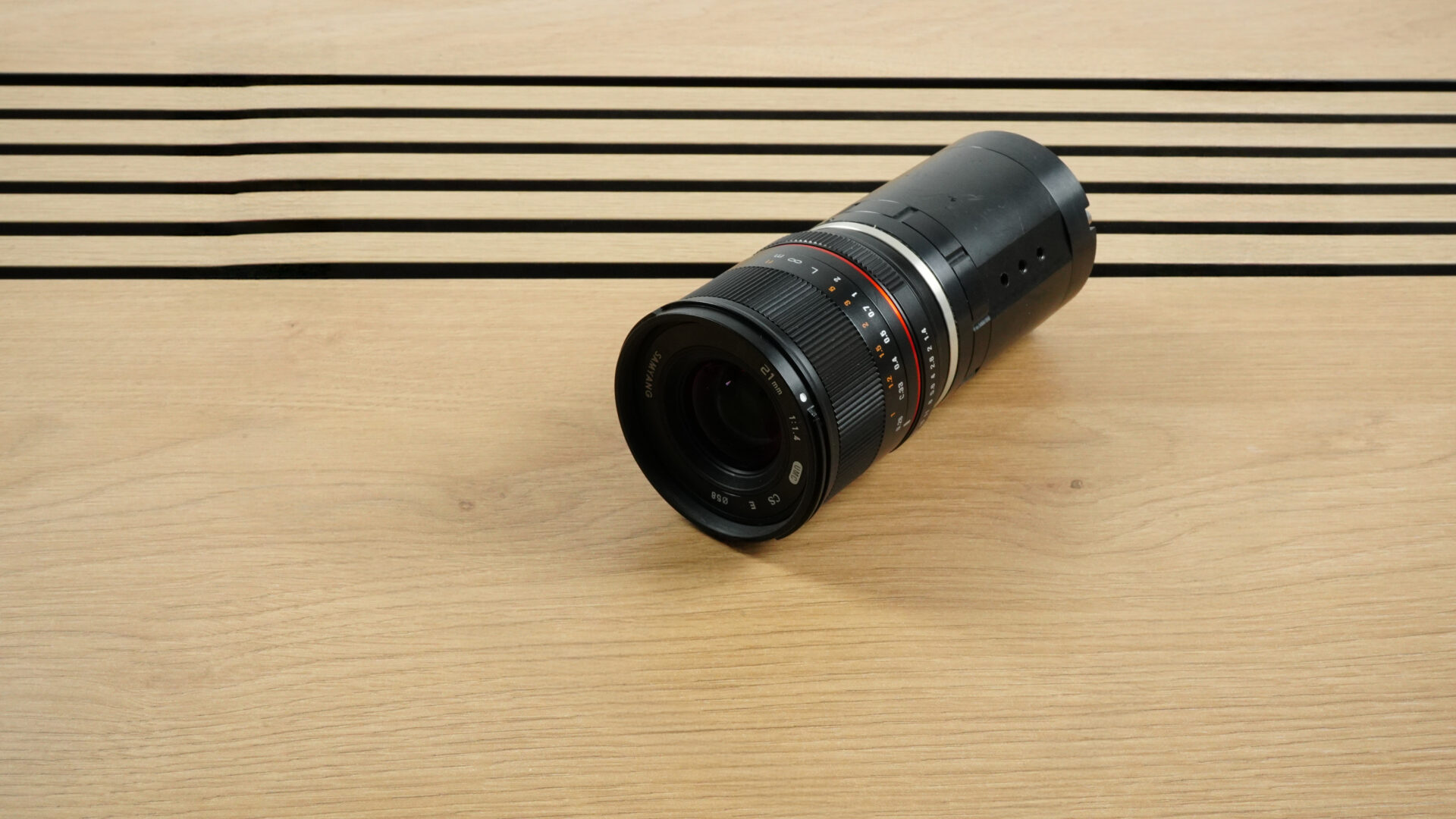

The EFFI-LASE-V3 is the most powerful version of the EFFI-LASE series, designed for high-accuracy 3D vision applications. With significantly increased brightness and a deeper field of view, it enables precise pattern projection over large areas and long working distances.
Equipped with an E-mount design, the EFFI-LASE-V3 supports advanced pattern customization, including lines, crosses, and dot clouds, making it ideal for complex tasks such as body scanning, shape reconstruction, and high-resolution profiling. It offers all the benefits of the previous versions—speckle-free illumination, flexible configuration, and robust performance—while pushing the limits of power and precision for demanding industrial environments.

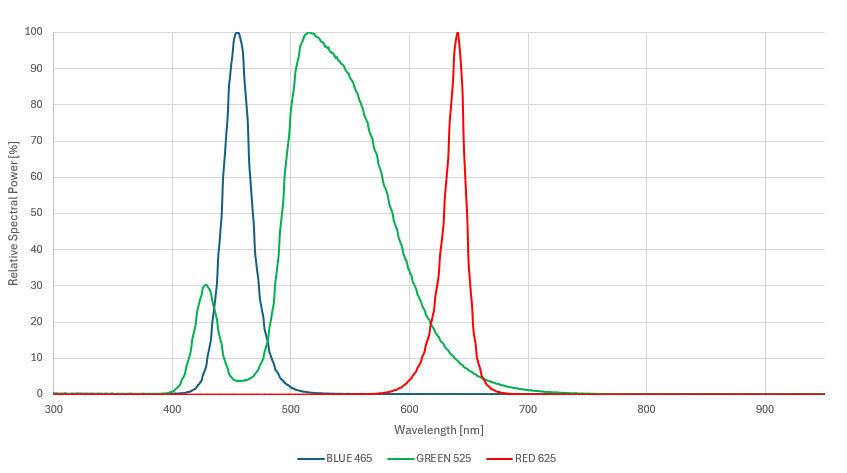

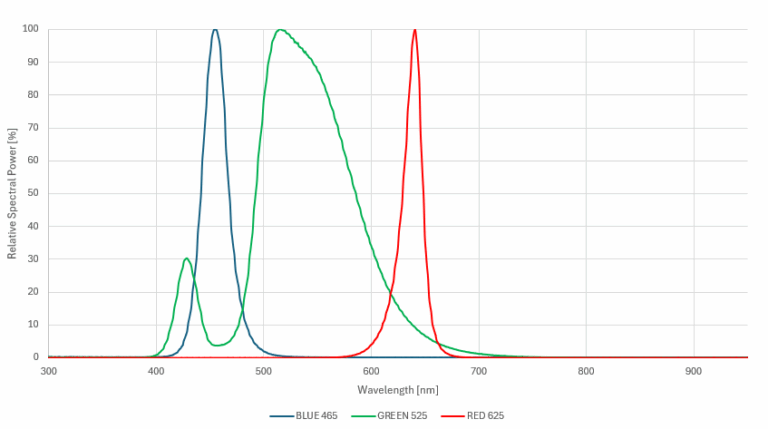

| Wavelength (nm) | ● 465 (Blue) | ● 520 (Green) | ● 625 (Red) |
PART NUMBER:
Part number: EFFI-LASE-V3-ZZZ...
| 3D profilometry |  |
 |
 |
 |
 |
| MMM : part number | L01 | L02 | L03 | L07 | L08 |
| Number of lines | 1 | 1 | 1 | 100 | 22 |
| Line(s) thickness (µm) | 100 | 40 | 20 | 67.5 | 75 |
| Line(s) length (mm) | 25 | 25 | 25 | 19.5 | 19.5 |
| Step between each line (µm) | / | / | / | 100 | 500 |
| Stereovision |  |  |
| MMM : part number | C02 | C10 |
| Pattern type | Cloud of dots | Cloud of dots |
| Single pattern dimensions | Density 50% | Density 50% |
| Step between each pattern | / | / |
| Effective mask surface | π 12.5² | π 12.5² |
PART NUMBER:
EFFI-LASE-V3-ZZZ-MMM-...
Please note that we can also integrate custom masks upon request.

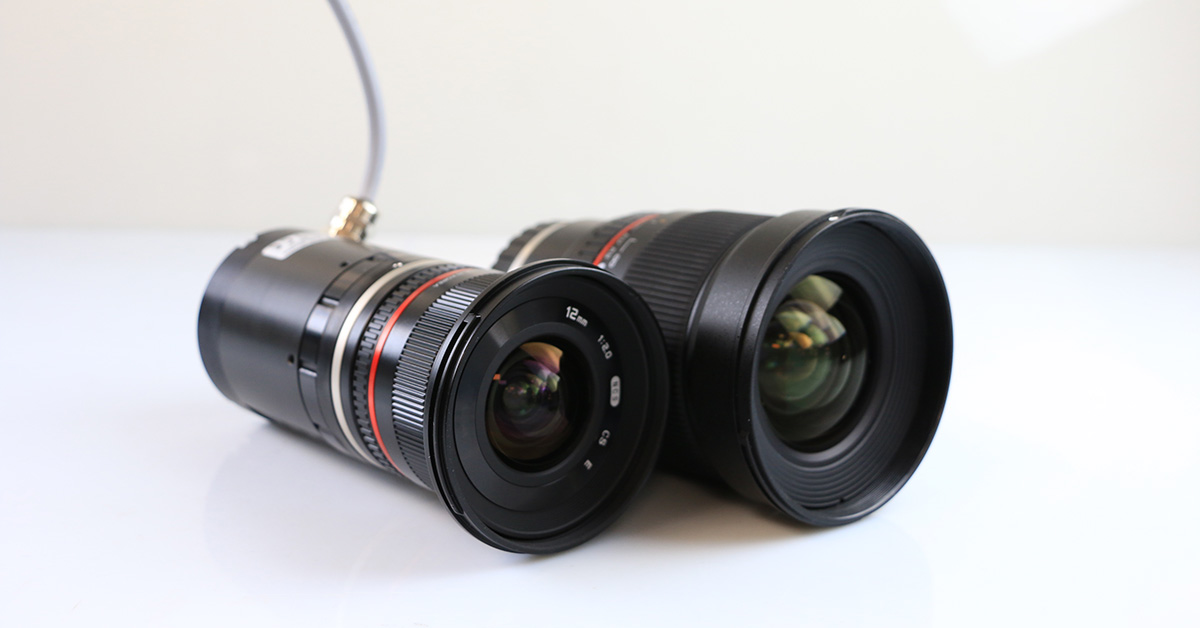

The EFFI-LASE-V3 accepts only E-Mount projection lens (M25.4). Those lenses are not supplied with the light. EFFILUX offers a wide range of lenses, for more information please refer to our page lenses.
To avoid any distortion effect, EFFILUX recommends using a 1″ sensor lens for masks with rectangular patterns, such as point clouds.
| EFFO-7A-12-F2.8-APS-C-HR-EM | EFFO-7A-25-F1.8-APS-C-HR-EM | EFFO-7A-35-F1.2-APS-C-HR-EM | EFFO-7A-50-F1.8-APS-C-HR-EM | |
| Focal distance (mm) | 12 | 25 | 35 | 50 |
| Diaphragm aperture | F2.8 | F1.8 | F1.2 | F1.8 |
| View angle (°) | 100 | 68 | 44 | 32 |
| Filter size (mm) | 67 | 46 | 46 | 52 |
| L x Ø (mm) | – | 37.8 x 59.9 | 32 x 51 | 40 x 55 |
The integrated driver is set to pulse the LED automatically, with a pulse duration of 150ms (Max Tstrobe) and a Duty Cycle max of 5.8%.
After this pulse, the product automatically goes to continuous mode. (No time limitation with continuous mode).

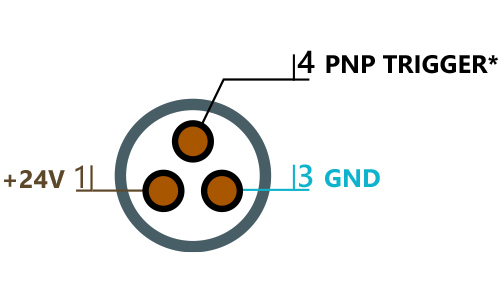

Depending on the size, the light comes with different connectors.
PART NUMBER:
Part number: EFFI-LASE-V3-ZZZ-MMM-M12P
EFFI-Lase V3 can be provided with a flying lead rather than the standard connector.
PART NUMBER:
EFFI-LASE-V3-ZZZ-MMM-FL
For all other inquiries, please contact EFFILUX.
