The EFFI-LASE-V2 is the second-generation LED pattern projector from Effilux, offering up to 15 times more power than the original EFFI-LASE. Designed for industrial vision applications, it delivers stable, speckle-free illumination and supports a wide range of customizable patterns including lines, crosses, and dot matrices.
While slightly bulkier in design, the EFFI-LASE-V2 retains all the advantages of the original model, including flexibility in pattern selection and multiple power configurations to suit both short- and long-range setups. It is a powerful and adaptable alternative to laser-based systems, ideal for precise shape detection, positioning, and 3D profiling.
| VVV : part number of LED board | LX1 | MX1 | MX2 | |||||||||
| Board |  |  |  | |||||||||
| Line LED | Square LED | Square LED | ||||||||||
| Number of driver(s) | 1 driver | 1 driver | 2 drivers | |||||||||
| Adapted masks | 3D profilometry | Stereovision & Alignment | Stereovision & Alignment | |||||||||
| Operating mode | Continuous or Strobe | Continuous or Strobe | Strobe | |||||||||
PART NUMBERS:
Passive dissipation version: EFFI-LASE-PSV-VVV...
Compact version: EFFI-LASE-CPT-VVV…

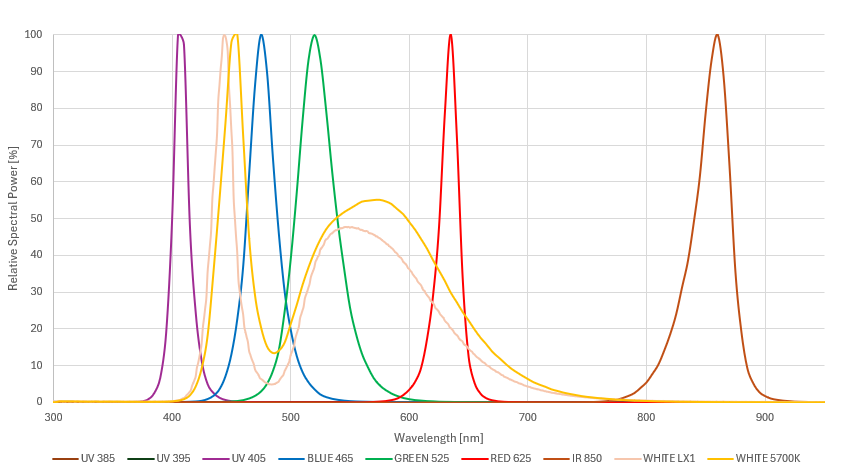

| Wavelength (nm) | ● 405 (UV) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ● 850 (Infrared) | ○ 000 (White) |
PART NUMBERS:
Passive dissipation version : EFFI-LASE-PSV-VVV-ZZZ...
Compact version : EFFI-LASE-CPT-VVV-ZZZ...
| 3D profilometry |  |  |  |  |  |  |  |  |  |  |  |  |
| MMM : part number | L01 | L02 | L03 | L04 | L05 | L06 | L07 | L08 | L09 | L12 | L13 | L41 |
| Number of lines | 1 | 1 | 1 | 3 | 3 | 5 | 100 | 22 | 1 | 2 | 1 | 1/40 |
| Line(s) thickness (µm) | 50 | 20 | 10 | 50 | 50 | 50 | 45 | 50 | 5 | 50 | 50/250 | 75/45 |
| Line(s) length (mm) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Step between each line (µm) | / | / | / | 500 | 200 | 750 | 112.5 | 350 | / | 500 | 1150 | 200 |
| Stereovision |  |  |  |  |  |  |  |
| MMM : part number | G01 | G02 | G03 | G04 | G05 | C02 | C03 |
| Pattern type | Round | Round | Grid | Grid | Square | Cloud of dots | Cloud of dots |
| Single pattern dimensions | Ø 50µm | Ø 50µm | Line thickness: 50µm | Line thickness: 50µm | 50×50µm² | Density 50% | Density 17% |
| Step between each pattern | 100µm | 100µm | 255µm | 255µm | 100µm | / | / |
| Effective mask surface | 10x10mm² | 13x13mm² | 10x10mm² | 12,5×12,5mm² | 10x10mm² | 12,8×9,6mm² | 12,8×9,6mm² |
| Alignment |  |  |  |
| MMM : part number | A01 | A02 | A03 |
| Pattern type | Cross | Concentric circles | Square |
| Line(s) thickness (µm) | 50 | 26 white circles 50µm 26 black circles 200µm | 50 |
| Line(s) length (mm) | 13 | / | 10 |
| Other dimensions | / | Step between each circle = 250µm / Central spot = Ø 30µm | / |
PART NUMBERS:
Passive dissipation version : EFFI-LASE-PSV-VVV-ZZZ-MMM
Compact version : EFFI-LASE-CPT-VVV-ZZZ-MMM

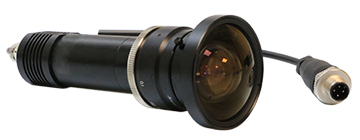

The EFFI-LASE-PSV accepts only C-Mount projection lens (M25.4). Those lenses are not supplied with the light. EFFILUX offers a wide range of lenses, for more information please refer to our page lenses.
To avoid any distortion effect, EFFILUX recommends using a 1″ sensor lens for masks with rectangular patterns, such as point clouds.
Part-numbers 1
| EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1 »-HR-CM | |
| Focal distance (mm) | 6 | 8 | 12.5 | 16 | 25 | 35 | 50 | 75 |
| Aperture of the diaphragm | F1.8 | F1.4 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (H&V) | 96.8° x 79.4° | 79.4° x 63° | 55.5° | 44.3° x 33.6° | 16.1° x 19.0° | 20.9° x 15.8° | 14.4° | 9.7° x 7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |
Part-numbers 2/3
For the 25mm focal length lens, Effilux recommends to use the Part numbers 1″.
| EFFO-TM-6.5-F1.8-2/3″-HR-CM | EFFO-VS-8-F1.3-2/3″-LR-CM | EFFO-KW-12-F1.4-2/3 »-HR-CM | EFFO-VS-16-F1.4-2/3″-LR-CM | EFFO-VS-25-F1.4-1″-LR-CM* | EFFO-VS-35-F1.8-2/3″-LR-CM | EFFO-VS-50-F1.8-2/3″-LR-CM | EFFO-KW-75-F2.5-2/3″-HR-CM | EFFO-KW-100-F2.8-2/3″-HR-CM | |
| Focal distance (mm) | 6.5 | 8 | 12 | 16 | 25 | 35 | 50 | 75 | 100 |
| Aperture of the diaphragm | F1.8 | F1.3 | F1.4 | F1.4 | F1.4 | F1.8 | F1.8 | F2.5 | F2.8 |
| Viewing angle (H&V) | 71.6° x 55.5° | 49.0° x 57.2° | 30.0° x 22.7° | 24.6° x 28.9° | 16.1° x 19.0° | 11.7° x 13.8° | 8.5° x 10.0° | 6.7° x 5.0° | 5.0° x 3.8° |
| Filter mount | M35.5 P=0.5 | M25.5 P=0.5 | M25.5 P=0.5 | M27 P=0.5 | M27 P=0.5 | M27 P=0.5 | M30.5 P=0.5 | M34 P=0.5 | M40.5 P=0.5 |
There are two versions of the EFFI-LASE V2:

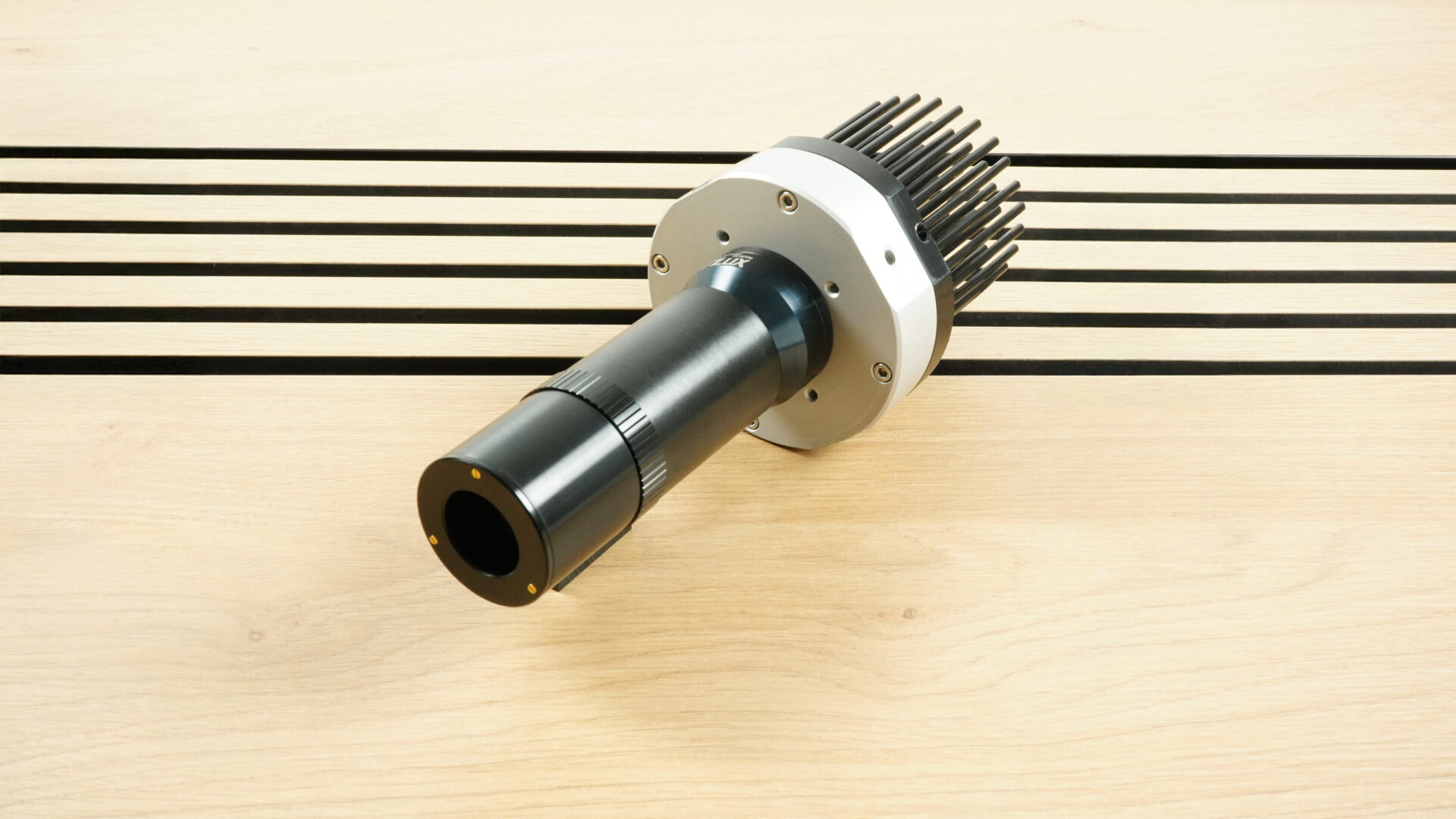

The EFFI-LASE-PSV works in an autostrobe mode with several LED current steps from 2A (300%) to reach continuous level 0.7A (100%) after 2s.
The product can work on strobe mode choosing the right period under 2s and with a maximum duty cycle of 30%
It can also be used continuously passing by all those steps and light intensity can be adjusted between 10% and 100% with the AIC pin.
The EFFI-LASE-PSV is directly supplied with 24V DC via an M12 – 5 pins.

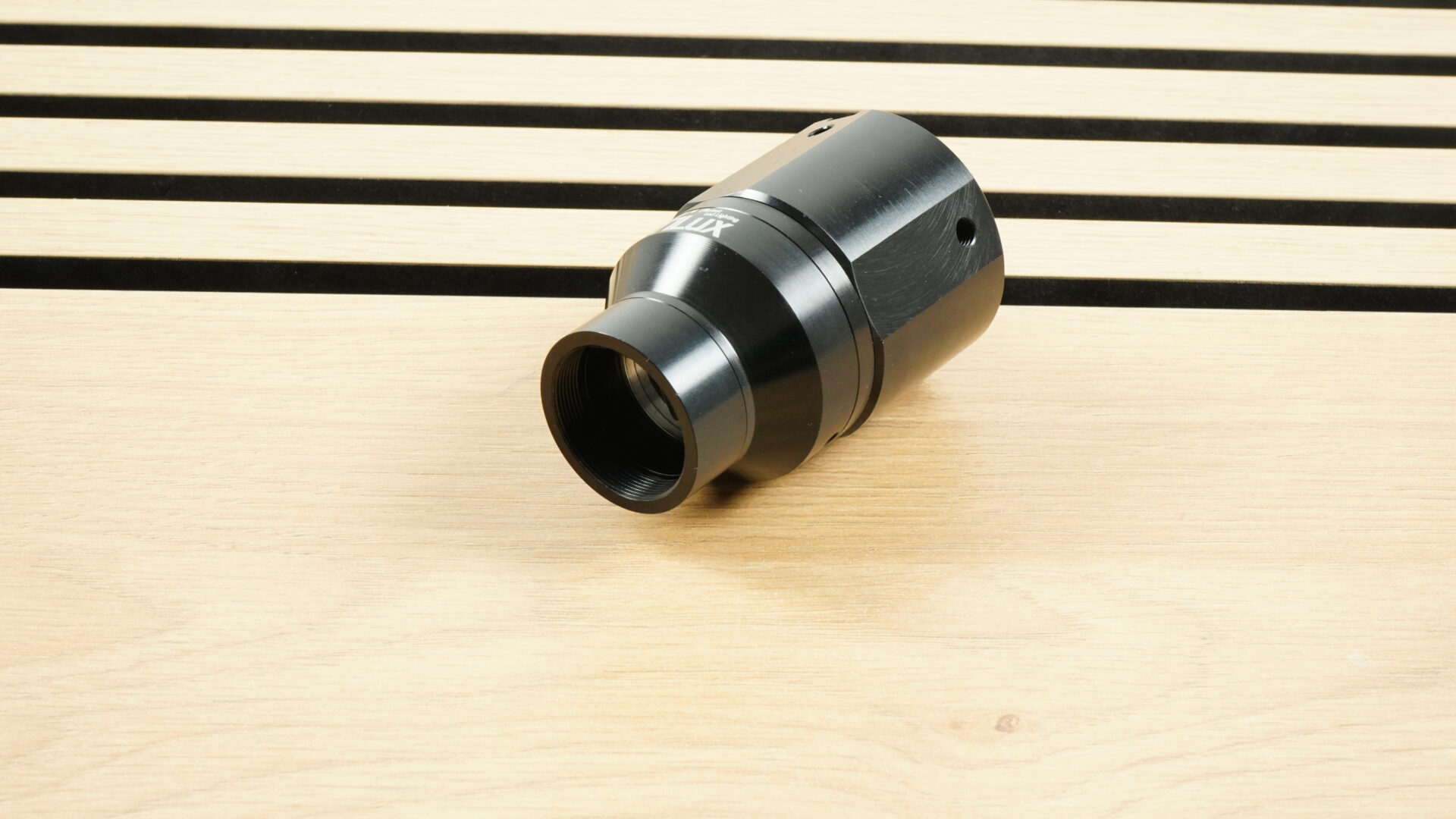

The compact version of the EFFI-LASE-CPT allows:
The LEDs are powered directly, the maximum current defined in the data sheet for a frequency and a given pulse time cannot be exceeded.
Mounting:
EFFI-LASE-PSV: Four standard M5x0.8 holes can be used to fix the device
EFFI-LASE-CPT: Five M4x0.8 holes can be used to fix the device.
To mount them, the Elcom mounting solution (EFFM-1-0009) is the most suitable.
| Mechanical versions | IP grade | Passive cooling | Integrated driver | Compact | Direct current supply (no protection) |
| EFFI-LASE-PSV |  |
 |
|
 |
|
| EFFI-LASE-CPT | |
|
|
|
|
For all other inquiries, please contact EFFILUX.
