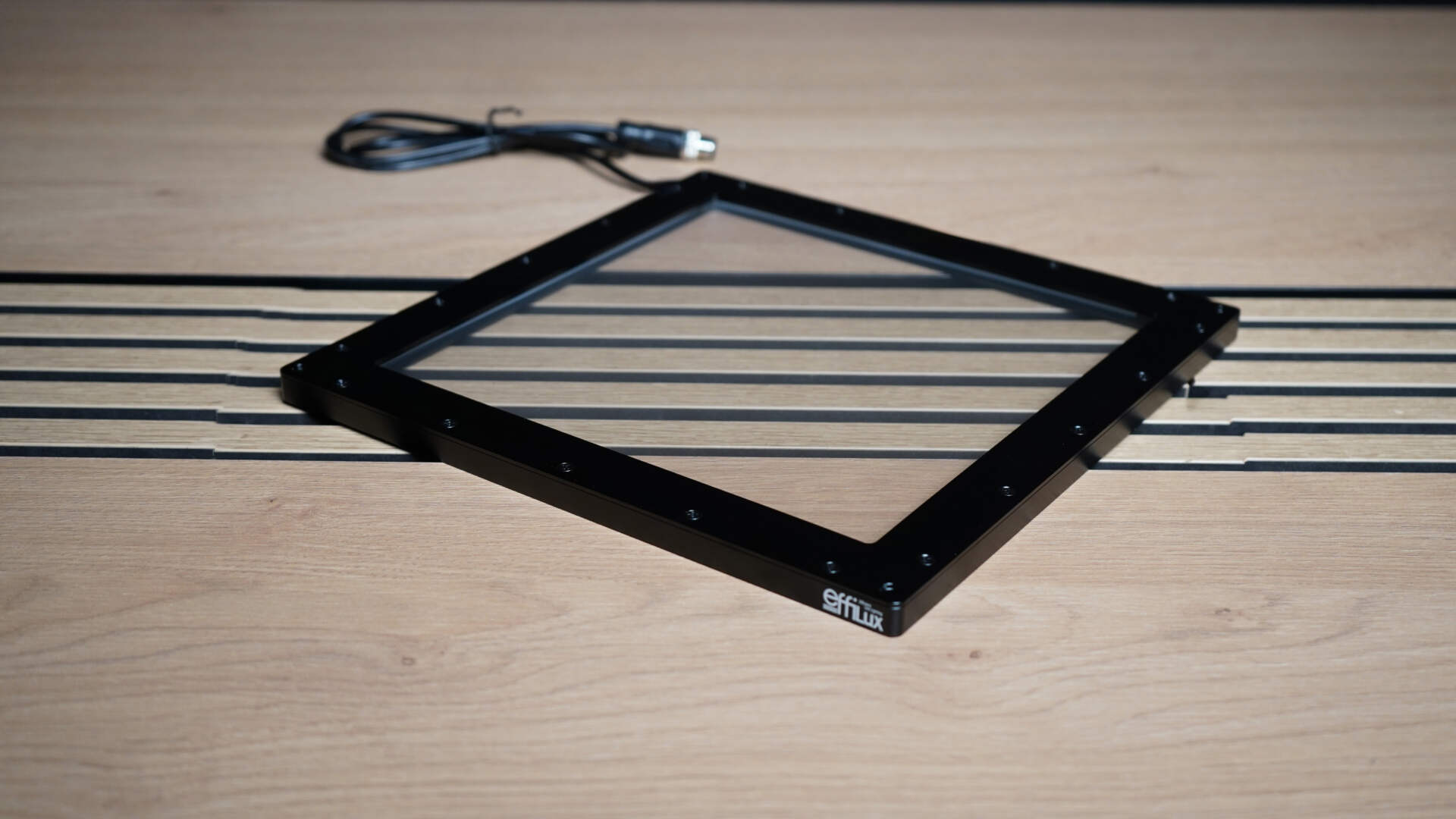

The EFFI-WINDOW is an ultra-flat dome light designed to deliver highly uniform illumination while minimizing shadows and reflections. Its compact 13 mm thickness and thin frame make it easy to integrate into space-constrained machine vision systems.
Available in sizes from 66 × 66 mm to 210 × 210 mm, the EFFI-WINDOW provides a large, homogeneous emitting surface ideal for inspection applications requiring consistent contrast and repeatable image quality. Powered directly from 24 VDC and built with a robust aluminum housing, it offers a simple, reliable, and cost-effective lighting solution for industrial environments.
Manufactured in France, the EFFI-WINDOW combines ease of integration, high optical uniformity, and a competitive price point, making it an excellent choice for quality control, electronics inspection, packaging verification, and general machine vision applications.

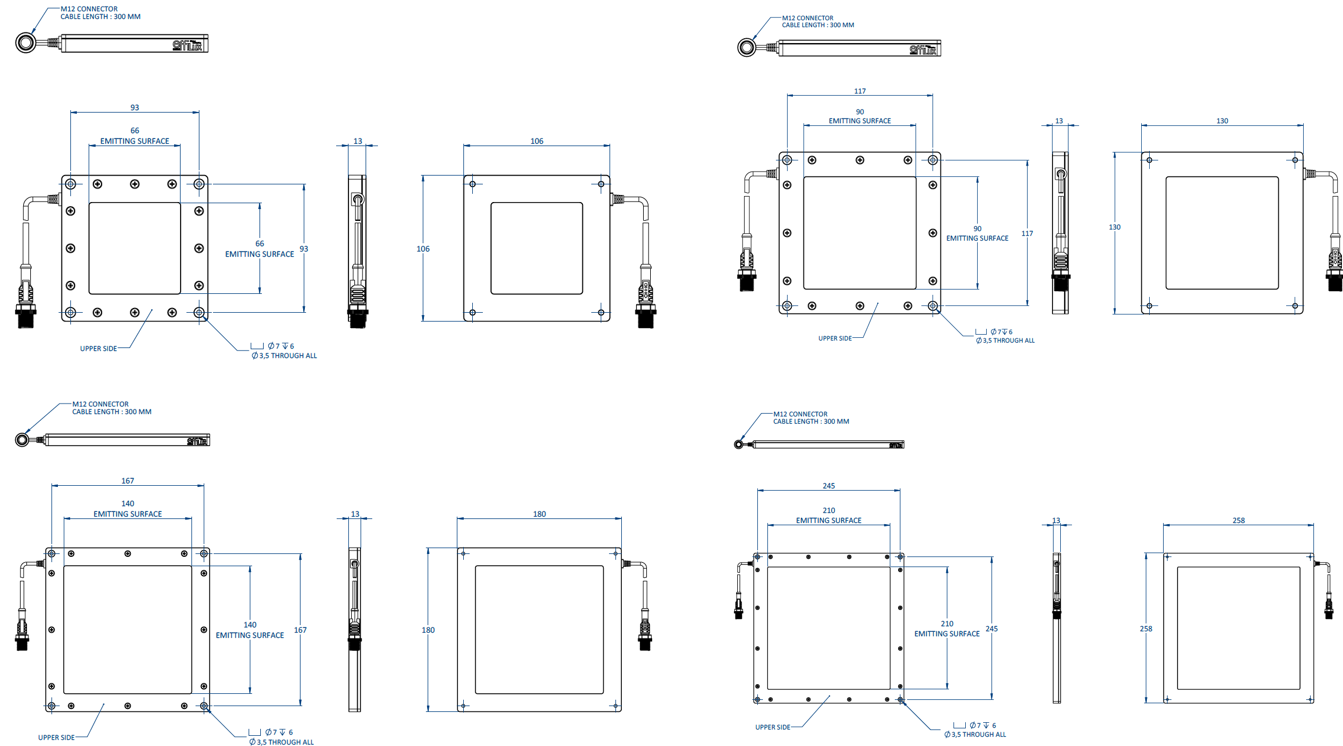

| Square dimensions (mm) | 66 | 90 | 140 | 210 |
PART NUMBER:
EFFI-WINDOW-XXX-YYY...
| Wavelength | ○ SW (White) |
PART NUMBER:
EFFI-WINDOW-XXX-YYY-ZZ
The EFFI-WINDOW is supplied directly at 24V DC via an M12 – 5 pins.
For all other inquiries, please contact EFFILUX.
