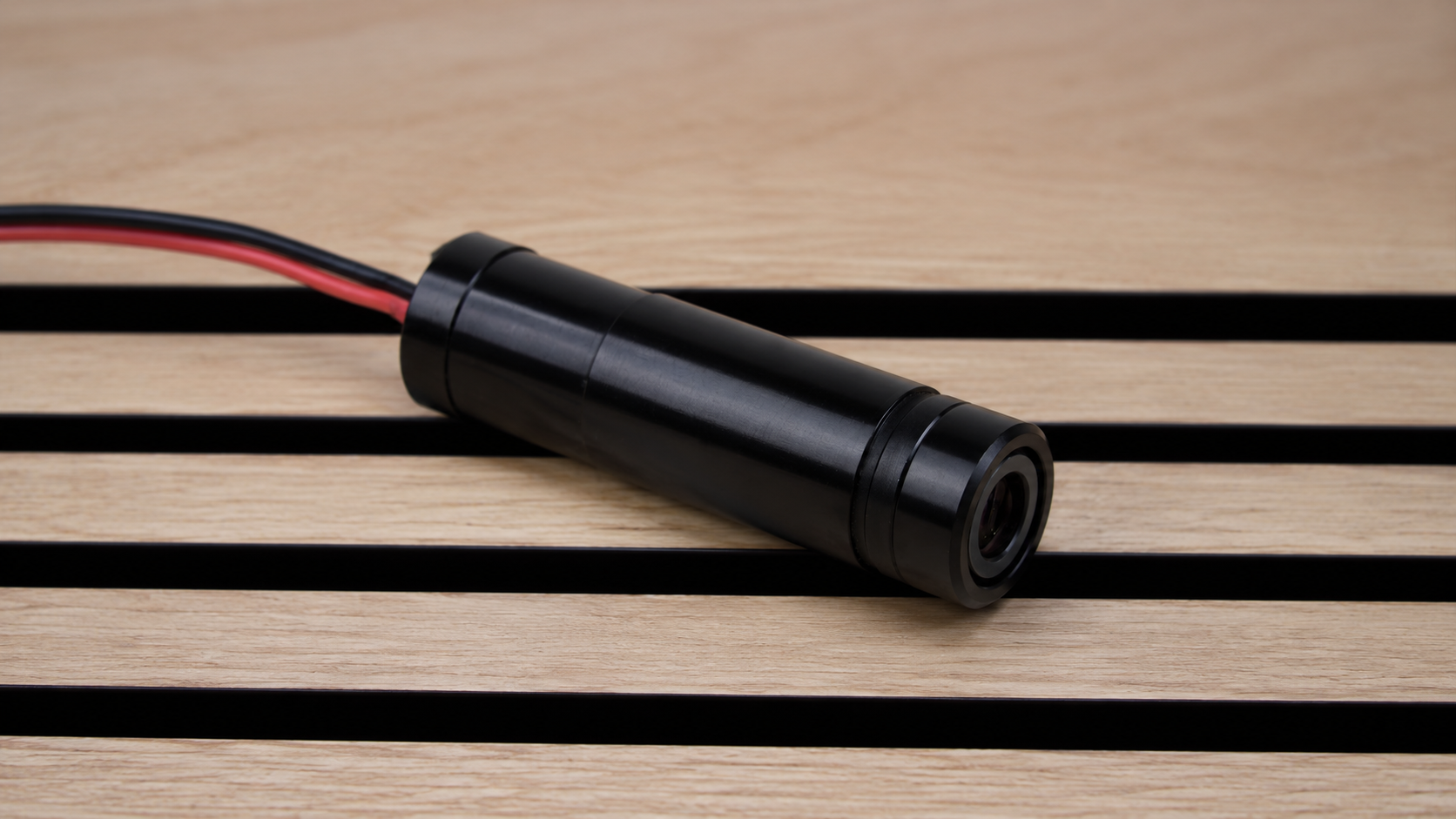

DLM-START is a compact and cost-effective laser diode module designed for easy integration into industrial systems. Combining reliable performance, robust construction and competitive pricing, it provides an accessible entry point into laser-based applications.
| Power | 1 mW | 3 mW | 5 mW | 10 mW |
PART NUMBERS:
DLM-START-XX...
| Wavelength (nm) | ● 515 (Green) | ● 635 & 650 (Red) |
PART NUMBERS:
DLM-START-XX-ZZZ...
| Spot sizes (mm) | 5×2 (Square) | Ø2 (Disk) | Ø3 (Disk) |
PART NUMBERS:
DLM-START-XX-ZZZ-YYY
| 3D profilometry |  |  |  |  |  |  |  |  |  |  |  |  |
| MMM : part number | L01 | L02 | L03 | L04 | L05 | L06 | L07 | L08 | L09 | L12 | L13 | L41 |
| Number of lines | 1 | 1 | 1 | 3 | 3 | 5 | 100 | 22 | 1 | 2 | 1 | 1/40 |
| Line(s) thickness (µm) | 50 | 20 | 10 | 50 | 50 | 50 | 45 | 50 | 5 | 50 | 50/250 | 75/45 |
| Line(s) length (mm) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Step between each line (µm) | / | / | / | 500 | 200 | 750 | 112.5 | 350 | / | 500 | 1150 | 200 |
| Stereovision |  |  |  |  |  |  |  |
| MMM : part number | G01 | G02 | G03 | G04 | G05 | C02 | C03 |
| Pattern type | Round | Round | Grid | Grid | Square | Cloud of dots | Cloud of dots |
| Single pattern dimensions | Ø 50µm | Ø 50µm | Line thickness: 50µm | Line thickness: 50µm | 50×50µm² | Density 50% | Density 17% |
| Step between each pattern | 100µm | 100µm | 255µm | 255µm | 100µm | / | / |
| Effective mask surface | 10x10mm² | 13x13mm² | 10x10mm² | 12,5×12,5mm² | 10x10mm² | 12,8×9,6mm² | 12,8×9,6mm² |
| Alignment |  |  |  |
| MMM : part number | A01 | A02 | A03 |
| Pattern type | Cross | Concentric circles | Square |
| Line(s) thickness (µm) | 50 | 26 white circles 50µm / 26 black circles 200µm | 50 |
| Line(s) length (mm) | 13 | / | 10 |
| Other dimensions | / | Step between each circle = 250µm / Central spot = Ø 30µm | / |

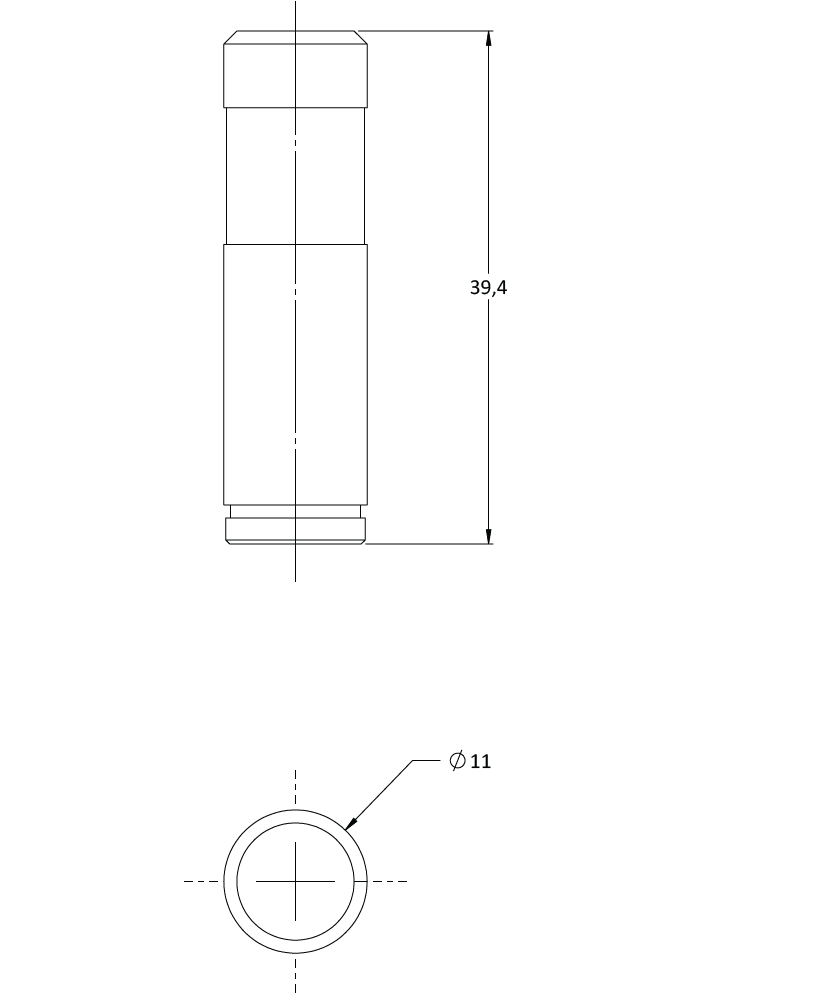

DLM-START is powered by a 24V DC source.
Standard version: M12 5 pins connector.
For all other inquiries, please contact EFFILUX.
