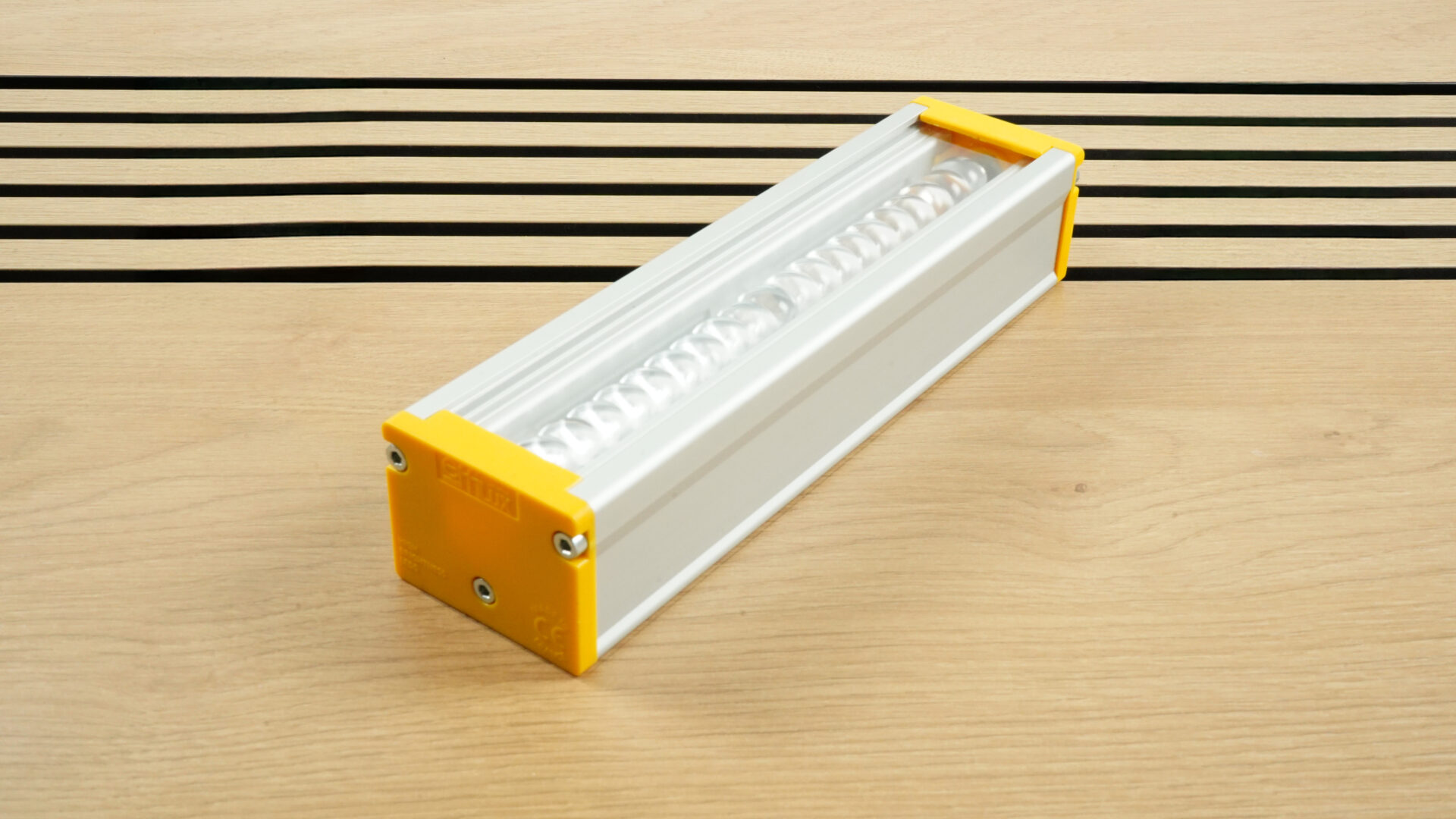

The EFFI-FLEX-LG is a powerful and cost-effective LED bar light specifically designed for the logistics industry. It combines ultra-high brightness with the optical flexibility required for a wide range of industrial vision applications in logistics and warehousing.
Powered by MegaStrobe™ technology, the EFFI-FLEX-LG delivers exceptional light output with pulse durations up to 400 µs and frequencies up to 150 Hz, with a response time under 1 µs. Its adjustable lens positions and interchangeable windows allow precise optical tuning to match each application’s needs.
Engineered for efficiency, it features a dedicated low-power electronic design, standard T-slot mounting, and M12 connectors for fast plug-and-play installation. The EFFI-FLEX-LG is ideal for logistics automation tasks such as barcode reading, label verification, dimensioning, sorting, tunnel scanning, pick & place, and palletizing.
Custom optical, electrical, or mechanical configurations are available to meet specific project requirements.

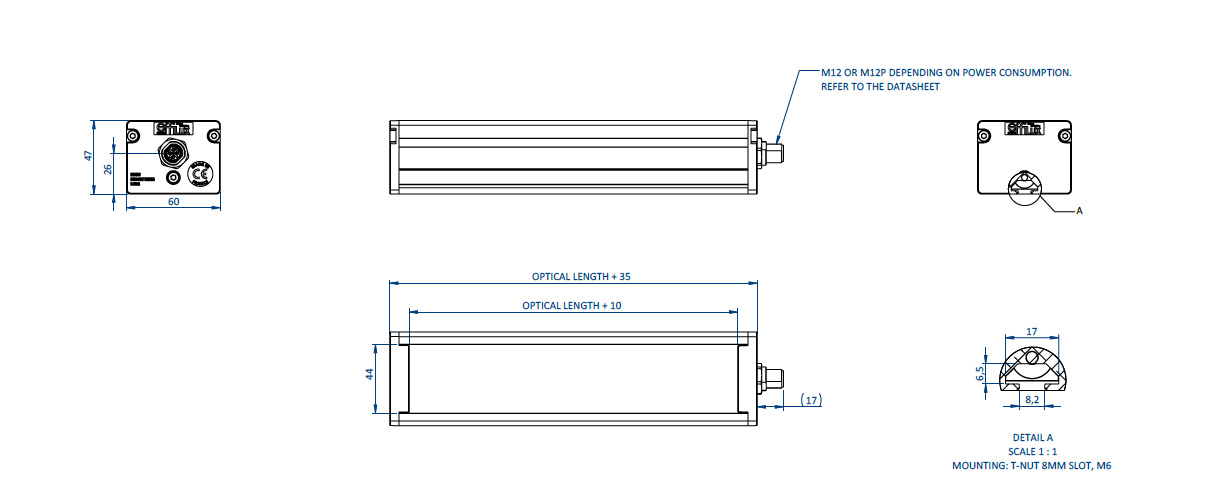

| Optical length (mm) | 200 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Length of the product (mm) | 235 | 435 | 635 | 835 | 1035 | 1235 | 1435 | 1635 | 1835 | 2035 | 2235 | 2435 |
PART NUMBER:
EFFI-FLEX-LG-XXXX…

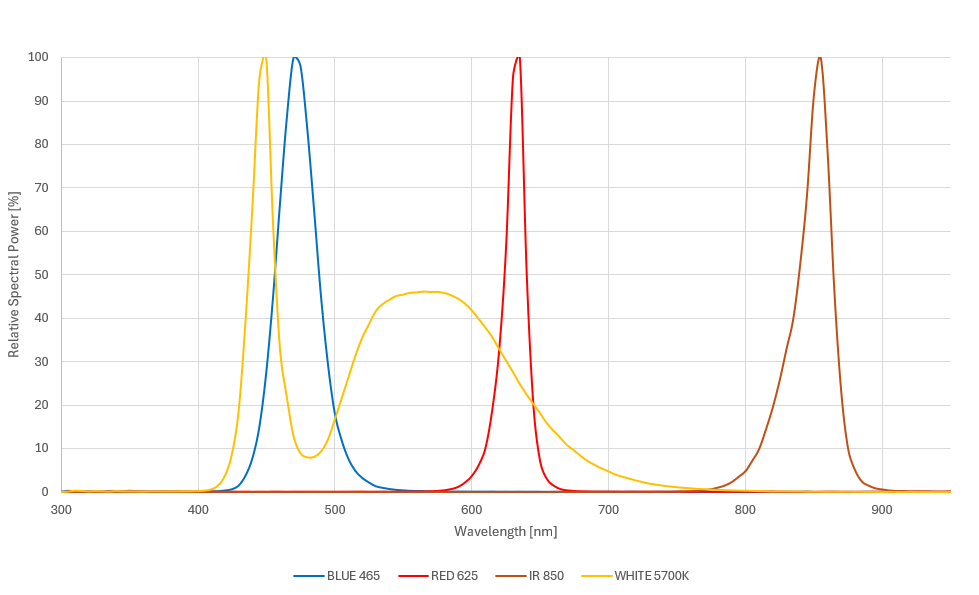

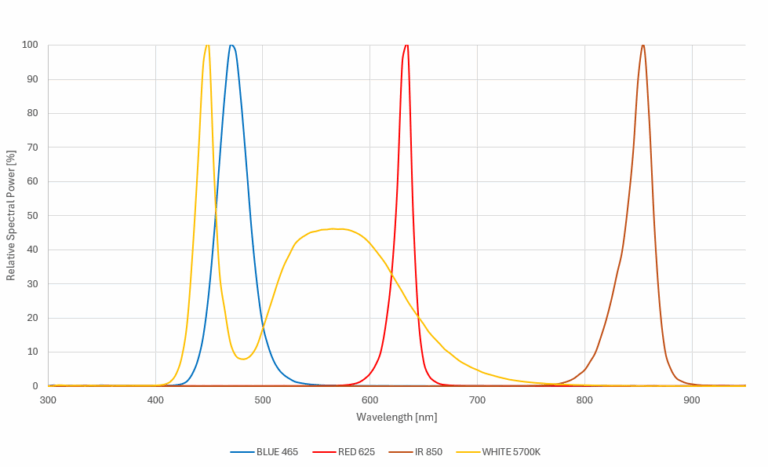

| Wavelength (nm) | ● 465 (Blue) | ● 525 (Green) | ● 625 (Red) | ○ 000 (White) |
PART NUMBER:
EFFI-FLEX-LG-XXX-ZZZ…
TR (Transparent)
SD (Semi-diffuse)
OP (Opaline)

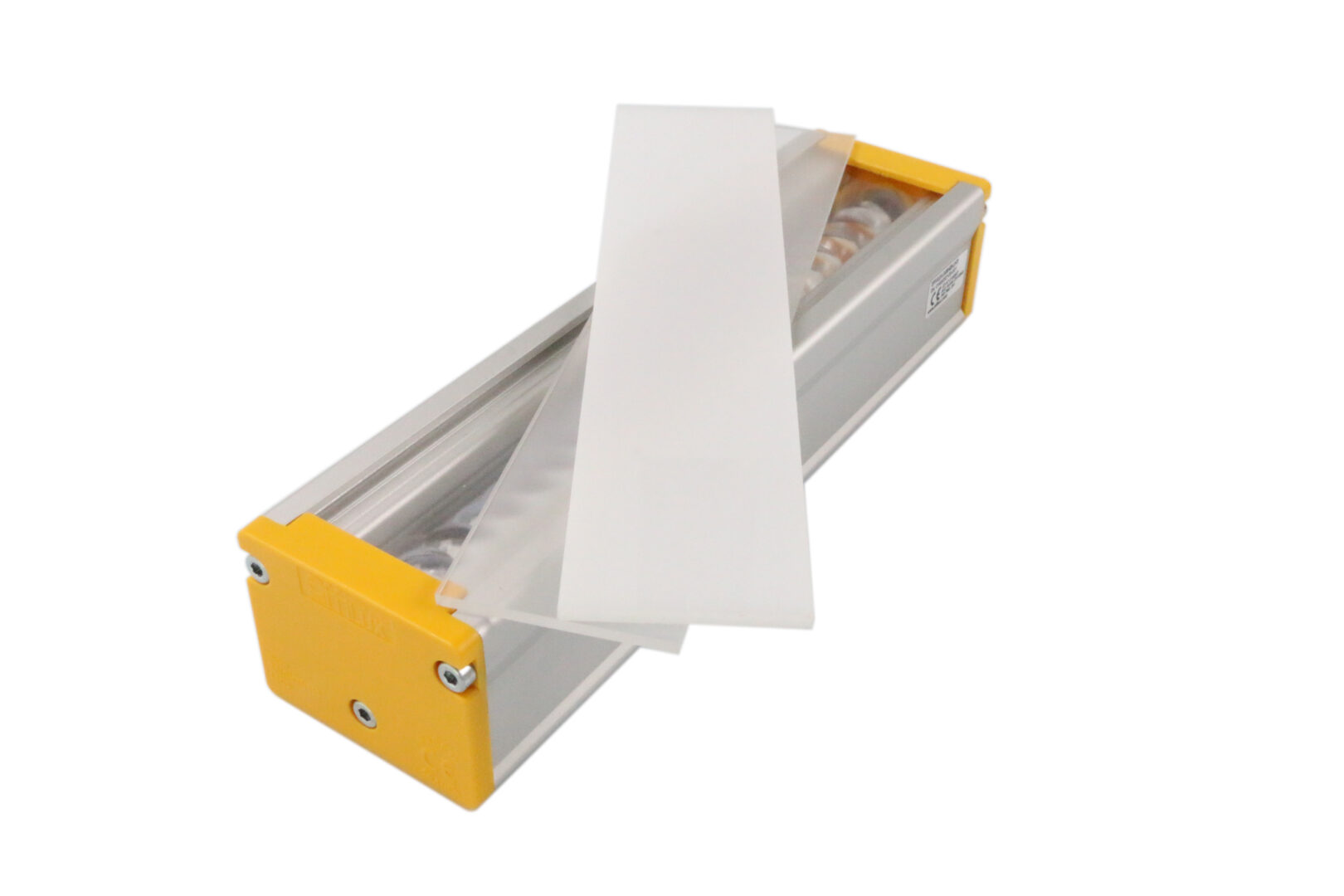

KIT (All diffusers)
PART NUMBER:
EFFI-FLEX-LG-XXX-ZZZ-WW…
EFFI-FLEX offers 4 lens configurations to choose the right emission angle, manually adjustable to change the emission angle.
P0 : 90° (without lens)
P1 : 45°
P2 : 25°
P3 : 10°
PART NUMBER:
EFFI-FLEX-XXX-ZZZ-WW-PP…
The light is delivered assembled in the default configuration with the lens plate positioned at Position 2 (25°) and the TR window.
PART NUMBER:
EFFI-FLEX-LG-XXX-ZZZ-KIT
Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.
Possible to buy only the accessory. The polarization is optimal with a TR window, the use of SD or OP diffusers can depolarize the light.
PART NUMBER:
EFFI-FLEX-LG-XXX-ZZZ-WW-PP-POL

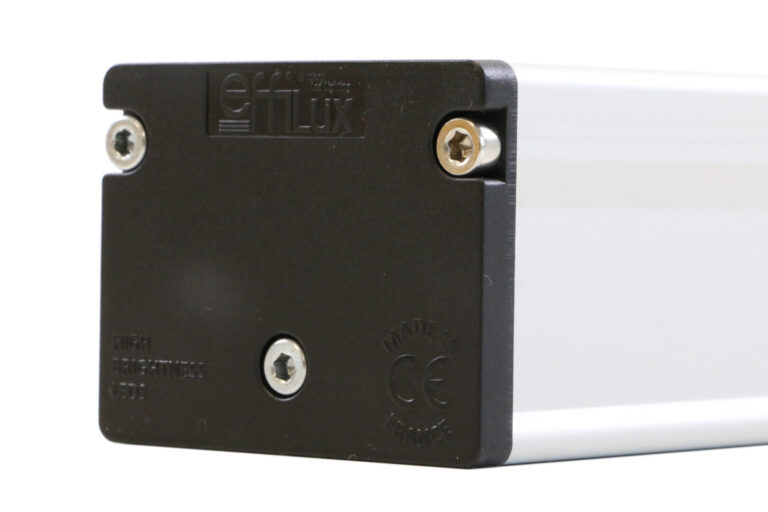

CHS
CHO
CPW
Two operating modes:
– Plug&Play: Direct camera connection
– Power: Via an additional power supply
Custom software required, contact Effilux.

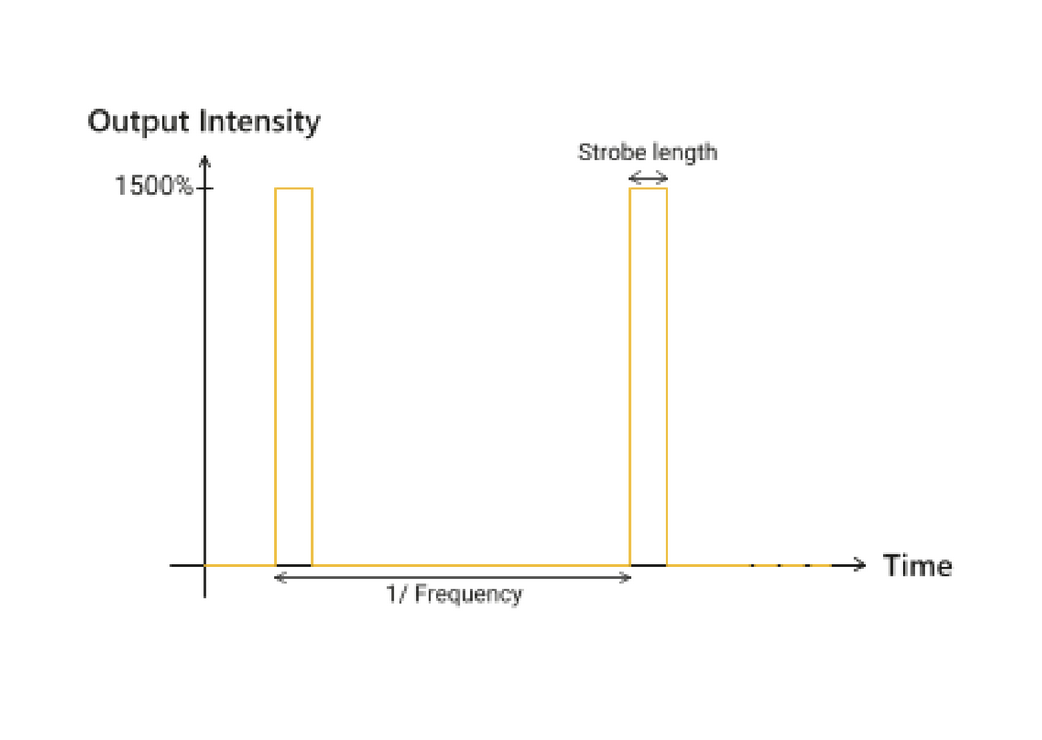

| Strobing time (internal protection) | 400µs max |
| Frequency (internal protection) | 150Hz max |
| Rising time | <1µs |
On request, Effilux can wire the pin 2 of the M12 connector for use in NPN [trigger on falling edge] for the AutoStrobe. In this case, Lighting on if VNPN < 1.5V DC.
PART NUMBER:
EFFI-FLEX-LG-[...]-NPN
PART NUMBER:
EFFI-FLEX-LG-XXXX-ZZZ-WW-PP-SWxxxxxx
For all other inquiries, please contact EFFILUX.
