EFFI-Ring is a high power adjustable ring light with interchangeable diffusers and an adjustable lens position offering multiple possible configurations.

It meets the major needs of manufacturers with its mechanical accessories, making it easy to mount it on the end of a robotic arm, or to attach a camera. It is perfectly suited for pick & place or robot guidance applications, as well as any wide field of view inspection.

  • Flexibility in the choice of diffuser and emission angle (from 90° to 10°) to find the right compromise between power, lighted area and uniformity.
  • Integrated driver with AutoStrobe function which automatically increases power by 700% in overdrive mode, compared to continuous mode.
  • Robust design IP65 for applications in complex environments.
  • Hole camera of 58mm, compatible with most lenses.

Datasheet
User manual
Drawing
Step CAD
EFFILUX powerful and configurable ring light EFFI-RING for machine vision applications.

- Build your part number -

EFFI-RING

 - - -
Wavelengths (nm) Windows Lens position
Available Options Refer to the detailed information below for any specific reference (with options, customized, ...).

- Product Information -

Optics Mechanics Electronical Accessories Similar products

- Available wavelengths -

> Monochromatic version

Color ● UV ● Blue ● Green ● Red ●IR ○ White
(T°= 5500K ± 500K)
Wavelength (nm) : ZZZ 365* 405 465 525 625 850 000

*For UV 365: no lens provided (lens is not supported) and special UV treated window is used.

Part number: EFFI-RING-ZZZ...

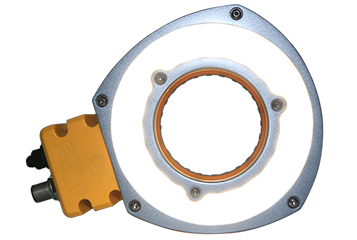

EFFI-Ring in white color

> Option: Multispectral version



Tricolor versions:
If RGB : -RGB
If WUI (White-UV-IR) : -WUI

With the EFFI-RING light, the 3-way potentiometer accessory will only allow to switch ON/OFF each color independently, not to adjust the intensity.

EFFI-Ring RGB (red, green, blue) and WUI (White, UV, IR)

> Option: SWIR Version


EFFI-Ring is also available in Effilux's SWIR range.
Available wavelength: 980nm, 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, 1550nm, 1650nm.

For more informationcontact Effilux.

- Windows -


TR : Transparent
SD : Semi-diffuse
OP : Opaline

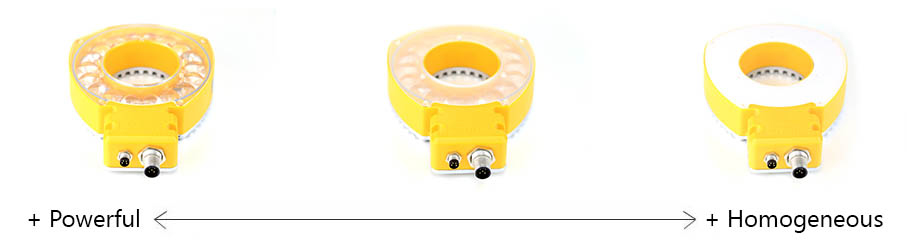

Presentation of the different types of Transparent / Semi-Diffuse / Opaline glass available on the EFFI-Ring for machine vision and quality control.

EFFILUX offers different types of interchangeable windows to find a good compromise between power and homogeneity depending on the nature of the object to control.

See optical accessory window


Part number : EFFI-RING-ZZZ-WW...

WW : TR, SD or OP
If not specified, default semi-diffuse window
The windows can be changed directly by the customer.

- Emission angle according to the lens position -


Presentation positioning of the lens on a EFFI-Ring.

EFFI-Ring offers 4 lens configurations, manually adjustable to change the emission angle.

Position P0* P1 P2 P3
Angle Presentation of an EFFI-Ring with an emission angle of 90°.
90° * without lens		 Presentation of an EFFI-Ring equipped with a lens with an emission angle of 45°.
45°		 Presentation of an EFFI-Ring equipped with a lens with an emission angle of 25°
25°		 Presentation of an EFFI-Ring equipped with a lens with an emission angle of 10°.
10°


Part number : EFFI-RING-ZZZ-WW-PP

PP : P0, P1, P2 ou P3
If not specified, default position P2.
The position of the lens can be changed by the customer for more flexibility.

- Additional options -

> Option: Polarizer

The optical accessory Polarizer eliminates glare caused by the lighting on parts to control. The camera can then analyze the part, without being disturbed by the glow effects.

Part number : EFFI-RING-ZZZ-WW-PP-POL

POL : polarizer accessory
If polarizer, add -POL in the part number
Possibility to buy only the accessory, see part number here
logo info Please note that with the polarizer accessory, the EFFI-Ring is IP50. For IP65 polarized version, choose -POL-IP option (polarizer directly glued on a transparent window).

Vision of a camera lit by a standard Effi-RING for industrial vision and quality control Vision of a camera lit by an Effi-RING equipped with a Polarizer for industrial vision and quality control

> Option: Kit

An EFFI-Ring with KIT option comes with lens in P2 position and the semi-diffusive window. A transparent and an opaline window are added in the package. It allows a better flexibility.
KIT option is free of charge for EFFI-Ring.

Part number: EFFI-RING-ZZZ-KIT

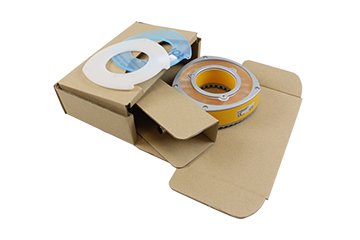

Presentation of an EFFI-Ring Kit

You can find the drawing and the weight of the products in the technical doc page.

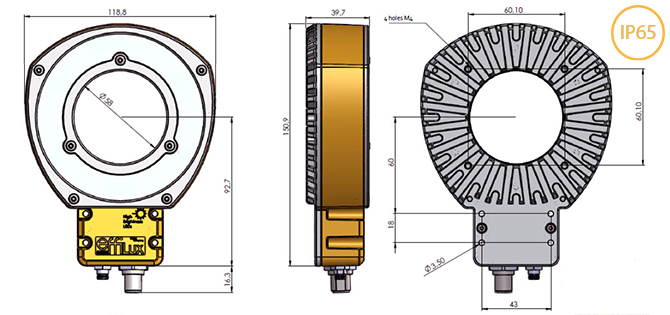

GENERAL DRAWING
GENERAL DRAWING
Diagram showing the various components and dimensions of a EFFI-Ring used for image processing and quality control.

logo infoFour tapped holes for M4 screws and four non-tapped holes for M3 screws can be used to secure the device.

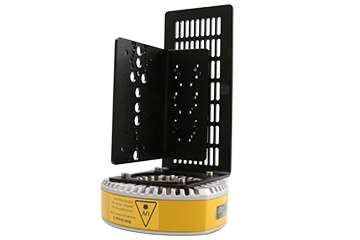

EFFI-Ring is compatible with the majority of standard cameras thanks to its fixing accessory.
EFFI-Ring is a waterproof product IP65. To keep the product watertight after dismantling, replace the gaskets as they were originally when reassembling them.

- Connectivity (Classic mode - M12) -

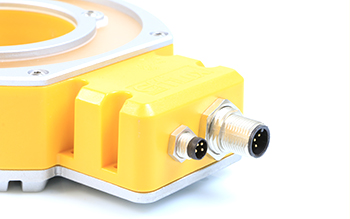

M8 and M12 connector on the EFFI-RING

The EFFI-RING in its classic use requires 24V DC input power via an M12 – 5 pins connector. Note the trigger pin needs to be connected either to the 24V DC signal for Continuous mode or to a PNP Trigger signal for Overdrive strobe mode.

> Monochromatic version

Characteristics of the M12 5-pin connector used to power the Effi-Ring for machine vision and quality control.
Pin number Designation Cable color
1 +24V Brown
2 N/A white
3 GND blue
4 TRIGGER PNP Black
5 N/A grey

> Tricolor version

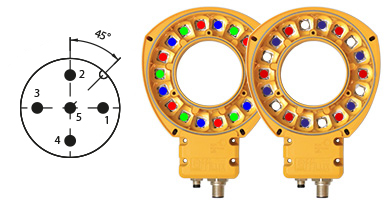

Characteristics of the 5-pin M12 connector used to power the Effi-Ring for machine vision and quality control.
Pin number
Designation
 Cable color
RGB version
WUI version
1 +24V +24V Brown
2 TRIGGER PNP Channel 3 (Blue) TRIGGER PNP Channel 3 (UV) White
3 GND GND Blue
4 TRIGGER PNP Channel 1 (Red) TRIGGER PNP Channel 1 (White) Black
5 TRIGGER PNP Channel 2 (Green) TRIGGER PNP Channel 2 (IR) Grey

- AutoStrobe operation -

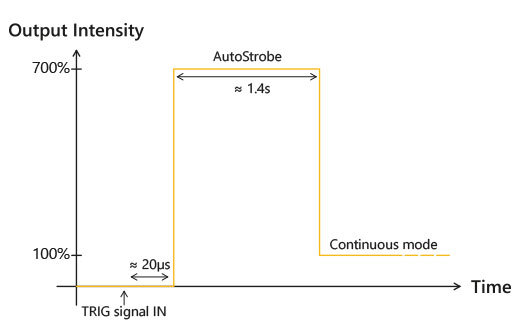

Graphical representation of the lighting intensity of the EFFI-Ring as a function of the DIM

danger logoAutoStrobe mode: Respect a duty cycle of less than 0.15.

- M8 connector - Direct control (Expert mode) -

> Choice of electronic control

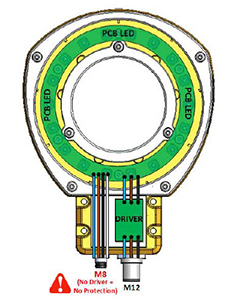

Diagram showing the wiring of the EFFI-Ring connectors according to the M12 or M8 connector




Standard mode: M12 - AutoStrobe (see previous section)
Expert mode: M8 - direct control

Thanks to its double connection, it is also possible to control the EFFI-Ring directly by current via the M8-4pins connector. Please refer to the datasheet for this specific operating mode.

danger logoIn expert mode, the LEDs are powered directly, there is no protection. The maximum current defined in the documentation for a given frequency and pulse time cannot be exceeded.

> Option: -STR version

The -STR version of the EFFI-Ring has been optimized (response time) for use of the product only in expert mode (via M8 connector).

Part number : EFFI-RING-ZZZ-WW-PP-STR

Please contact us.
logo infoA pulse controller can be used to power the EFFI-Ring with the M8 connector. See pulse controller accessory EFFI-IPSC4.

> Option: Kit

An EFFI-Ring with KIT option comes with lens in P2 position and the semi-diffusive window. A transparent and an opaline window are added in the package. It allows a better flexibility.
KIT option is free of charge for EFFI-Ring.

Part number: EFFI-RING-ZZZ-KIT

Presentation of an EFFI-Ring Kit

- Optical accessories -

Transparent, semi-diffused, opaline glass | interchangeable for compromise between power and homogeneity.

Windows
Lighting and camera polarizers to remove highlights and shine effects.

Polarizers
High-pass, low-pass, band-pass filter filters to suppress light disturbances.

Filters

- Mechanical accessories -

Accessory camera mount for attaching a camera to combine with lighting.

Camera mounting solutions
Accessories to fix the LED lights.

Light mounting solutions

- Electronical accessories -

Cables for connecting the power supply and the EFFI-Product | Used for machine vision and quality control.

Cables
Allows you to control the lighting in order to create intense flashes of light that will be synchronized with the camera.

Pulse controller

- Similar products -

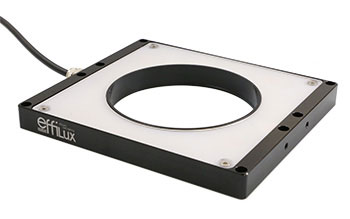

EFFI-SRING, Small thin homogeneous powerful led ring for machine vision and quality control
