EFFI-RLSW

High-contrast illumination for surface inspection

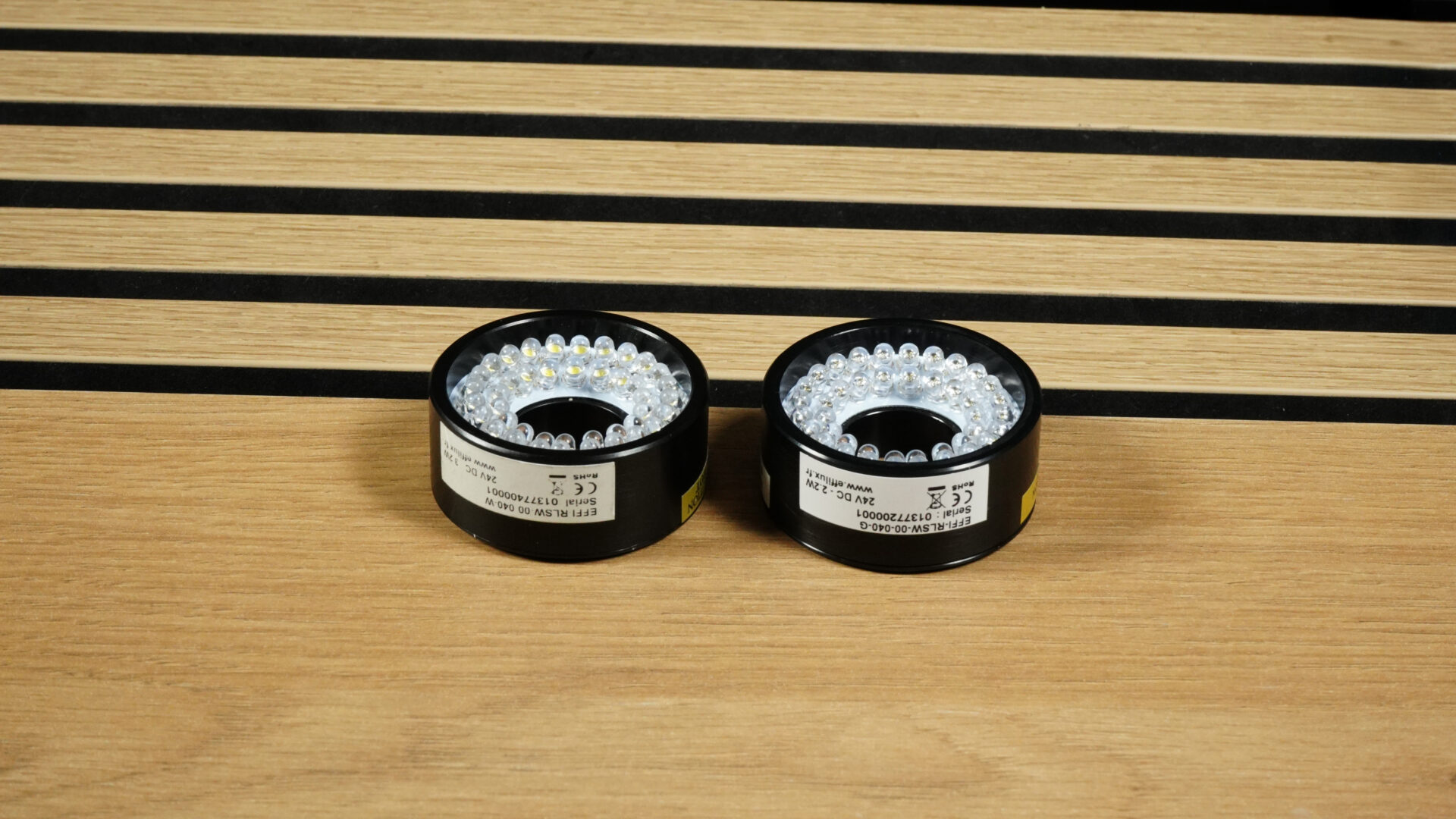

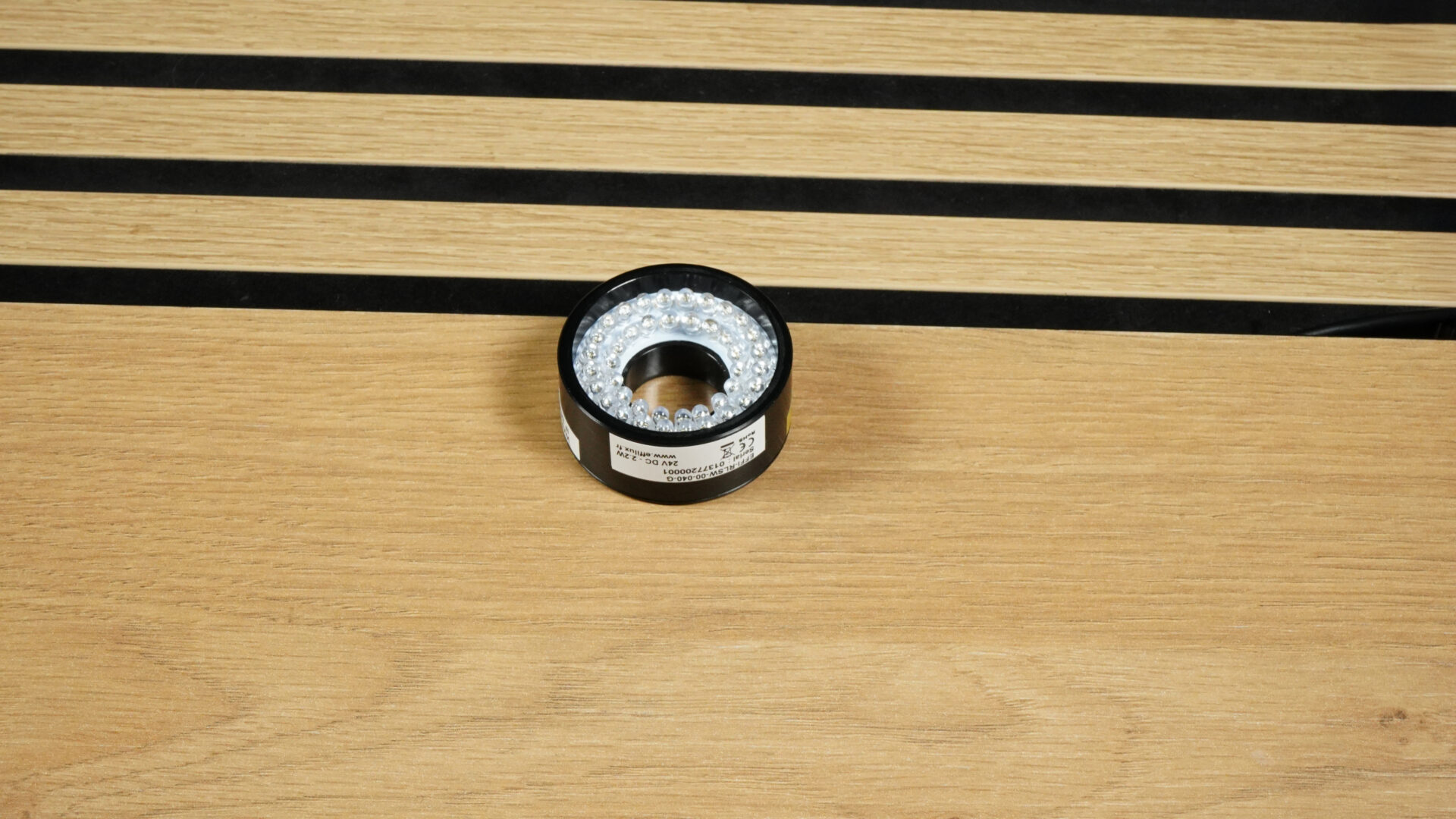

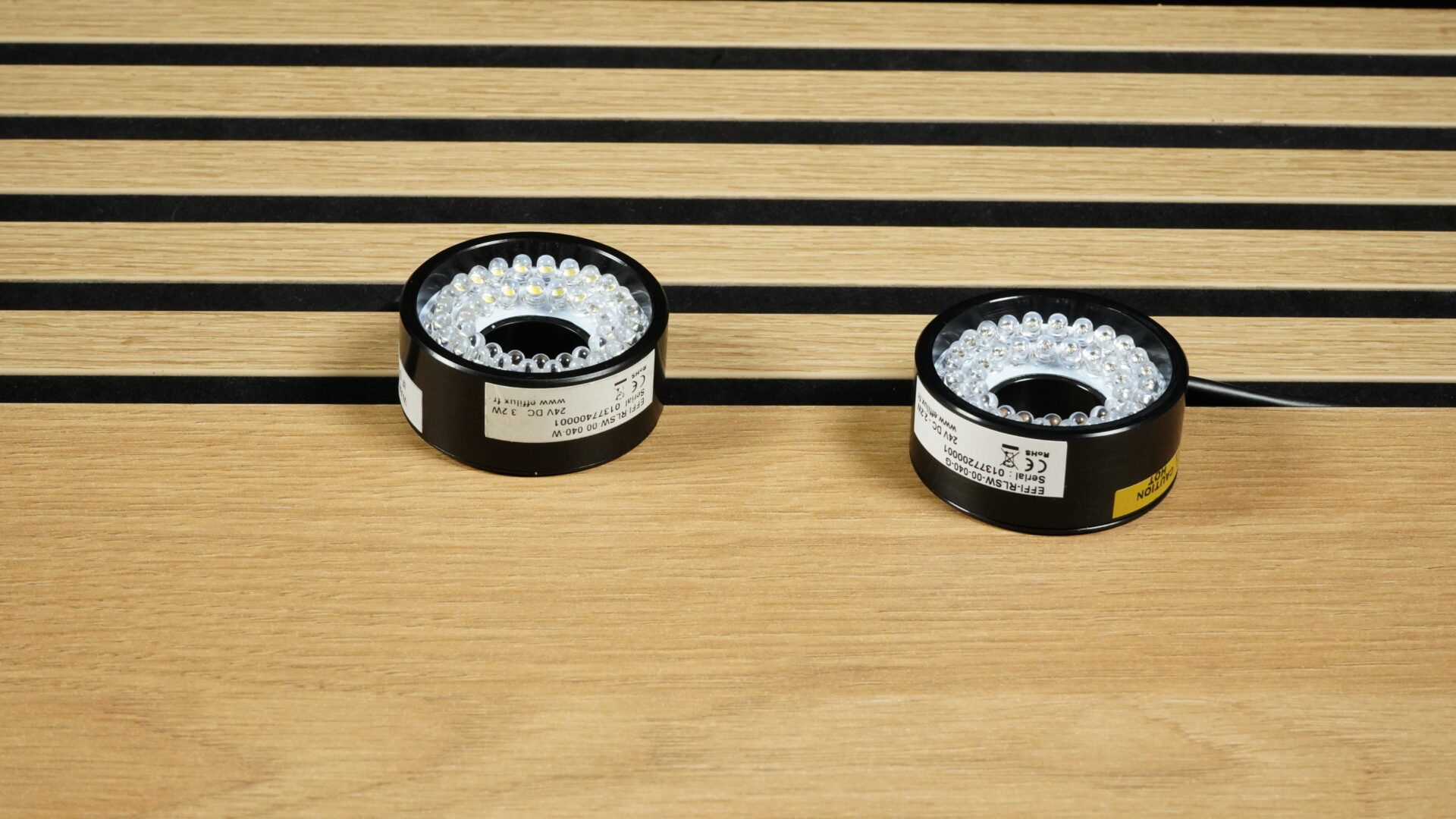

EFFI-RLSW Low-Angle Ring Light features two to three rows of LEDs oriented at a shallow angle, delivering high-contrast illumination for surface inspection. Its space-saving design makes it easy to integrate into various machines, including robotic arms, production lines, special equipment, and conveyors. Ideal for label inspection, flat surface analysis, and the inspection of parts made from steel, cast iron, plastic, or wood, EFFI-RLSW combines versatility and performance for demanding industrial environments.

Wavelength (nm)
465 (Blue)

525 (Green)

625 (Red)

940 (Infrared)

000 (White)
EFFI-RLSW is connected to the supply by a M12 4-pin connector.

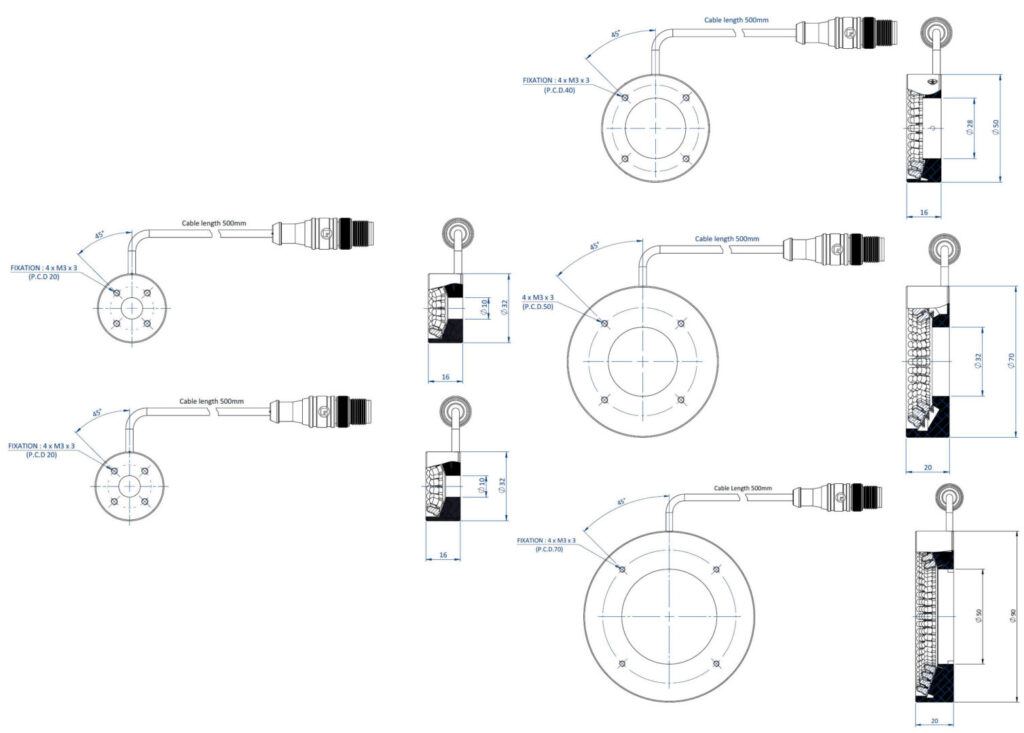

You can find the drawing and the weight of the products in the technical doc page.

DIFFUSER:

EFFO-RLSW-OP-…

POLARIZER:

EFFO-RLSW-POL…

ADAPTER:

EFFM-RLSW…
