Masks

EFFILUX patterned masks

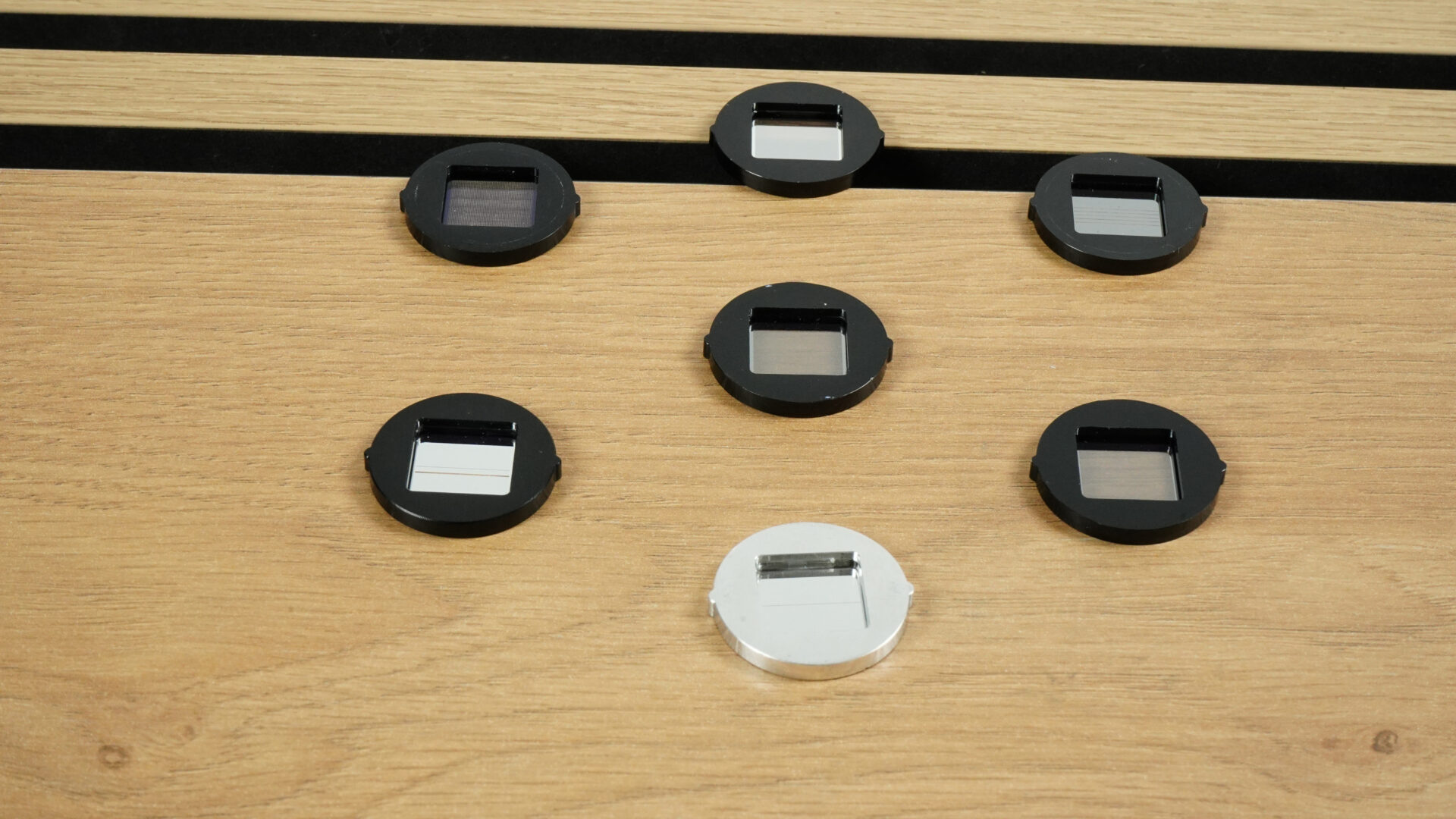

EFFILUX Mask Accessories are designed to enhance the performance of structured LED lighting systems such as EFFI-Lase V2, enabling precise projection of 3D patterns for advanced vision applications. While all dimensions refer to the mask specifications, the actual projection size depends on the lens used—see datasheet for details. EFFILUX offers a wide range of compatible masks, with custom designs available on request, ensuring optimal adaptability for various inspection needs. Ideal for 3D profilometry, stereovision, and alignment tasks, these accessories provide high-resolution pattern control for accurate and repeatable measurements.

3D profilometry
MMM : part numberL01L02L03L04L05L06L07L08L09L12L13L41
Number of lines111335100221211/40
Line(s) thickness (µm)502010505050455055050/25075/45
Line(s) length (mm)131313131313131313131313
Step between each line (µm)///500200750112.5350/5001150200
Stereovision
MMM : part numberG01G02G03G04G05C02C03
Pattern typeRoundRoundGridGridSquareCloud of dotsCloud of dots
Single pattern dimensionsØ 50µmØ 50µmLine thickness: 50µmLine thickness: 50µm50×50µm²Density 50%Density 17%
Step between each pattern100µm100µm255µm255µm100µm//
Effective mask surface10x10mm²13x13mm²10x10mm²12,5×12,5mm²10x10mm²12,8×9,6mm²12,8×9,6mm²
Alignment
MMM : part number A01 A02 A03
Pattern type Cross Concentric circles Square
Line thickness (µm) 50 26 white circles 50µm 26 black circles 200µm 50
Lines length (µm) 13 / 10
Other dimensions / Step between each circle 250µm Ø central spot 30µm /
3D profilometry
MMM : part numberL01L02L03L07L08
Number of lines11110022
Line(s) thickness (µm)100402067.575
Line(s) length (mm)25252519.519.5
Step between each line (µm)///100500
Stereovision
MMM : part numberC02C10
Pattern typeCloud of dotsCloud of dots
Single pattern dimensionsDensity 50%Density 50%
Not between each pattern//
Useful surface of the maskπ 12.5²π 12.5²
