Linescans

EFFILUX linescan accessories

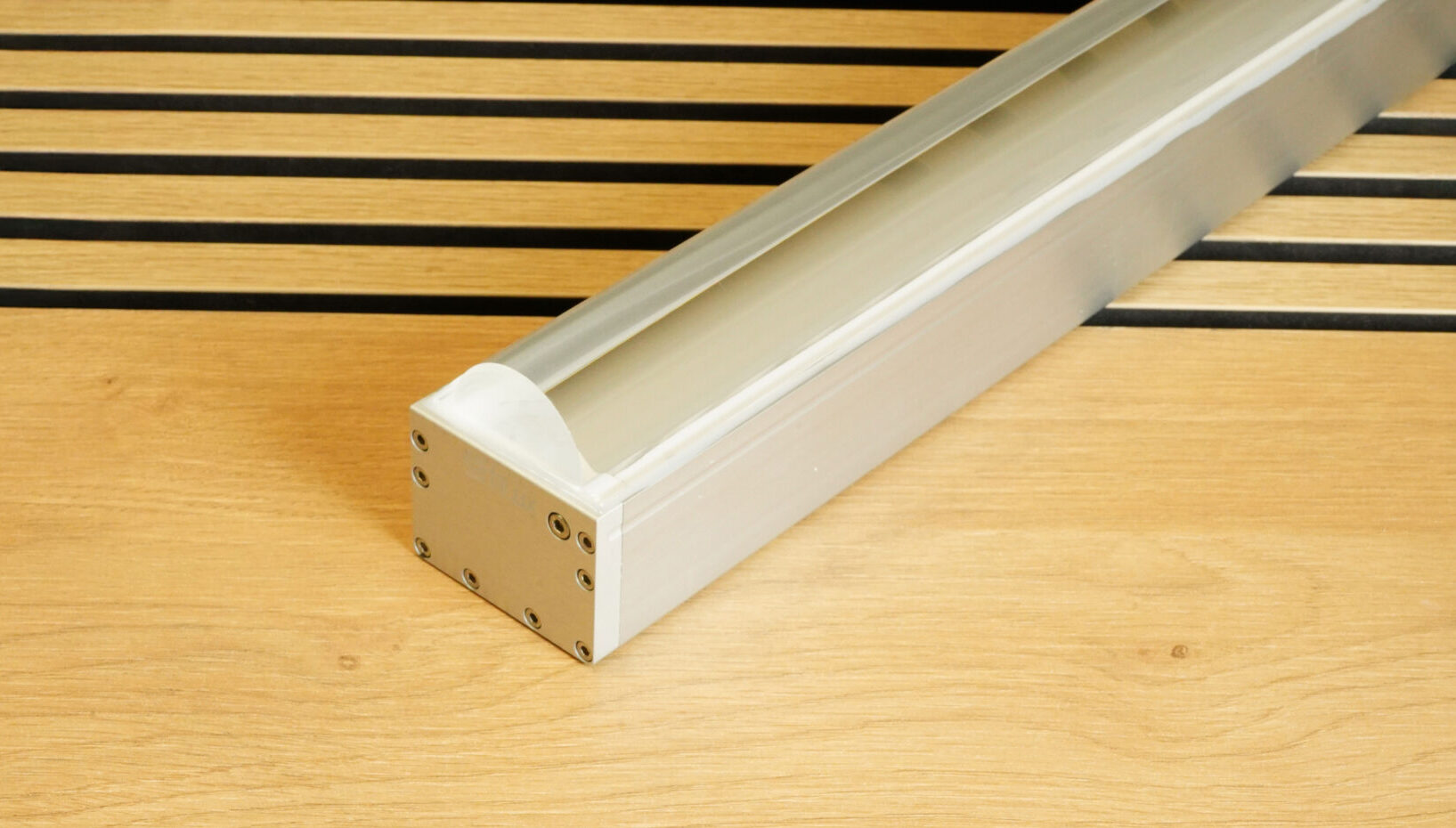

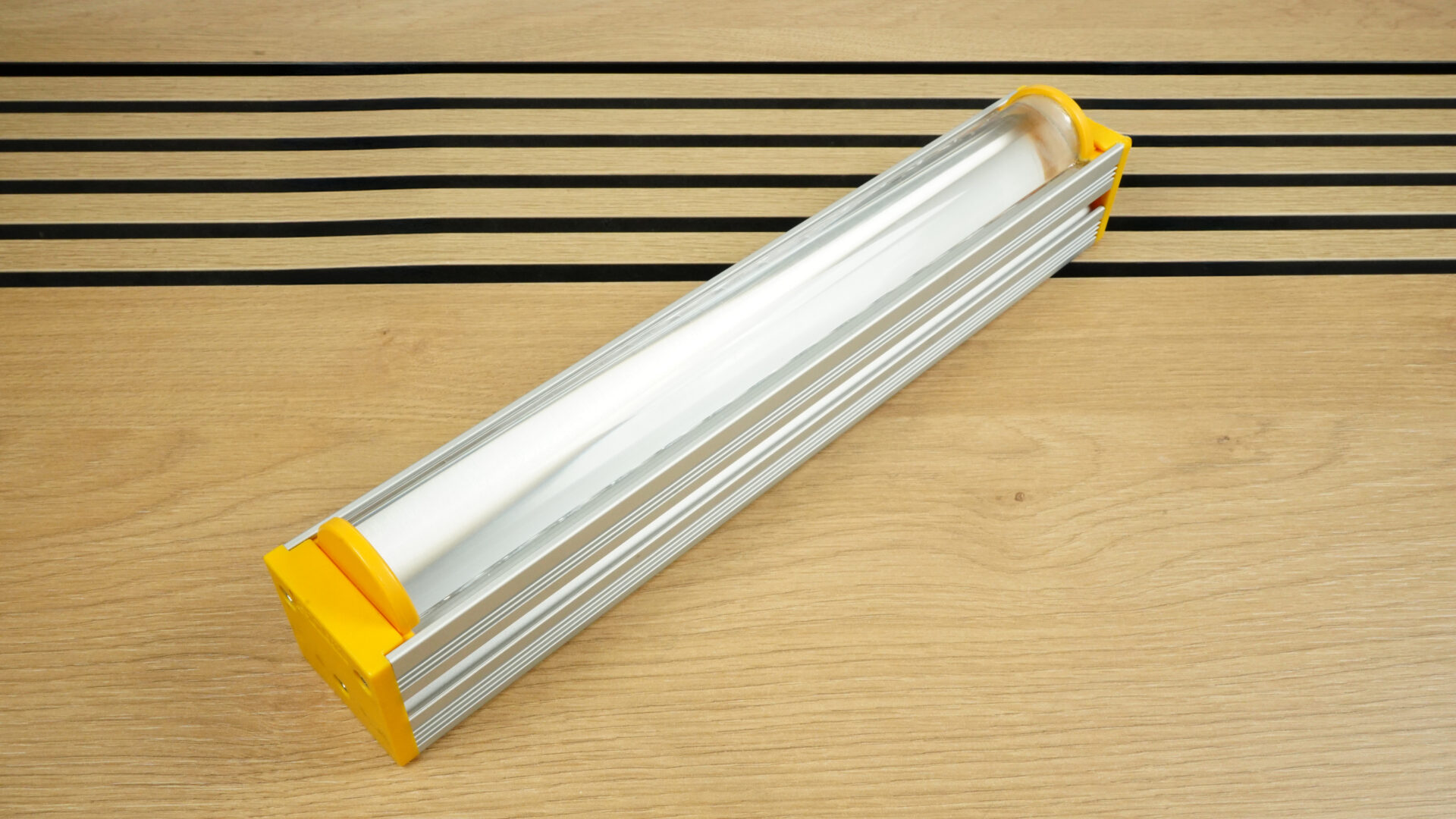

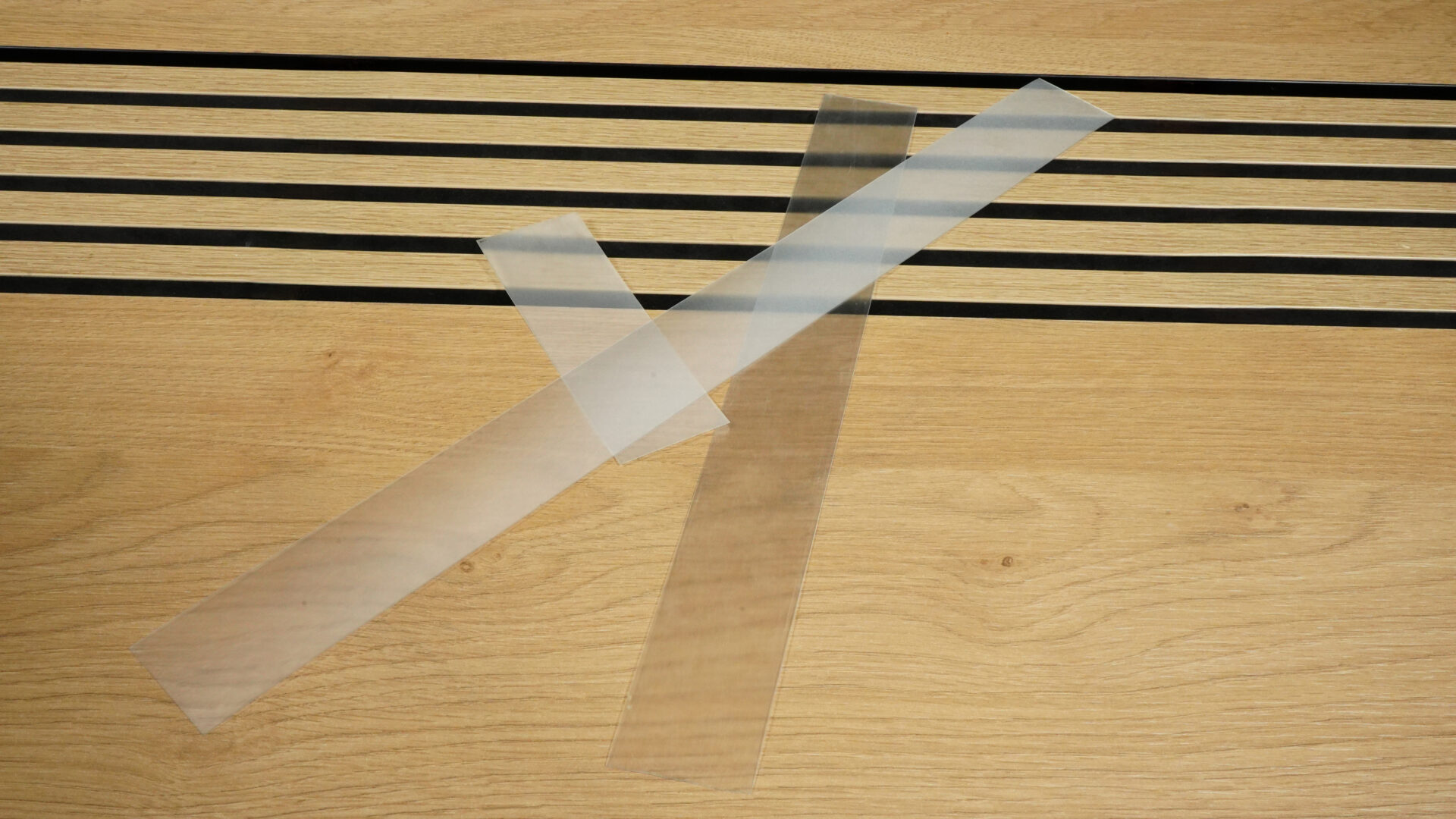

EFFILUX Linescan Accessory transforms the versatile EFFI-FLEX bar light into a high-performance linescan illumination system. By positioning the lens in the upper configuration, the linescan film creates a uniform and narrow light line, ideal for both brightfield and darkfield imaging. For enhanced intensity, the cylindrical lens window focuses the beam even further, producing a highly concentrated light line. This setup is perfect for applications requiring precise linear illumination, such as web inspection, surface analysis, and high-speed scanning in industrial environments.

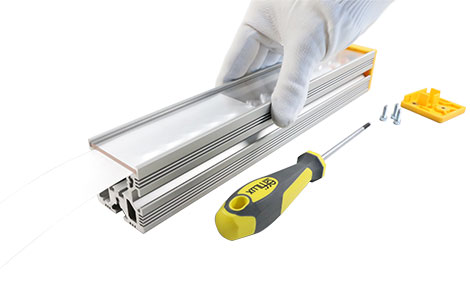

The linescan alone must be used with a TR-P3 configuration on the EFFI-FLEX/-FLEX2.

PART NUMBER:

EFFO-FLEX2-LS-XXXX

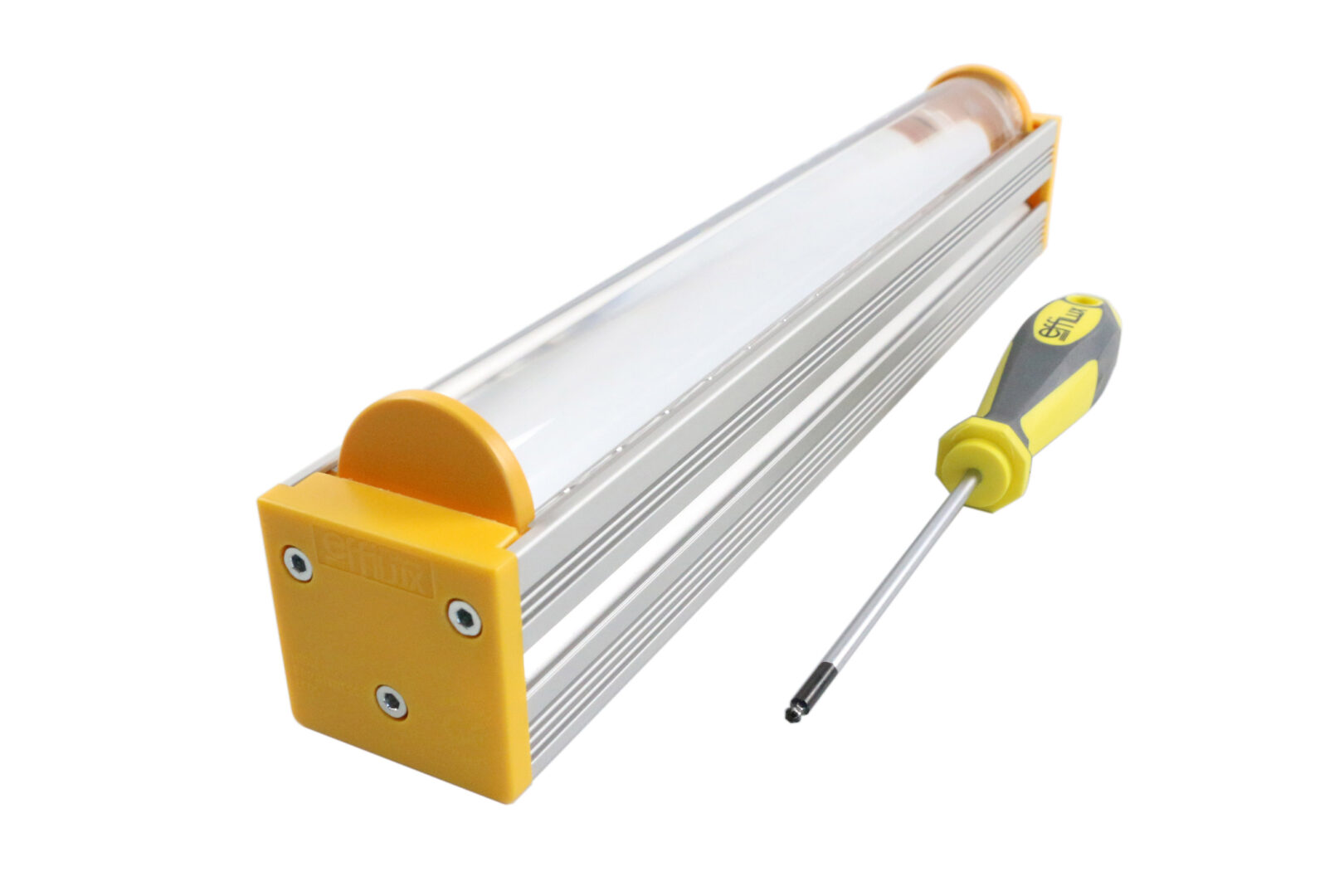

The linescan plus cylindrical lens must be used with a TR-P1 configuration on the EFFI-FLEX/-FLEX2.

PART NUMBER:

EFFO-FLEX2-TR-CYL-XXXX
