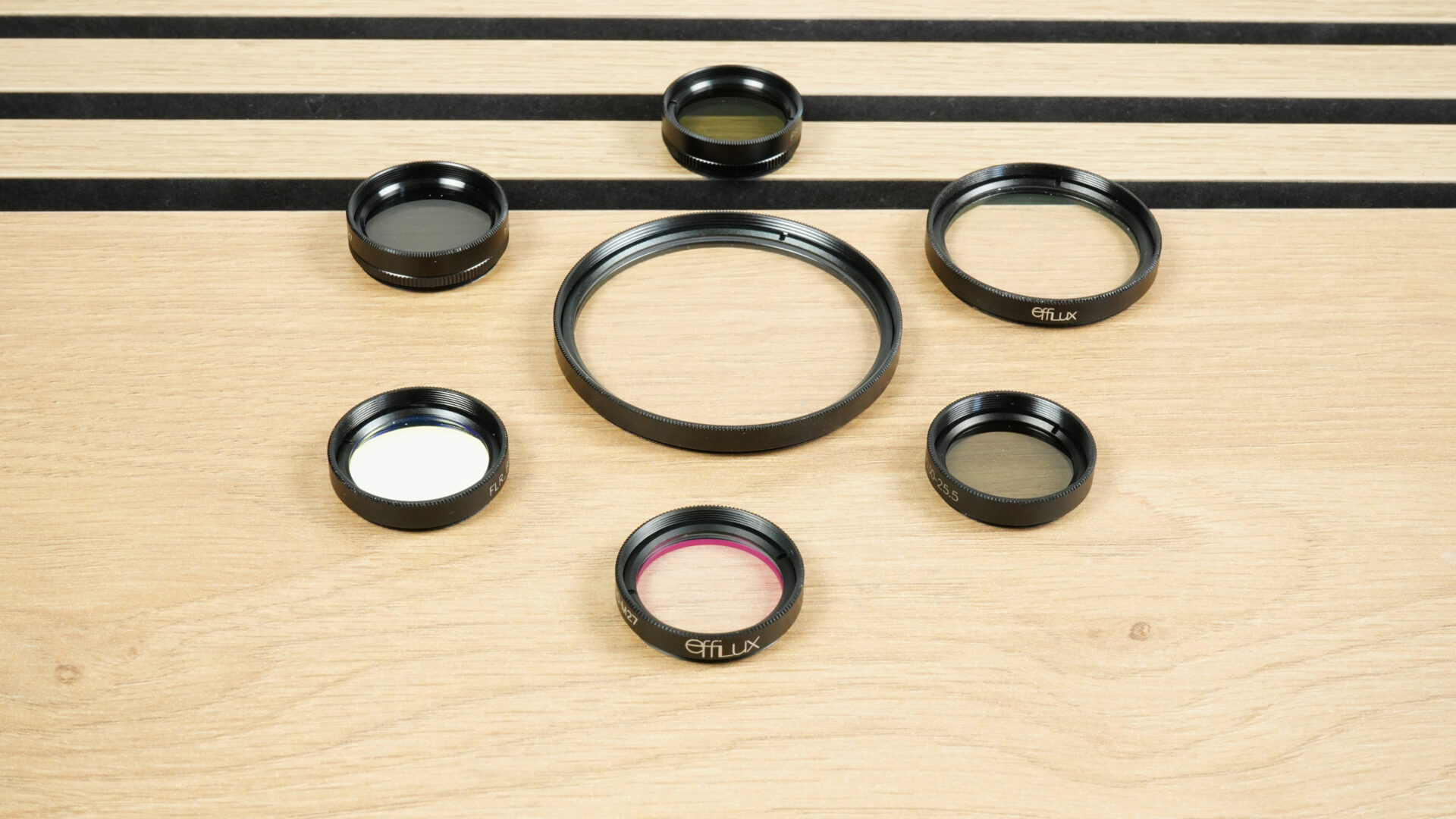

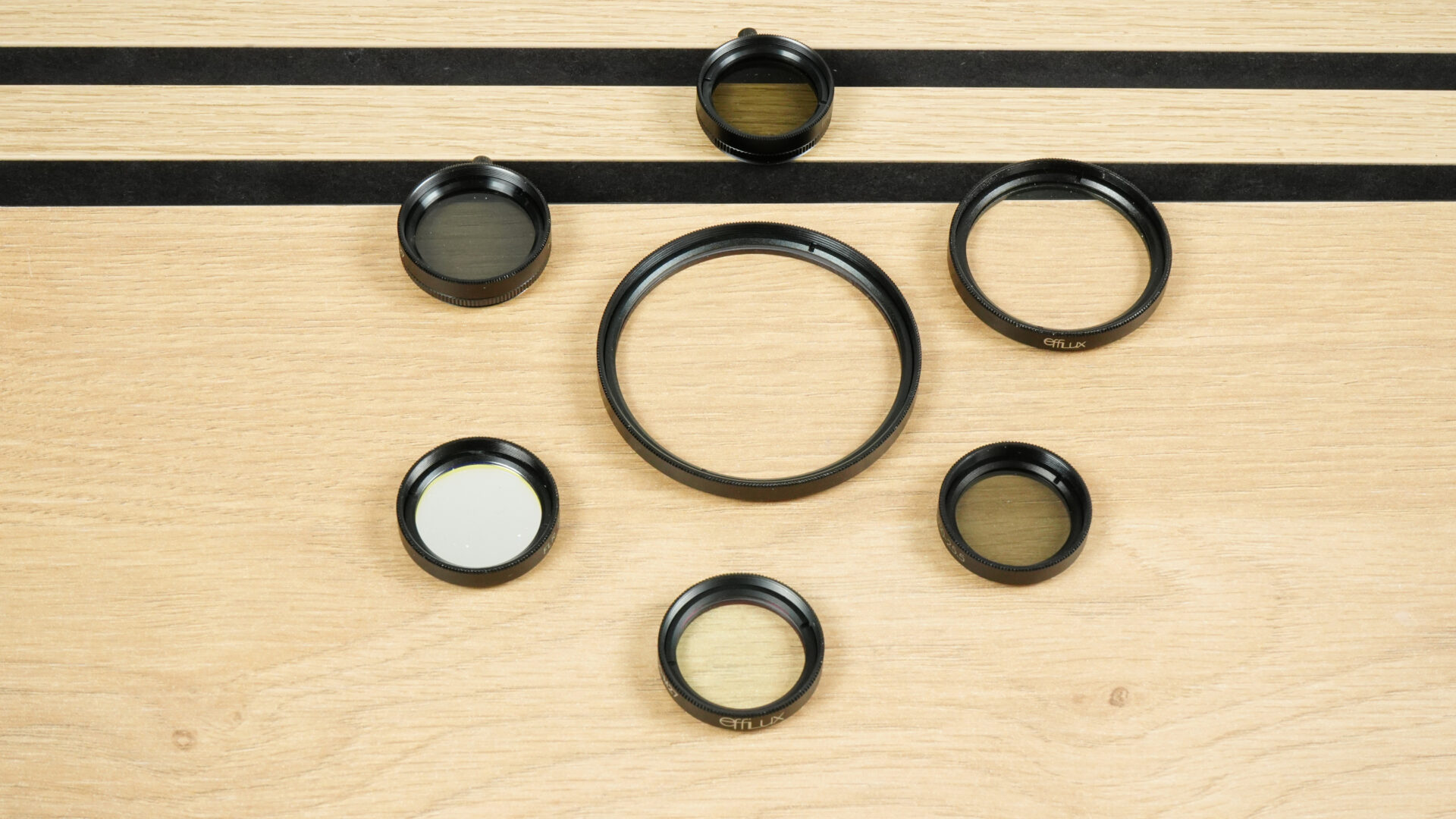

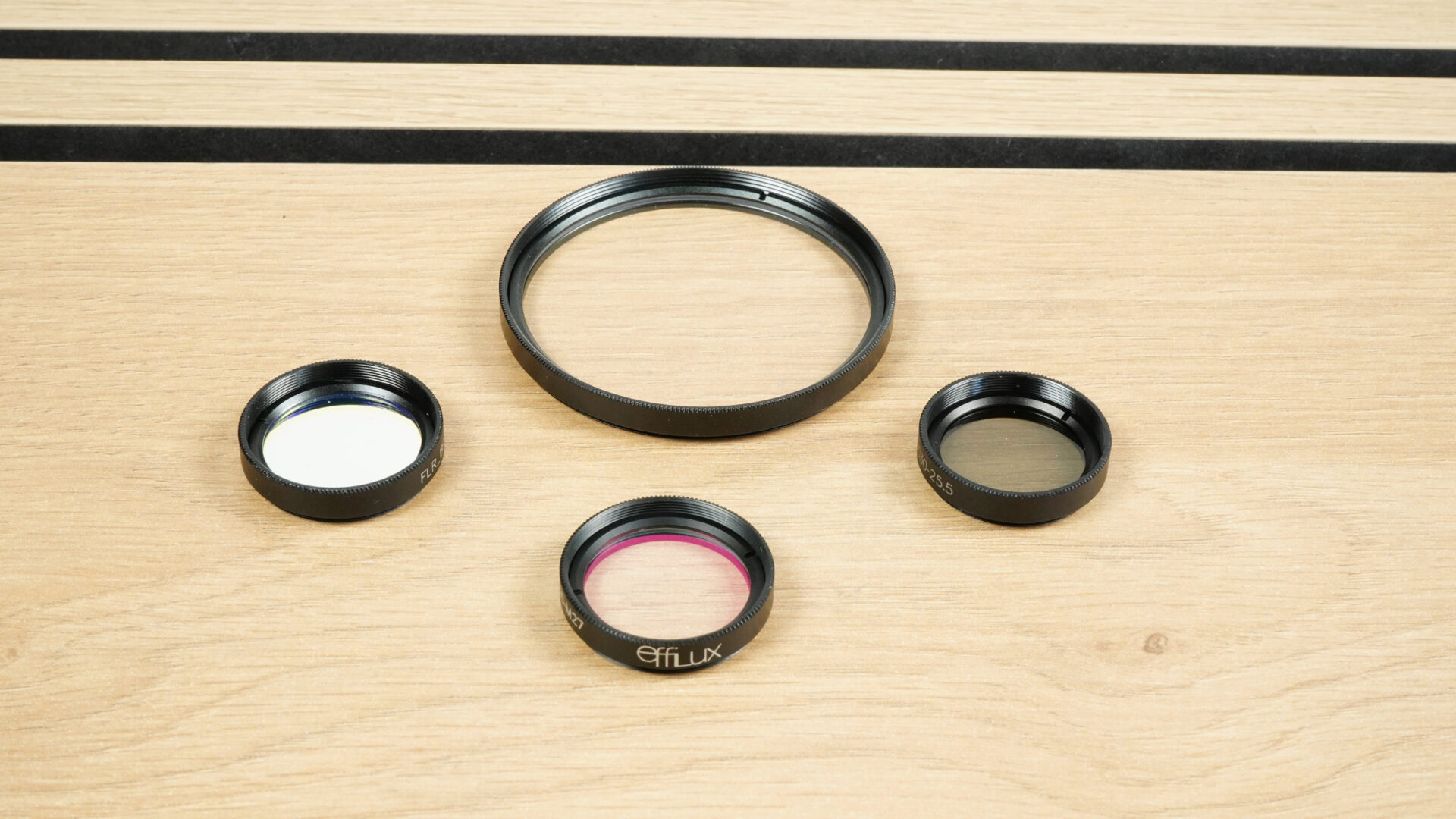

EFFILUX Camera Filters are designed to enhance image quality and precision in industrial vision systems. These optical accessories help reduce glare, improve contrast, and isolate specific wavelengths to optimize inspection results. Whether you’re working with monochromatic or multi-color lighting, EFFILUX filters allow fine-tuned control over the captured image, making them ideal for applications such as surface inspection, code reading, and material differentiation. Compatible with a wide range of EFFILUX lighting solutions, they are essential for achieving reliable and repeatable results in demanding environments.
| XXXXX | Polarizers | Red lights | Green lights | Blue lights | UV lighting (fluorescence application) | Infrared lighting (850nm) | Acrylic protection | |||||||||||
| PR032 (standard polarizer) | PR1000 (VIS/SWIR Polarizer) | BP635 | BN630 | BP525 | BP520 | BP470 | BP500 | BN470 | LP415 | BN470 | LP470 | BP850 | BN850 | LP800 | AC370 visible | AC760 NIR | AC915 SWIR | |
| MYYY | M13.25 | M22.5 | M25.4 (C-mount) | M25.5 | M27 | M30.5 | M34 | M35.5 | M37 | M37.5 | M39 | M40.5 | M43 | M46 | M48 | M49 | M52 | |
PART NUMBER:
EFFO-FLR-XXXXX-MYYY
XXXXX : Type of filter
MYYY : Filter size
| Adapter | Part number | Description |
| SU27-30.5 | EFFO-FLR-SU27-30.5 | To adapt a M30.5 filter on a M27 camera |
| SD27-25.5 | EFFO-FLR-SD27-25.5 | To adapt a M25.5 filter on a M27 camera |
| SU25.5-27 | EFFO-FLR-SU25.5-27 | To adapt a M27 filter on a M25.5 camera |
| SD30.5-27 | EFFO-FLR-SD30.5-27 | To adapt a M27 filter on a M30.5 camera |

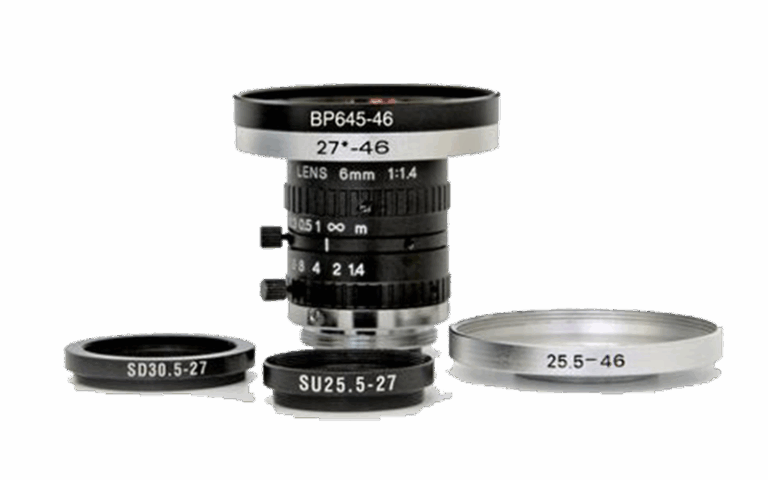

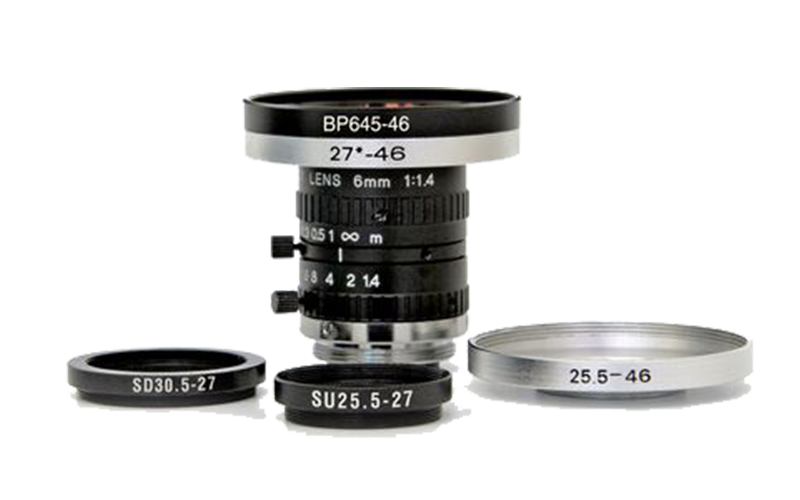

STEP UP and STEP DOWN adapters in different sizes are also available to adapt each filter to the lens when necessary.

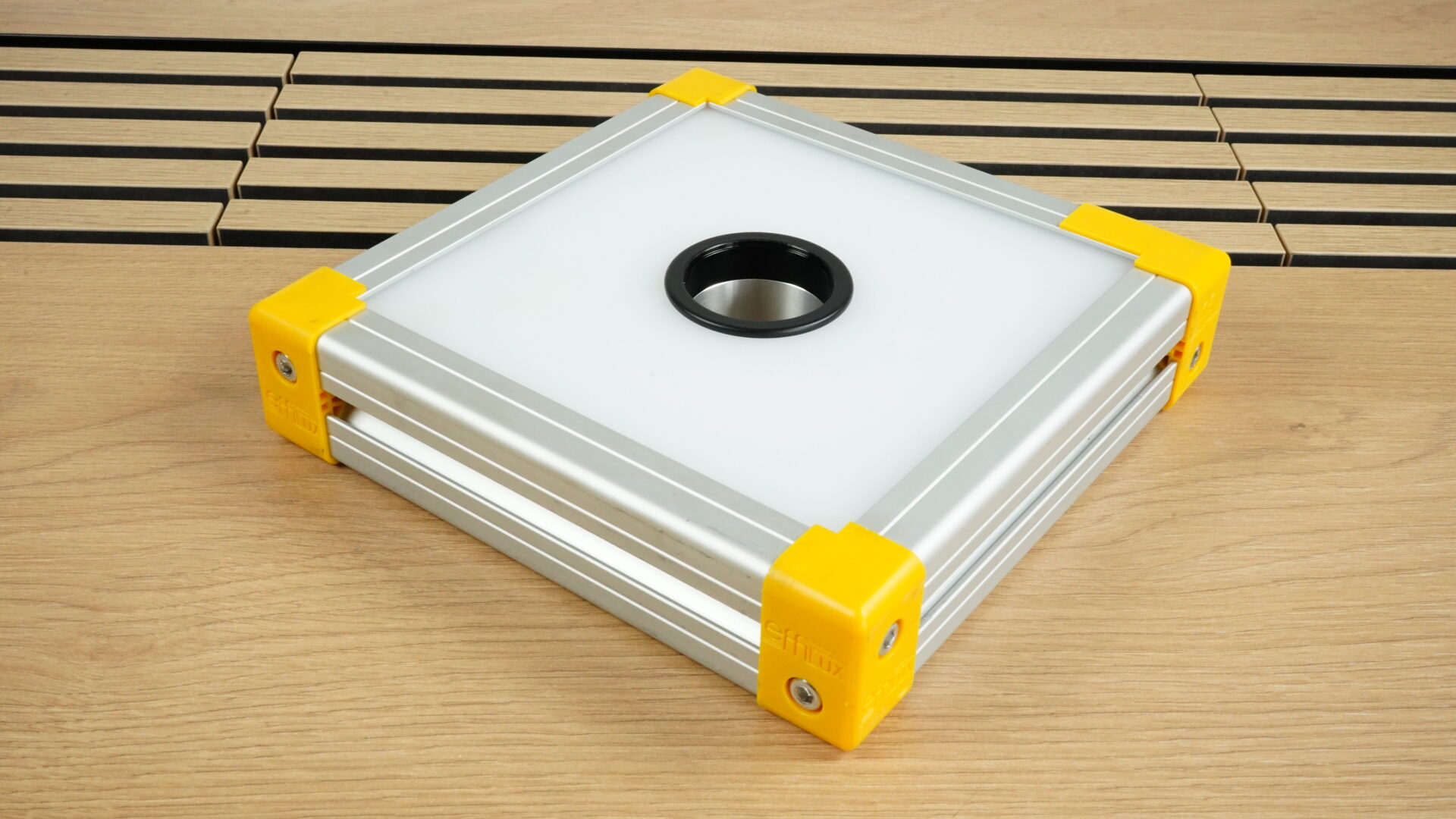

Effilux propose an optional black collar with integrated thread to add a M40.5 filter on it.
This accessory is compatible with EFFI-FD with camera hole of diameter 39mm.
PART NUMBER:
EFFM-FD-COL-BLACK : black collar with thread for filter
You can also directly order the polarizer kit : EFFO-FD-POL-KIT-M40.5
Contents : EFFM-FD-COL-BLACK + EFFO-FLR-PR032-M40.5
