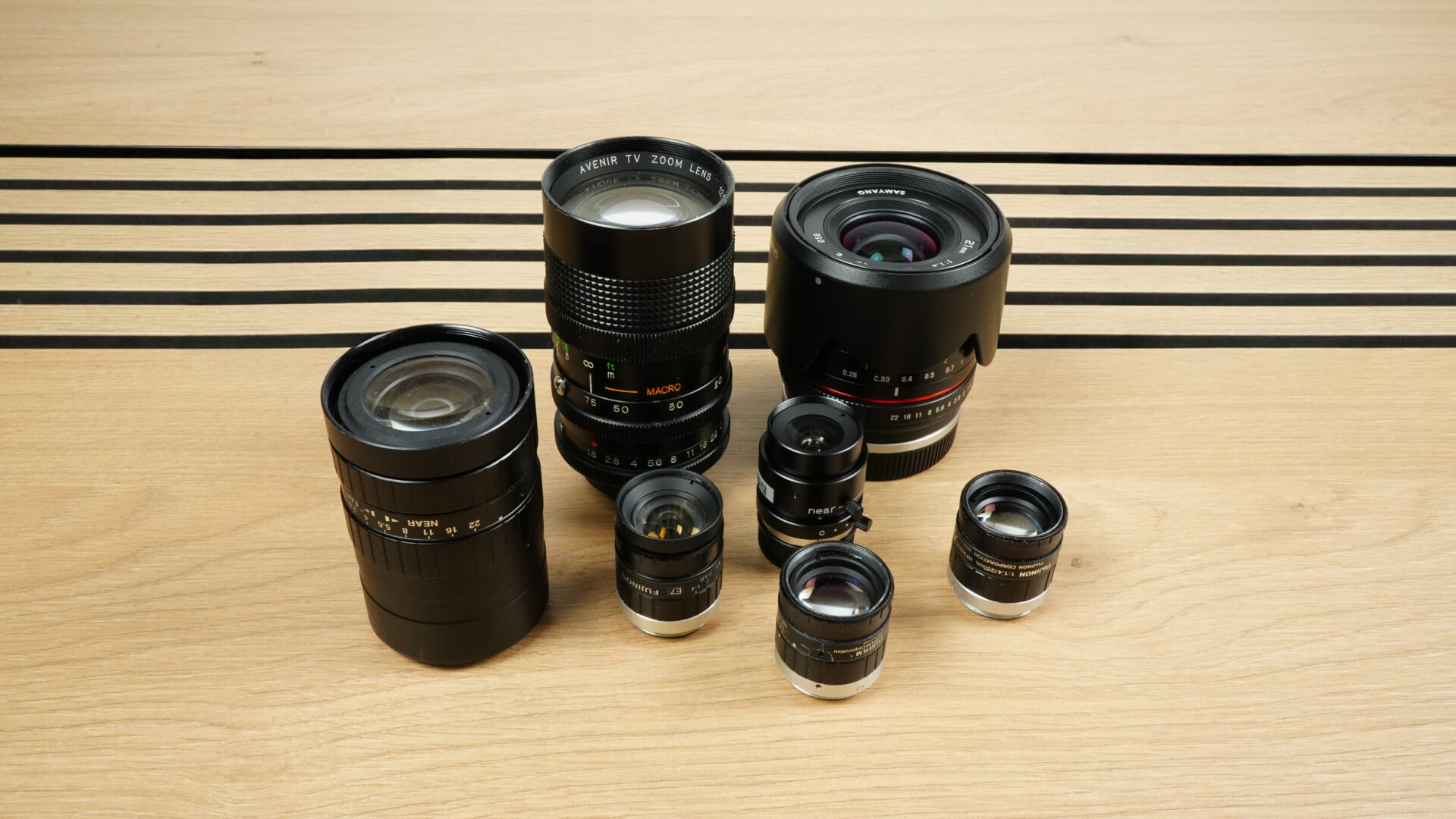

EFFILUX Camera Lenses are designed to meet the diverse needs of industrial vision systems, offering a wide selection of frame sizes (C-mount, E-mount), focal lengths, and resolutions. Specialized ranges are available for SWIR imaging, IP67-rated environments, and robotic applications, ensuring compatibility with demanding setups. These lenses support high-resolution imaging down to <3µm pixel step, and are optimized for use with EFFILUX lighting products such as EFFI-Lase, EFFI-Sharp, and their variants. Extension rings and coatings are also available to fine-tune optical performance for specific inspection tasks.
| Part numbers 1″ | EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1 »-HR-CM |
| Focal distance (mm) | 6 | 8 | 12.5 | 16 | 25 | 35 | 50 | 75 |
| Aperture of the diaphragm | F1.8 | F1.4 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (H&V) | 96.8° x 79.4° | 79.4° x 63° | 55.5° | 44.3° x 33.6° | 16.1° x 19.0° | 20.9° x 15.8° | 14.4° | 9.7° x 7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |
| Part numbers 2/3″ | EFFO-TM-6.5-F1.8-2/3″-HR-CM | EFFO-VS-8-F1.3-2/3″-LR-CM | EFFO-KW-12-F1.4-2/3 »-HR-CM | EFFO-VS-16-F1.4-2/3″-LR-CM | EFFO-VS-25-F1.4-1″-LR-CM* | EFFO-VS-35-F1.8-2/3″-LR-CM | EFFO-VS-50-F1.8-2/3″-LR-CM | EFFO-KW-75-F2.5-2/3″-HR-CM | EFFO-KW-100-F2.8-2/3″-HR-CM |
| Focal distance (mm) | 6.5 | 8 | 12 | 16 | 25 | 35 | 50 | 75 | 100 |
| Aperture of the diaphragm | F1.8 | F1.3 | F1.4 | F1.4 | F1.4 | F1.8 | F1.8 | F2.5 | F2.8 |
| Viewing angle (H&V) | 71.6° x 55.5° | 49.0° x 57.2° | 30.0° x 22.7° | 24.6° x 28.9° | 16.1° x 19.0° | 11.7° x 13.8° | 8.5° x 10.0° | 6.7° x 5.0° | 5.0° x 3.8° |
| Filter mount | M35.5 P=0.5 | M25.5 P=0.5 | M25.5 P=0.5 | M27 P=0.5 | M27 P=0.5 | M27 P=0.5 | M30.5 P=0.5 | M34 P=0.5 | M40.5 P=0.5 |
| Part numbers 1″ | EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1 »-HR-CM |
| Focal distance (mm) | 6 | 8 | 12.5 | 16 | 25 | 35 | 50 | 75 |
| Aperture of the diaphragm | F1.8 | F1.4 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (H&V) | 96.8° x 79.4° | 79.4° x 63° | 55.5° | 44.3° x 33.6° | 16.1° x 19.0° | 20.9° x 15.8° | 14.4° | 9.7° x 7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |
| Part numbers 2/3″ | EFFO-TM-6.5-F1.8-2/3″-HR-CM | EFFO-VS-8-F1.3-2/3″-LR-CM | EFFO-KW-12-F1.4-2/3 »-HR-CM | EFFO-VS-16-F1.4-2/3″-LR-CM | EFFO-VS-25-F1.4-1″-LR-CM* | EFFO-VS-35-F1.8-2/3″-LR-CM | EFFO-VS-50-F1.8-2/3″-LR-CM | EFFO-KW-75-F2.5-2/3″-HR-CM | EFFO-KW-100-F2.8-2/3″-HR-CM |
| Focal distance (mm) | 6.5 | 8 | 12 | 16 | 25 | 35 | 50 | 75 | 100 |
| Aperture of the diaphragm | F1.8 | F1.3 | F1.4 | F1.4 | F1.4 | F1.8 | F1.8 | F2.5 | F2.8 |
| Viewing angle (H&V) | 71.6° x 55.5° | 49.0° x 57.2° | 30.0° x 22.7° | 24.6° x 28.9° | 16.1° x 19.0° | 11.7° x 13.8° | 8.5° x 10.0° | 6.7° x 5.0° | 5.0° x 3.8° |
| Filter mount | M35.5 P=0.5 | M25.5 P=0.5 | M25.5 P=0.5 | M27 P=0.5 | M27 P=0.5 | M27 P=0.5 | M30.5 P=0.5 | M34 P=0.5 | M40.5 P=0.5 |
Lens are not included with the product. EFFI-Lase V3 is equipped with a E-mount. Please Contact us for other requests. EFFILUX recommends customer to use an objective for 1 inch sensor for large masks, such as cloud of dots.
| E-mount Lenses | EFFO-7A-12-F2.8-APS-C-HR-EM | EFFO-7A-25-F1.8-APS-C-HR-EM | EFFO-7A-35-F1.2-APS-C-HR-EM | EFFO-7A-50-F1.8-APS-C-HR-EM |
| Focal distance (mm) | 12 | 25 | 35 | 50 |
| Diaphragm Aperture | F2.8 | F1.8 | F1.2 | F1.8 |
| View Angle (°) | 100 | 68 | 44 | 32 |
| Filter Size (mm) | 67 | 46 | 46 | 52 |
| L x Ø (mm) | – | 37.8 x 59.9 | 32 x 51 | 40 x 55 |
The EFFI-SHARP is for use with a C-Mount projection lens (M25.4). This lens is not supplied with the projector. EFFILUX offers a wide range of lenses, for more information please refer to our page Lenses. Refer to the documentation to identify the size of the projected pattern depending on the chosen lens.
To avoid any distortion effect, EFFILUX recommends using a 1″ sensor lens for masks with rectangular patterns, such as point clouds.
| C-mount lenses for EFFI-SHARP-CM | EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1″-HR-CM |
| Focal distance | 6mm | 8mm | 12.5mm | 16mm | 25mm | 35mm | 50mm | 75mm |
| Aperture of the diaphragm | F1.8 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (HxV) | 96.8° x 79.4° | 79.4° x 63° | 55.5° | 44.3° x 33.6° | 16.1° x 19.0° | 20.9° x 15.8° | 14.4° | 9.7° x 7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |
The EFFI-Sharp-CPT-CM and EFFI-SHARP-PSV-CM is designed to use with a C-Mount (M25.4) projection lens. The projector does not include a lens. EFFILUX offers a wide range of suitable lenses, for more information please refer to our page Lenses. Please refer to the data sheet to determine the optimal size of the projected pattern according to your chosen lens.
In order to avoid any distortion effect, EFFILUX recommends using a lens for 1 « sensor. Example of the main adapted 1 » references offered by Effilux:
| Choise of C-mount lenses | EFFO-KW-6-F1.8-1″-HR-CM | EFFO-KW-8-F1.4-1″-HR-CM | EFFO-RC-12.5-F1.8-1″-LR-CM | EFFO-KW-16-F1.4-1″-HR-CM | EFFO-VS-25-F1.4-1″-LR-CM | EFFO-KW-35-F1.4-1″-HR-CM | EFFO-RC-50-F1.4-1″-LR-CM | EFFO-KW-75-F1.8-1″-HR-CM |
| Focal distance | 6mm | 8mm | 12.5mm | 16mm | 25mm | 35mm | 50mm | 75mm |
| Aperture of the diaphragm | F1.8 | F1.8 | F1.4 | F1.4 | F1.4 | F1.4 | F1.4 | F1.8 |
| Viewing angle (HxV) | 96.8° x 79.4° | 79.4° x 63° | 55.5° | 44.3° x 33.6° | 16.1° x 19.0° | 20.9° x 15.8° | 14.4° | 9.7° x 7.3° |
| Filter mount | x | M55 P=0.75 | M40.5 P=0.5 | M35.5 P=0.5 | M27 P=0.5 | M35.5 P=0.5 | M46 P=0.75 | M46 P=0.75 |
PART NUMBER:
EFFO-XX-EXT-RING-YYMM
