Optomechanical tools

Optomechanical tools for EFFILUX products

EFFILUX Optomechanical Tools are designed to simplify and secure the process of mask replacement on LED projectors such as EFFI-Lase V2 and EFFI-Sharp V2. The key accessory, the EFFM-SPANNER-WRENCH, allows precise installation and adjustment of the retaining ring used to hold projection masks in place. This tool ensures quick and reliable mask changes, supporting applications like 3D profiling, stereovision, and alignment. Built for compatibility and ease of use, EFFILUX optomechanical tools are essential for maintaining flexibility and performance in advanced machine vision systems.

Part number Characteristics Compatibility CAD

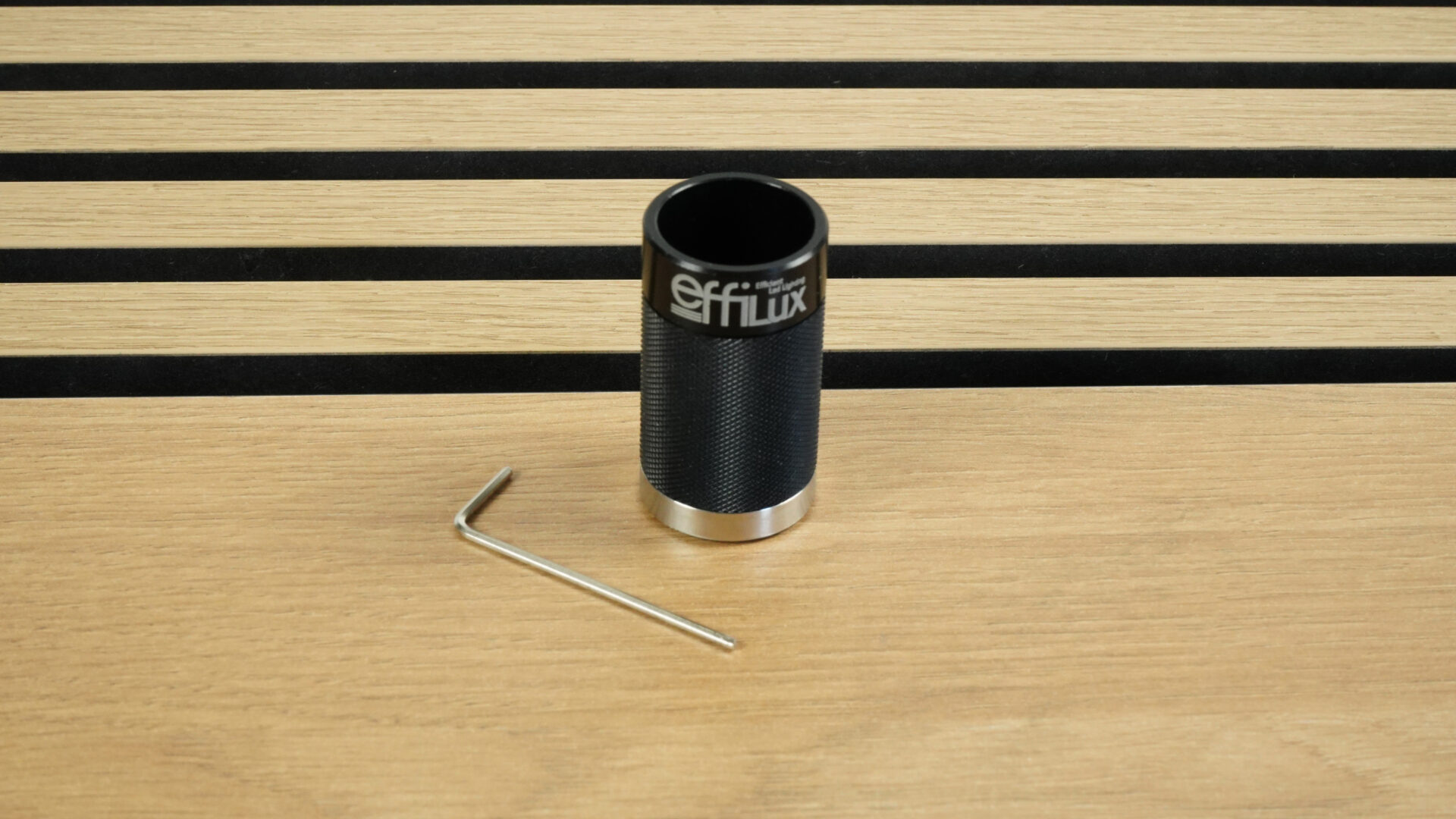

EFFM-SPANNER-WRENCH The spanner wrench EFFILUX is used to install and adjust the retaining ring for masks changing. EFFI-Lase V2, EFFI-Sharp V2 Download

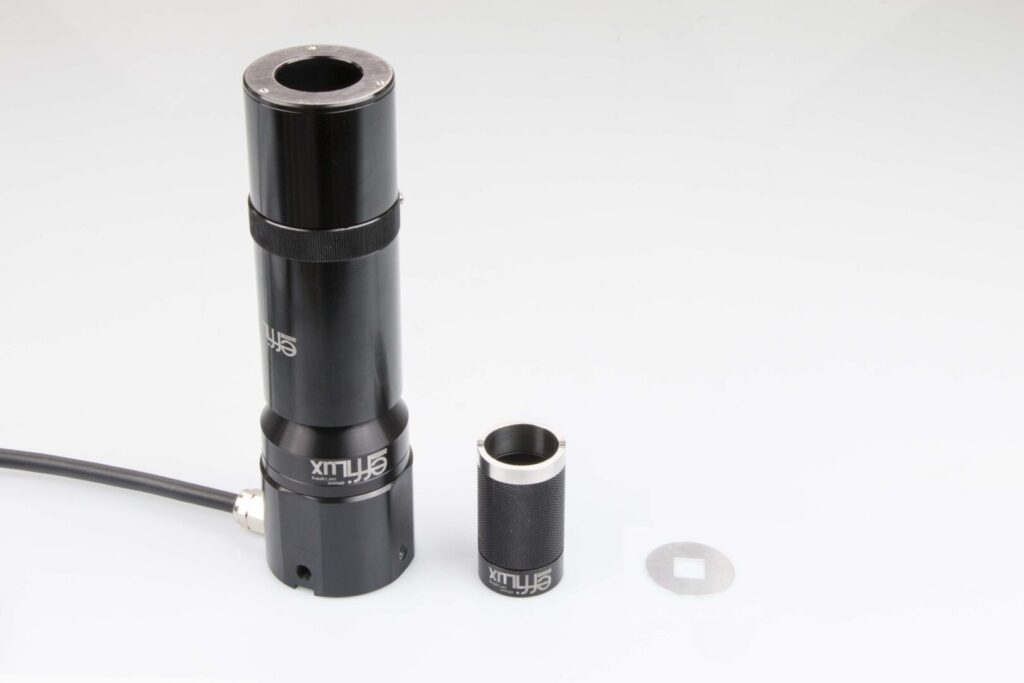

1- Spanner wrench

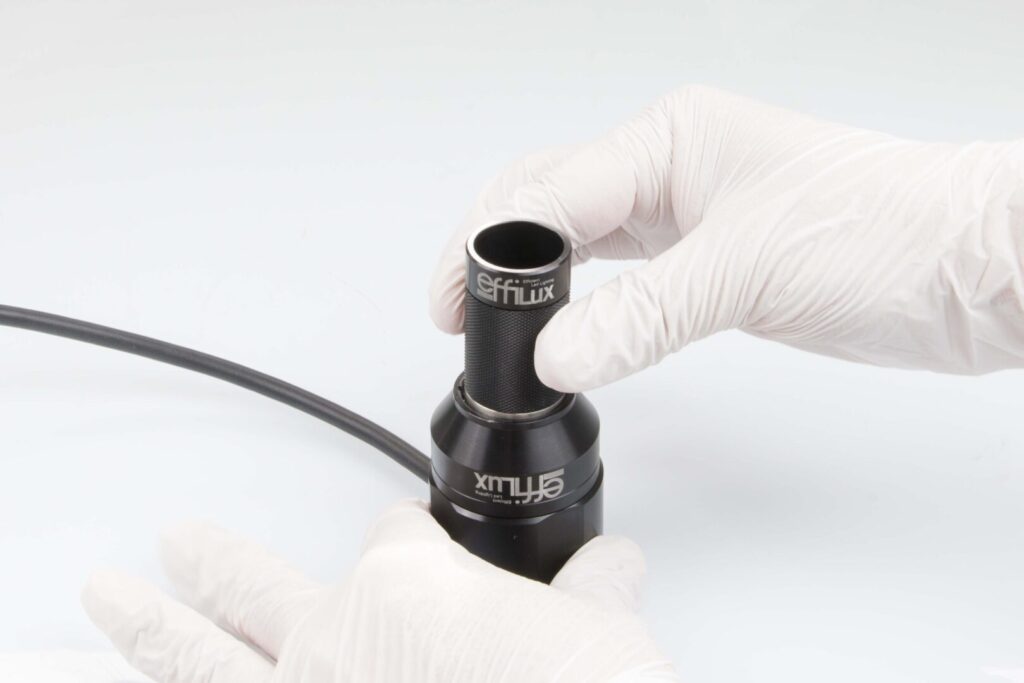

2- Unscrew the ring

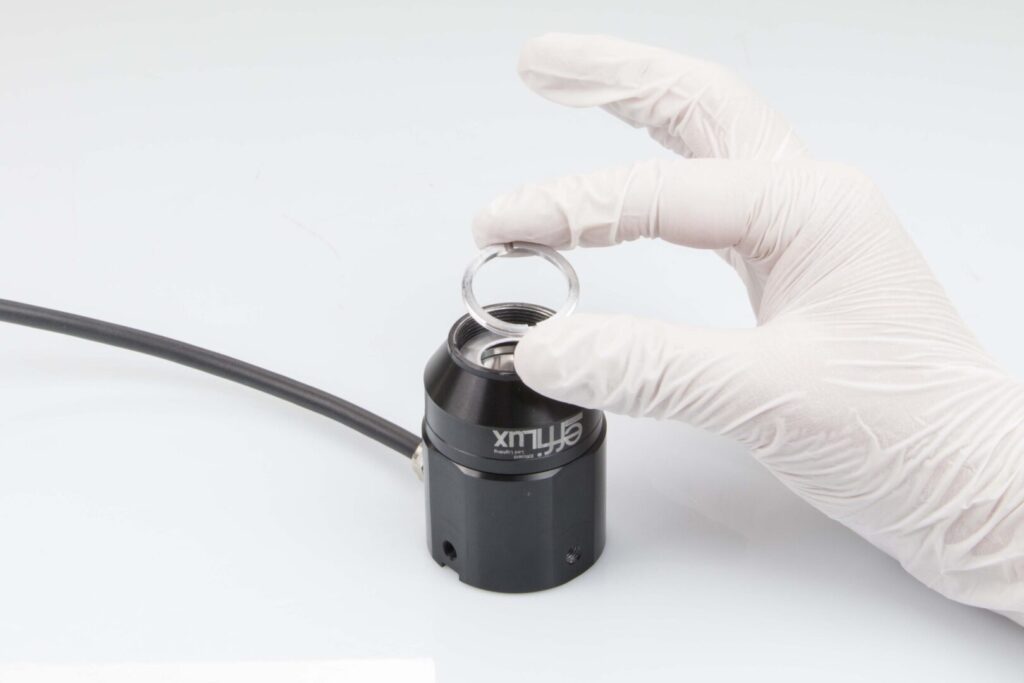

3- Remove the ring

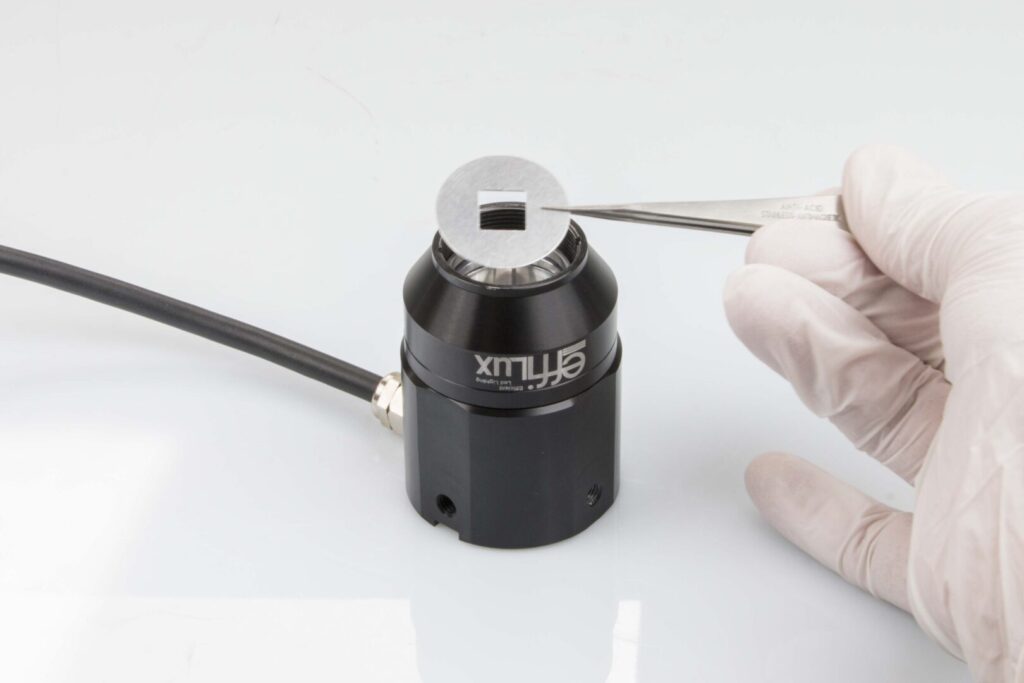

4- Change the mask
5- Interpose the ring

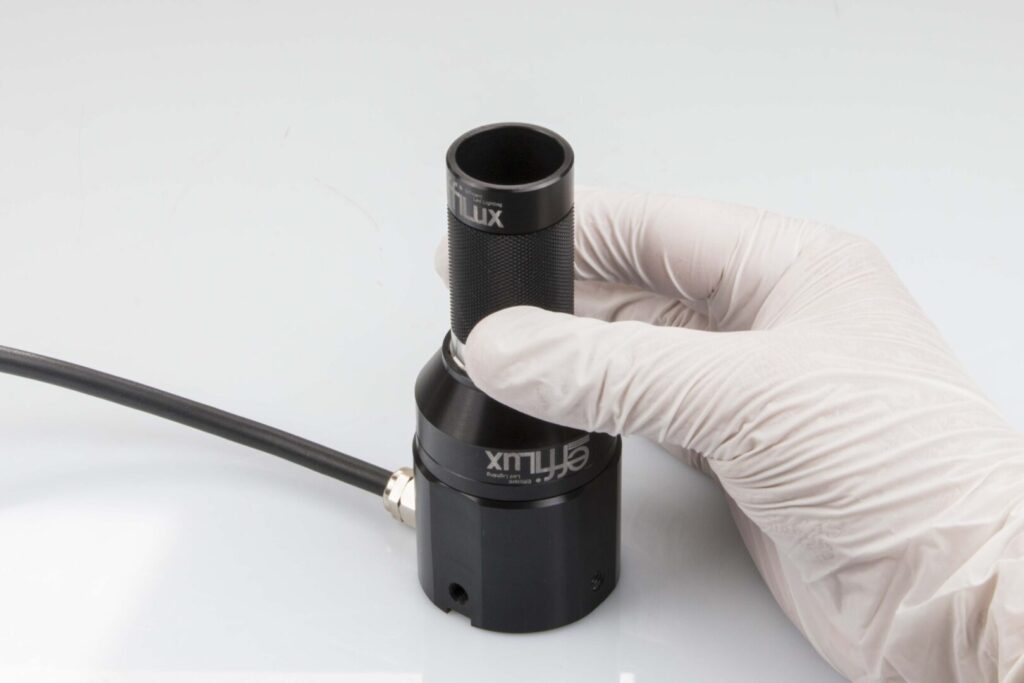

6- Screw the ring
