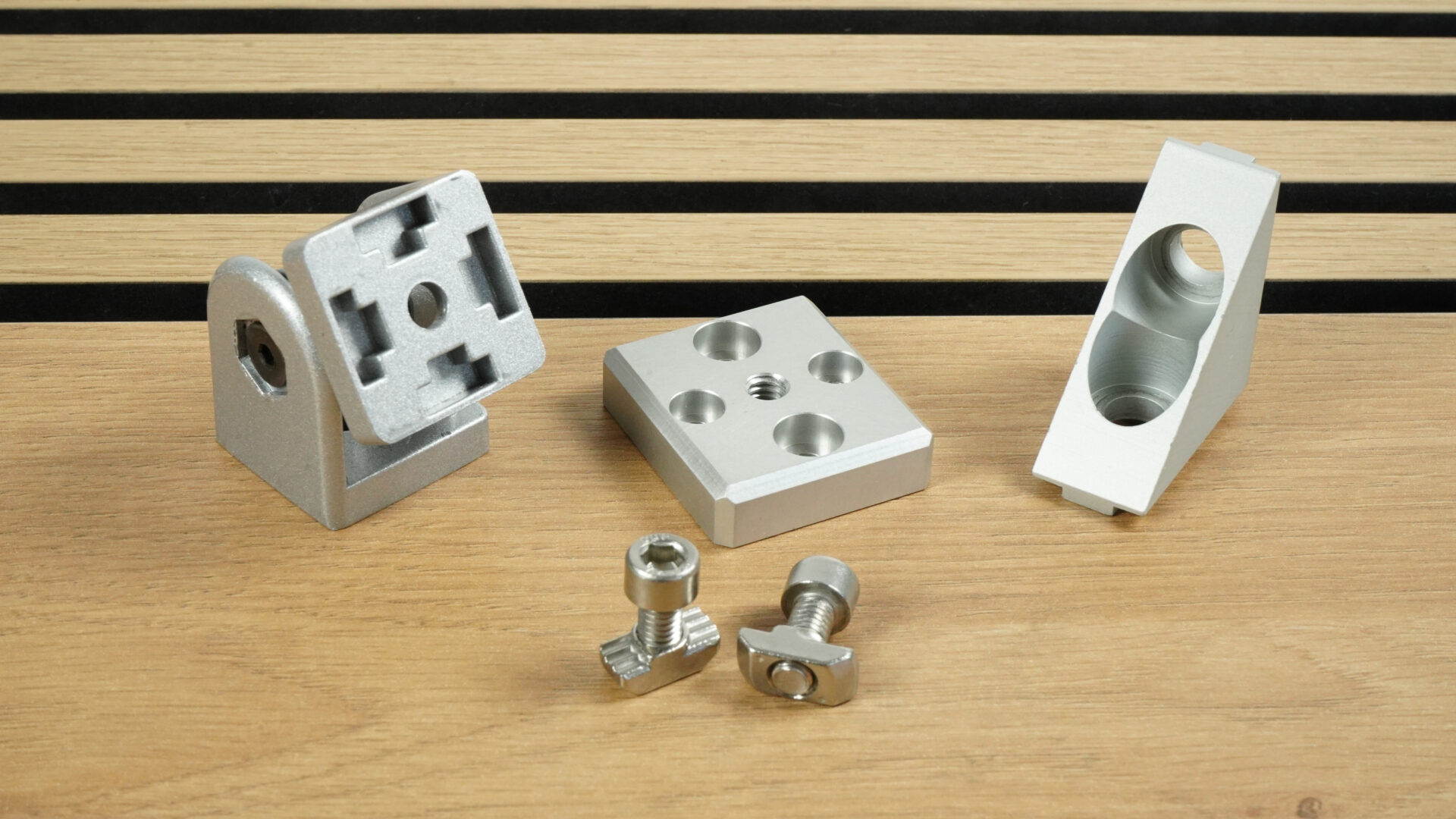

EFFILUX Lighting Mounting Accessories offer versatile and robust solutions for installing LED lights in industrial environments. With a wide range of options including T-nuts, pivot joints, clamping flanges, and custom adapters, these accessories ensure secure and flexible integration across various machine vision setups. Whether you’re working with robotic arms, production lines, or special machines, EFFILUX provides mounting kits compatible with all major lighting models—such as EFFI-Flex, EFFI-Sharp, EFFI-Lase, and more. Designed for easy orientation and reliable fixation, these accessories simplify installation while maintaining mechanical stability in demanding conditions.
| Mounting solutions | Part numbers | Compatibility | CAD |

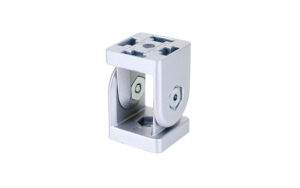

Pivot joint – NOT drilled
| EFFM-1-0002 | EFFI-BL, EFFI-FD, EFFI-Flex, EFFI-Flex2, EFFI-Flex-CPT, EFFI-Flex2-IP67, EFFI-Flex-LG, EFFI-Smart, EFFI-Line, EFFI-Line3, EFFI-Lase-CPT, EFFI-Sharp-CPT | Download |
Pivot joint – Drilled
| EFFM-1-0009 | EFFI-Sharp-V1, EFFI-Lase-V1 (on EFFI-Sharp and EFFI-Lase Power, the ball is fixed on the back of the heatsink), EFFI-Lase-PSV, EFFI-Sharp-PSV, EFFI-Tele | Download |
| Mounting solutions | Part numbers | Compatibility | CAD |
EFFM-1-FLEX2-IP69K
| EFFM-1-FLEX2-IP69K | EFFI-Flex2-IP69K | Download |

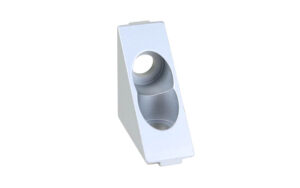

Bracket
| Without groove : EFFM-1-0017 1 groove : EFFM-1-0019 2 groove : EFFM-1-0021 | EFFI-Flex, EFFI-Flex-LG, EFFI-BL, EFFI-FD, EFFI-Flex2 | Download |

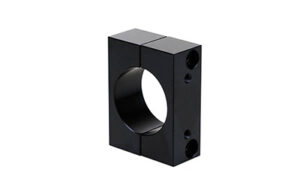

Clamping flange on the body
| EFFM-1-0001 | EFFI-Sharp V1, EFFI-Lase V1, EFFI-Tele | Download |

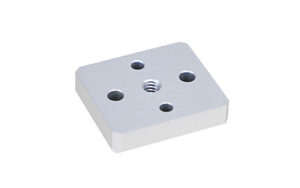

« Tripod » adapter
| EFFM-1-0027 | Suitable for all EFFILUX products: Bosch profile and M4 threaded holes EFFI-Sharp V1, EFFI-Lase V1, EFFI-Tele, EFFI-Smart, EFFI-Spot, EFFI-Lase-CPT | Download |
