EFFILUX Camera Mounting Solutions are designed to seamlessly integrate cameras with EFFI-FD, EFFI-RING and EFFI-SDOME.
These universal mounting kits are compatible with a wide range of industrial cameras including models from Cognex, Datalogic, Basler, IDS, Matrox, Sick, Keyence, and more.

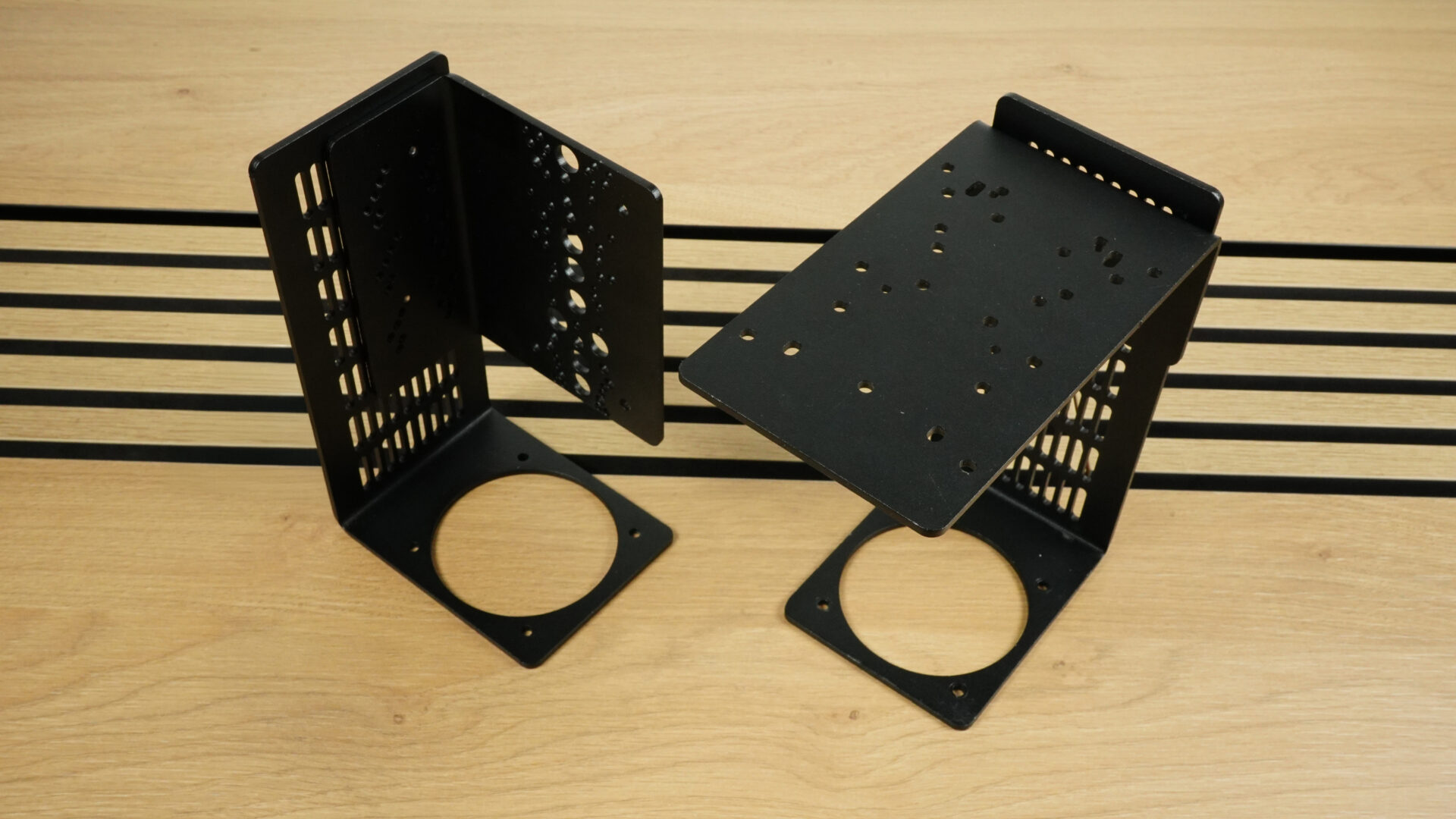

Available in horizontal and vertical configurations, each kit includes robust steel brackets and all necessary screws for secure installation.
| Fixation | Référence | Composition du kit | Compatibilité | Plan de montage | CAO |

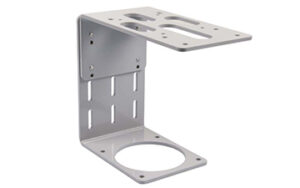

 | EFFM-1-HORI-STEEL | EFFM-1-0024-STEEL EFFM-1-0025-STEEL 4x M4x6 CHC screws 4x M4x8 CHC screws | COGNEX – In-Sight 5000 COGNEX – In-Sight 7000 DATALOGIC – A30 DATALOGIC – T4x MATROX – Iris GT MATROX – GatorEye | Download | Download |

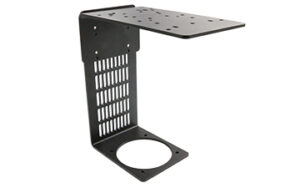

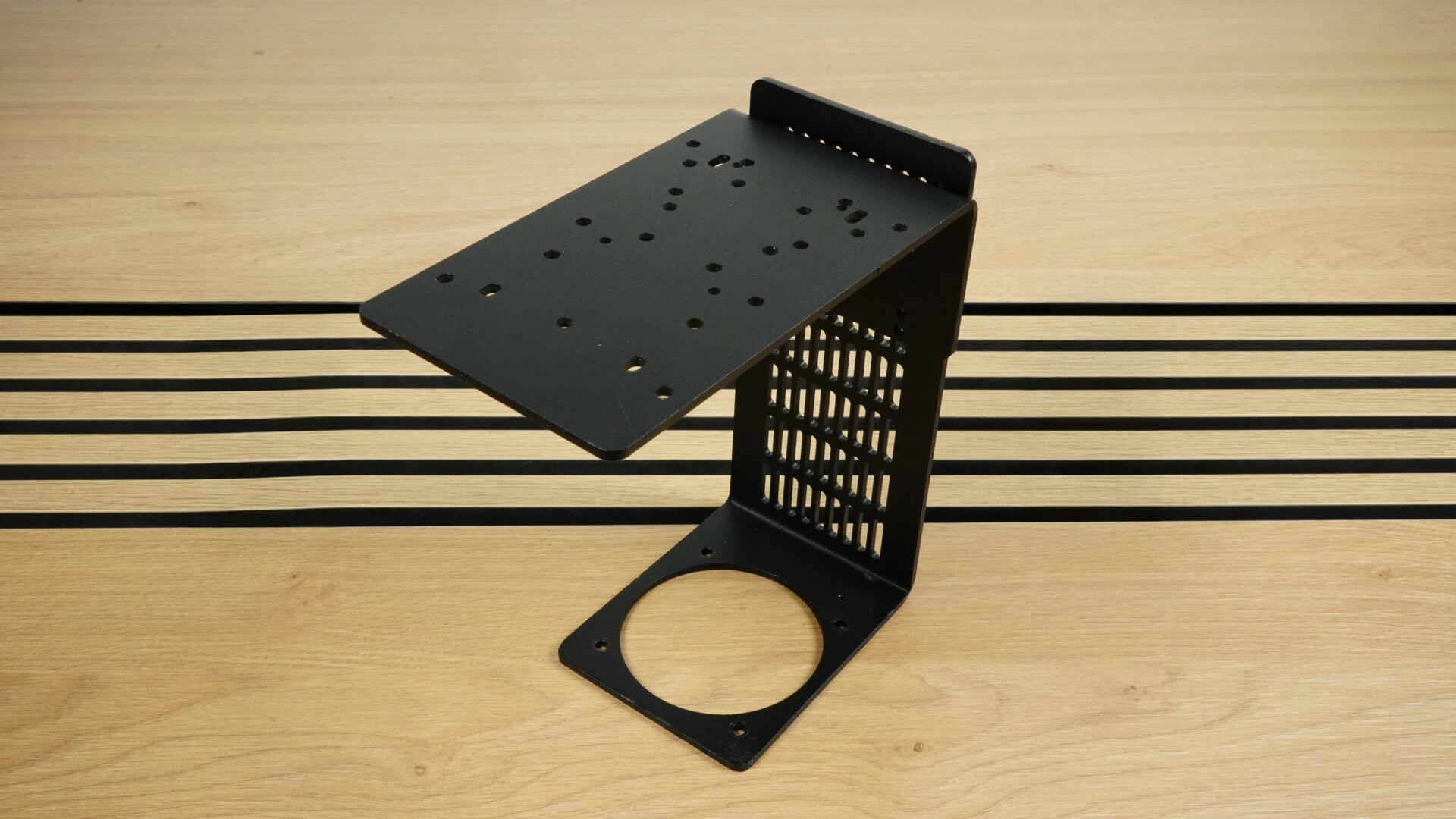

 | EFFM-1-HORI-STEEL-V2 | EFFM-1-0024-STEEL-V2 EFFM-1-0025-STEEL-V2 4x M4x6 CHC screws 4x M4x8 CHC screws | BALUFF – BVS COGNEX – In-Sight D900 COGNEX – In-Sight 5000 COGNEX – In-Sight 7000 COGNEX – In-Sight 9000 DATALOGIC – A30 DATALOGIC – P1x DATALOGIC – T4x MATROX – GatorEye MATROX – Iris GT MATROX – Iris GTR SICK – Inspector SICK – Inspector P63x SICK – Inspector P64x-P65x ZEBRA – ZEBRA-AS-000447-XX | Download | Download |
| Fixation | Référence | Composition du kit | Compatibilité | Plan de montage | CAO |

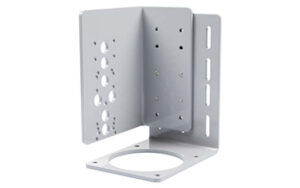

 | EFFM-1-VERT-STEEL | EFFM-1-0024-STEEL EFFM-1-0026-STEEL 4x M4x6 CHC screws 4x M4x8 CHC screws | IDS – CP GIGE IDS – CP USB3 BASLER – ACE 2 COGNEX – In-Sight Micro 2D 3D DATALOGIC – PPT M1XX DATALOGIC – PPT M2XX DATALOGIC – PPT M3XX SENSOPART – FA45 | Download | Download |

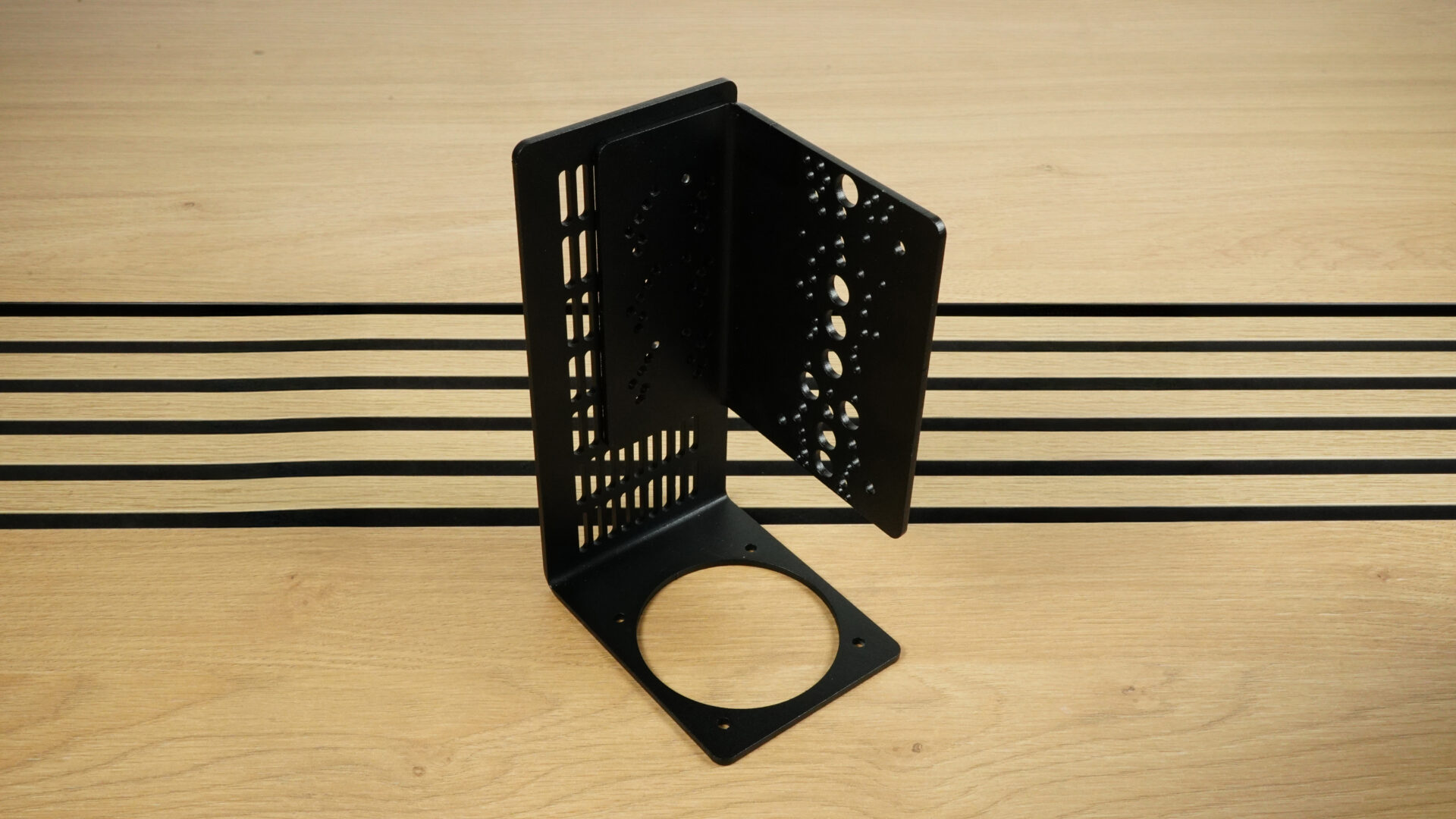

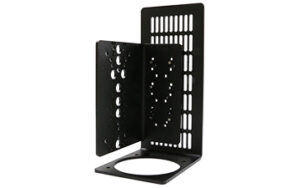

 | EFFM-1-VERT-STEEL-V2 | EFFM-1-0024-STEEL-V2 EFFM-1-0026-STEEL-V2 4x M4x6 CHC screws 4x M4x8 CHC screws | BASLER – ACE 2 BASLER – PILOT BASLER – SCOUT COGNEX – In-Sight 2000 COGNEX – In-Sight 8000 COGNEX – In-Sight Micro 2D 3D DALSA – BOA DALSA – BOA 2 DALSA – FALCONE 2 DALSA – FALCONE 4 DATALOGIC – MX-E DATALOGIC – PPT M1XX DATALOGIC – PPT M2XX DATALOGIC – PPT M3XX DAHENG IMAGING – MER2-630-18GM-P IDS – CP GIGE IDS – CP USB3 IDS – RIO & ROME KEYENCE – CA KEYENCE – CVX400-300 KEYENCE – HL08M KEYENCE – IV2-G150MA SENSOPART – FA45 SENSOPART – VISOR SICK – MIDICAM SICK – PICOCAM | Download | Download |
| Fixation | Référence | Composition du kit | Compatibilité | Plan de montage | CAO |

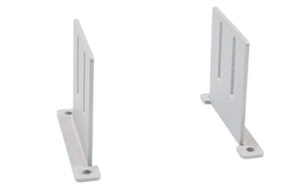

 | EFFM-BAUMER | x Brackets 8x M4x6 CHC screws 8x M4 washer 4x M4x10 CHC screws | BAUMER – VERISENS | Download | Download |

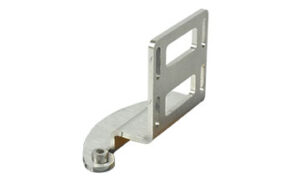

 | EFFM-IS2800 | 1x Brackets 2x M4x8 CHC screws | COGNEX – In-Sight 2800 | Télécharger | Télécharger |

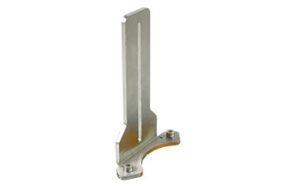

 | EFFM-VISOR | 1x Brackets 2x M4x8 CHC screws | SENSOPART – VISOR | Download | Download |
