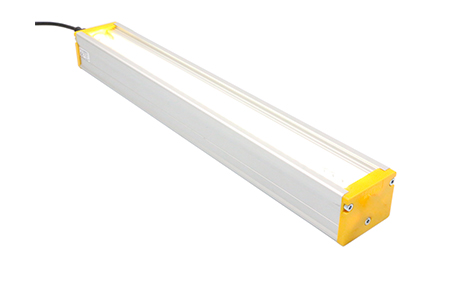

Designed as an economical lighting solution for the logistics industry, the EFFI-Flex-LG combines ultra-high power with the necessary flexibility any application of industrial vision in logistics. All this makes the EFFI-FLEX-LG the ideal solution for all logistics automation applications: code reading, label verification, sizing, sorting, tunneling, pick & place, palletizing and other logistics operations.

  • Ultra-high power thanks to MegaStrobe™ technology
  • Ultra-fast: pulse duration up to 400µs and frequency of 150Hz with a response time <1µs.
  • Flexibility: the adjustable position of the lenses and the interchangeable windows allow optimization of the optical configuration for the application.
  • Dedicated electronic design for low power consumption
  • Slot for standard T-nut mounting and classic M12 connectors for plug & play installation
  • Optical, electrical and/or mechanical customization to meet any specific need

- Build your part number -

EFFI-FLEX-LG

- - - -
Optical length Wavelength (nm) Window Lens position
Available Options Refer to the detailed information below for any specific reference (with options, customized, ...).

- Product Information -

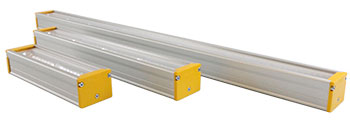

- EFFI-Flex-LG lengths -


XXXX : Optical lengths (mm) 200 400 600 800 1000 In steps of 200 (Max 2400mm)
Product lengths 235mm 435mm 635mm 835mm 1035mm Max 2435mm

Part number: EFFI-FLEX-LG-XXXX...


- Available wavelengths -

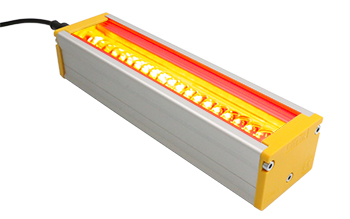

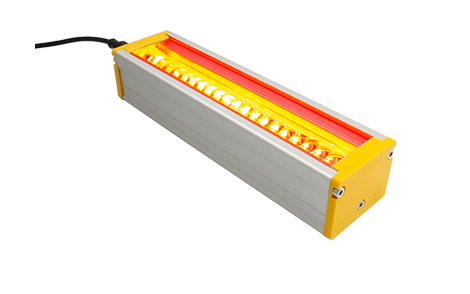

Color Blue Red IR white
(T°= 5500K ± 500K)
ZZZ : wavelength (nm) 465 625 850 000

Part number : EFFI-FLEX-LG-XXXX-ZZZ...

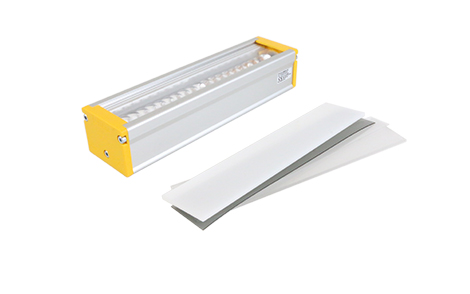

- Windows -


LD : lightly-diffuse
SD : Semi-diffusive
OP : Opaline

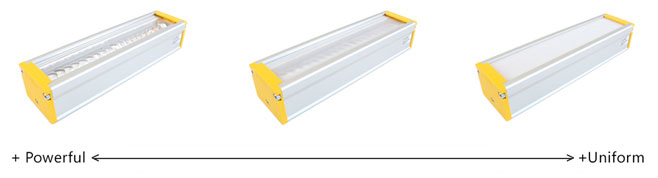

Presentation of the different types of Lightly-diffuse / Semi-Diffuse / Opaline glass available on the

EFFILUX offers different types of interchangeable windows to supply a good compromise between power and homogeneity according to the requirements and material of the inspection.

See optical accessory window


Part number : EFFI-FLEX-LG-XXXX-ZZZ-WW...

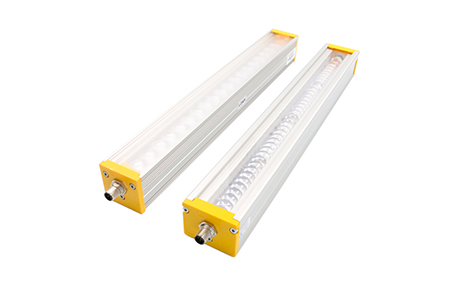

- Emission angle according to the lens position -


Presentation of the different lenses available on the EFFI-Flex.

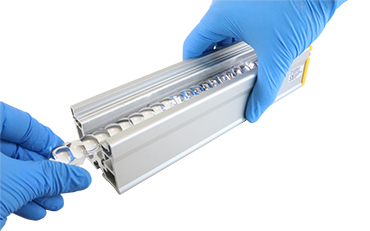

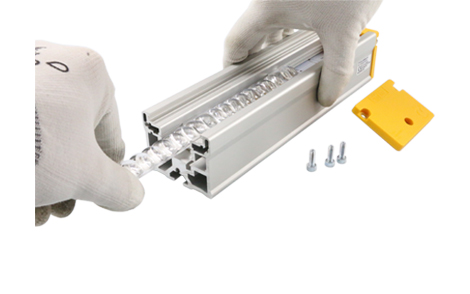

EFFI-Flex-LG offers 4 lens configurations, manually adjustable to change the emission angle.

Position P0 P1 P2 P3
Angle
Presentation of the 90 ° emission angle of an Effi-Flex-LG without lens
Presentation of the 45 ° emission angle of an Effi-Flex-LG equipped with a lens placed in position 1
Presentation of the emission angle at 25 ° of an Effi-Flex-LG equipped with a lens placed in position 2
Présentation de l'angle d'émission à 10° d'un Effi-Flex-LG équipé d'une lentille placée en position 3


Part number : EFFI-FLEX-LG-XXXX-ZZZ-WW-PP

- Additional options -

> Option: Polarizer

Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.


Part number : EFFI-FLEX-LG-XXXX-ZZZ-WW-PP-POL
POL : polarizer accessory

If polarizer, add -POL in the part number
Possibility to buy only the accessory, see part number here
logo infoThe standard polarizer is not suitable for continuous mode use of blue or white light. For this kind of application, the high durability polarizer is necessary.Available up to EFFI-Flex-45.
If high durability polarizer, add -POL-HDY in the part number.

The polarization is optimal with a LD window, the use of diffuser (SD or OP) can depolarize the light.

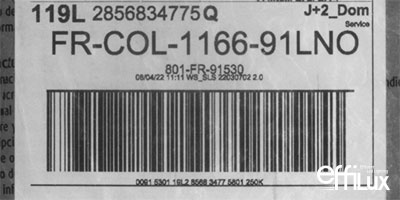

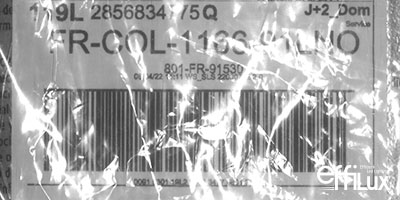

Vision of a camera illuminated by EFFILUX lighting for industrial vision and quality control Vision of a camera illuminated by EFFILUX lighting equipped with a Polarizer for industrial vision and quality control

> Option: Kit

An EFFI-Flex-LG with KIT option comes with lens in P2 position and the semi-diffusive window. A transparent and an opaline window are added in the package. It allows a better flexibility.
KIT option is free of charge for EFFI-Flex-LG with length less than or egal 800mm.

Part number: EFFI-FLEX-LG-XXX-ZZZ-KIT

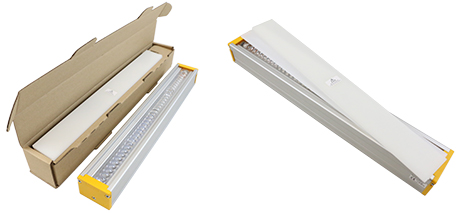

Presentation of an EFFI-Flex-LG Kit

You can find the drawing and the weight of the products in the technical doc page.

IP rating
Operation environment Temperature: 0°C to 40°C - Humidity: 20 to 85%RH (with no condensation)
Storage environment Temperature: -20° to 60°C - Humidity: 20 to 85%RH (with no condensation)

- Different versions -

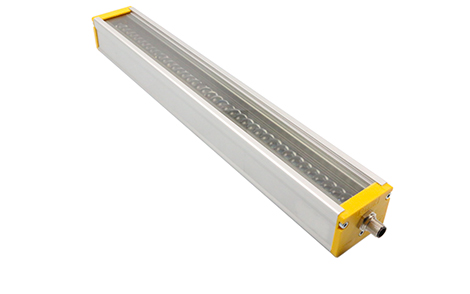

EFFI-Flex-LG with the standard connection

> STD

Classic product offering maximum optical flexibility.


Software customization possible.


the EFFI-Flex-LG with the CHS connection

> CHS

Chainable product to meet applications with different scales, always with simplified installation.

Number of chainable products depending on opt length, software and cables.

the EFFI-Flex-LG with the CHO connection

> CHO

Chainable product with opposite connectors to meet specific mechanical constraints.

Number of chainable products depending on opt length, software and cables

EFFI-Flex-LG with the CPW connection

> CPW

Two operating modes:
- Plug&Play: Direct camera connection
- Power: Via an additional power supply

Custom software required, contact Effilux.

- MegaStrobe™ Version (Standard) -

> Connectivity

Depending on the size, the light comes with different connectors. (See the datasheet)
The EFFI-Flex-LG requires 24V DC input power via an M12 – 5 pins connector. Note the trigger pin needs to be connected to a PNP Trigger signal.

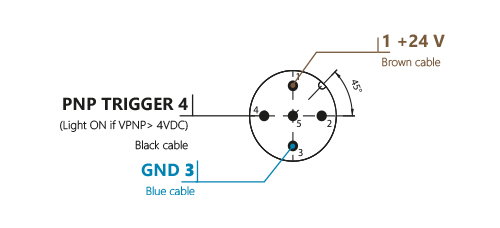

> M12 (A-coded) - 5 pins

EFFI-Flex-LG with the standard connection

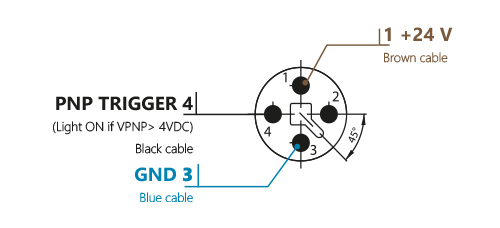

> M12 Power (T-coded) - 4 pins

EFFI-Flex-LG with the power connection

> How the MegaStrobe™ works

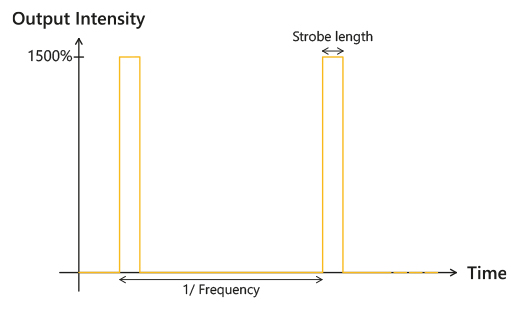

Graphical representation of the output intensity curve of the Effi-Flex-LG megastrobe driver overdrive
Megastrobe
Strobing time (internal protection) 400µs max
Frequency (internal protection) 150Hz max
Rising time <1µs
Megastrobe logo of the EFFILUX logistics bar, the EFFI-Flex-LG

> Option: NPN connection

On request, Effilux can wire the pin 2 of the M12 connector for use in NPN [trigger on falling edge] for the AutoStrobe.
In this case, Lighting on if VNPN < 1.5V DC.

Part number : EFFI-FLEX-LG-[...] - NPN

- Software customization -

Changing the length and frequency of the strobe. Specific reference for each custom software.

Part number : EFFI-FLEX-LG-XXXX-ZZZ-WW-PP-SWxxxxxx

> Option: Kit

An EFFI-Flex-LG with KIT option comes with lens in P2 position and the semi-diffusive window. A transparent and an opaline window are added in the package. It allows a better flexibility.
KIT option is free of charge for EFFI-Flex-LG with length less than or egal 800mm.

Part number: EFFI-FLEX-LG-XXX-ZZZ-KIT

Presentation of an EFFI-Flex-LG Kit

- Optical accessories -

- Mechanical accessories -

- Electronic accessories -

- Available upon request -

Wavelength

Connectors

ExtraPOWER Version


For all other inquiries, please contact EFFILUX.
