EFFI-SQUARE is a 4 EFFI-FLEX (barlights) system. Each EFFI-FLEX could be set up independently at the order:

  • Colour
  • Position of the lens
  • Diffuser / Polarizer
  • Orientation
  • Electronic
  • ...

EFFI-Square multiple LED bars high power direct or grazing for industrial vision and quality control.

EFFI-SQR-FLEX

- - 4
Number of LED Wavelengths (nm)
Available Options Refer to the detailed information below for any specific reference (with options, customized, ...).

Animation to observe the functioning of an application of the EFFI-Square | Shaving Use - Used for machine vision and quality control.

Razing application : EFFI-SQUARE with an homogenous light

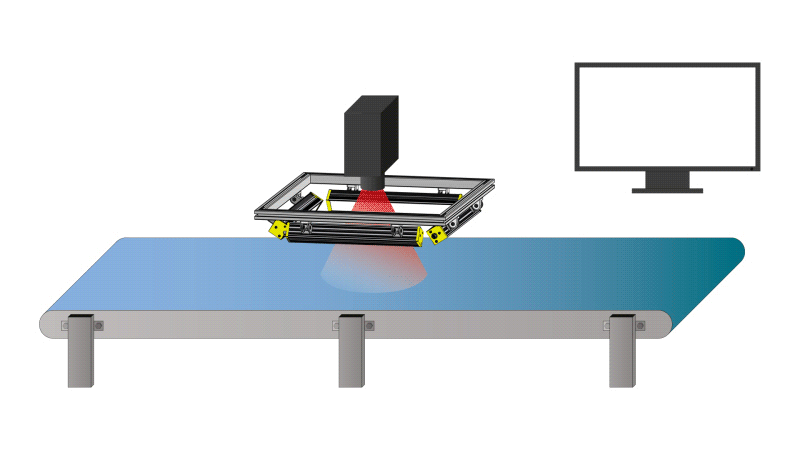

Animation to observe the functioning of an application of the EFFI-Square | Use in Stereo Photometric - Used for machine vision and quality control.

Photometric stereo (4 barlights strobed independently)

- Product information -

- Dimensions -

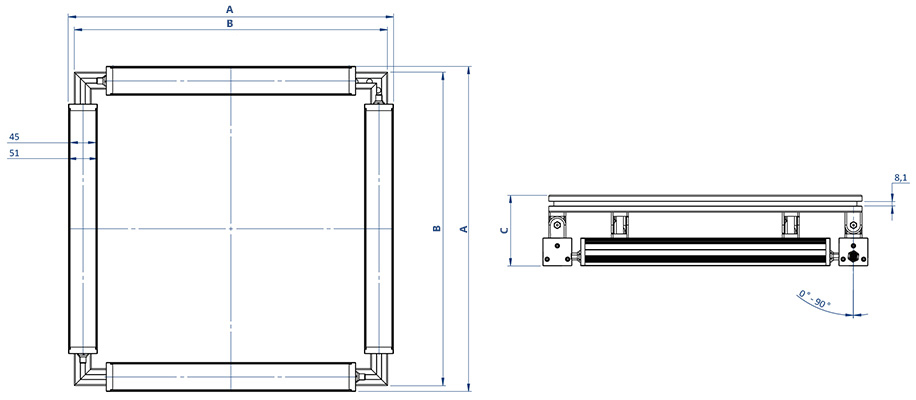

Dimensional diagram of the components of EFFI-Square with 4 EFFI-Flex for machine vision and quality control.

A (mm) B (mm) C (mm)
EFFI-SQR-FLEX-10-4ZZZ 451 430 124
EFFI-SQR-FLEX-15-4ZZZ 551 530 124
EFFI-SQR-FLEX-20-4ZZZ 651 630 124
EFFI-SQR-FLEX-25-4ZZZ 751 730 124
EFFI-SQR-FLEX-30-4ZZZ 851 830 124

logo infoLes EFFI-SQR-FLEX de taille ≤ 15 sont expédiés déjà pré-assemblés. Pour les tailles supérieures à 15 LED, la mécanique SQUARE est livrée en pièces détachées et doit être assemblée par le client. Voir les instructions pour le montage.
