Linescan accessories

EFFI-Flex equipped with a Linescan allowing to transform it into a linear or grazing light.

Thanks to its optical flexibility, the EFFI-FLEX bar light can also be configured as a great linescan solution.

  • Linescan film: With the lens in the upper position, the Linescan accessory transforms the EFFI-Flex light into a uniform line light ideal for either brightfield or darkfield illumination.
  • Cylindrical lens window: In addition to the linescan film, this optical system will focus the light even more into a very bright line.


Lens in position P3 + Transparent window Lens in position P3 + Linescan film + Transparent window Lens in position P1 + Linescan film  + Cylindrical lens
Lens in position P3 + Transparent window
Lens in position P3 + Linescan film + Transparent window
Lens in position P1 + Linescan film + Cylindrical lens

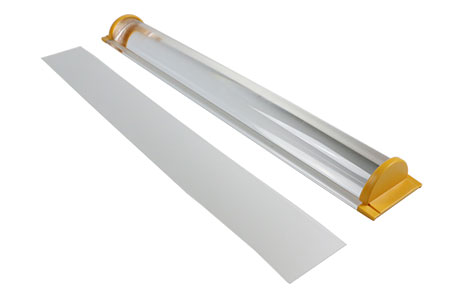

Linescan film Cylindrical lens
Part-number EFFO-FLEX2-LS-XXXX*
(Old: EFFO-FLEX-LS-XX**)
EFFO-FLEX2-TR-CYL-XXXX*
(Old: EFFO-FLEX-TR-CYL-XX**)
Typical configuration With Transparent window (TR), and lens in the upper position (P3) With Linescan film (LS) and lens in the lower position (P1)

* XXXX : Optical length
** XX : Number of LED

logo info In most cases, the Cylindrical lens window should be used with the Linescan film as well in order to get a bright and uniform line light. For some specific applications, where high uniformity is not required, the cylindrical lens may also be used alone.
