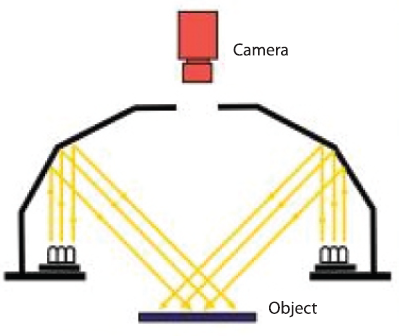

EFFI-IDQ * es una iluminación de type domo. Por tanto, la luz es emitida indirectamente y será reflejada en las paredes del sistema .
* Disponible por la Francia, Alemania y Suiza
Instruccion

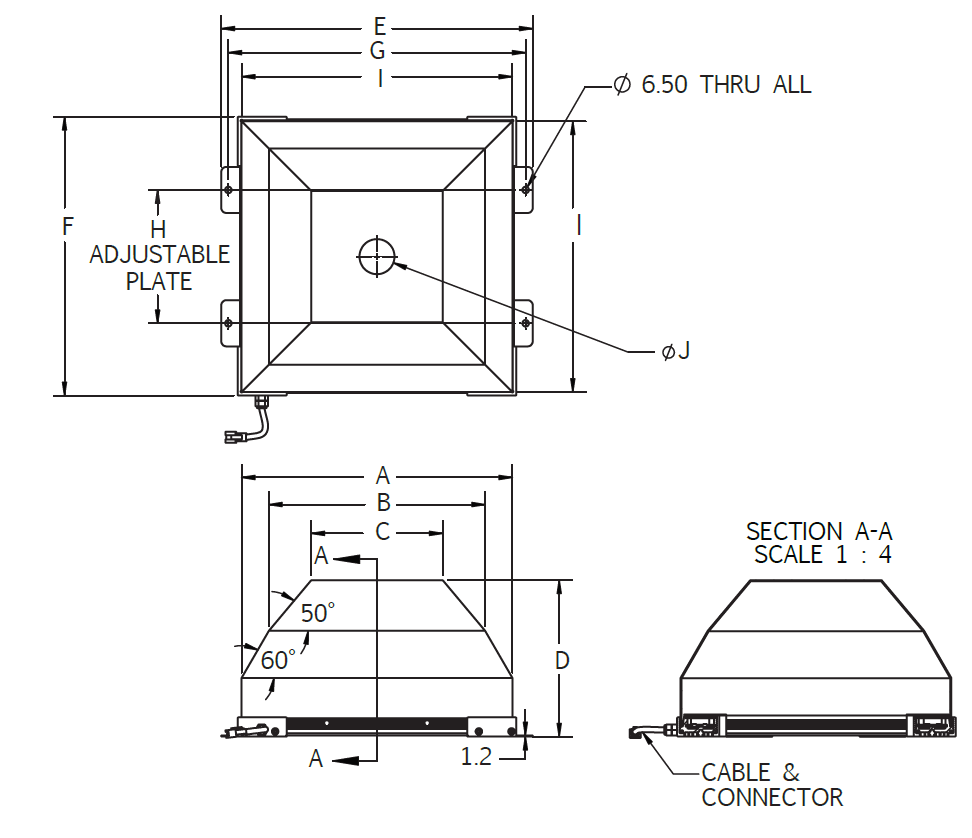

- Referencias -
Referencia
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
G (mm)
H (mm)
I (mm)
J (mm)
Color (X)
Tension / Potencia
Intensidad
CAD
Datasheet
EFFI-IDQ3-00-120-X-X
210.0
169.6
110.9
126.2
240
218.0
226
74.0
138.2
35.0
●●●○
24V / 17.28W
24V / 15.36W
720mA
640mA
EFFI-IDQ3-00-190-X-X
270.0
215.7
131.1
156.0
300.2
278.0
286.2
134.0
198.0
35.0
●●●○
24V / 25.92W
24V / 23.04W
1080mA
960mA
EFFI-IDQ3-00-300-X-X
390.0
335.5
251.3
156.0
419.4
398.0
405.4
254.0
318.2
35.0
●●●○
24V / 43.20W
24V / 38.40W
1800mA
1600mA
EFFI-IDQ3-00-120-X-RGB
210.0
169.6
110.9
126.2
240
218.0
226.0
74.0
138.2
35.0
●●●○
24V / 9.60W
24V / 7.68W
24V / 7.68W
400mA
320mA
320mA
EFFI-IDQ3-00-190-X-RGB
270.0
215.7
131.1
156.0
300.2
278.0
286.2
134.0
198.0
35.0
●●●○
24V / 14.40W
24V / 11.52W
24V / 11.52W
600mA
480mA
480mA
EFFI-IDQ3-00-300-X-RGB
390.0
335.5
251.3
156.0
419.4
398.0
405.4
254.0
318.2
35.0
●●●○
24V / 24.00W
24V / 19.20W
24V / 19.20W
1000mA
800mA
800mA
Reemplace X en el número de pieza con el color deseado: ● R /
● G /
● B /
○ W
