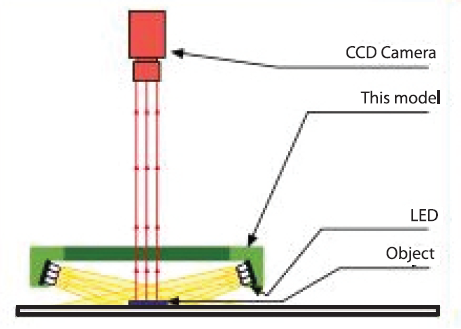

EFFI-LLA * est une Gama de iluminaciones Sistemas de iluminación anular perpendicular al eje de captura de la cámara. Esta técnica se utiliza para resaltar los defectos superficiales, grietas, surcos, etc. o para detectar, identificar y leer caracteres, códigos de matriz o barras grabadas en una superficie. Estos sistemas son ideales para aplicaciones donde la iluminación debe estar enfocada en el centro del objeto.
- 60° ou 75° = Low ángulo
- 90° = rasante
Es un iluminación compacto y de fácil integración en diferentes máquinas Tipos (robots, líneas de producción, máquinas especiales, cintas transportadoras, etc.).
* Disponible por la Francia, Alemania y Suiza
- Aplicaciones -
Inspección del estado de las superficies
Defectos de inspección, rugosidad o textura
Arañazos detección o relieves
Instruccion

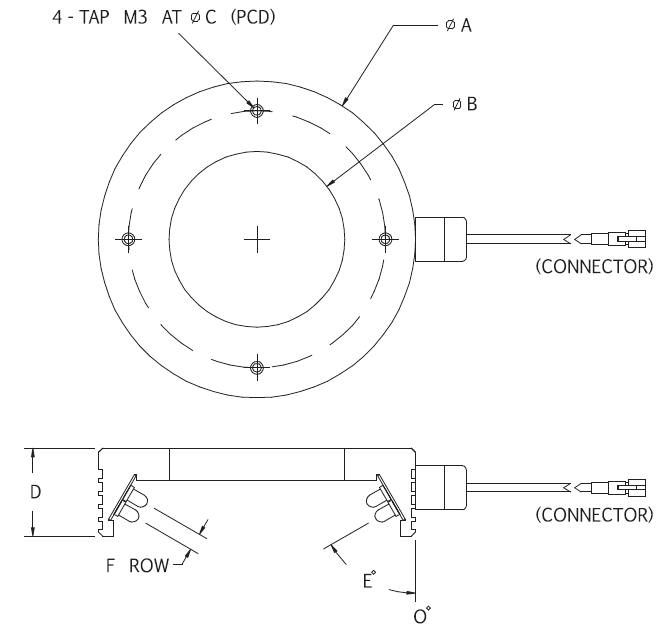

- Referencias -
- Références -
LLA 60 & 75
LLA 90
> LLA 60 & 75
Referencia
A (mm)
B (mm)
C (mm)
D (mm)
E°
F (Row)
Color (X)
Tension / Potencia
Intensidad
CAO
Datasheet
EFFI-LLA-60-070-2-X
74
41
60
20.5
60
2
● ●●○
24V / 3.60W
24V / 4.68W
150mA
195mA
EFFI-LLA-60-090-2-X
90
57
75
20.5
60
2
● ●●○
24V / 4.32W
24V / 5.76W
180mA
240mA
EFFI-LLA-60-150-3-X
151
114
136
23.5
60
3
● ●●○
24V / 11.88W
24V / 15.12W
495mA
630mA
EFFI-LLA-60-200-2-X
202
167
186
20.5
60
2
● ●●○
24V / 10.80W
24V / 14.04W
450mA
585mA
EFFI-LLA-75-130-3-X
131
94
116
24.5
75
3
● ●●○
24V / 10.08W
24V / 12.96W
420mA
540mA
EFFI-LLA-75-170-3-X
175
136
159
24.5
75
3
● ●●○
24V / 13.68W
24V / 17.64W
570mA
735mA
Reemplace X en el número de pieza con el color deseado: ● R /
● G /
● B /
○ W

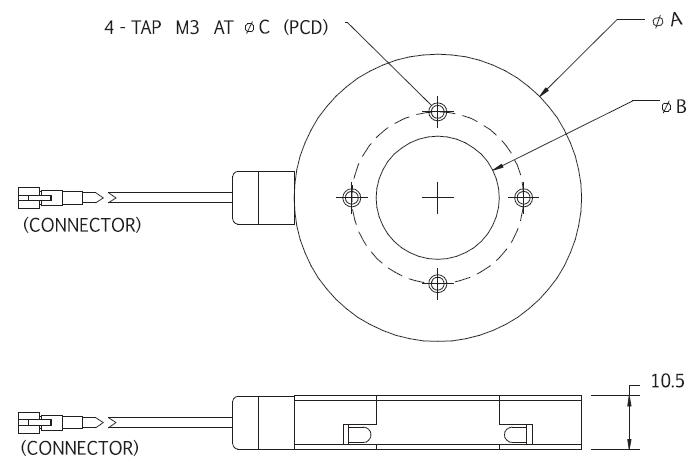

> LLA 90
Referencia
A (mm)
B (mm)
C (mm)
D (mm)
E°
F (Row)
Color (X)
Tension / Potencia
Intensidad
CAO
Datasheet
EFFI-LLA-90-050-1-X
56
24
33.5
10.5
90
1
● ●●○
24V / 1.08W
24V / 1.44W
45mA
60mA
EFFI-LLA-90-080-1-X
80
50
56.5
10.5
90
1
● ●●○
24V / 1.80W
24V / 2.52W
75mA
105mA
EFFI-LLA-90-100-1-X
101
71
77.5
10.5
90
1
● ●●○
24V / 2.52W
24V / 3.24W
105mA
135mA
EFFI-LLA-90-150-1-X
151
121
127.5
10.5
90
1
● ●●○
24V / 3.96W
24V / 5.04W
165mA
210mA
EFFI-LLA-90-180-1-X
181
151
157.5
10.5
90
1
● ●●○
24V / 4.68W
24V / 6.12W
105mA
135mA
EFFI-LLA-90-210-1-X
211
181
187
10.5
90
1
● ●●○
24V / 5.76W
24V / 7.20W
240mA
300mA
Reemplace X en el número de pieza con el color deseado: ● R /
● G /
● B /
○ W
