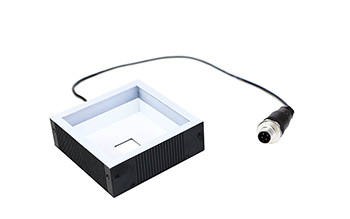

EFFI-DL | Iluminación cuadrado diffusa

effi-dl iluminación cuadrado con led diffusa por Aplicaciones en visión artificial et control de calidad

EFFI-DL * son un Iluminación difusa con un Iluminación lateral . De hecho, la luz viene del lado de la Iluminación Por un flujo emitido cónica a la habitación. Este sistema permite un Iluminación pastoreo y difundir tanto por Tipos diferentes inspecciones.

Se utiliza para Iluminación altura de la superficie de control, es decir, distancias muy pequeñas muestras . Este producto es muy compacta y fácil de integrar .

* Disponible por la Francia, Alemania y Suiza

DLQ2 & DLF2

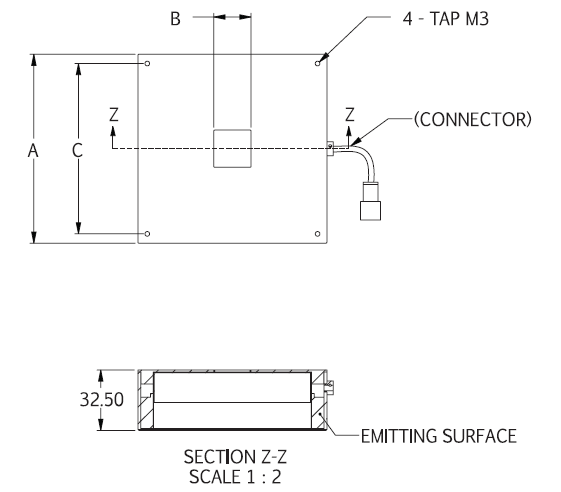

Diagrama que muestra las dimensiones del Effi-DLQ2 y DLF2 | Se utiliza para visión artificial y control de calidad.

DLS2 & DLW2

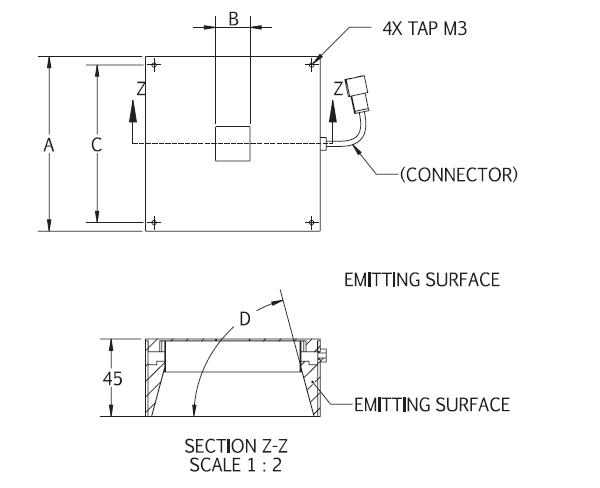

Diagrama que muestra las dimensiones del Effi-DLS2 y DLW2 | Se utiliza para visión artificial y control de calidad.

> DLQ2 & DLF2

Referencia	A (mm)	B (mm)	C (mm)	Color (X)	Tension / Potencia	Intensidad
EFFI-DLQ2-90-030-1-X	31.8	10	21	● ● ● ○	24V / 1.44W	60mA
EFFI-DLQ2-90-050-1-X	50.8	10	40	● ● ● ○	24V / 2.88W	120mA
EFFI-DLQ2-90-070-1-X	76.2	20	66	● ● ● ○	24V / 2.88W 24V / 4.32W	120mA 180mA
EFFI-DLQ2-90-100-1-X	101.6	20	91.5	● ● ● ○	24V / 4.32W 24V / 5.76W	180mA 240mA
EFFI-DLF2-90-050-1-X	50.8	26	40	● ● ● ○	24V / 2.88W	120mA
EFFI-DLF2-90-070-1-X	76.6	55	66	● ● ● ○	24V / 2.88W 24V / 4.32W	120mA 180mA
EFFI-DLF2-90-100-1-X	101.6	80	91.5	● ● ● ○	24V / 4.32W 24V / 5.76W	180mA 240mA

Reemplace X en el número de pieza con el color deseado: ● R / ● G / ● B / ○ W

> DLS2 & DLW2

Referencia	A (mm)	B (mm)	C (mm)	D°	Color (X)	Tension / Potencia	Intensidad
EFFI-DLS2-60-050-1-X	50.8	16.0	40.0	60	● ● ● ○	24V / 2.88W	120mA
EFFI-DLS2-60-070-1-X	76.2	20.0	66.0	60	● ● ● ○	24V / 2.88W 24V / 4.32W	120mA 180mA
EFFI-DLS2-60-100-1-X	101.6	20.0	91.5	60	● ● ● ○	24V / 4.32W 24V / 5.76W	180mA 240mA
EFFI-DLW2-60-070-1-X	76.2	40.0	66.0	60	● ● ● ○	24V / 2.88W 24V / 4.32W	120mA 180mA
EFFI-DLW2-60-100-1-X	101.6	66.0	91.5	60	● ● ● ○	24V / 4.32W 24V / 5.76W	180mA 240mA

Reemplace X en el número de pieza con el color deseado: ● R / ● G / ● B / ○ W
