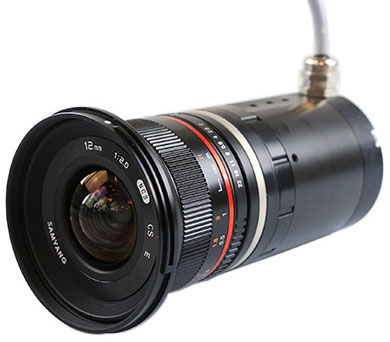

EFFI-Lase V3 Ultra High Power Structured Lighting LED Pattern Projector

Effilux EFFI-Lase V3 Powerful High Precision Structured Lighting LED Pattern Projector

Thanks to its LED source and the precisely engraved masks, this latest EFFI-Lase V3 is much more powerful than previous versions. It overcomes some of the difficulties of conventional laser sources by providing extremely high power , perfect sharpness , and eliminating diffusion and speckle.

Several masks and colors are available. All E-mount lenses can be easily mounted on the EFFI-Lase V3.

This flexible LED pattern projector can be integrated into any machine vision system, making it the ideal solution for stereovision, 3D profiling, reconstruction, positioning and alignment and measurement applications, for example on objects with inclined surfaces or complex structures. A special mask is also available for bodyscanning applications.

  • Ultra high power, superior homogeneity, high contrast, without speckle
  • Multiple masks available, possibility of custom mask
  • Large depth of field
  • Compatible with any E-mount lens
  • The electronic mode are extremely flexible and can be easily adapted to each application
  •

Datasheet
User manual

- Technical specifications -


- Available wavelengths -



Color Blue Converted-Green (White) Red
YYY : wavelength (nm) 465 520 625


Part number: EFFI-LASE-V3-YYY...

Please contact us for any other wavelength.


- Masks -


> 3D Profilometry

Mask Representation of a 3D profilometry mask of 1 line at 100μm for EFFI-Lase-V3. Representation of a 3D profilometry mask of 1 line at 20μm for EFFI-Lase-V3. Representation of a 3D profilometry mask of 100 lines at 67.5μm for EFFI-Lase-V3. Representation of a 3D profilometry mask of 22 lines at 75μm for EFFI-Lase-V3.
ZZZ: part number mask L01-3 L02-3 L07-3 L08-3
Designation 1 line 100µm 1 line 20µm 100 lines (19.5mm x 16.5mm) 22 lines (17.4mm x 16.5mm)
Line length (mm) 25 25 25 25
Step between each line (µm) / / 67.5µm / pitch 100µm 75µm / pitch 500µm

> Stereovision

Mask Representation of a stereovision mask of rounds on a surface of 25x25mm² for EFFI-Lase-V3. Representation of a stereovision round mask on a surface of 13x13mm² for EFFI-Lase-V3.
ZZZ: part number mask C02-3 C10-3 (Special Bodyscanning)
Designation Round Ø50µm Round Ø50µm
diameter 25mm 25mm
Pixel size (smallest dot) 22.5µm 20µm


Part number: EFFI-LASE-V3-YYY-ZZZ- ...

Please note that we can also integrate custom masks upon request.


- E-mount lenses -


lenses Lase V3 SONY mount
EFFO-SG-10-F2.8-4/3"-HR-EM EFFO-SG-12-F2-4/3"-HR-EM EFFO-SG-16-F2-4/3"-HR-EM EFFO-SG-21-F1.4-4/3"-HR-EM EFFO-SG-35-F1.2-4/3"-HR-EM EFFO-SG-50-F1.2-4/3"-HR-EM
Focale Distance (mm) 10 12 16 21 35 50
Diaphragme Aperture F2.8~22 F2.0~22 F2.0~22 F1.4~22 F1.2~22 F1.2~22
View Angle (°) 109.5 98.9 83.1 69.3 44.6 31.7
Filter Mount - M67 x 0.75 M77 x 0.75 M58 x 0.75 M62 x 0.75 M62 x 0.75
L x Ø (mm) 76.7 x 86 59.1 x 72.5 115.4 x 83 64.3 x 67.5 74.2 x 67.5 74.2 x 67.5

Lens are not included with the product. EFFI-Lase V3 is equipped with a E-mount (M35). Please Contact us for other requests.
EFFILUX recommends customer to use an objective for 1 inch sensor for large masks, such as cloud of dots.

- Drawings -

> CAD files

- EFFI-Lase V3-

Diagram showing the various components and their dimensions of an EFFI-Lase-V3 used for machine vision and quality control.

6 holes M4x4 could be used to attach the product.
EFFILUX recommends customer to use the "Elcom type" hinge (EFFM-1-0002) when attaching the product to the system

You can find the drawing and the weight of the products in the technical doc page.

- Connectors -

The EFFI-Lase V3 has an external driver on the cable. The pilot must be supplied with a constant voltage of 12V via an RD24 - 4 pins. Power consumption from 20W to 360W.

Characteristics of the 4-pin RD24 Male Connector used to power the Effi-Lase-V3 for machine vision and quality control.
Pin number Designation
1 +12V
2 PNP TRIGGER (trigger for rising edge) for strobe mode
Light OFF if VPNP < 3VDC / light ON @ 100% if VPNP > 3V DC
Max 12V DC - Analog voltage
3 GND
4 n.a.

Part number: EFFI-LASE-V3-YYY-ZZZ-RD24

> Option: Without connector

EFFI-Lase V3 is supplied with an RD24 connector. For a product with bare wires, please remove -RD24 at the end of the reference.

Part number: EFFI-LASE-V3-YYY-ZZZ

- Electronic modes -

> Strobe Mode (Standard)


Signal from an EFFI-Lase-V3 in the case of a strobe of 150ms at 5%
Duty Cycle = (TON/(TON + TOFF)) = 5%

The LED driver is automatically adjusted to give 30A pulses to the LEDs. The duty cycle to be respected is 5% with a maximum strobe duration of 150ms.

If the pulse is longer than 150ms, the protection is activated automatically: the lighting remains on for 150ms then goes out for 4s to keep a duty cycle of less than 5%.

Note: The driver rise time is between 40 and 70μs.

> Continuous Mode (Test Mode)

If with the switch on the driver, the Test mode is selected, with the PNP trigger set to ON continuously, the lighting comes on in continuous mode. It is a weak test mode allowing the optical adjustments of the system.

> Custom: Electronic flexibility

The electronics of the EFFI-Lase-V3 can be easily changed by programming the microcontroller inside the driver.

The parameters of the standard strobe mode (T ON=150 ms, T OFF=4s, Imax=30A) can be adapted to your application.
For example, we can change the value of the duty cycle or the power of the LED for a longer pulse.

Please contact Effilux for more information.

- Optical accessories -

> E-mount lenses

EFFILUX recommends using one of the following lenses with the EFFI-Lase-V3

lenses Lase V3 SONY mount
EFFO-SG-10-F2.8-4/3""-HR-EM EFFO-SG-12-F2-4/3""-HR-EM EFFO-SG-16-F2-4/3""-HR-EM EFFO-SG-21-F1.4-4/3""-HR-EM EFFO-SG-35-F1.2-4/3""-HR-EM EFFO-SG-50-F1.2-4/3""-HR-EM
Focale Distance (mm) 10 12 16 21 35 50
Diaphragme Aperture F2.8~22 F2.0~22 F2.0~22 F1.4~22 F1.2~22 F1.2~22
View Angle (°) 109.5 98.9 83.1 69.3 44.6 31.7
Filter Mount - M67 x 0.75 M77 x 0.75 M58 x 0.75 M62 x 0.75 M62 x 0.75
L x Ø (mm) 76.7 x 86 59.1 x 72.5 115.4 x 83 64.3 x 67.5 74.2 x 67.5 74.2 x 67.5

Lens are not included with the product. EFFI-Lase V3 is equipped with a E-mount (M35). Please Contact us for other requests.
EFFILUX recommends customer to use an objective for 1 inch sensor for large masks, such as cloud of dots.

- Custom -

Electronic version

Custom mask


For all other requests contact EFFILUX.
