EFFI-FD IP69K
Waterproof flat dome resistant to washing chemicals of the agri-food industry

EFFI-FD-IP69K - diffuse, powerful LED flat dome for reflective surface in industrial vision and for quality control in the food industry & washing environments.

The IP69K series features a 100% waterproof stainless steel profile specially designed for food industry and wash environments.

EFFI-FD IP69K is a diffused LED lighting flat dome for reflective surfaces. It is ideal for machine vision applications where light is both direct and diffused.

EFFI-FD IP69K offers the advantage of being easily integrated on a production line. It is even often used as the main mechanical basic vision application.

Datasheet
User manual



For food processing environment, the nickel-plated brass gland can be replaced with a stainless steel one.
If stainless steel gland, add -FOOD in the part number.

Part number: EFFI-FD-IP69K-FOOD-XXX-YYY-ZZZ

- Technical specifications -


- Dimensions -

YYY : optical length (mm)
XXX : optical width (mm) 150 200 250 300 400 500
150
200
300
400
500

Part number : EFFI-FD-IP69K-XXX-YYY...

For all other dimensions : please contact us


- Available wavelengths -



Color Blue Red IR White
(T°= 5700 K ± 700 K)
ZZZ : wavelength (nm) 465 625 850 000


Part number : EFFI-FD-IP69K-XXX-YYY-ZZZ


- Homogeneity-




Homogeneity > 90%

Useful surface ≈ illuminated surface

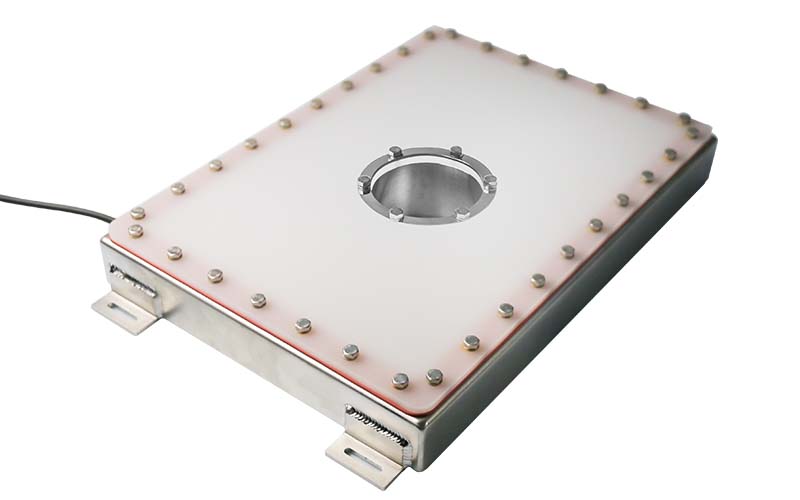

Representation of a EFFI-FD-IP69K - powerful LED flat dome for reflective surface in industrial vision and for quality control in the food industry & washing environments.

YYY : Optical length (mm)
XXX : Optical width (mm) 150 200 300 400 500
150
200
300
400
500

You can find the drawing and the weight of the products in the technical doc page.

- Depressurization valve -


IP Food certification of cables,
connectors and cable gland
Food contact compatible Venting presence (-V)
(equalizes the pressure and minimalizes the condensation)

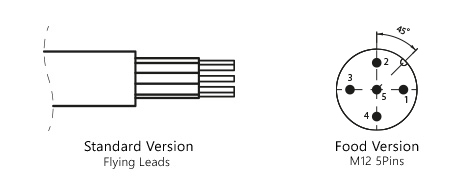

Standard IP69K Version
EFFI-FD-IP69K
FOOD IP69K Version
EFFI-FD-IP69K-FOOD

- Connectivity -


EFFI-FD-IP69K is connected to the supply by a M12 4-pin connector.

Pin number Cable color Designation
1 Brown +24V
2 White n.a.
3 Blue GND
4 Black DIM - max 24V


Features of the 4-pin M12 connector used to power the EFFI-BL for machine vision and quality control.



> EFFI-FD-IP69K - 30mA - Power (W)


Optical length (mm)
Optical width (mm) 150 200 300 400 500
150 10 13 20 26 32
200 17 26 34 42
300 38 51 63
400 68 84
500 105
Power Connectors type
Up to 70W M12
More than 70W M12 PWR
More than 200W Specific configuration

The EFFI-FD-IP69K is 30% less powerful than the Standard EFFI-FD.
For devices operating at 150mA, the number of connectors should be discussed.


- Dimming control -


Graph representing the light produced by an EFFI-FD as a function of the current received by a DIM pin.

EFFI-FD-IP69K is powered by a 24V DC source.

By using the DIM pin, the light intensity can be increased linearly :
• 0V - OFF
• 24V - Full ON



The product comes with a 10m cable without connectors
